Plasson type Valco type Big hersman type automatic feeders for

chickens

Main feeding line system:

Silo/manpower hopper is the beginning of main feed line. There is a feed sensor at the end

of  main feed line which controls motor on and off to achieve automatic feed delivery.

Advantages:

Reduce labor intensity, one person is enough for one house.

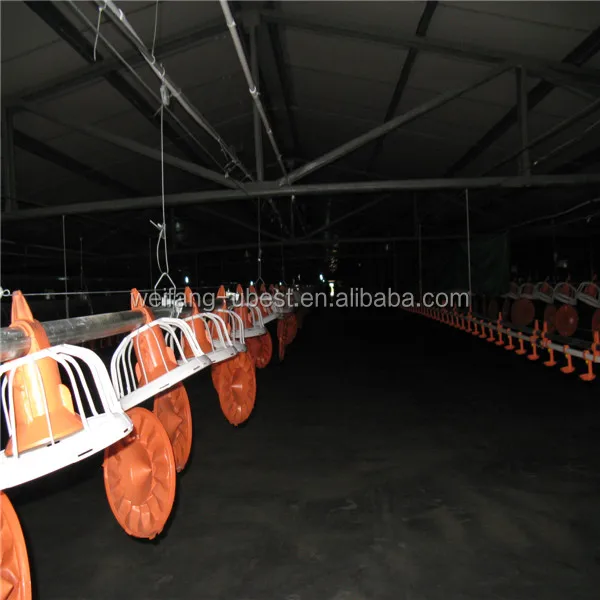

Automatic pan feeding line system:

There is a feed sensor at the end of each feeding line which controls motor on and off to

achieve automatic feed delivery.



Main feeding line system:

(1).Silo Material: Galvanized sheet; Capacity:2.5T to 27T; Silo boot: one/two/three

/four outlet

(2).Driving motor: 0.75kw, 380V, 50HZ, three phase, AC current

(3).Feed conveying pipe: diameter: 75*3.6mm, Material: PVC; Auger from South Africa,

Feeding abality: 1400kg/h

(4). Feed Level sensor Germany IFM feed level sensor.

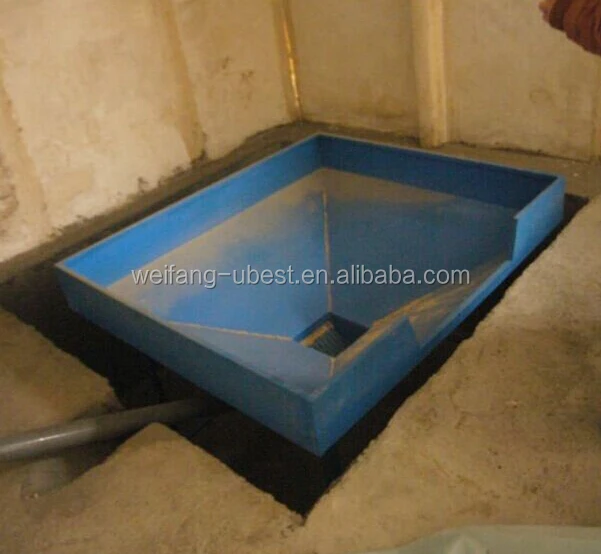

(5).If you don't use silo, you can use manpower hopper.Usually,if you just build one or

two farm,we suggest you use hopper instead of silo.

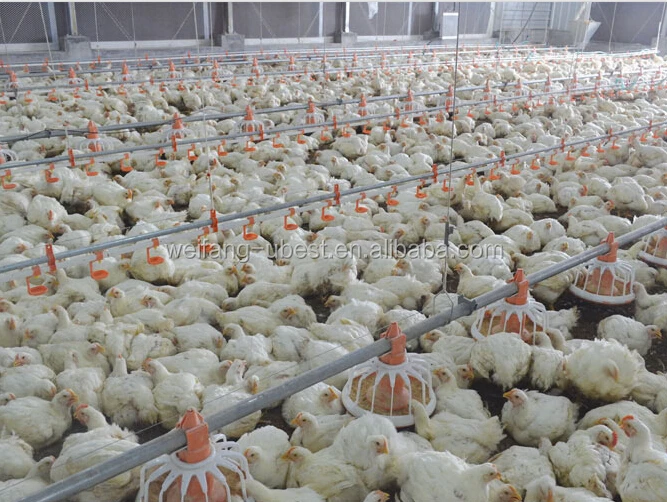

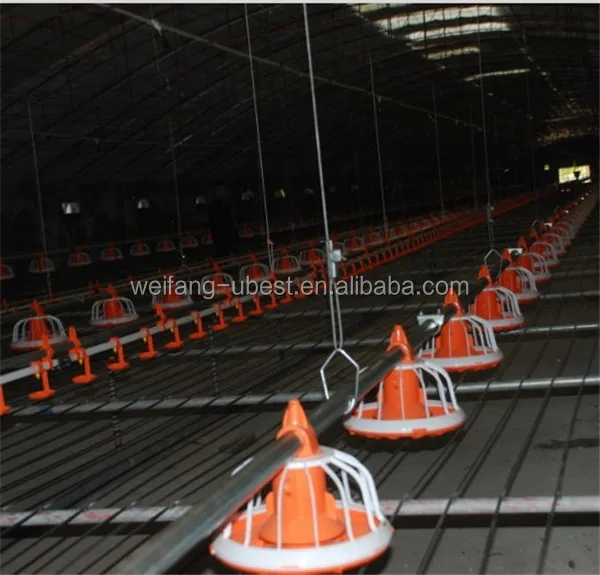

Automatic poultry pan feeding system:

(1).Feeder pan

(2).Delivery: 45mm diameter Auger ;450kg/h

(3).Hopper:70kg,1.0mm thickness,galvanized sheet

(4).Feed sensor and Drive motor:380v,50hz,0.75kw

(5).Hanging system , Anti-roost system.

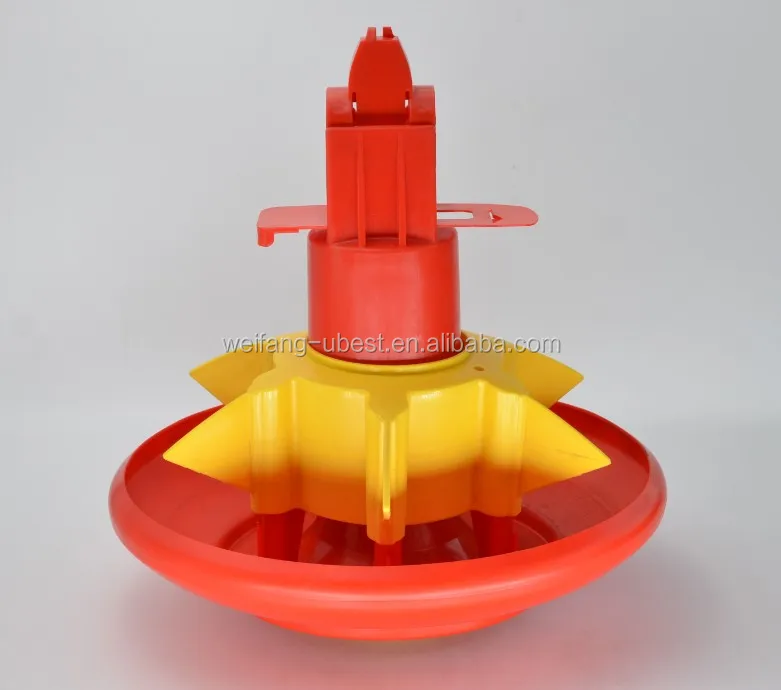

Details of broiler feeder pan:

Details of broiler feeding pan
No. of grilles per pan	14
No. of birds per pan could feed	40-55
Distance per grille	70mm
Density of broiler	13-18 birds/M2
Max feed per pan for one bird per day	180g/bird
Dimension	330mm×330mm



Feartures:

Easy installation.

The system can used consistently from day old to adult.

Long life.

Slates can easy to clear and keep poultry healthy.

Three types broiler feed pan are optiional:









Also, our factory can provide the following systems:



1.Automatic nipple drinking line system
2.Ventilation system
3.Cooling pad system
4.Environment control system
5.Spraying system
6.Curtain system
