Осушитель воздуха с подогревом 350 куб. М для воздушного компрессора
- Категория: Оборудование для сублимационной сушки >>>
- Поставщик: Hangzhou,Kelin,Aier,Qiyuan,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.77 $* | 0.50 $* |
| Aug-17-2025 | 0.99 $* | 0.67 $* |
| Jul-17-2025 | 0.79 $* | 0.99 $* |
| Jun-17-2025 | 0.63 $* | 0.60 $* |
| May-17-2025 | 0.8 $* | 0.36 $* |
| Apr-17-2025 | 0.3 $* | 0.60 $* |
| Mar-17-2025 | 0.1 $* | 0.50 $* |
| Feb-17-2025 | 0.94 $* | 0.59 $* |
| Jan-17-2025 | 0.10 $* | 0.19 $* |
Характеристики

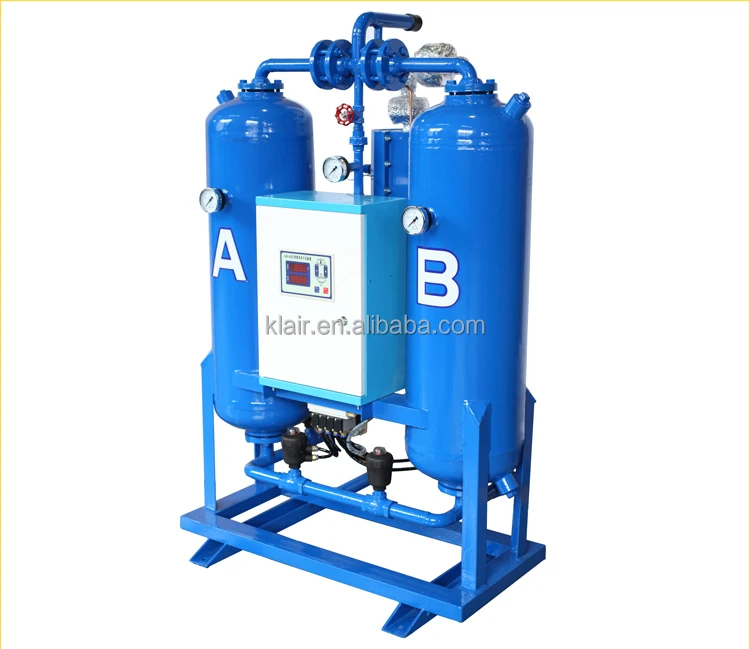

KXR Series heated regenerated air dryer includes an external electrical heater to heat dry purge air for desiccantregeneration. Heating allows the dryers to consume only 6% of the dried compressed air volume for this purposesignificantly less than is required for heatless air dryers. The flow capacity is available from 0.7 to 510m3/min,theoutlet pressure dew point is - 40 deg c .
High Performance pneumatic Valves Oil-less pneumatic valves are designed specifically for high temperature
applications and feature stainless steel internals and filled PTFE seats.
Low wattage heater with high temperature interlock Low-wattage high incoloy sheathed heater for efficient
regeneration. Heater high temperature with interlock alarm provides continuous monitoring of heater sheath
temperature. The heater will de-energize in a high temperature condition.
High quality desiccants - High quality, extra activated alumina is respectively filled in each tower.

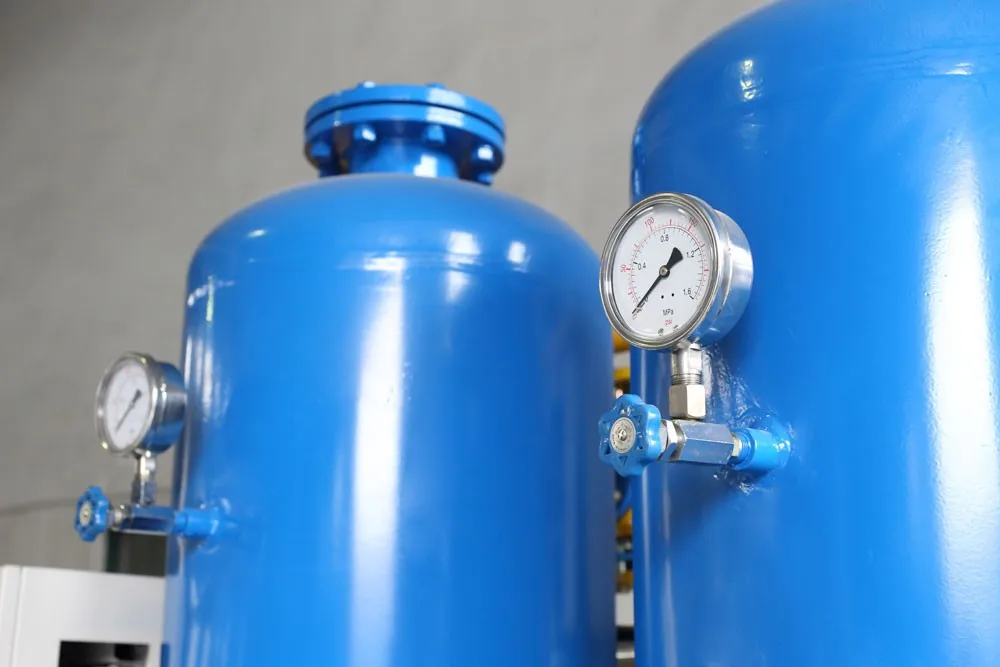

Pressure Gauges Located on each tower, provide visual indication of pressure during drying and regeneration processes.
Normal inlet pressure | 7 bar(g), |
Normal inlet temperature | 35°C |
Pressure dew point | -40°C |
Maximum operating pressure | 10bar |
Minimum operating pressure | 4bar |
Maximum inlet temperature | 50°C |
Minimum inlet temperature | 10°C |
Standard electrical supply | 380V/3Ph/50Hz |
Company Information
KL company was established in 1997, dedicated in the promotion and design of compressed air purifying equipments, is the first company to obtain Production Licenses and pass the examined in compressed air purifying business line. The leading product is refrigerated air dryer, desiccant air dryer, compressed air filter, water chiller , nitrogen / oxygen generator. (KL have the CE certificate and could provide the ASME code dryer for customer).
Office room info:
Factory info.:
Related products:
Exhibition:
Cooperation:
Package:
Our Services
The guarantee period for KL air dryer is 12 months dating from delivery date .During this time, KL submit after-service when damage occurred not by people.
Any delay in installation due to project, you may contact KL sales team to know the situation, KL company could extend the guarantee period but not longer than 16months after shipment date.
KL quality control---6S factory manage and ISO9001:2008
1.Components quality check;
2.Quality check in production;
3.Finally quality check before shipment, keep the testing report
FAQ
Pls kindly send it with below technical information , that's better for us quickly feedback your inquire:
1) Flow rate: _____Nm3/min
2) Working pressure: _____Bar
3) Connection: _____
4) Inlet temperautre : ______
5) Ambient temperature:______
6) Dew-point: _______
7) others
Any Inquiry or any question, pls contact:
Jamie Xu--working in KL team 11years.
Hangzhou Kelin Aier Qiyuan Equipment Co.ltd
Main Product: air dryer & water chiller & gas generator etc.
Add:Anxi Industrial Zone,Liangzhu,Yuhang,Hangzhou,China
Tel :+86-571-88790788
Fax:+86-571-88792222
Mobile:+86-15906676923
Email:jamie(at)china-air-dryer.com
Website:www.klqy.com
