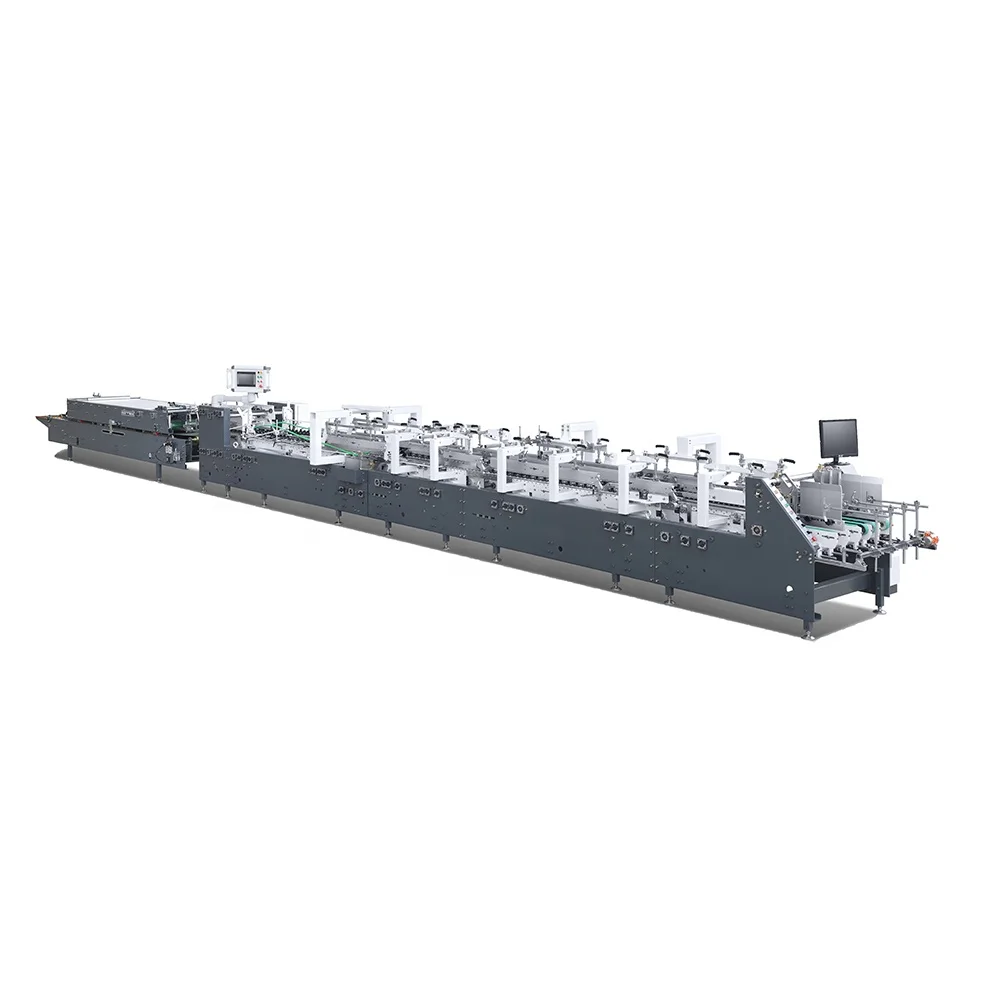

Автоматическая машина для изготовления коробок

Feeder

^{\tFully Automatic Feeder With Servo Motor 5kw
 30mm Friction Belts Soft Rubber Compound
\t3 Front paper supports (Quick adjustment for thickness of substrate)
\t2 Paper Side Guides
\tVibrator
\tFull Colour Video Monitor (Supervise view final product at the end of the Machine)}

Aliening unit

\t2 Bottom Transport Carriages (fitted with 34mm wide Belts)
\t1 left Hand Side Squaring Guide
\t1 Right Hand Side Squaring Guide
\tAdjustable top Carriages fitted with independent lever system which can be independently applied giving the desired pressure required for the alignment of Substrate carton blank
\tElectronic movements of carriages in and out of working position (Via remote control)

Pre Fold Unit

\t1st and 3rd crease
\tBottom left had side carriage 43 millimeter wide belt
\t3 Bottom Carriages
\t3 Top carriages
\tElectronic movements of carriages in and out of working position (Via remote control)

Crash bottom lock unit

\tTwo crash bottom lock units
\t3 Bottom Transport carriages
\t3 Top Transport carriages
\t4 Sets of crash lock hooks
\t3 Sets of diagonal folding shoes 2 Unit per Set
\tBottom chromed support bars
\tElectronic movements of carriages in and out of working position (Via remote control)

4 And 6 Corner

\t2 Servo Drive Motors 2kw Each
\t3 Folding Hooks 4 Corners
\t3 Folding Hooks 6 Corners
\t6 Corner Box Lid Can Be Folded from the Left or Right hand side Of Machine
\tMoveable Touch screen Commander Module (For programing Measurement's: Speed and position and Electronic angel of the folding Hooks)

Final Folding Unit

\tFolding 2 and 4 crease
\tEquipped with 2 glue tanks 1 Left 1 Right with 5 M/m disc
\tGuide rollers Left and right
\tAdjustable speed control of belts left and right
\tMovement of carriages electronic (via remote control)
\tRemovable Center top and bottom carriages (For production of small size boxes)

Trombone unit

\tDouble Trombone (Telescopic)
\tMotorized variable speed control of Belt Speed for smooth delivery ,motor driven independently
\tMoveable Touch screen Commander Module

 Batch counter Pneumatic kicker for batch count quantity

Pressing unit

\t1 Drive Motor 3.7 KW
 Front and Backward position
\tPneumatic pressing (Adjustable via Pneumatic Regulator valves)
\tPneumatic Front Stops (Squaring Device)
