Гидравлический ручной трубогиб трубогибочный

Категория: Pipe and Tube Bending Machines >>>
Поставщик: Zhangjiagang,Telhoo,Machinery,Manufacturer,Co.,Ltd.

Цена:9 800,00 $ - 11 250,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	11662.93 $*	12245.67 $*
Aug-17-2025	11564.20 $*	12142.31 $*
Jul-17-2025	9702.0 $*	10187.78 $*
Jun-17-2025	11368.12 $*	11936.86 $*
May-17-2025	9898.15 $*	10393.29 $*
Apr-17-2025	11172.34 $*	11731.22 $*
Mar-17-2025	11074.79 $*	11628.29 $*
Feb-17-2025	10976.99 $*	11525.45 $*
Jan-17-2025	10878.43 $*	11422.83 $*

Характеристики

DW75NC hydraulic 3 inch pipe bender

Adapted material:steel pipe, stainless steel, copper pipe, aluminum pipe;

Recommended application industry:

automobile fittings ( oil pipe for brake, muffler, seats), motorcycle, healthy equipment, air-conditioning,bicycle, steel furniture, sanitary wares and so on.

Main specification

1. NC control unit

2. Direct acting hydraulic clamping

3. Manual feeding and bending

4. Can make 2-dimensional elbow bend
5. Easy operaton interface and easy data input
6. Large program storage capacity up to 16 units
7. Automatically lock angle, angle changing is controlled by coder
8. High bending accuracy
9. Self diagnosis and error messages
10. Optional boost facility

11. Fit for carbon steel pipe, stainless steel pipe, alloy steel pipe, aluminium pipe, copper pipe, etc.

12. Bending diameter of pipe: 0.5-8 inch

13. Bending radius: 175-550mm

14. Max bending angle: 185 degrees

Technical parameter

Specification/Model	Unit	DW75NC	Remark
Max bending capability	mm	Φ75×3.5t	1. The Minimum bending radius based on the pipe diameter 2.The Max bending radius can according to the customer’s requirement 3.The Max length of mandrel can according to customer’s requirement
Max bending radius	mm	R300
Min bending radius	mm	R25
Max bending angle	Degree	185
Max effective distance of mandrel	mm	2700
Control System		NC Control
Max elbow bend pipe	Unit	16
Max storable sections	Unit	16×16
Motor power	KW	7.5
Max. Hydraulic Pressure	Mpa	14
Hydraulic System Control		Electromagnetic Valve
Oil Tank Capacity	L	150
Size	Cm	450×108×123
Weight of Machine	Kg	≈2680

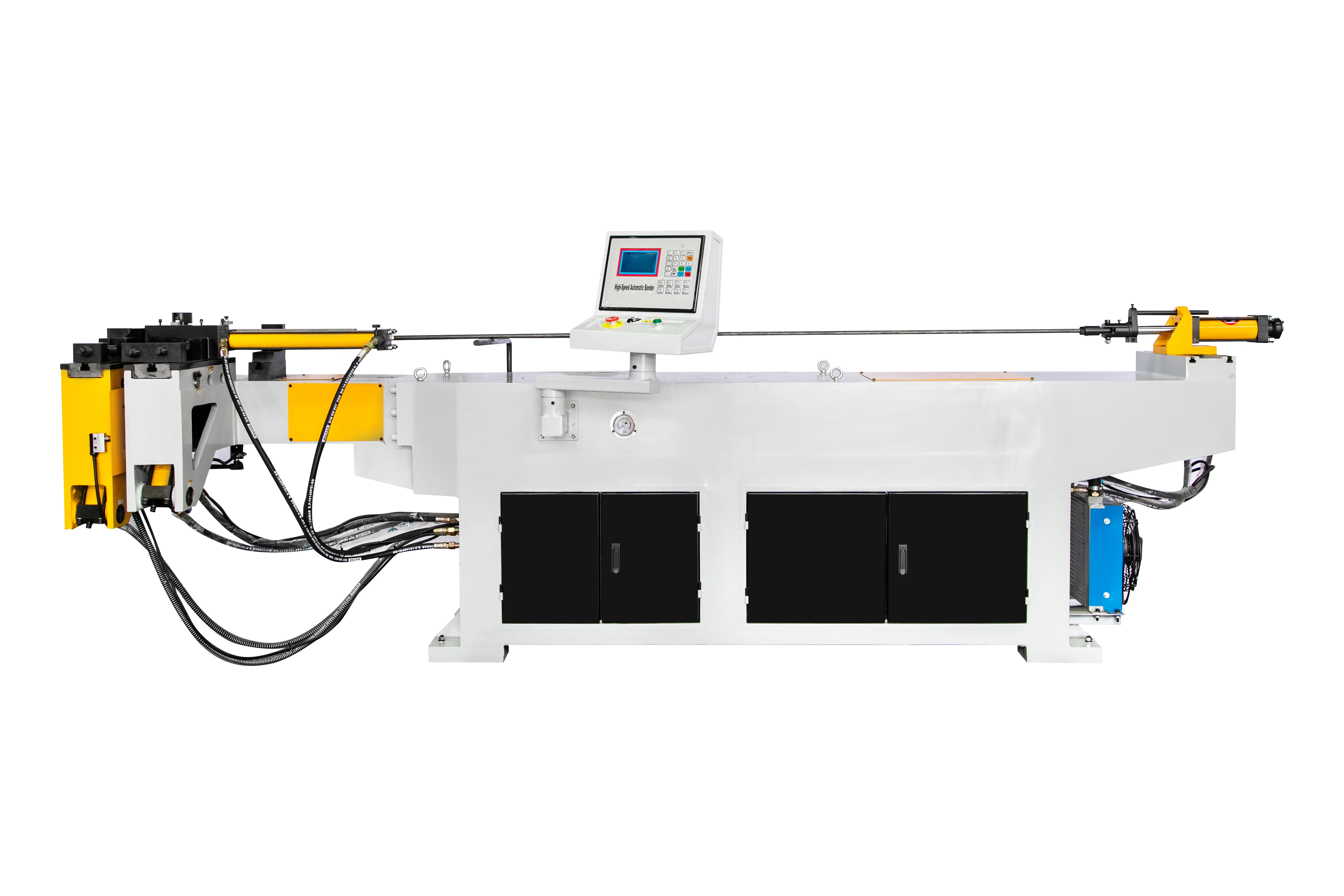

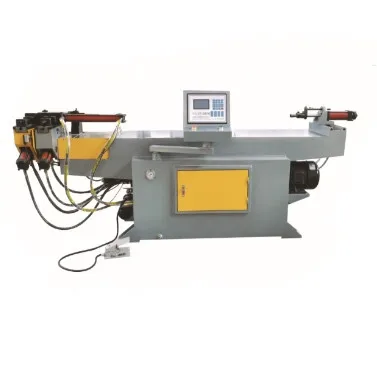

Machine picture

Our Factory

.jpg

Zhangjiagang City Telhoo Machinery Manufacturing Co.,Ltd., (belong to Hongkong Telhoo Holding Limited.)established in 1991, is TAIWAN joint venture manufacturer for pipe processing machinery.

Our company occupies an area of more than 30,000 square meters, has strong research and development capability and is also equipped with complete equipment of high precision. On the basis of over 25 years of production experience, adopt Taiwan technology and management methods, we have successfully developed series of micro-computer controlled DW, SW pipe bending machine, pipe-end forming machine,Auto-loading pipe cutting machine,Automatic Robot loading pipe bending machine and other automatic pipe processing machinery. With the high technology and creativity, We can also do non-standard machine by your request.

Our products are widely used in shipbuilding, Auto parts, furniture, fitness equipment, boilers, bicycles, motorcycles, petrochemical processing, plumbing, sanitation, bathing industries. and other process industries.

With new and high technology, advanced equipment, consummated crafts and complete detection means, we will provide satisfactory products and reasonable price to customers all around the world.We have exported our product to about 65 countries.

Let`s make it better.

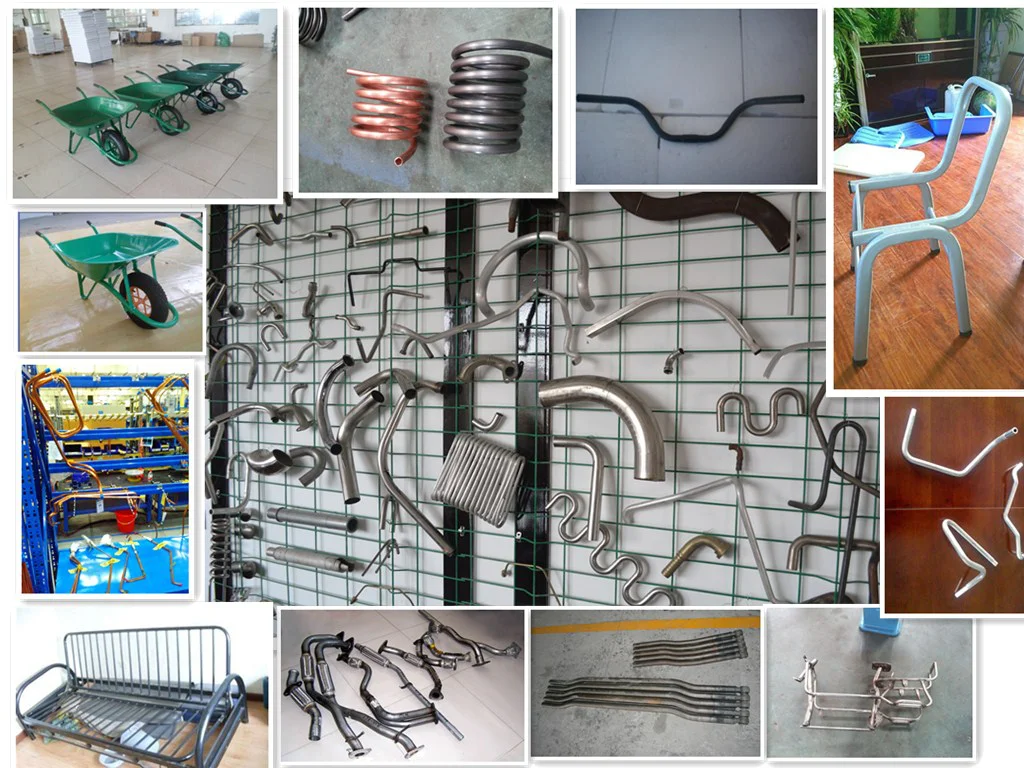

Application

Auto parts, furniture, fitness equipment, boilers, bicycles, shipbuilding...
