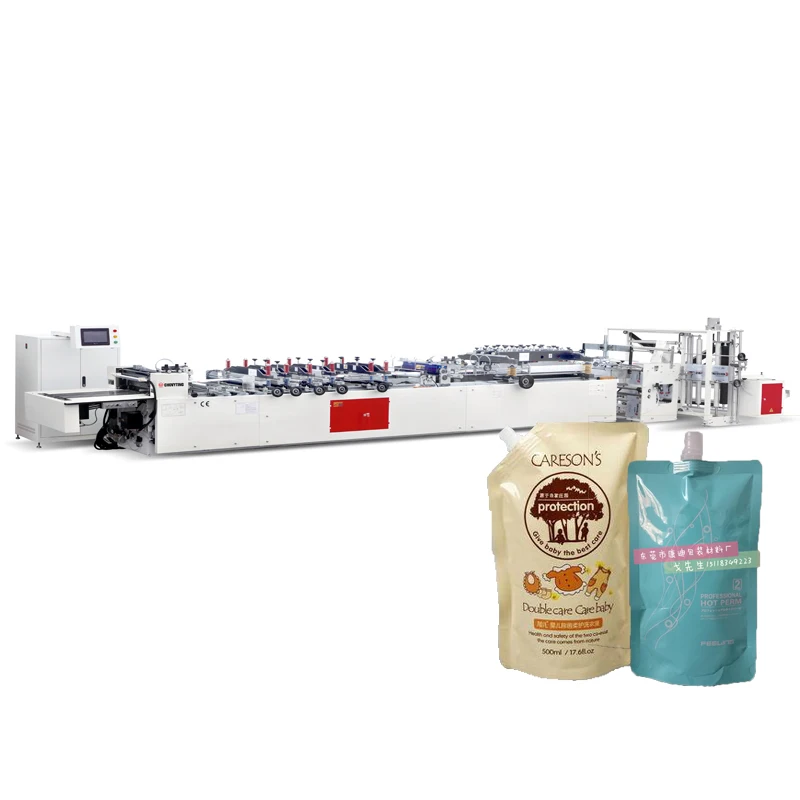

Индивидуальная Автоматическая ламинированная стоячая машина для производства пластиковых пакетов упаковка жидких напитков с
- Категория: Пакетоделательные машины >>>
- Поставщик: Zhejiang,Chovyting,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 35700.4 $* | 37485.2 $* |
| Aug-16-2025 | 35400.37 $* | 37170.9 $* |
| Jul-16-2025 | 29700.38 $* | 31185.95 $* |
| Jun-16-2025 | 34800.96 $* | 36540.96 $* |
| May-16-2025 | 30300.51 $* | 31815.97 $* |
| Apr-16-2025 | 34200.22 $* | 35910.91 $* |
| Mar-16-2025 | 33900.29 $* | 35595.57 $* |
| Feb-16-2025 | 33600.8 $* | 35280.7 $* |
| Jan-16-2025 | 33300.38 $* | 34965.78 $* |
Характеристики
Product Description
Product Application
Heavy duty laminated bag making machine,is used for producing various kinds of laminated soft package bag,such as three side sealing bag.stand up bag,zipper bag.
Main Features
1) Large human-computer interface screen control,automatic design.
2) It has EPC and double photocells tracking for unwinding.
3) Heavy-duty brige type heat sealing structure,will get stronger sealing.
4) Unwinding with automatic tension control.
Optional
1.Double layer unwinder device
2.Handle hole puncher
Technical Parameter
Model | CWZD-400B | CWZD-500B | CWZD-600B |
Width of unwinding | 800mm | 1000mm | 1200mm |
Pouch-making length | 70-380mm*N(N≤6) | 70-380mm*N(N≤6) | 70-380mm*N(N≤6) |
Pouch-making width | 70-380mm | 70-480mm | 70-580mm |
Speed | 40-160pcs/min | 40-160pcs/min | 40-160pcs/min |
Set film dragging speed | 35m/min | 35m/min | 30m/min |
Total power | 30kw | 35kw | 40kw |
Machine weight | 3600kg | 3800kg | 4100kg |
Overall dimension (LxWxH) | 8000*1750*1800mm | 8000*1950*1900mm | 8000*2050*2100mm |
Air compressor(not included) | 5HP | 5HP | 6.5HP |

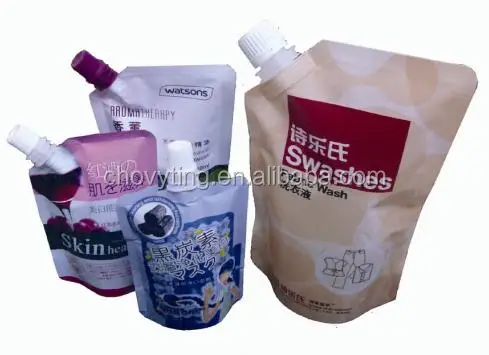

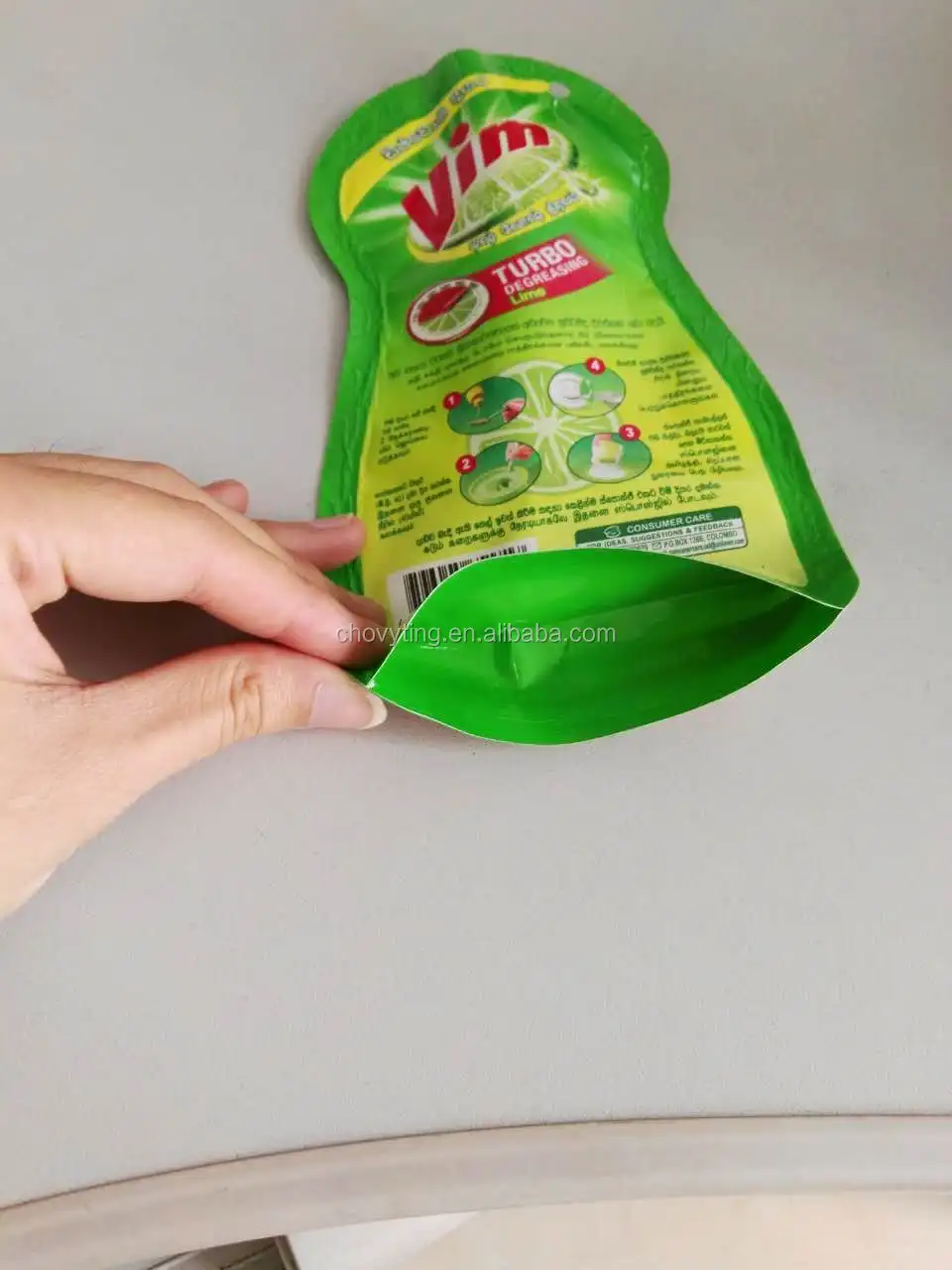

Sample Bag
Detailed Images
Unwinding device
1)With automatic tension monitor
2)Equipped with plug type and pneumatic locking device
Third film inserted stand up device
1)This device is horizontal expected level with photoelectric tracking with centralized control of the host computer with the computer on pneumatic control.
Zipper ultrasonic device
1)The zipper ultrasonic device make the zipper seal much more stronger with a independent controller.
Vertical sealing device
1)Vertical-sealing adopts 3 groups for heating fluctuation, cooling fluctuation from up and down..
Automatic feeding device from conveyor belt
Main Parts
Packing & Delivery

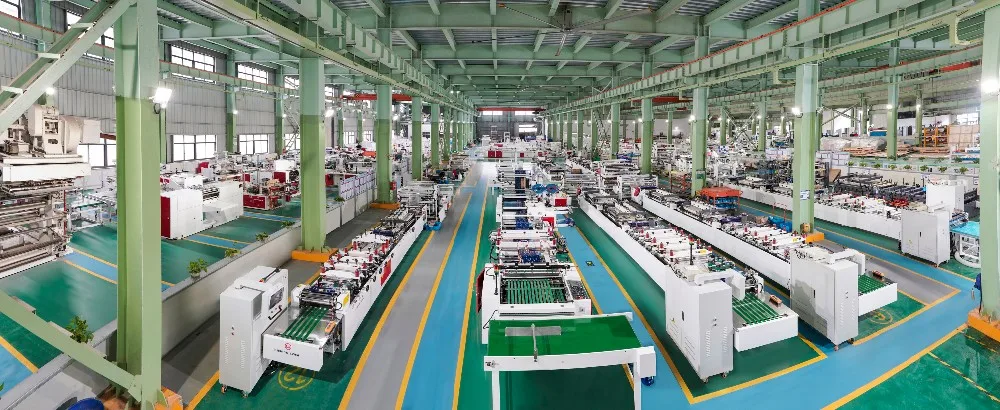

About Our Company
Certifications
EXHIBITIONS
FAQ
Q1- Is your company a factory or a trading company?
A1- CHOVYTING is a factory
Q3- What is the suitable material for your machines?
A3- PE, OPP, Composite material ,etc. Are suitable for CHOVYTING machines
Q4- What is type machines do you have ?
A4 - special for all of plastic bag making machine, like shopping bag, diaper bag, courier bag, stand up zipper pouch ,rolling garbage bag, bread bag, chicken bag etc...
Q5- How many years of your factory
A5- CHOVYTING MACHINERY setted up in 1999

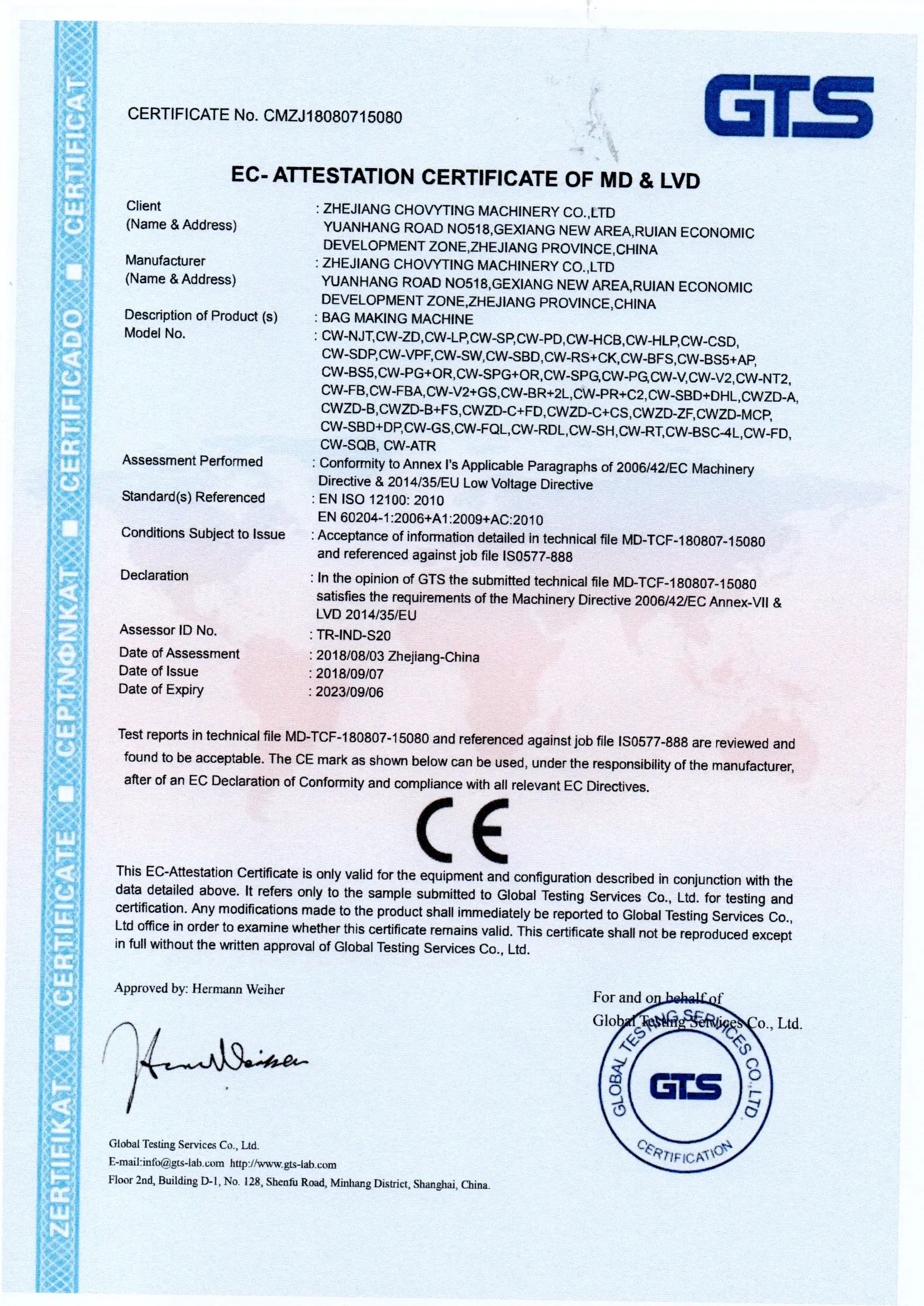

Q6- What is certificate of machine do you have
A6- CE, ISO 2016, And more than 100 piece Patent of machine
Q7- What about your company The development of your company
A7- CHOVYTING Titled as “National key and new products” and Pass identification of the provincial new product; and honored as”patent model enterprise”
Q8- How many exhibition we took part in
A8- We start to took part in CHINAPLAS from 2008 to now,and also K show in German,NPE in America,Arabplast in Dubai,Plastic Eurasia in Turkey etc..
Q9- how many workers from your company
A9- CHOVYTING has more than 150 employees
Q10-what is size of your factory
A10- CHOVYTING factory place have more than 10000 Square meters
A1- CHOVYTING is a factory
Q2- Where is your factory? How can i visit your company?
A2- CHOVYTING located in Ruian city,zhejiang province, China. Its about 40 minutes from shanghai by plane(4 hours by train). All our clients from home and abroad are warmly welcome to visit us.
A2- CHOVYTING located in Ruian city,zhejiang province, China. Its about 40 minutes from shanghai by plane(4 hours by train). All our clients from home and abroad are warmly welcome to visit us.
Q3- What is the suitable material for your machines?
A3- PE, OPP, Composite material ,etc. Are suitable for CHOVYTING machines
Q4- What is type machines do you have ?
A4 - special for all of plastic bag making machine, like shopping bag, diaper bag, courier bag, stand up zipper pouch ,rolling garbage bag, bread bag, chicken bag etc...
Q5- How many years of your factory
A5- CHOVYTING MACHINERY setted up in 1999
Q6- What is certificate of machine do you have
A6- CE, ISO 2016, And more than 100 piece Patent of machine
Q7- What about your company The development of your company
A7- CHOVYTING Titled as “National key and new products” and Pass identification of the provincial new product; and honored as”patent model enterprise”
Q8- How many exhibition we took part in
A8- We start to took part in CHINAPLAS from 2008 to now,and also K show in German,NPE in America,Arabplast in Dubai,Plastic Eurasia in Turkey etc..
Q9- how many workers from your company
A9- CHOVYTING has more than 150 employees
Q10-what is size of your factory
A10- CHOVYTING factory place have more than 10000 Square meters
Related Products
CWZD-400A Three side¢ral sealing bag making machine
CWZD-400B+FS Four side sealing laminated bag making machine
CW-400ZF High speed central sealing and four side sealing bag making machine
CHOVYTING MACHINERY specialized in making plastic bag/pouch making machinery since 1999. Supported by all the customers in China and all over the world.
