Low price high quality end facing and beveling machine

Technical specification

Models of end beveling machine for ERW pipe mill

Model	Specification(mm)	Length(m)	Capacity(Kw)	Area(estimaterM)
ZFPT-100	Φ50~Φ114	6~12	70	4×22
ZFPT-160	Φ60~Φ168	6~12	80	4×22
ZFPT-220	Φ89~Φ219	6~12	60	5×22
ZFPT-350	Φ140~Φ355	8~12	70	5×22
ZFPT-400	Φ168~Φ426	8~12	90	5×22
ZFPT-500	Φ219~Φ508	8~12	100	5×23
ZFPT-600	Φ219~Φ610	8~12	150	5×23



Models of end beveling machine for Spiral welded pipe mill

Model	Specification(mm)	Length(m)	Capacity(Kw)	Area(estimaterM)
LHPT-400	Φ219~Φ426	6~12	70	5×23
LHPT-650	Φ219~Φ630	6~12	80	5×23
LHPT-800	Φ325~Φ820	6~12	60	5×23
LHPT-1000	Φ426~Φ1020	8~12	70	5×23
LHPT-1400	Φ508~Φ1420	8~12	90	5×23
LHPT-1800	Φ630~Φ1820	8~12	100	5×23
LHPT-2400	Φ720~Φ2400	8~12	150	5×23
LHPT-3000	Φ820~Φ3000	8~12	160	5×23
LHPT-3500	Φ1020~Φ3500	8~12	180	5×25

Introduction

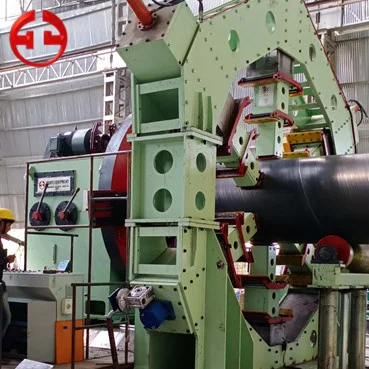

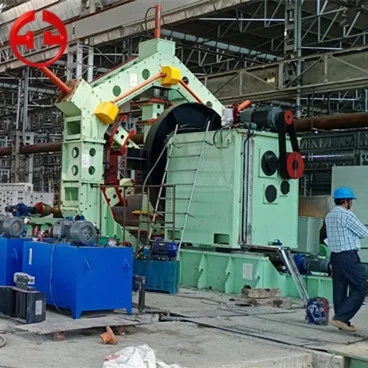

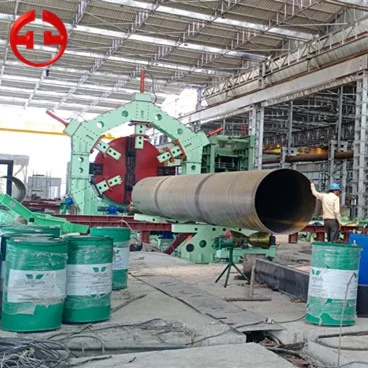

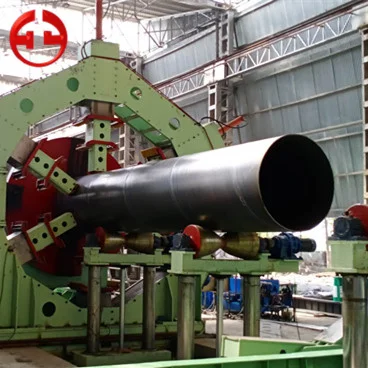

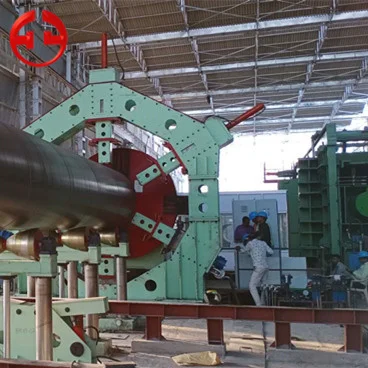

This machine is mainly used for beveling to the tube-side and processing grooves .Equipped with profiling chamfering tool and it can make groove levelling and slinky.

Process flow

Pipe on – receiving – clamping – end beveling – loosening – finished pipe

Description

1.ZFPT-100_Φ114 mm ERW end facing and beveling machine;

2.ZFPT-160_Φ168 mm ERW end facing and beveling machine;

3.ZFPT-220_Φ219 mm ERW end facing and beveling machine;

4.ZFPT-350_Φ355 mm ERW end facing and beveling machine;

5.ZFPT-400_Φ426 mm ERW end facing and beveling machine;

6.ZFPT-500_Φ508 mm ERW end facing and beveling machine;

7.ZFPT-600_Φ610 mm ERW end facing and beveling machine;

8.LHPT-400_Φ426 mm Spiral pipe end facing and beveling machine;

9.LHPT-650_Φ630 mm Spiral pipe end facing and beveling machine;

10.LHPT-800_Φ820 mm Spiral pipe end facing and beveling machine;

11.LHPT-1000_Φ1020 mm Spiral pipe end facing and beveling machine;

12.LHPT-1400_Φ1420 mm Spiral pipe end facing and beveling machine;

13.LHPT-1800_Φ1820 mm Spiral pipe end facing and beveling machine;

14.LHPT-2400_Φ2400 mm Spiral pipe end facing and beveling machine;

15.LHPT-3000_Φ3000 mm Spiral pipe end facing and beveling machine;

16.LHPT-3500_Φ3500 mm Spiral pipe end facing and beveling machine.
