Характеристики
Braking Resistor

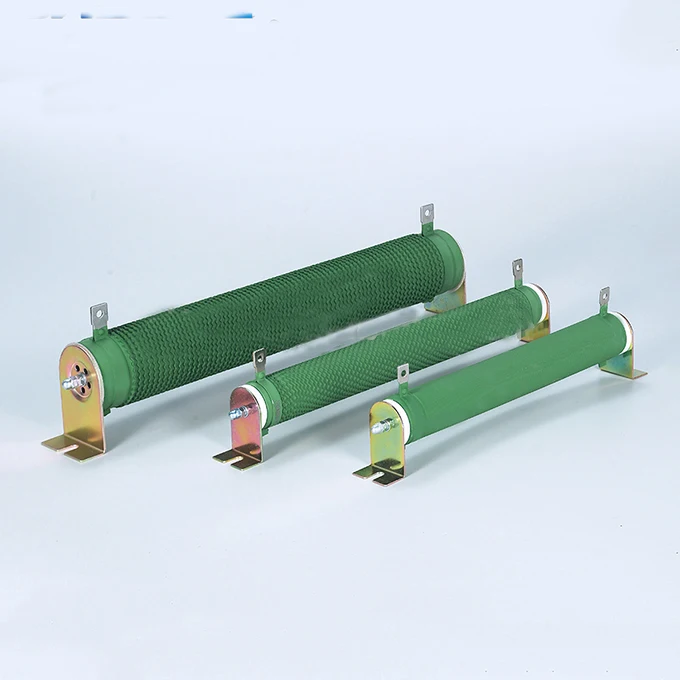

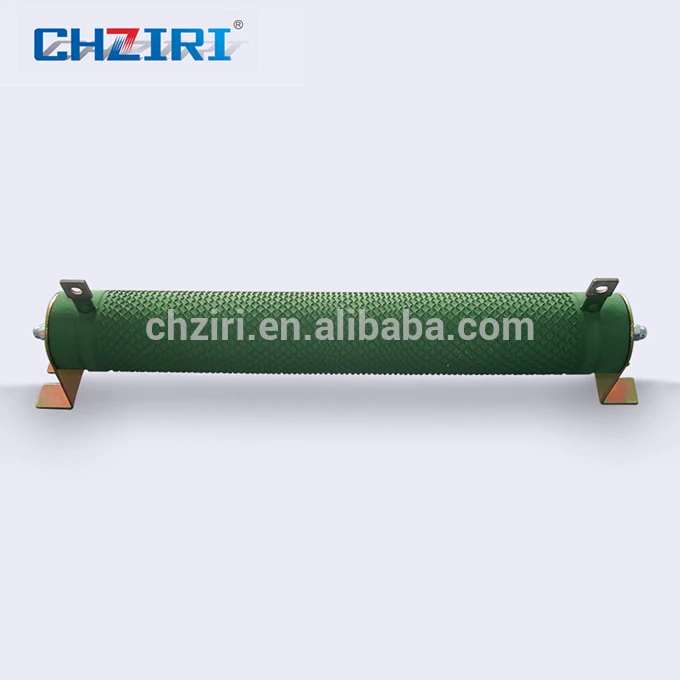

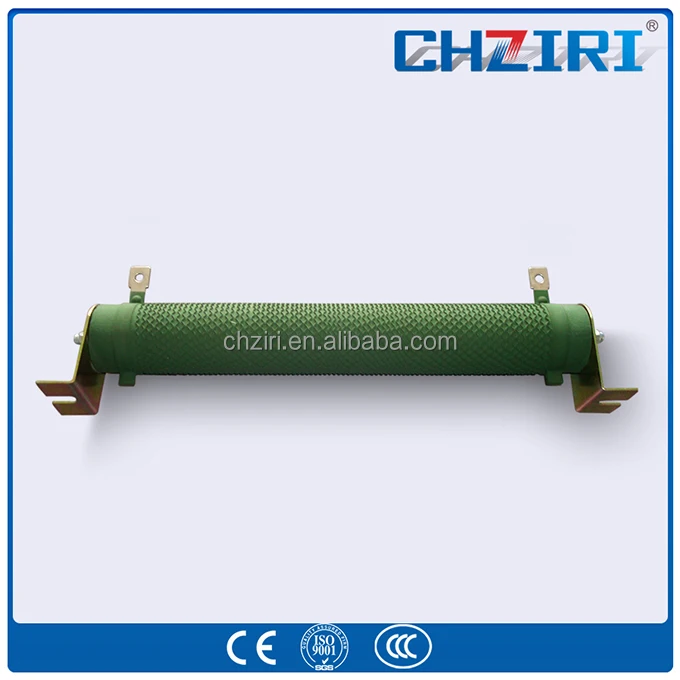

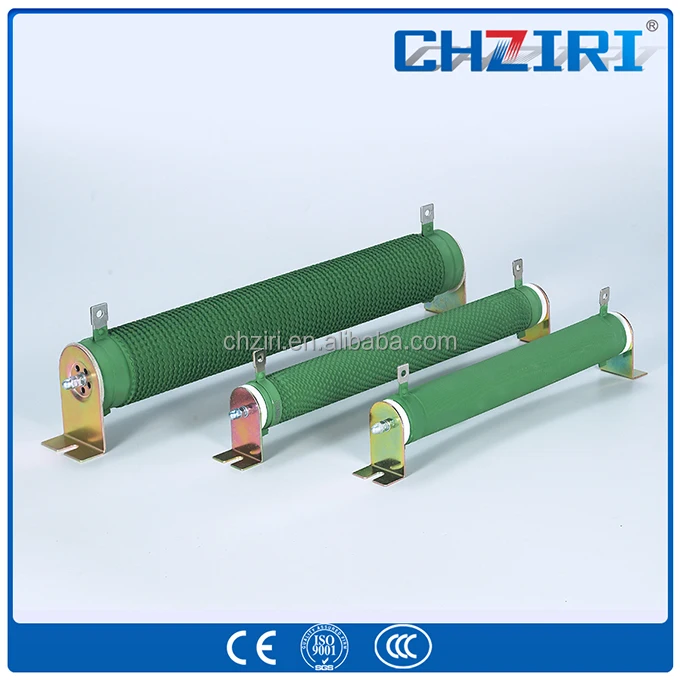

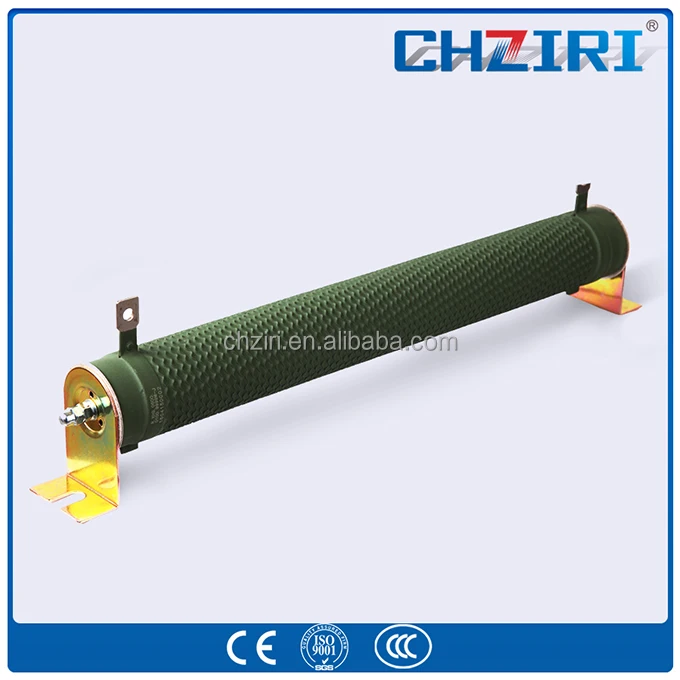

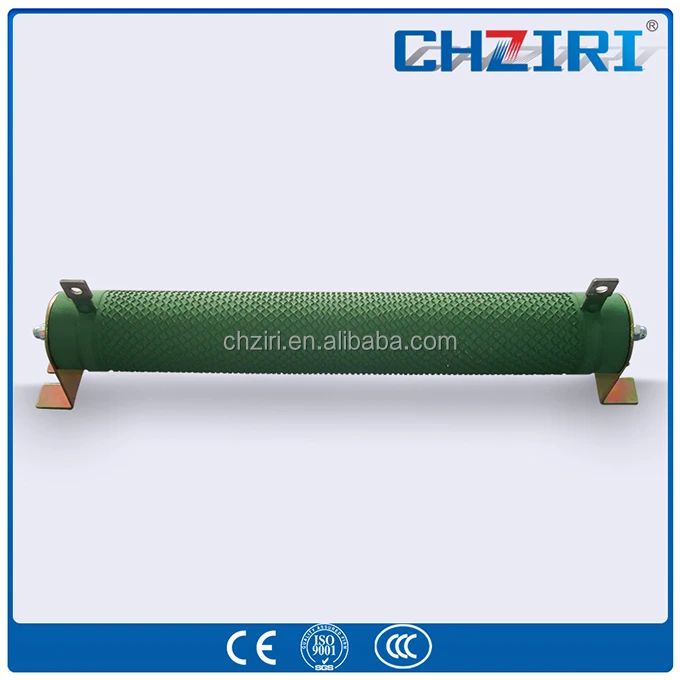

Two terminal extensions are fixed on both ends of a ceramic tube on whose surface winds wave-shaped alloy resistance wire and a high temperature-resistant and fireproof coating are applied. The ceramic tube can function as resistance wire skeleton and heat radiator as well . This product can be customized to special needs of customers and applicable to simulation load test, equipend discharge, automated control and inverter's energy loss brake.
Two terminal extensions are fixed on both ends of a ceramic tube on whose surface winds wave-shaped alloy resistance wire and a high temperature-resistant and fireproof coating are applied. The ceramic tube can function as resistance wire skeleton and heat radiator as well . This product can be customized to special needs of customers and applicable to simulation load test, equipend discharge, automated control and inverter's energy loss brake.
Inverter braking resistor 35 40 50 60 70 75 100 ohm resistor
Product Overviews
| Product Description | ||
|
Inverter braking resistor 35 40 50 60 70 75 100 ohm resistor
The wirewound resistor is made by fixing two leading-out terminals on the cylindrical ceramic tube which is coiled by bandlet and wave shape alloy resistance wire. The surface of the ceramic tube is coated by layer of coating which is resistant to flaming and high temperature .As the framework of the resistance wire. The ceramic tube can also work as the radiator .this product can be made to order .It is suitable for simulated load test .the discharging of equipment .automatic control and the dynamic braking of the transducer .
Two terminal extensions are fixed on both ends of a ceramic tube on whose surface winds wave-shaped alloy resistance wire and a high temperature-resistant and fireproof coating are applied. The ceramic tube can function as resistance wire skeleton and heat radiator as well . This product can be customized to special needs of customers and applicable to simulation load test, equipped discharge, automated control and inverter's energy loss brake.
| Inverter | Braking Unit | Braking resistor | ||||
| Voltage(V) | Motor(KW) | Model | Quantity(PCS) | Recommed resistor value | Resisitor specification | Quantity(PCS) |
| 220V | 0.75KW | Built-in | 80W200Ω | 80W200Ω | 1 | |
| 1.5KW | Built-in | 200W100Ω | 200W100Ω | 1 | ||
| 2.2KW | Built-in | 300W70Ω | 300W70Ω | 1 | ||
| 3.7KW | Built-in | 400W40Ω | 400W40Ω | 1 | ||
| 380V | 0.75KW | Built-in | 80W750Ω | 80W750Ω | 1 | |
| 1.5KW | Built-in | 200W400Ω | 200W400Ω | 1 | ||
| 2.2KW | Built-in | 300W250Ω | 300W250Ω | 1 | ||
| 3.7KW | Built-in | 400W150Ω | 400W150Ω | 1 | ||
| 5.5KW | Built-in | 600W100Ω | 600W100Ω | 1 | ||
| 7.5KW | Built-in | 800W75Ω | 800W75Ω | 1 | ||
| 11KW | Built-in | 1000W50Ω | 1000W50Ω | 1 | ||
| 15KW | Built-in | 1500W40Ω | 1500W40Ω | 1 | ||
| 18.5KW | 4030 | 1 | 2500W35Ω | 2500W35Ω | 1 | |
| 22KW | 4030 | 1 | 3000W27.2Ω | 3000W27.2Ω | 1 | |
| 30KW | 4030 | 1 | 5000W19.2Ω | 2500W38.4Ω | 2 | |
| 37KW | 4045 | 1 | 6000W16Ω | 2000W48Ω | 3 | |
| 45KW | 4045 | 2 | 9600W13.6Ω | 2500W54.4Ω | 4 | |
| 55KW | 4030 | 2 | 12000W10Ω | 2000W60Ω | 6 | |
| 75KW | 4045 | 2 | 19200W6.8Ω | 2500W54.4Ω | 8 | |
| Braking Resistor Box | Quantity(PCS) | |||||
| 90KW | 4030 | 3 | 9600W20Ω | 3 | ||
| 100KW | 4220 | 1 | 9600W20Ω | 3 | ||
| 132-160KW | 4220 | 1 | 40KW3.4Ω | 1 | ||
| 185-220KW | 4220 | 1 | 60KW3.2Ω | 1 | ||
| 250-315KW | 4220 | 2 | 40KW4.5Ω | 2 | ||
| 315-600KW | 4220 | 3 | 60KW3Ω | 3 | ||
| Dimension (Unit:mm) | ||
|
| Rated power (w) | Dimension(mm) | ||||||||||
| L1(±2) | L2(±5) | L3(±3) | D(±2) | B | B1 | H | H1(±3) | N | ¢d | O | |
| 50 | 102 | 124 | 146 | 28 | 6.5 | 28 | 28 | 61 | 10 | 4.5 | 1.2 |
| 60 | 102 | 124 | 146 | 28 | 6.5 | 28 | 28 | 61 | 10 | 4.5 | 1.2 |
| 80 | 152 | 174 | 196 | 28 | 6.5 | 28 | 28 | 61 | 10 | 4.5 | 1.2 |
| 100 | 182 | 204 | 226 | 28 | 6.5 | 28 | 28 | 61 | 10 | 4.5 | 1.2 |
| 120 | 182 | 204 | 226 | 28 | 6.5 | 28 | 28 | 61 | 10 | 4.5 | 1.2 |
| 150 | 195 | 217 | 239 | 40 | 8 | 40 | 41 | 81 | 12 | 5.5 | 2.0 |
| 200 | 195 | 217 | 239 | 40 | 8 | 40 | 41 | 81 | 12 | 5.5 | 2.0 |
| 300 | 282 | 304 | 326 | 40 | 8 | 40 | 41 | 81 | 12 | 5.5 | 2.0 |
| 400 | 282 | 304 | 326 | 40 | 8 | 40 | 41 | 81 | 12 | 5.5 | 2.0 |
| 500 | 316 | 338 | 360 | 50 | 8 | 50 | 45 | 101 | 16 | 6 | 2.0 |
| 600 | 345 | 367 | 389 | 40 | 8 | 40 | 41 | 81 | 12 | 5.5 | 2.0 |
| 750 | 316 | 338 | 360 | 50 | 8 | 50 | 45 | 101 | 16 | 6 | 2.0 |
| 1000 | 300 | 325 | 350 | 60 | 8.5 | 60 | 60 | 119 | 16 | 6 | 2.0 |
| 1200 | 415 | 440 | 465 | 60 | 8.5 | 60 | 60 | 119 | 16 | 6 | 2.0 |
| 1500 | 415 | 440 | 465 | 60 | 8.5 | 60 | 60 | 119 | 16 | 6 | 2.0 |
| 2000 | 510 | 535 | 560 | 60 | 8.5 | 60 | 60 | 119 | 16 | 6 | 2.0 |
| 2500 | 600 | 625 | 650 | 60 | 8.5 | 60 | 60 | 119 | 16 | 6 | 2.0 |
