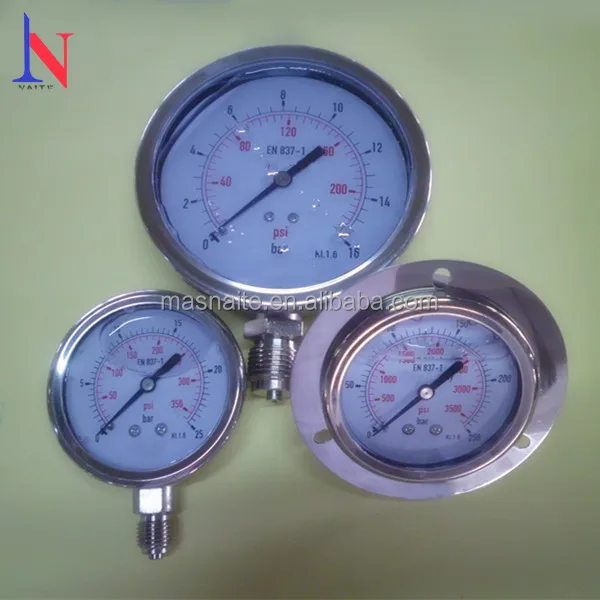

2.5" or 4" Hot Sales High Quality Pressure Gauge Bar
Product Description
Applications
. With liquid filled case for applications with high dynamic pressure pulsations or vibration pressure pulsations or vibration
. Suitable for corrosive environments and gaseous or liquid media that will not obstruct the pressure system
. Process industry: chemical/petrochemical, power,stations, mining, on and offshore, environmental technology, mechanical engineering and plant construction
Standard Features
Normal Size: 2.5” /63mm, 4"/100mm
Case/ring: 304 stainless steel oil filled case
Wetted Parts: copper alloy and chrome plating brass connection
Window:polycarbonate
Accuracy: 2.5"/63mm -- ± 2.5% , 4"/100mm -- 1.6%
Connection: Lower or back entry
Oil filled: glycerin or silicone
Available Options
. Other diameter size, 1.5", 2", 6", 8" and 10"
. Complete stainless steel contruct
. U-clamp for back entry
. Heavy case with blast hole model IP65
. Special connections
Optional Models
More hot sales pressure gauge bar
Pressure gauge with U-clamp
Full stainless steel pressure gauge
Pressure regulator gauge
Company Information
Pressure Gauge Production Process
Packaging & Shipping
Our Services
1. Sample supplied for evaluation
2. Small trial order
3. Custom dial and logo design
4. Custom dial and logo design
5. Professional service before sales and after sales
6. 12 Months garantee time
Naite --Our Family
Pressure Gauge Specification
| Dials Size | 1.5, 2, 2.5, 3, 3.5, 4 and 6 inches | |||
| Pressure range | - 0.1 - 0 -100Mpa | |||
| Case | stainless steel, plastic , forged brass and steel | |||
| Bezel | stainless steel, steel or wihtout | |||
| Movement | stainless steel, brass | |||
| Socket | stainless steel, brass | |||
| Connection sizes | 1/8, 1/4, 3/8 and 1/2 inches | |||
| Connection threads | NPT, BSP (G, PF), BSPT (ZG, PT) | |||
| Connection mounting | bottom, top, left, right and center back | |||
| Connector | stainless steel, Brass | |||
| Bourdon tube | stainless steel, phosphor bronze | |||
| Dial and pointer | aluminum | |||
| Dial plate | single and dual scale (psi, kpa,mpa, bar, kg/cm2 avaible | |||
| Window | tempered glass, polycarbonate | |||
| Accuracy range | 1%, 1.6%, 2.5% | |||
| Working temperture | -20°C- 70°C | |||
| Filled medium | glycerine,Silicone | |||
Our more product
More Product
Refrigerant pressure gauge
Dry pressure gauge
FAQ
FAQ
Q1: Are you factory?
A1: Yes, we are a pressure gauge factory with 11 years experience.
Q2: What's your MOQ?
A2: There's no MOQ limits, 1 piece for test at first is acceptable.
Q3: Are you Trade Assurance Supplier ?
A3: Yes, we are a member of Alibaba Trade Assurance,we have Trade Assurance amount of USD 44,000 which granted by Aliababa.com .
Q4: Can we print our logo on the gauge?
A4: Yes, we can print logo as customer requirement.
Q5: What about your quality?
A5: We guarantee that our pressure gauges are 100% inspection before ship to our client.
Q6: What is your production capacity ?
A6: Our production capacity is about 100,000 pieces per month.
Q7: What's delivery way?
A7: We suggest to send by sea for large quanitity order, but for less 1 pallet order, courier is best choice.
Q8: What's your payment terms?
A8: Our acceptable payment is TT, Western Union, Paypal, LC(large order)
