China supplier quality switchable pdlc smart glass with electric privacy film

smart glass/switchable glass/pdlc smart glass

Smart glass is also called private glass, magic glass, smart film glass and intelligent switchable glass, which is a laminated glass that contains the polymer-liquid crystal film between two pieces of glass. It has a function that the transmittance of the glass can be controlled by electrical switching. At the same time, they have a function of the rear projection screen.





• Smart Glass Features

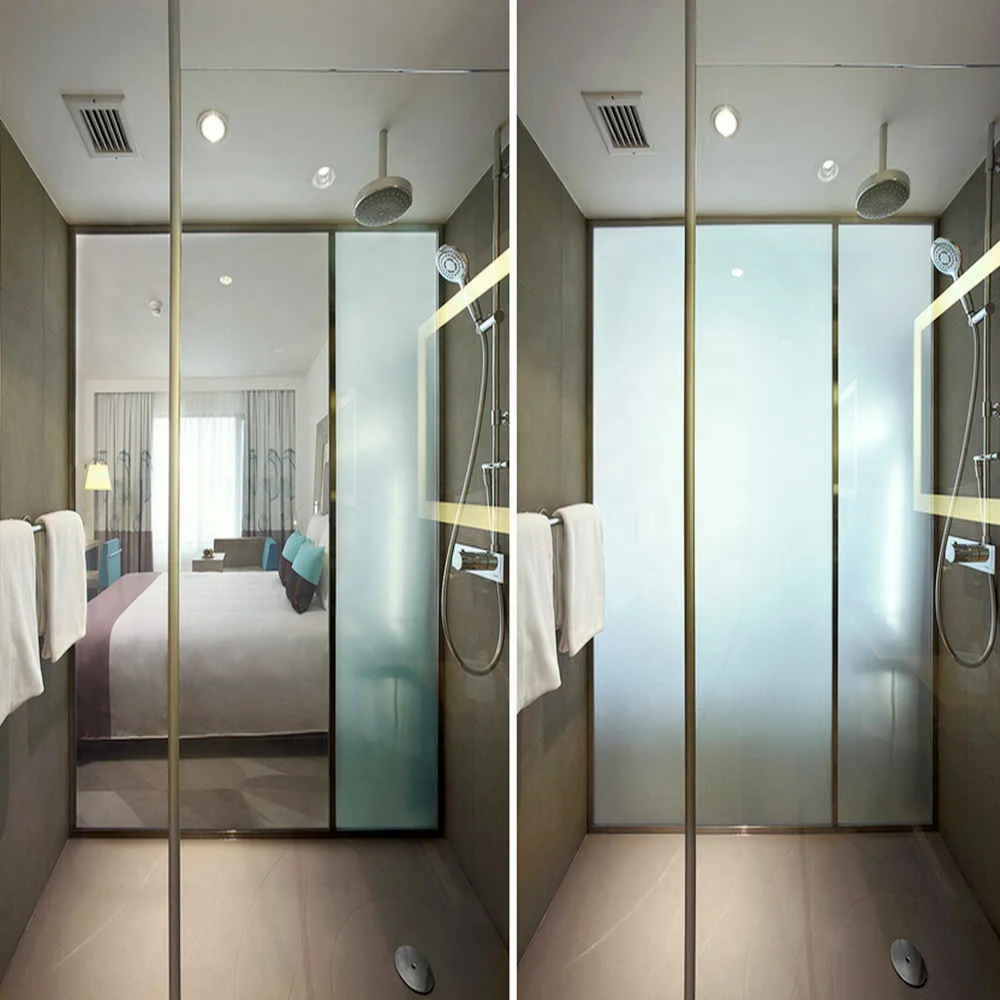

1. The transmittance of the glass can be controlled by electrical switching; it's transparent when power on, and hazy when power off.

2. Security, magic glass has the characteristics of laminated glass, when glass is broken; it won't hurt people, because the fragments will be sticked on the magic film;

3. Noise-proof, the magic film &EVA film have the function of proofing voice, preventing ultraviolet radiation, and over 90% ultraviolet radiation can be prevented

4. Glass can be tempered, insulated, drilled holes etc

5.  Can be used as screen projection.





• Glass Specification

Max size of flat	980mm*3100mm, 1200mm*3100mm, 1800mm*3000mm
Max size of curved	Min.R1500: 2800*2440mm , Min.R600:1800*300mm (if you need more large size, our film can weld one by one)
Glass thickness	7.5mm(3+3) to 39.5mm(19+19)mm
Available colors	Milky white
Storage & operation	-20°C to +60°C
Life	More than 50000 hours (more than 10 years)
Warranty	One year
Operation mode	Transparent(power on)opaque(power off)
Parallel light transmittance	78±2%(ON), 9±1%(OFF)
Sunlight transmittance	80±2%(ON), 60±3%(OFF) (Haze: 5±1%(ON), 92±2%(OFF)
UV blocking	More than 99%
Operation voltage	100-110VAC
Frequency range	50~60HZ
Amperage	100MA per square meter(for 110V)
Power consumption	About 7W per square meter (for 110V)
Switching speed	Less than 1 second
From frosted to clear	100 milliseconds
From clear to frosted	400 milliseconds
