Оптовая продажа печатных плат CANBUS 14S bms 48V li-ion


Поделиться:


Цена:59,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Aug-19-2025 75.39 $* 77.1 $*
Jul-19-2025 61.70 $* 62.82 $*
Jun-19-2025 74.31 $* 75.50 $*
May-19-2025 73.57 $* 74.47 $*
Apr-19-2025 58.91 $* 59.99 $*
Mar-19-2025 72.88 $* 73.38 $*
Feb-19-2025 71.82 $* 72.10 $*
Jan-19-2025 71.59 $* 72.31 $*

Характеристики

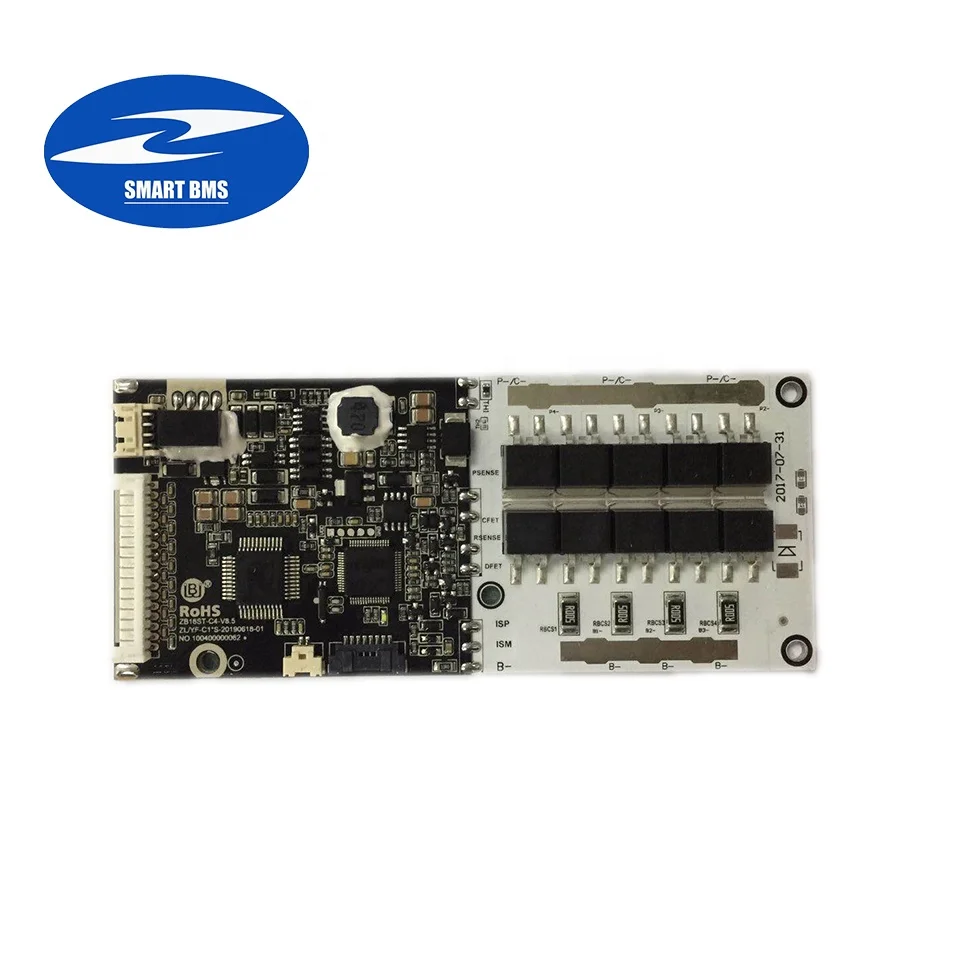

CANBUS & UART BMS

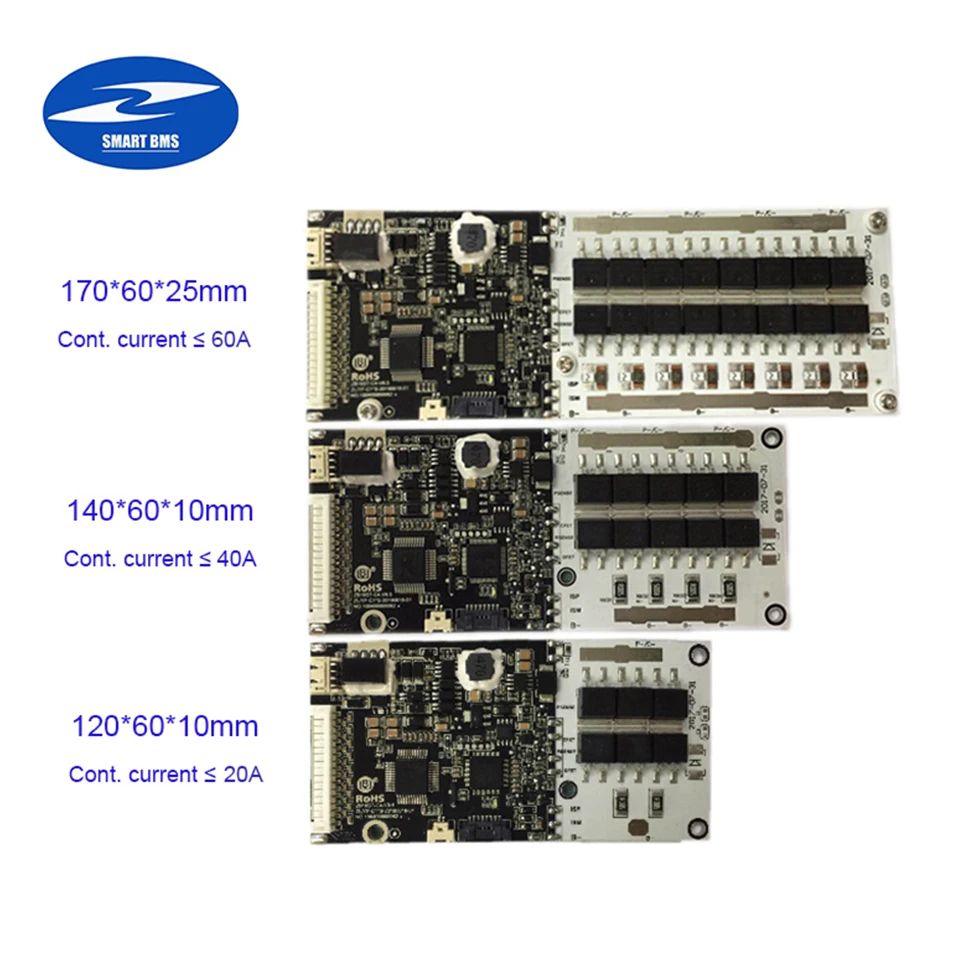

Size
140*60*10mm

Voltage
48V

Cells
13S, 14S

Discharge
Current
10A,20A,30A,40A
Battery
type
Li-ion

External
module
Bluetooth,PC connector,LCD


Specification


The following parameters are the default parameters, the specific parameters of the shipment report shall prevail.



No.
Item
Condition
Specification
1
Size
Length*width*thickness
140*60*10±1mm
2
Communication
CANBUS
Support
UART
Support
3
Suggest working condition
Max continuous discharge current
40A
Max continuous charge current
20A
Suggest battery capacity
<200AH
4
Voltage
Input Voltage B+ to B-
Cells x 4.25V
5

SOC
Accuracy of voltage detection
±10mV
Accuracy of current detection
5%
Accuracy of SOC
<10%
6
Over charge protection
(single cell)

Over charge detection voltage
4250±50mV
Over charge release voltage
4100±50mV
Over charge detection delay time
1000±300mS
7
Over discharge protection
(single cell)
Over discharge detection voltage
2800±50mV
Over discharge release voltage
3300±50mV
Over discharge detection delay time
1000±300mS
8
Over charge current
protection
Over current
25A
Delay time
1000mS
9
Over discharge
current protection
Over current
60/80A
Delay time
2000/1000mS
10
Short protection
Short detection delay time
300-500uS
Release condition
Cut load
11
Temperature protection
High temperature discharge protection
70℃
High temperature discharge recover protection
60℃
Low temperature discharge protection
-20℃
Low temperature discharge recover protection
-15℃
High temperature charge protection
60℃
High temperature charge recover protection
50℃
Low temperature charge protection
-10℃
Low temperature charge recover protection
0℃
12
IR resistance
IR of PCM
≤2mΩ
13
Normal current consumption
Normal model
≤30mA
Sleep model
≤300uA
Deep sleep model
≤20uA
14
0V charge
Allowed 0V charge
No
15
On/off switch
Control the discharge mosfet open or close
Default is don't have
If you need please ask it
16
Appearance
No components are damaged.
All the solder joints are good.
PCM has no warping.

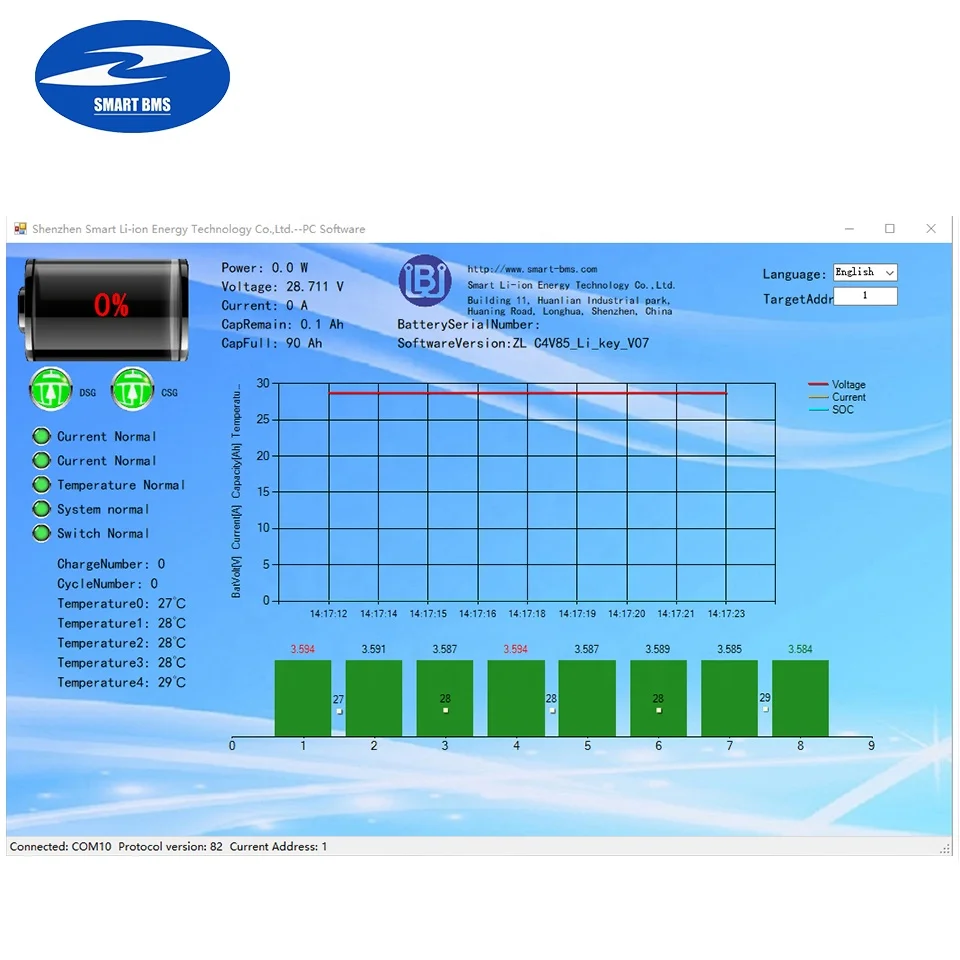

PC Software




PC connector.


If need see the data on PC, you need buy a PC connector. We have PC software.





Information display.

Information including voltage, current, temperature,
electricity and other real-time data.

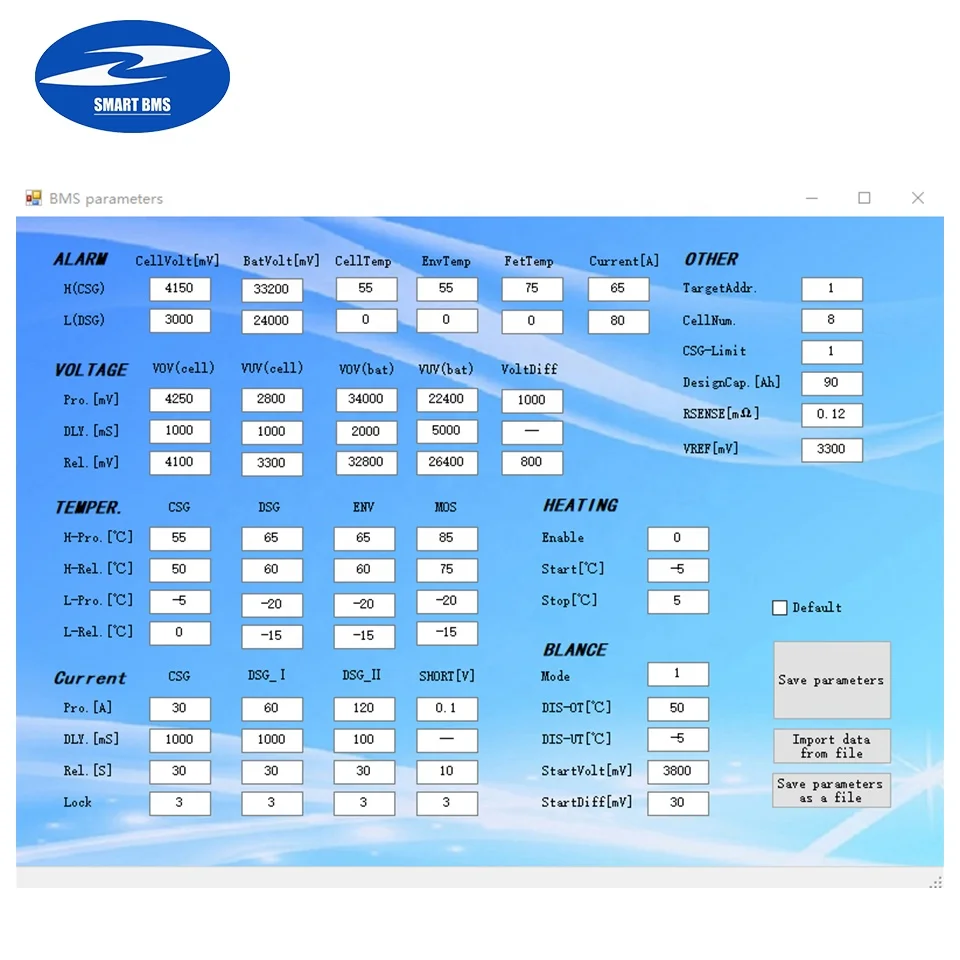

BMS Parameter display and change.


In more information interface, you can read the BMS
protection parameters and other data.
And also has the function of parameter modification.




Bluetooth





Bluetooth.


If need see the data on phone, you need buy a bluetooth.

We have APP.






             Bluetooth APP.


Android users scan QR Code to download APP.

Apple users search 'smart-bms' from APP store.



                          Home

                           Infor

                     Parameter

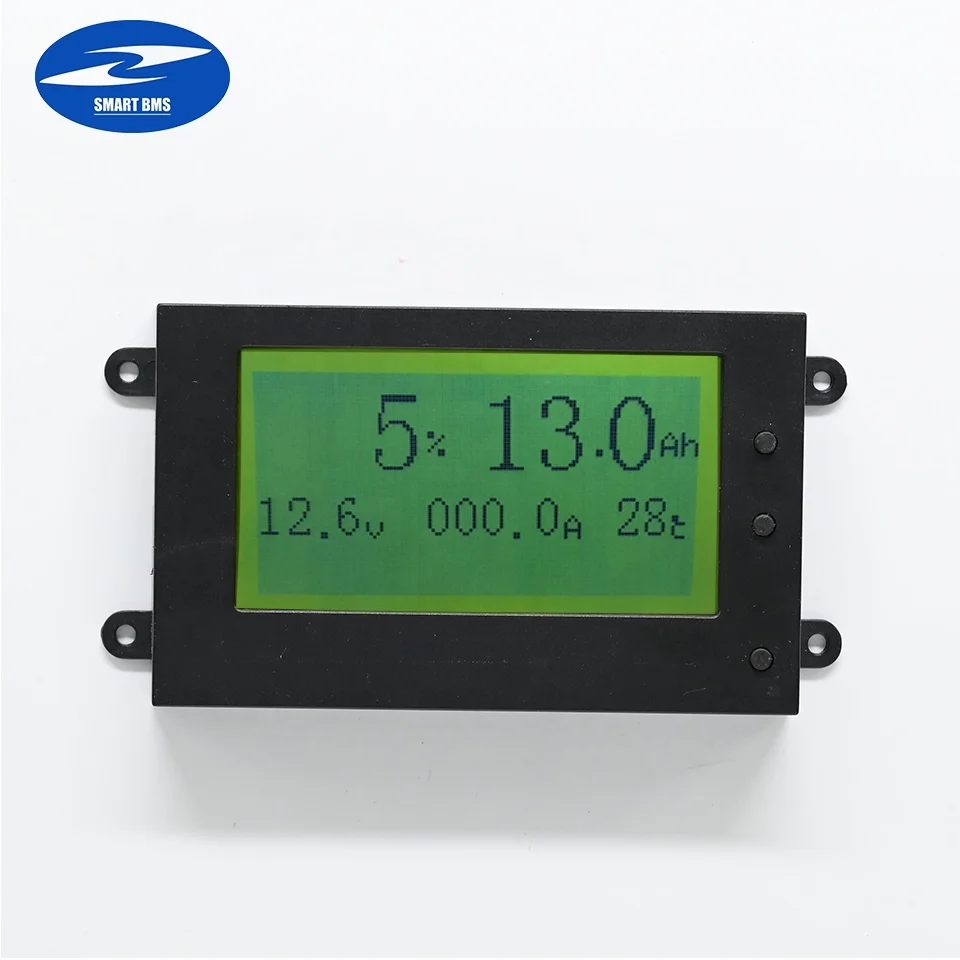

LCD




FAQ


Q1. Please introduce your company.
A: Our company is started in 2011. We are BMS research and development company. We are BMS supplier.

We have 40+ members. There are more than 20+ engineers. We are good at developing customization.

All the hardware, software and app of BMS are developed by our company.
All the materials are purchased by our company. Other cooperative company assemble BMS.

We have the production line. After assembly, our company product, test and deliver the BMS by ourselves.

Q2. How can I see the parameters?

If need see the data on PC, you need buy a PC connector. We have PC software.
If need see the data on phone, you need buy a bluetooth. We have APP.
If need see the data on LCD, you need buy a LCD.


Q3. What is on/off switch function?
A: It is a switch to controll discharge mosfet open or close.
There is no on/off switch function if customer don't ask for it. The default is have no on/off switch function.

If you ask then we can add it when produce.

Q4. Can we change the parameters by ourselves?
A: Yes you can change on PC software. It can not change without password.
If you need to modify the parameters, you need to sign a disclaimer that proves that we have no responsible.
If the customer changes the parameters, we will not be responsible for any problems.
If you need change, please sign a disclaimer first, then I'll give you the password.


Q5. How about your delivery time?
A: For sample normally will take 10 days after receiving your advance payment.
For big order the specific delivery time depends on the items and the quantity of your order.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
   2. We respect every customer as our friend and we sincerely do business and make friends with them;

   3. We are supplier of credit. We keep honest and never lose word.




\t\t\t\t\t\t\t\t\tPacking & Delivery \t\t\t\t\t\t\t




Our service

1. Sample order.
2. We will reply you for your inquiry in 24 hours.
3. After sending, we will track the products for you once every two days, until you get the products.

4. If you have any questions, please contact with us, we will offer a solution for you.
