Operation Guide

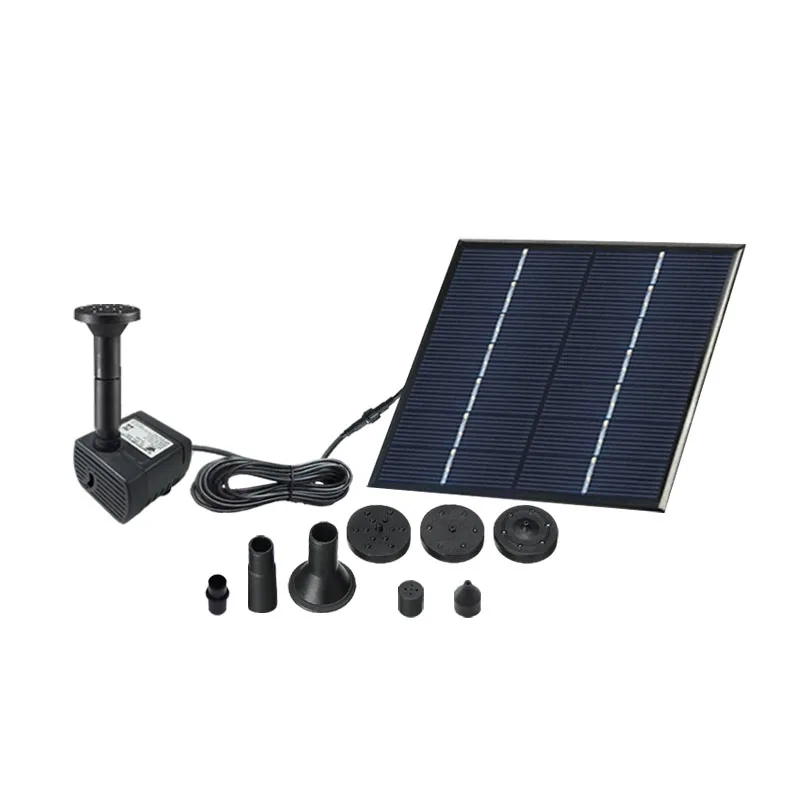

The Brushless Motor Solar Fountain

                                                                        JT-1020-1.2W

MAIN INFORMATION

This product has the lowest rate of the power of solar battery to pump power ,and it is not only very easy to operate the brushless motor under little sunshine like the brush motor,but also,it has the much long life time than other brush motor solar fountain.

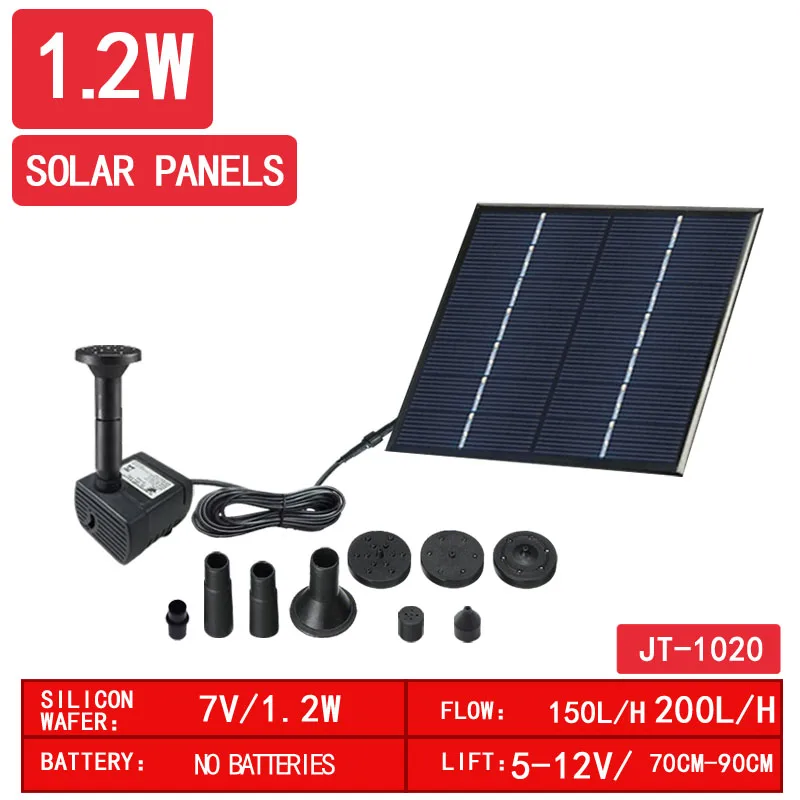

SPECIFICATION

1.The Size of Solar Battery:110 mm*110mm

2.The Power of Pump:JT-1020(CE/ROHS/IP68)  DC7V,160MA

3.Max Flow quantity of Pump:150L/H

4.Max Water Height of pump:20-45cm(IlluminationMORE THAN 90000LUX)



FEATURES

1.The Life Time:MORE THAN 20000 Hours

2.The Working Time:7:30Am~5:00PM(sunny day in summer)

3.Delay:LESS THAN 1s

4.Restart:if sunshine is off,can restart within1seconds when sunshine is back.



Installation

1.Put the pump totally in the water with it’s nozzle over the water;Be sure the pump is fixed firmly on the bottom of the fountain to avoid vibration;

2.Plug the Jack of pump in the Jack of Solar panel output;

3.Put the Solar panel under enough sunlight and be better to face directly to sun.

Caution

4.Be sure to put enough water in the fountain ,especially on sunny days;always keep the pump under the water surface;

5.Change water frequently to keep the water cleaning to avoid any dirt to impede the pump;

6.Be careful to protect the solar panel to avoid any damage;

7.Keep the surface of solar panel cleaning constantly.



Declaration

8.Guarantee for one year;

9.We are not responsible for the following mistakes:

10.Under sunlight with out water;

11.Drive the pump the error power supplier;

12.Using corrosive water or dirty water.
