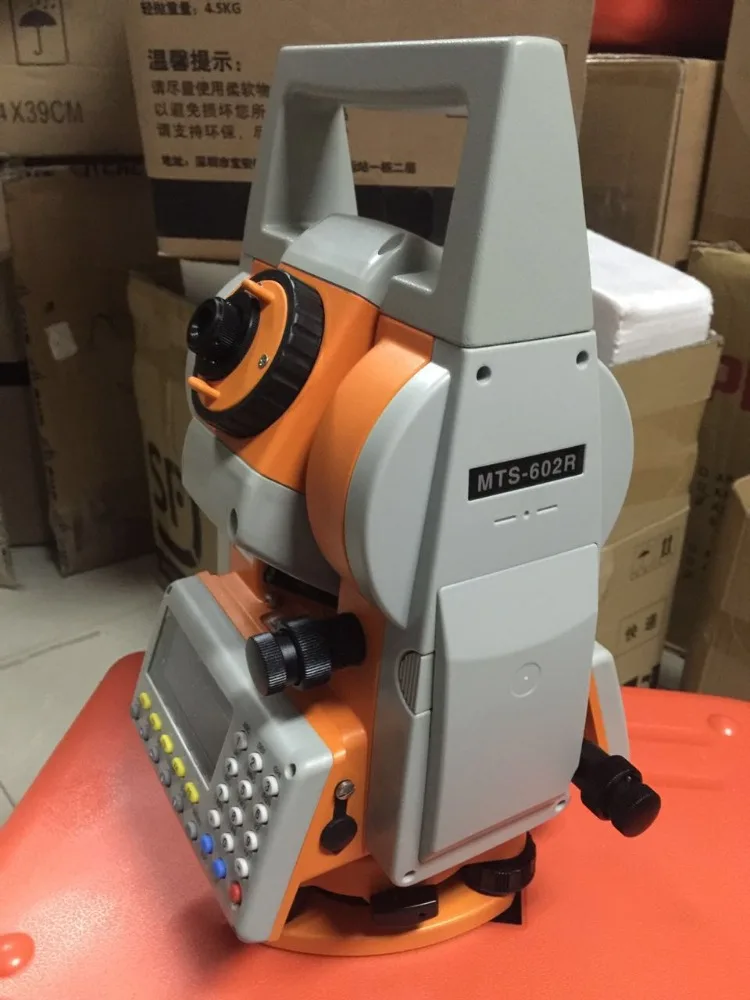

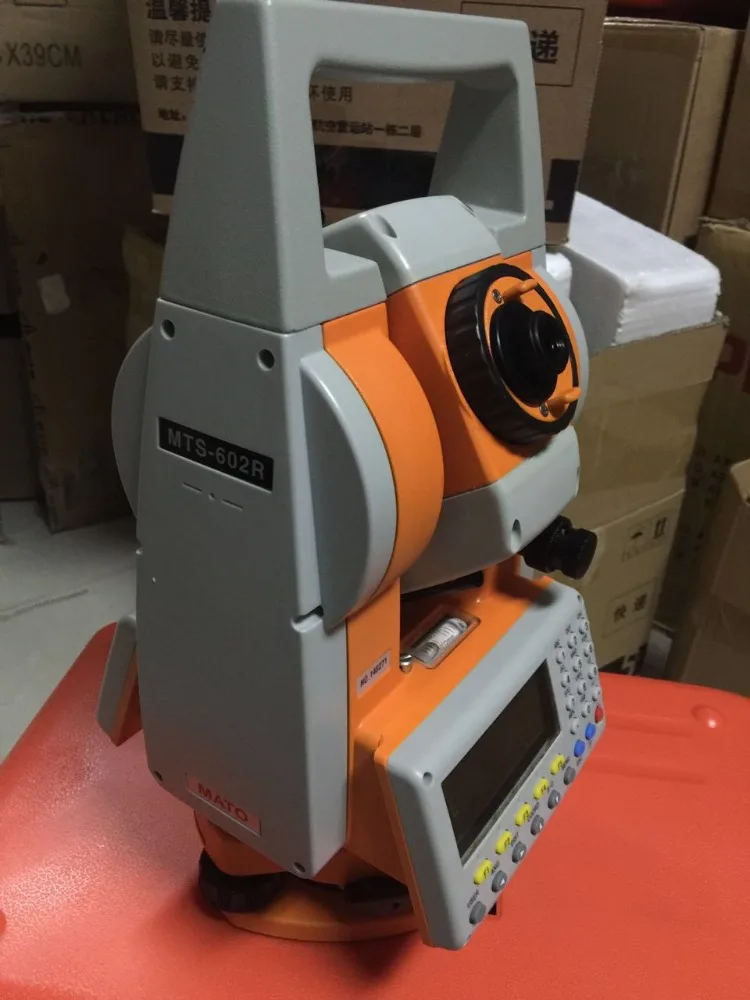

Mato MTS-602R общая станция non prism
- Категория: Прочие физические измерительные приборы >>>
- Поставщик: Shanghai,Galaxy,International,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.66 $* | 0.35 $* |
| Aug-18-2025 | 0.29 $* | 0.43 $* |
| Jul-18-2025 | 0.97 $* | 0.79 $* |
| Jun-18-2025 | 0.98 $* | 0.80 $* |
| May-18-2025 | 0.84 $* | 0.43 $* |
| Apr-18-2025 | 0.91 $* | 0.70 $* |
| Mar-18-2025 | 0.2 $* | 0.5 $* |
| Feb-18-2025 | 0.90 $* | 0.13 $* |
| Jan-18-2025 | 0.85 $* | 0.42 $* |
Характеристики
Product Description
Fitting to Project and Building Construction Market. Our this Total Station
is nonprism Total Station which has so best price .
Our this series Total Station has the European & USA brand APD
Photodiode and Integrated Circuit ,reliable performance . The distance
measuring parts is the laser diode exported from European which is
safety to human eyes. It is fit to Professional Survey,Project
Survey,Teaching Training ,Precision Industrial Installation ,ect . It is
designed for the project users ,simple ,practical ,the normal
features-one touch ready (angle ,distance , coordinate,layout ).
Feature:
Personality Function :
personality function setting ,Free Arrangement Functional Manual
according to your requirements, using optical glasses with multilayer
coating, imaging is clear and bright to reduce the human eyes
observation fatigue ;
High-end integrated circuit :
All integrated circuit from European &USA ‘s manufacturer :Reliable and
Stable;
Friendly Interpersonal Communication Interface:
Very friendly interpersonal communication interface ,the words is
English from Angle to distance .And adding personalized user-defined
key . You can learn well to cooperate it within 5minutes without manual.
Greatly improve the work efficiently;
Powerful two-way data communication function :
Powerful practical real-time two-way data communication function to
communicate data with PC by RS232 port ,USD port or Bluetooth ;
Nonprism 300meter :
300meter without prism ;it is can reach 1000meter by flat prism;
Multifunction :
The European Custom ,absolute coding,laser alignment,ladrt
aiming ,electronic compensator.
Mts -602 R reflectorless total station | |
Image | Erect |
Magnification | 30X |
Effective Aperture | 45mm |
Resolving Power | 4" |
Field Of View | 1°30' |
Minimum Focus | 1.5m |
Distance Measurement(under Fair Weather Condition) | |
Nonprism | 200m |
Range 1 Prism | 5.0km |
Sheet | 800m |
3 Prism | 7.5km |
Accuracy | 2mm+2ppmxD |
Minimum Count | 1mm |
Distance Unit | ft.Or m selectable |
Measuring Time | |
Fine | 1.8sec.(first time2.5sec.) |
Tracking | 0.4 Sec. |
Maximum display | 999999.999m |
Atmospheric Correction | |
Temperature | C or F |
Atmospheric Pressure | hPa/mmH/inHg |
Atmospheric Deflection & Earth Curvature Correction | k=0.14/0.20/0 |
Prism Constant | 0 mm / 30 mm |
Angle Measurement | |
Measurement Method | incremental Photoelectronic Encoder |
Detection Method |
|
Horizontal | Dual |
Vertical | Dual |
Accuracy | 1" |
Minimum Readout | 1"and5" |
Sensitivity of Vials |
|
Plate Vial | 30"/2mm |
Circular Vial | 8'/2mm |
Vertical Compensation | Available |
Type | Liquid-electric detection/Plate level |
Compensation Range | +/-3' |
Resolution | 1" |
Optical Plummet/ laser plummet alternative | |
Image | Erect |
Magnification | 3X |
Focus Rang | 0.5m-infinity |

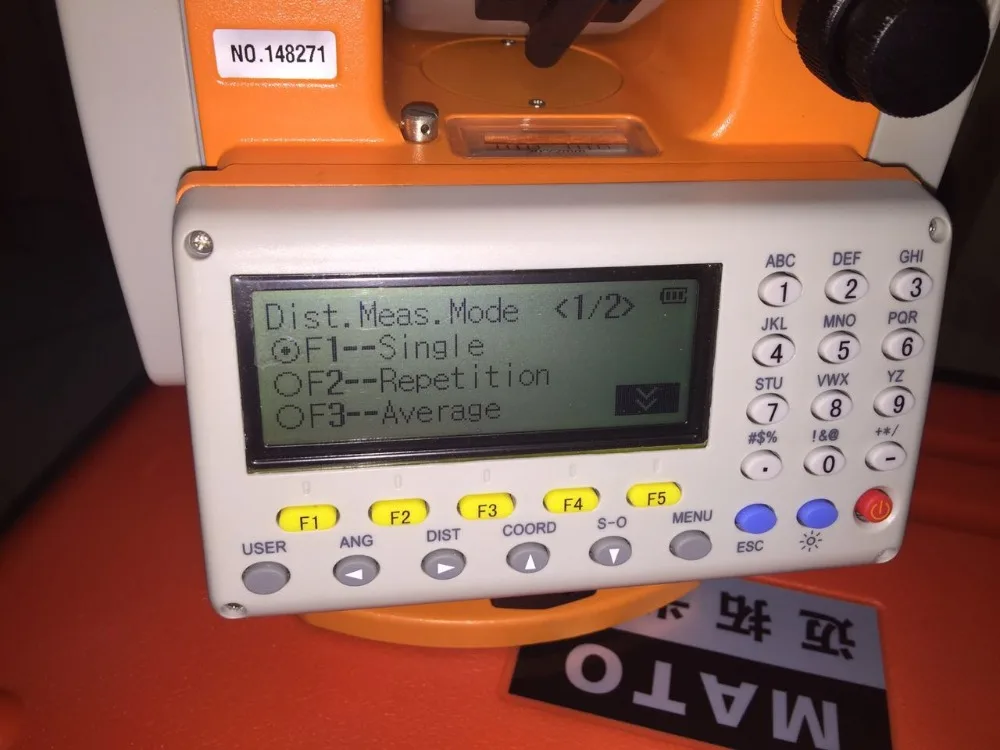

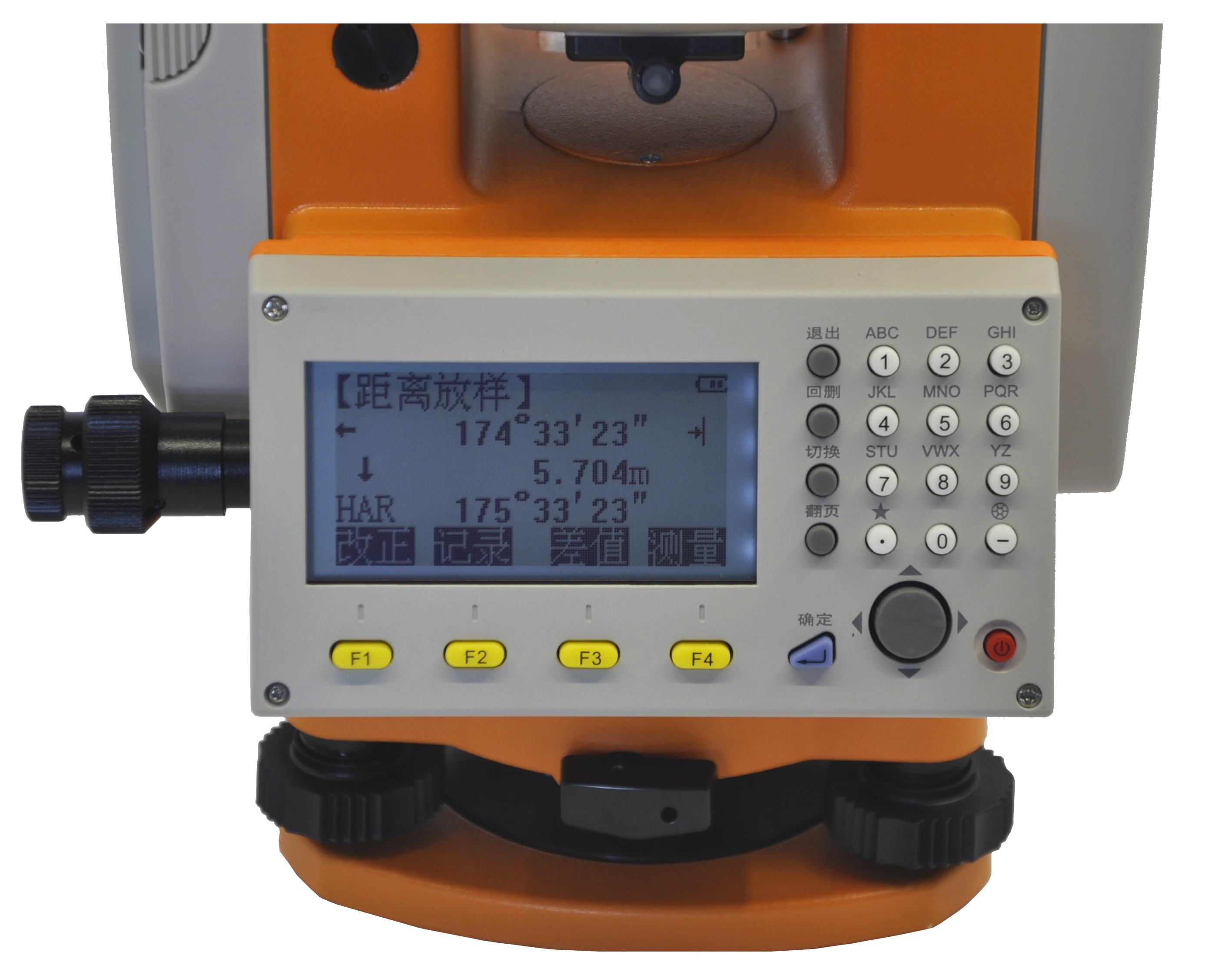

Display | Double Side, LCD, Four-line Display |
Data Port | RS-232 |
Battery | Lithium Rechargeable |
Voltage | 7.4VDC |
Operation Time | Distance and angle measurement: 8.5hours; Angle measurement 30 hours |
Charging Tine | 2 hours |
Weight | 10 kgs |
Packaging & Shipping
Original Packing.
Your products will be shipped within 3 days after received payment.
Our Services
Your inquiry will be replied within 24 hours, we welcome your email and call at any time.
Our products are original and 100% new. and they will be carefully checked before we ship them out.
All the products we sell have one year warranty and we can supply technical support.
