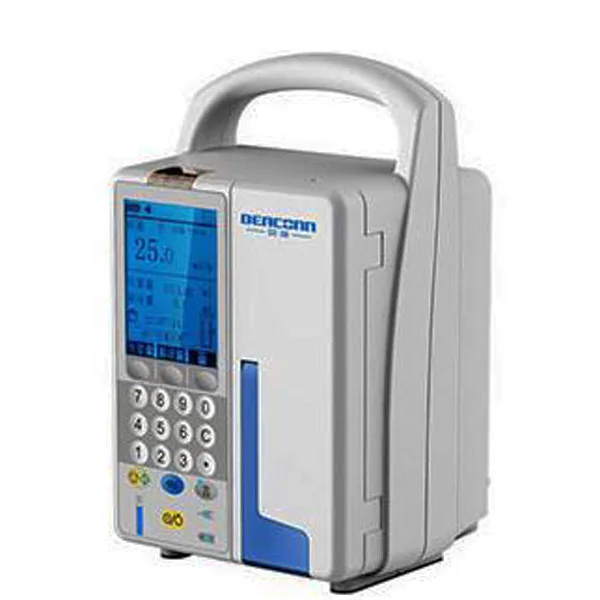

HY-800A Infusion Pump

Introduction

Infusion precision is higher than Germany bei lang of similar products.It USES a microprocessor implementation of comprehensive control, the process of infusion in peristaltic pump for power supply, with a variety of sensors to monitor, can meet a variety of cases of transfusion requirements, has the very good control and alarm functions.

Feature

Small and exquisite

Ergonomic  intuitive interface, easy  to operate

Change the flow rate while infusing

3.2 inch high-definition color display

Dual CPU system, safer & more reliable

Manual bolus and automatic bolus

Flow rate, time/volume, dosage/weight modes

Particular stage infusion mode

Drip sensor and fluid heater optional

All brands  infusion sets applicable

Dynamic pressure display, 3-level occlusion sensitivities setting(the value of  each level is programmable)

Automatically release impact dose after occlusion(anti-bolus)

Vertical & horizontal rotatable fixation clamp

2000 history records and last configuration memory

Drug  library & wireless monitoring upgradable

Technical Parameter

Applicable standard PVC infusion infusion (10,15,20,60 drops / ml, diameter: 3.4 to 4.5 mm

Drip infusion mode formula (optional), the volume

Infusion drip infusion accuracy error: ≤ ± 2%;

 infusion flow rate error: ≤ ± 5% (after standard PVC infusion calibrated)

Setting range drip 10 drops / ml infusion: 1 to 200 drops / min;

15 drops / ml infusion: 1 to 300 drops / min

20 drops / ml infusion: 1 to 400 drops / min; 60 drops / ml infusion: 1 to 150 drops / min

Set the flow rate  1.0 ml / hr to 1200 ml / hour

Preset infusion volume of 1 to 9999 ml

Fast discharge rate 600 ml / hr

BOLUS preset rate of 600 ml / h, the total amount of 2 ml, adjustable settings KVO function 1 ml / hr

Bubble detection ultrasonic bubble detection: ≥50ul bubbles, 50 ~ 100ul sensitivity points low, middle and high third gear adjustable

Occlusion alarm sensitivity low, medium, or high adjustable

Bubble alarm sound and light alarm, door open alarm, pipe blockage alarm, alarm bottles, no liquid alarm, alarm infusion is completed, the motor abnormal alarm, pause timeout, battery voltage alarm, AC power is lost, drip sensor error, parameter error infusion other police

Power requirements ≤25VA, 85V ~ 265V, 50Hz / 60Hz

3.2-inch LCD display screen

Battery DC12V, 2300mAh (you can use more than four hours at "25 ml / h" infusion rate when fully charged)

Working temperature + 5 ℃ ~ + 40 ℃, relative humidity ≤80% (non-condensing), atmospheric pressure 70KPa ~ 106Kpa

Dimensions 167mm X 125mm X 115mm

Weight 1.9kg
