High quality DVR Card High Performance Software Compression PCI DVR Video Card  real time dvr board

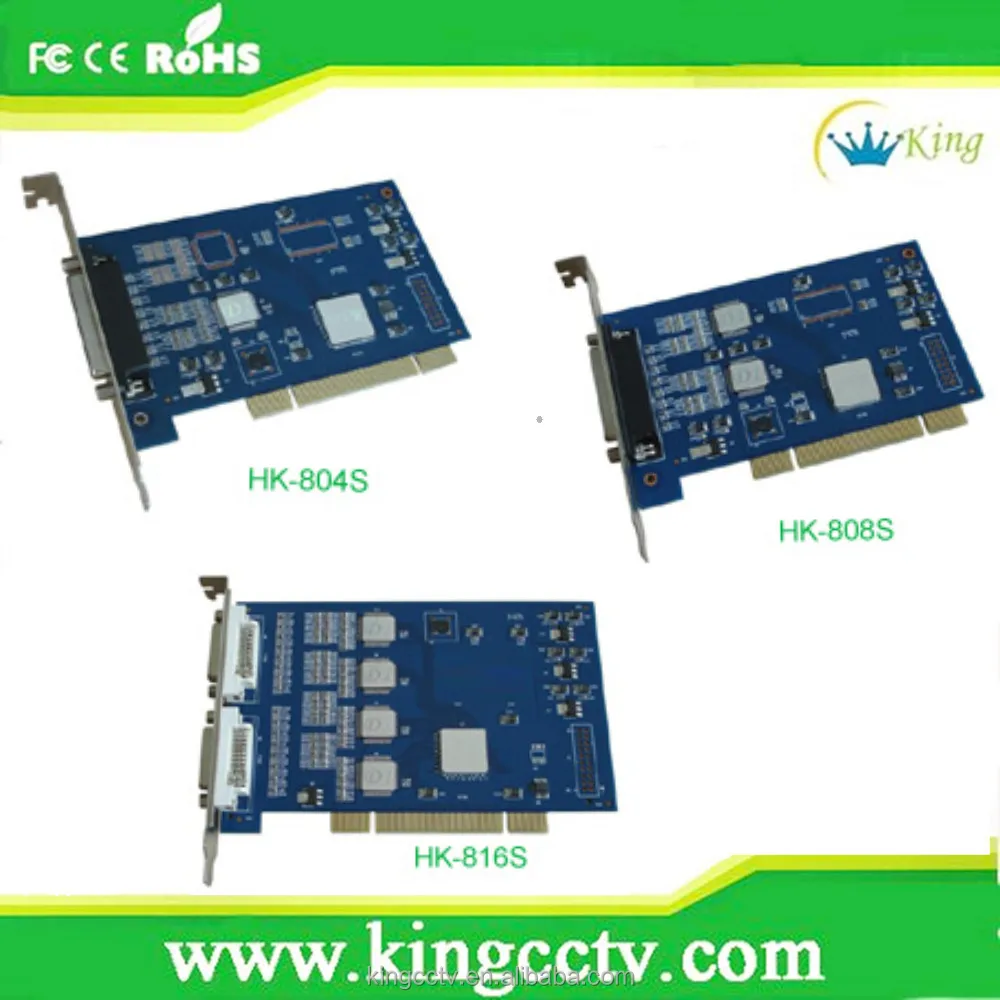

Available Models:
Cards are stackable to obtain 24 channels maximum

HK-804S: 4 channels video and audio CIF(real time)

HK-808S: 8 channels video and audio CIF(real time)

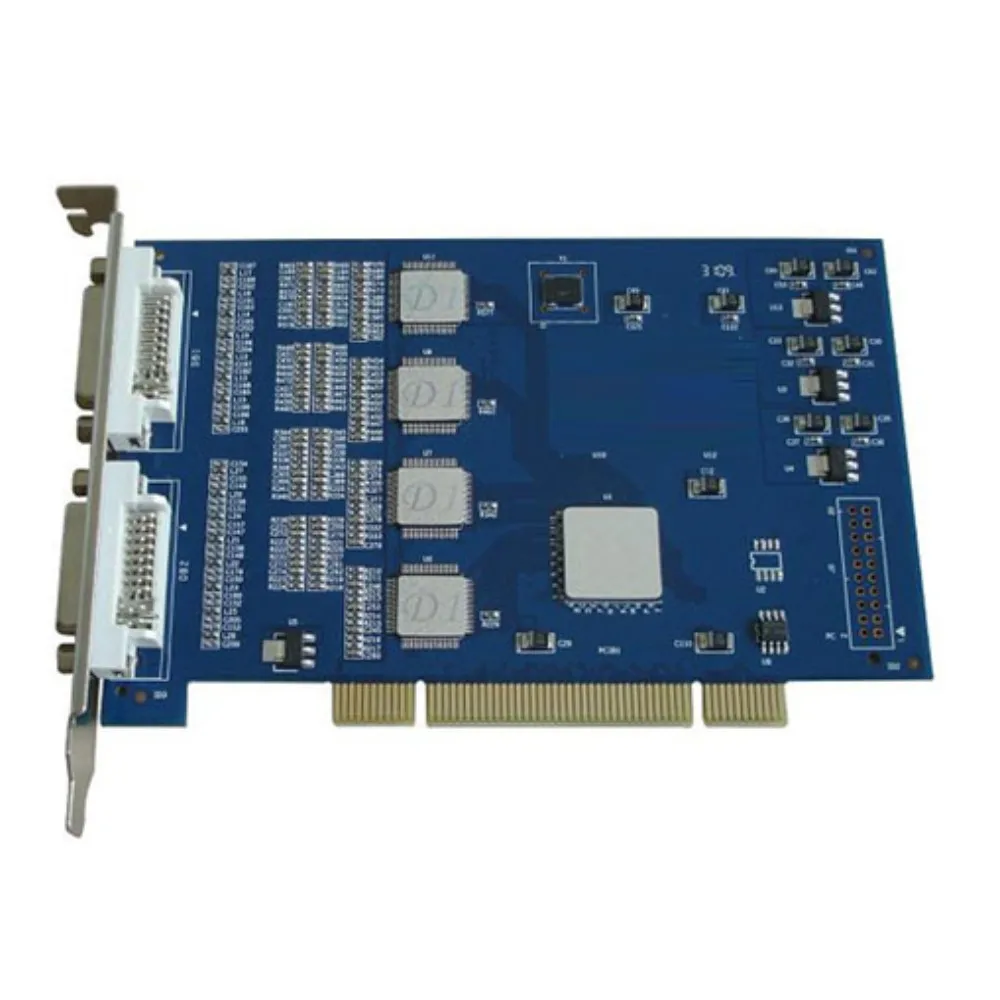

HK-816S: 16 channels video and audio CIF(real time)

Features & Functions :

Specifications:



Model No.	HK-804S	HK-808S	HK-816S
Video Format	PAL and NTSC
Video Input	4chs	8chs	16chs
Audio Input	4chs	8chs	16chs
Preview Resolution	D1: 704*576(PAL), 704*480(NTSC)
Preview Frame Rate	100F/s(PAL), 120F/s(NTSC)	200F/s(PAL), 240F/s(NTSC)	400F/s(PAL), 480F/s(NTSC)
Video Compression	Real time H.264
Compression Resolution	CIF:352*288(PAL), 352*240(NTSC)
Recording Frame rate	100F/s(PAL), 120F/s(NTSC)	200F/s(PAL), 240F/s(NTSC)	400F/s(PAL), 480F/s(NTSC)
Image quality	10 Bits ADCs super high quality
HDD	50-500M/H/CH
Hexaplex operation	simultaneous record, live, playback, backup, control,& remote access
PTZ control	Yes
DDNS	Build-in DDNS, easy to view via Interent
Working Temperature	-10 ~ +50°C
Working Humidity	10%- 90%
Power Consumption	Less than 1W
Operating System	Windows 2000/ XP/ VISTA
Computer Configuration (Recommend)	Mainboard: Intel, AMD, SIS, VIA Chipset; Memory: 512MB; Display Adapter: Geforce, ATI etc



Business term:

• 1 year warranty


• 3-5 working days for the delivery


• FOB Shenzhen


• Payment term : T.T, Western union etc.

Warranty term:
DVR cards come with 1 year warrenty. When there is defective goods from us, customers can send the dvr cards to us for repair within warrany time and without being destroyed by rough handling from the user.
