Характеристики

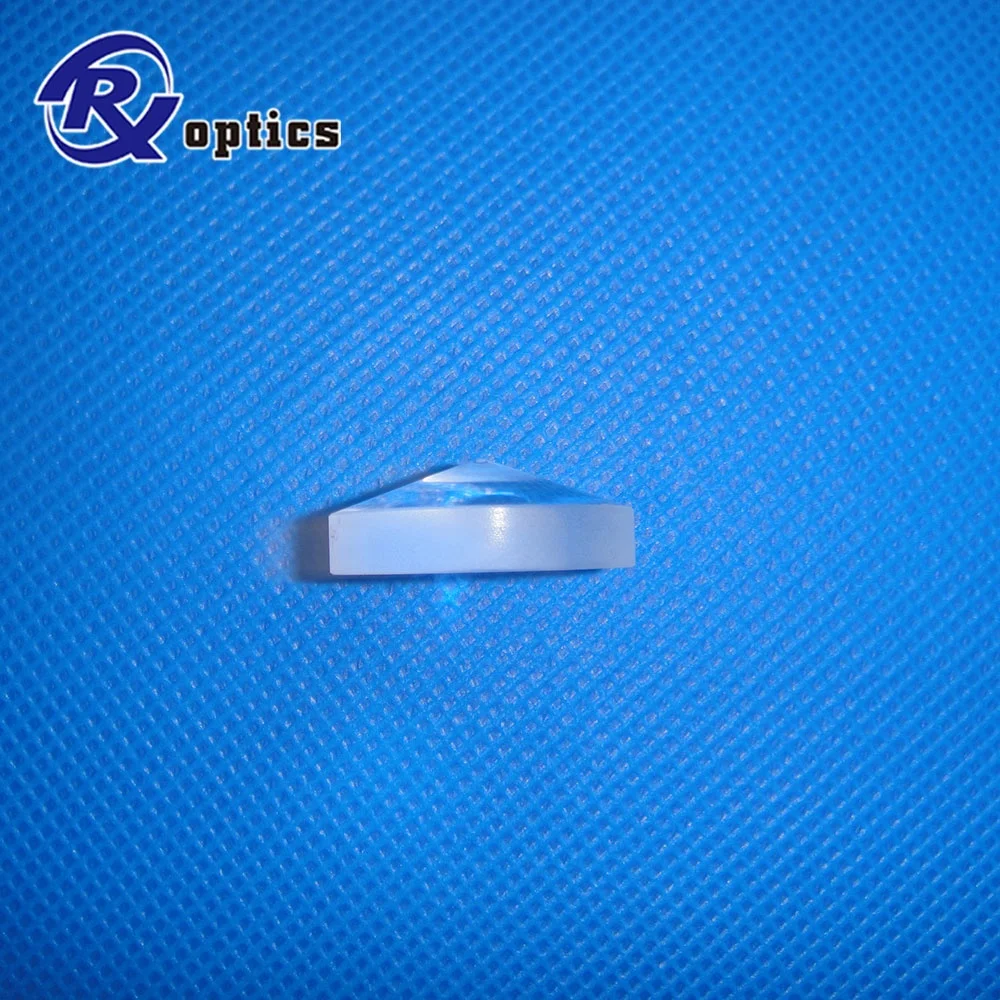

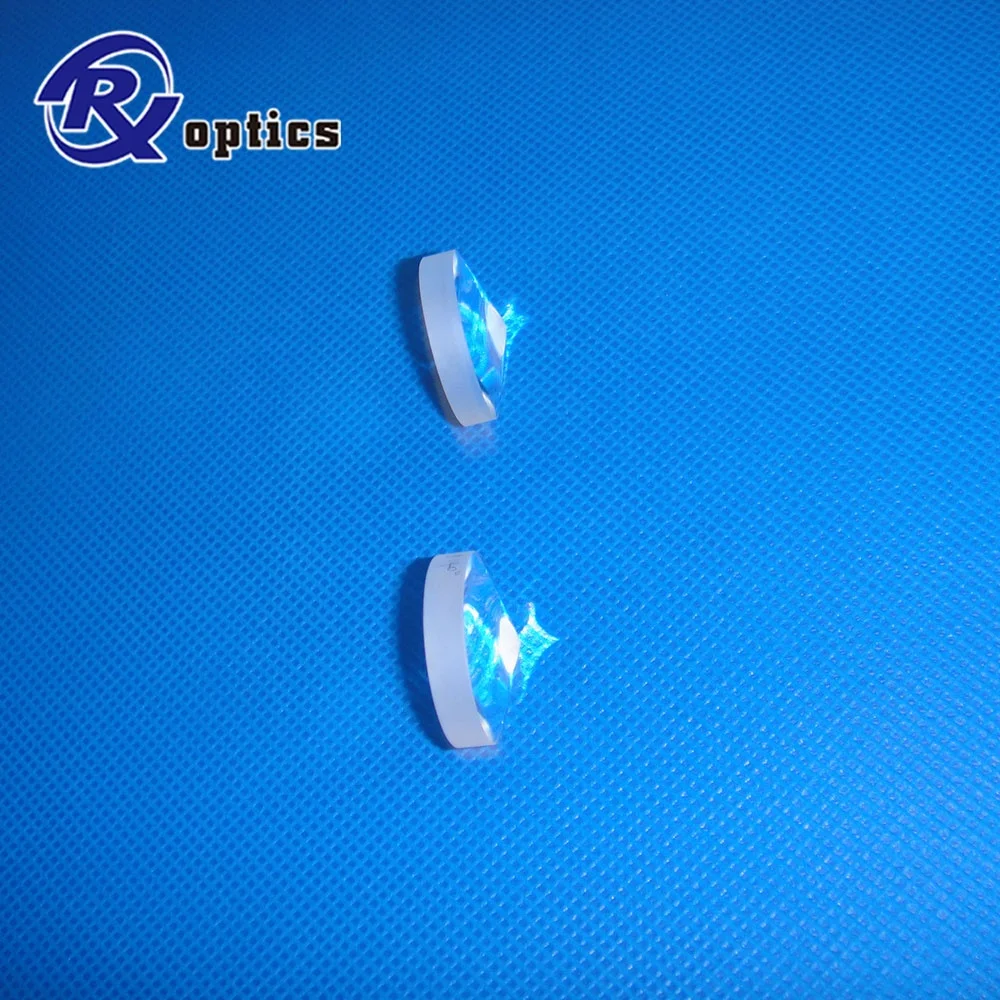

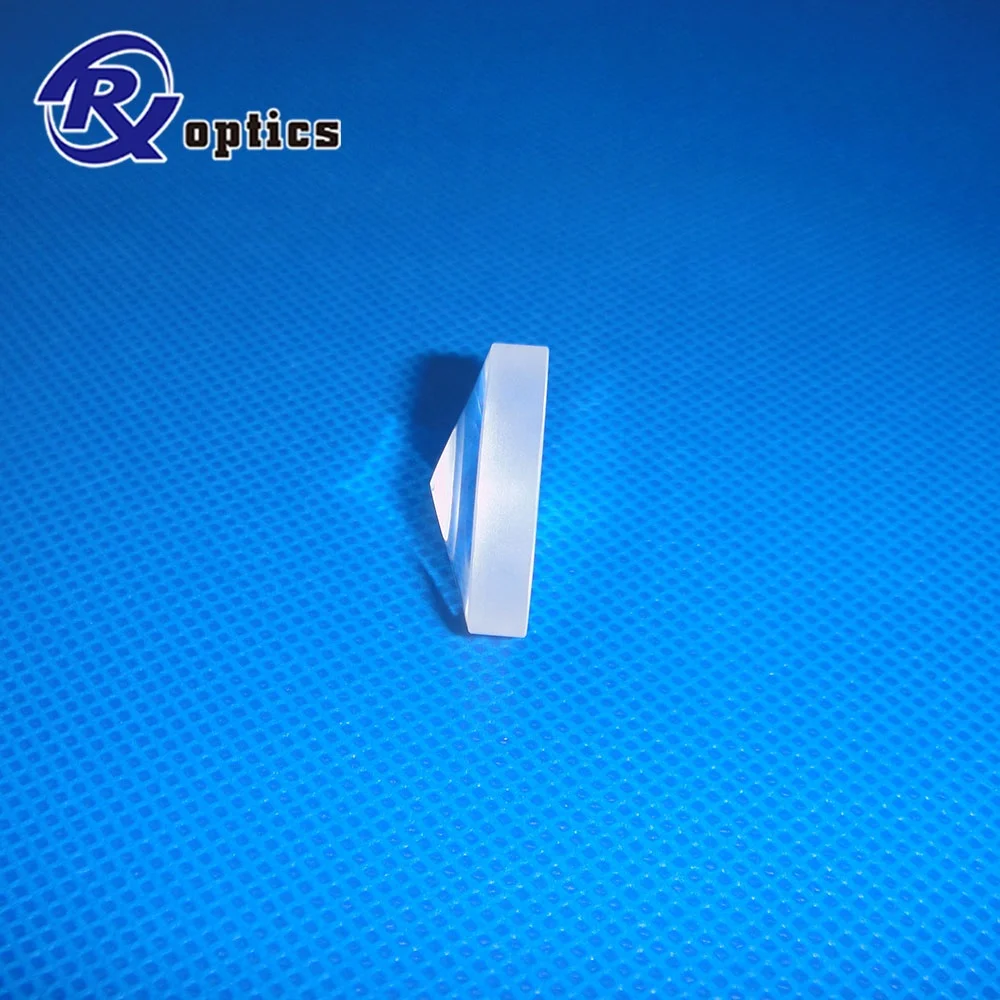

optical cone pyramid prism, Plano Convex Conical Lens
Plano-convex axicons are conical lenses which are used for variety of applications. When followed by a conventional spherical lens, axicons can focus laser light to a ring shape with annular focus. This feature can be used in hole drilling, microscopy and medical applications. Another interesting feature of axicons is a possibility to transform Gaussian beam into non-diffractive Bessel beam in the near field. Bessel beams can be used in atom or molecule guiding applications.

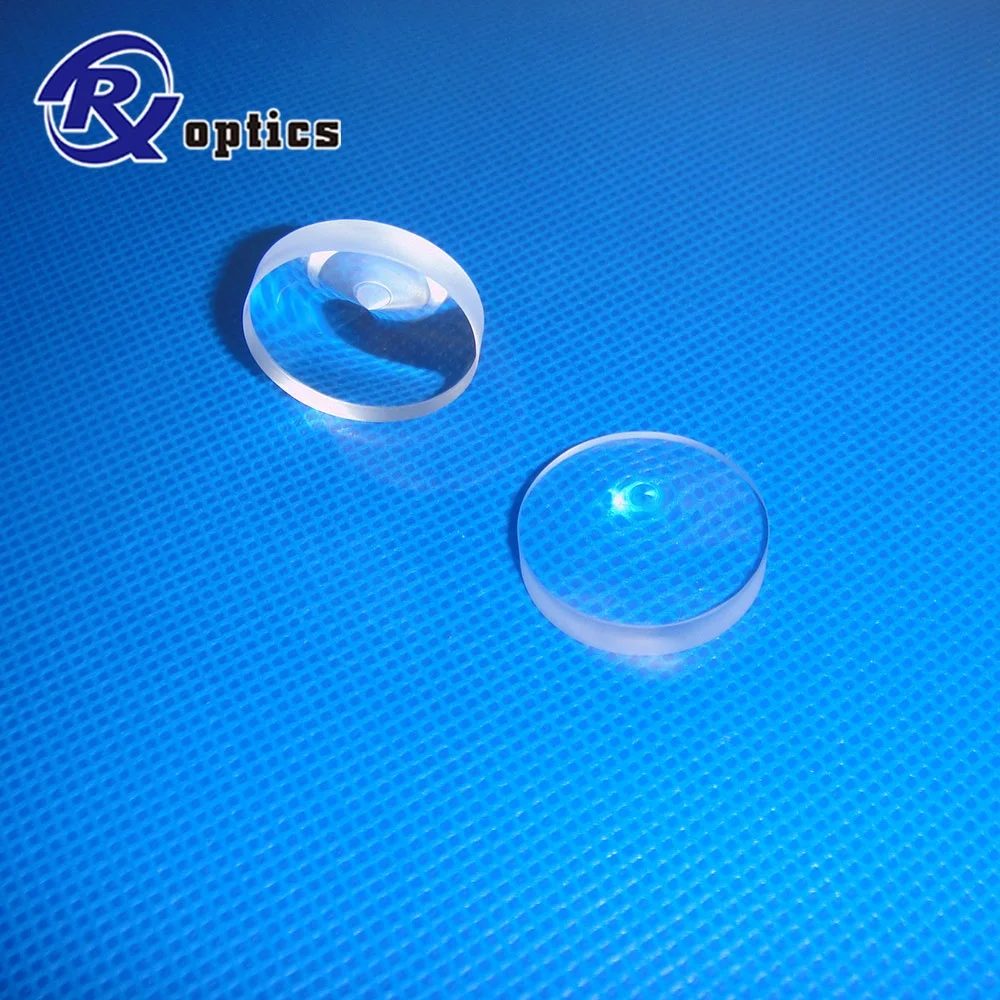

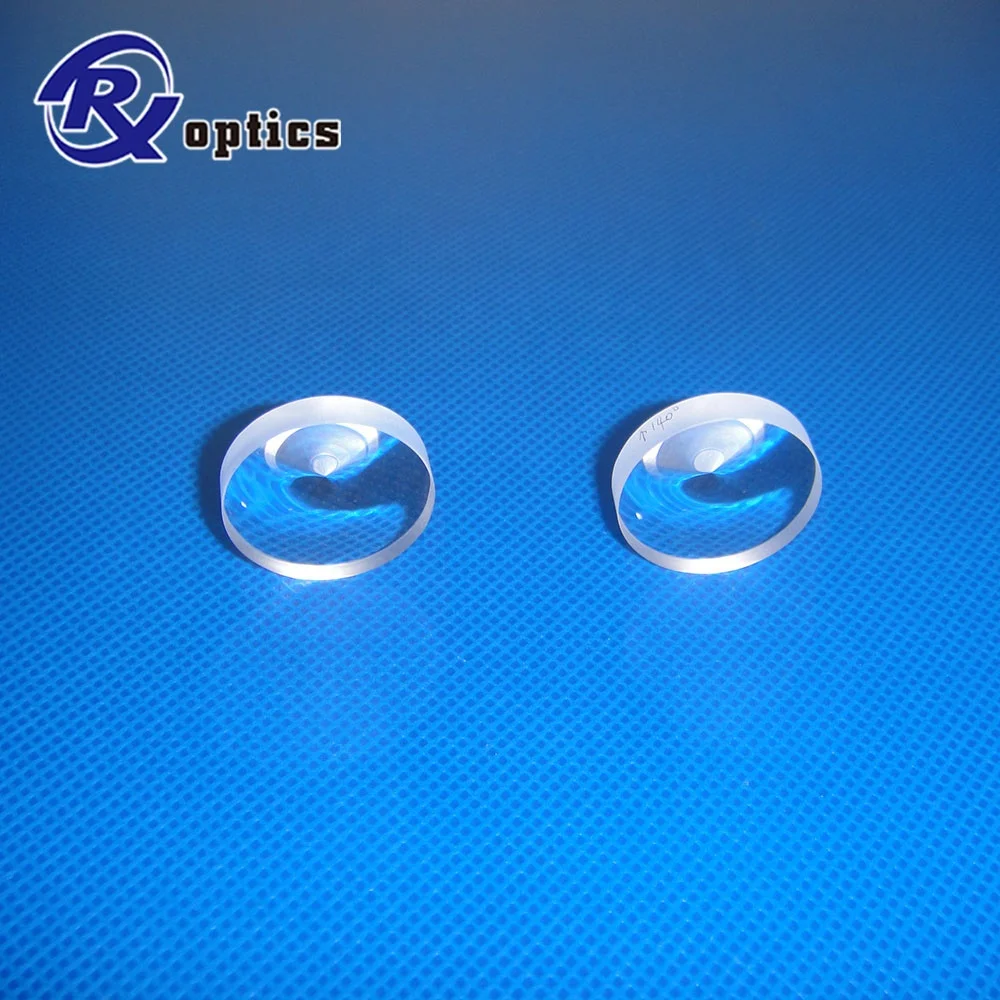

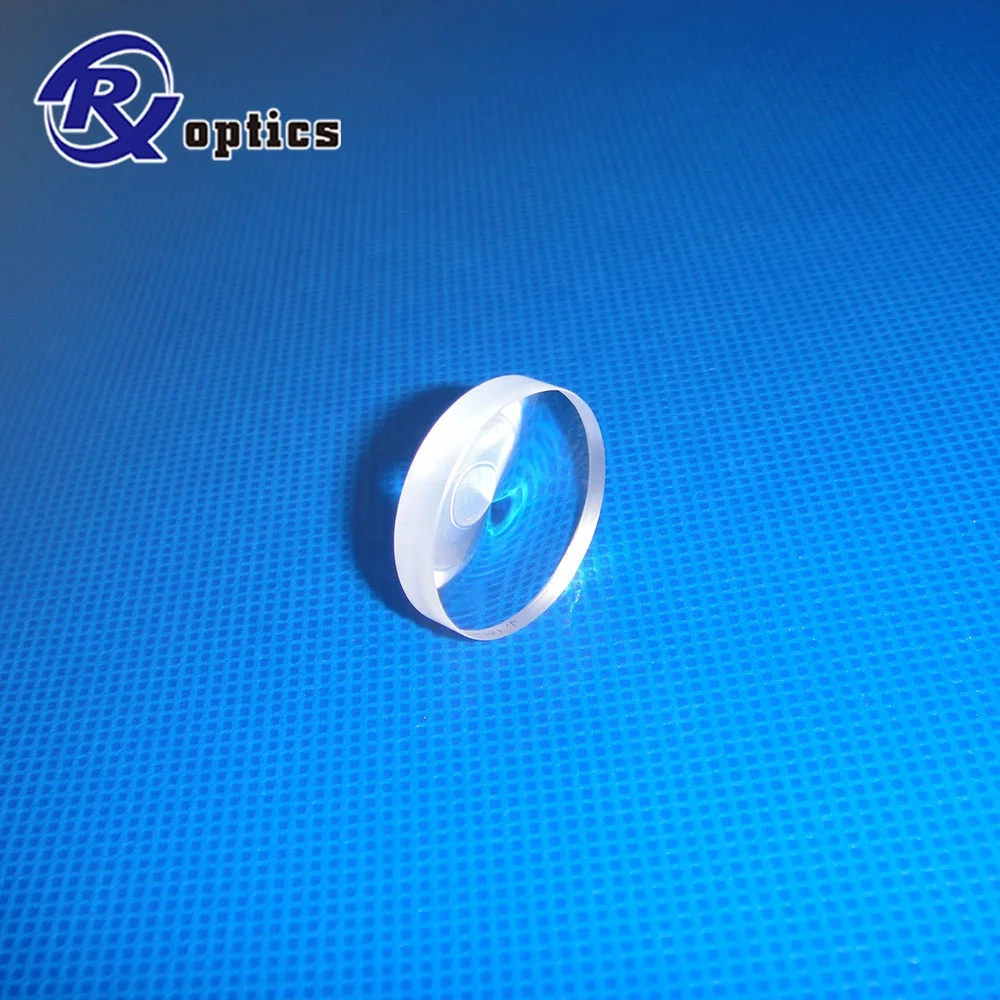

Plano-concave axicons have a plano surface in combination with a concave conical surface. Concave axicon produces a ring shaped image along the axis from a point light source (e.g. Gaussian laser beam). Due to specifics in fabrication process, a hole in the center of concave surface is needed. Diameter of the hole is typically 1 mm. Different coatings can be applied on the polished surfaces of axicons. When coated with HR coating, concave conical surface can be used as a conical mirror in some specific applications.
Double convex axicons are available in variety of dimensions and apex angles. Double convex axicons are optical components with a convex conical surface in combination with a convex spherical surface. Such combination focuses laser light into a ring shaped beam with annular focus. Different combinations of focal length and apex angles are available.
Specifications
| Material | BK7, UV Fused Silica |
| Diameter | 25.4mm 50.8mm |
| Apex Angle Degree | 30° 90° 140° 160° 175° 176° 179°as choise |
| Height | 13mm |
| Edge Thickness | 3mm 5mm |
| Angle tolerance | +/-0.5° |
| Surface quality | 40/20 |
| Surface Figure | lambda/4 |
| Clear Aperture | >90% |
| Coating | Upon request |
We have 25.4mm UV fused silica Axicon lens in stock,welcome to enquiry!!!
Customize
You can customize this products to your needs.If you do not find suitable specifications for your application please contact us for custom solution
