Большие размеры паяльная ЖК-дисплей экран сенсорная панель с общей топливной магистралью
- Категория: Electronic Products Machinery >>>
- Поставщик: Guangzhou,Minder-Hightech,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.93 $* | 0.58 $* |
| Aug-16-2025 | 0.28 $* | 0.72 $* |
| Jul-16-2025 | 0.27 $* | 0.90 $* |
| Jun-16-2025 | 0.1 $* | 0.82 $* |
| May-16-2025 | 0.93 $* | 0.39 $* |
| Apr-16-2025 | 0.2 $* | 0.11 $* |
| Mar-16-2025 | 0.93 $* | 0.7 $* |
| Feb-16-2025 | 0.99 $* | 0.92 $* |
| Jan-16-2025 | 0.21 $* | 0.67 $* |
Характеристики
Product Description

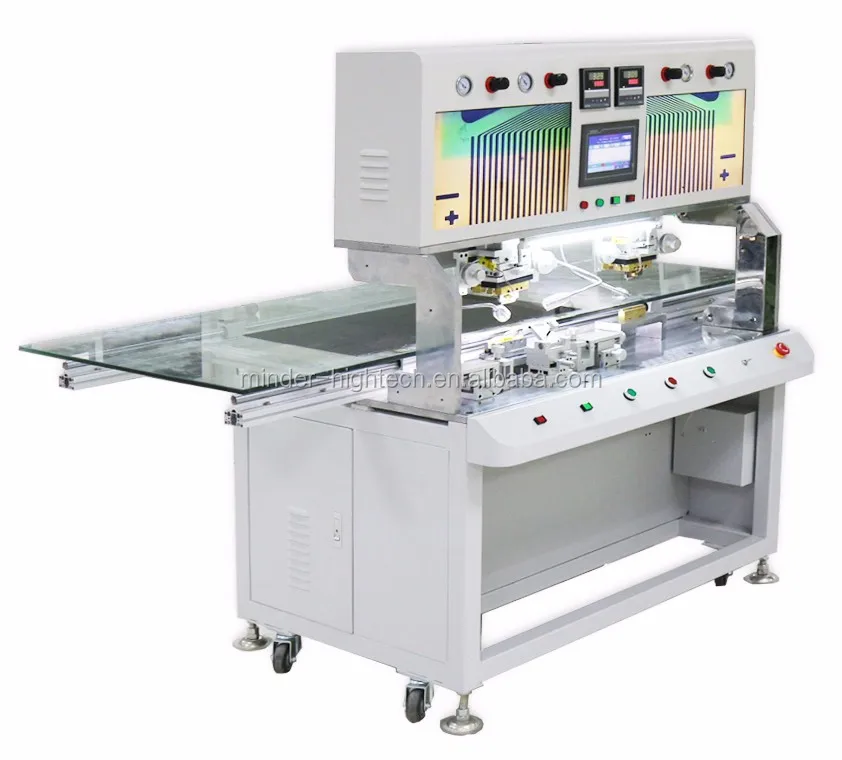

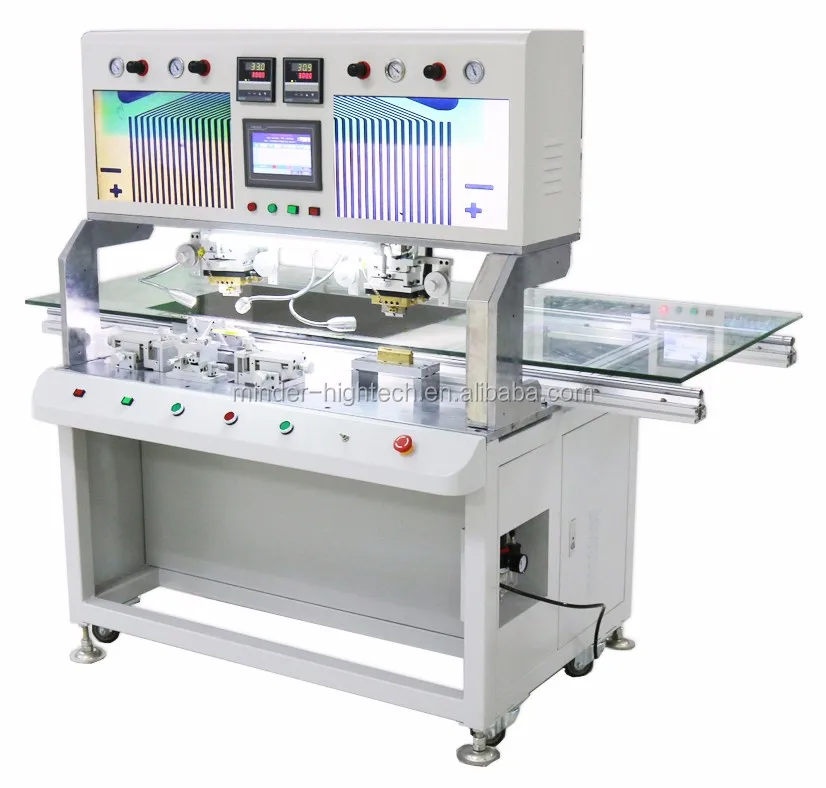

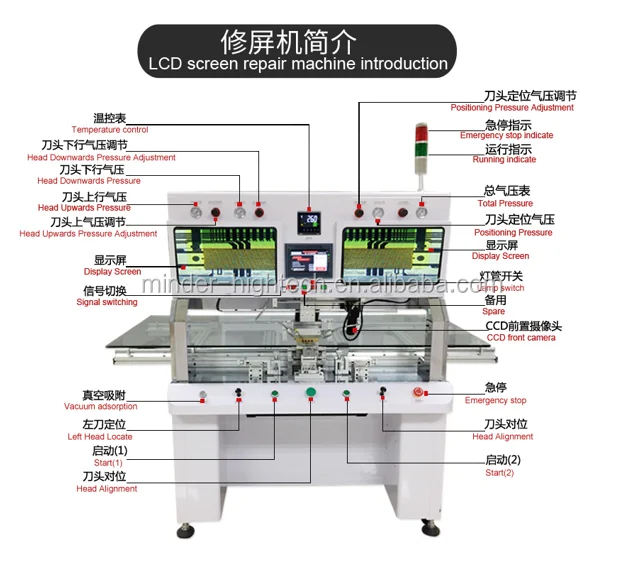

Big Size Soldering LCD Display Screen Panel Repair Machine MD-880HS
According to maintenance staff tailored high-end products , machine not only in the accuracy of the temperature and the mechanical accuracy do the precision design , the procedures also increases the glass and circuit board parameters direct selected function , working pressure automatically switch , greatly facilitate the technical staff selected the parameters , increased the tool bit preheating function , to ensure that the machine at any temperature difference can ensure heating rate and temperature accuracy , the bonding effect reached factory-class level , high bonding excellent rate, low repair rate , this machine is the maintenance and after-sales staff preferred the classic model.
Features:
- Design for 15" – 85" LCD/LED television repair.
- Bonding ACF and FPC/COF/FOG/TAB to LCD (TFT, IPS).
- Control by PLC, pulse heating method.
- Touch screen operation, multiple bonding parameters can be set.
- FPC/COF/FOG/TAB hot bar process.
- Moveable platform.
- CCD system helps to place work piece.
Specification:
Model | 880SH | 880DH |
Head NO. | 1 | 2 |
Name | Bonding machine | |
Application | FPC, COF, TAB and LCD Panel, PCB bonding | |
LCD size | 15”-85” | |
Panel thickness | 0.3mm-1.1mm(single layer glass) | |
IC No. | Multi/panel | |
Bonding direction | X or Y | |
Boning time | TFT, 1.8s/chip | |
Capacity | TAB, 380 pcs/H | |
Bonding accuracy | ±1.5um | |
Positioning accuracy | ±0.5um | |
Working environment | Clean, dust free | |
Air pressure | 0.5-0.7Mpa | |
Automatic pressure | Multi pressure, max 10 segments | |
Input | AC220V/50Hz | |
Power | 1200W | |
Pneumatic parts | Japan SMC MXS20-75/MXS20-100 | |

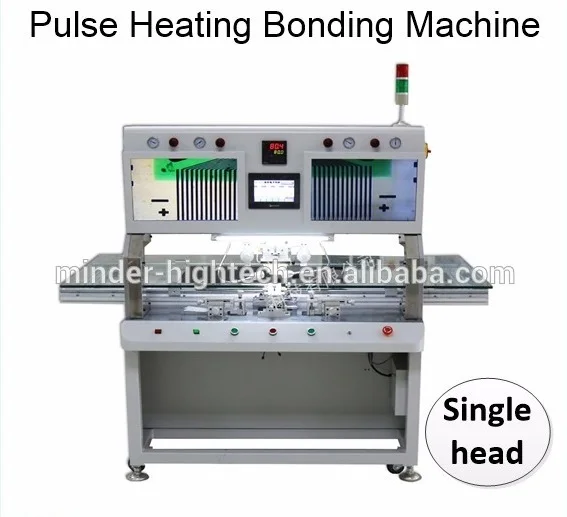

Heating method | Pulse heating | |
PID temperature system | Brand: Japan AZBIL Model: C36TV0UA1200 | |
Hot head | Material: Japan titanium alloy Size: 45*1.4*10 Plane precision: 0.001mm Plane thickness: 0.5mm | |
Thermocouple | K type, origin USA OMEGA | |
Controller | Japan Panasonic PLC | |
Image system | Japan Panasonic image system COF positioning: down positioning PCB positioning: Yes Camera quantity: 3 Microscope: 30-120 zoom COF monitor: 19” * 2 PCB positioning monitor: Yes Up light: Yes Down light: Yes | |
COF fine adjustment | Origin: Taiwan Guide rail type: U type Accuracy: 0.01mm Adjust direction: X/Y/R R range: Rough adjustment 360°; Fine adjustment ±5° | |
COF fixture | Mechanical fixed | |
Camera fine adjustment | Control: X/Y/Z micrometer Focus adjust: manual | |
LCD platform | Moveable, slide by hand | |
Alarm | Air pressure fault; Temperature fault; Thermocouple fault; Operation fault | |
Hot head positioning | Any positon | |
Parameter memory | Multi parameter group storage | |

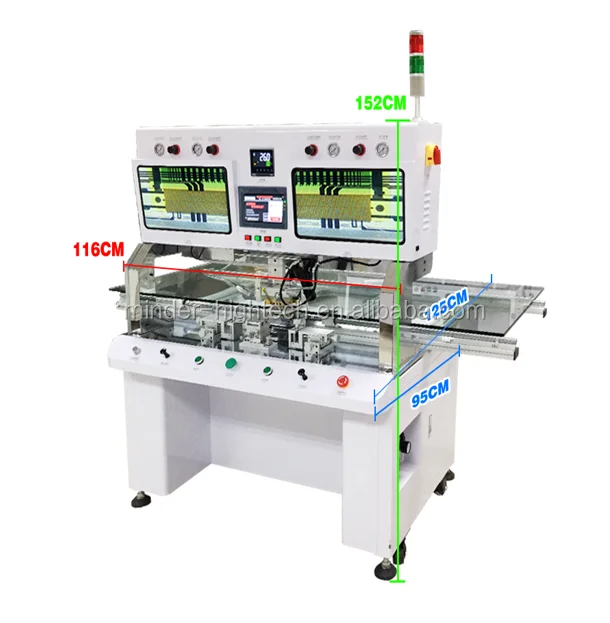

Size | L1800*W1200*H1520mm | |
Weight | 300kg | |
Our Services
- Help customer analyze product project and provide solution.
- Freely sample test.
- Skilled jig design services.
- Provide shipping/delivery information checking service.
- One year guarantee, all life maintain promise.
- 24 hours feedback speed by email of others.
Company Information
FAQ
| F.A.Q |
Q: Can I have my LOGO on my products?
A: Yes, We can offer LOGO silk-screen, grave. LOGO fee could be free while order quantity reach requirement.
Q: What is the bulk order delivery time?
A: Order lead time will be 2-10 working days, depend on product you order.
Q: How long is your warranty?
A: Lasts for 12 months.
Q: How could I make the payment?
A: Paypal, T/T, Western Union and Escow are the most popular methods.
Q: How about the package?
A: Foam and wooden case to protect products.
Q: How about the delivery method?
A: Normally we will take express such as DHL, Fedex, UPS and TNT for sample orders.For bulk order, will take air flights or Sea shipment.
