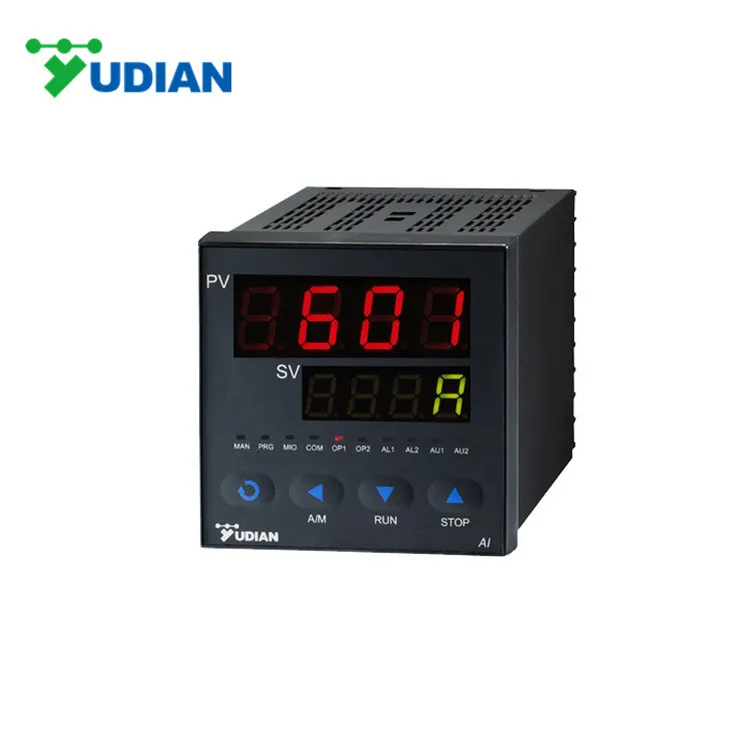

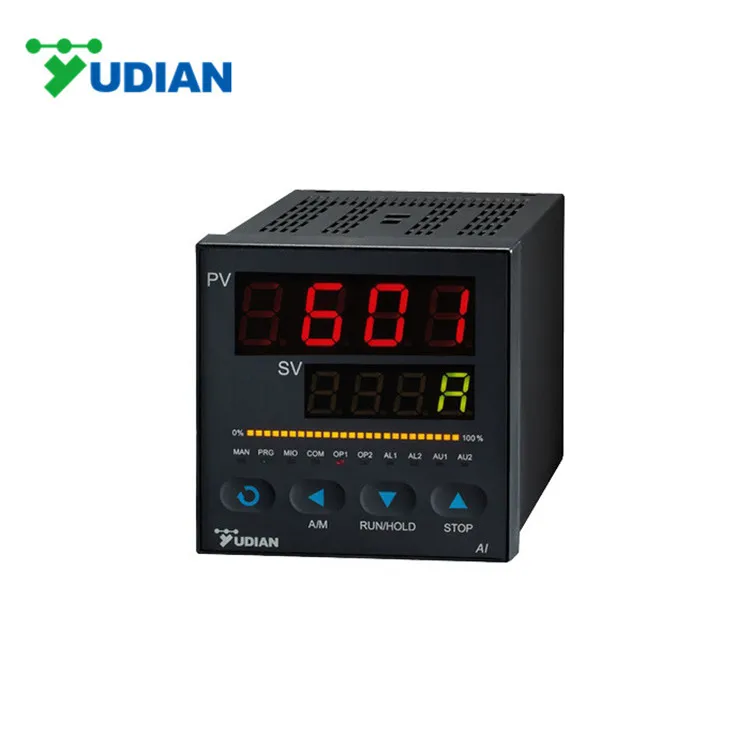

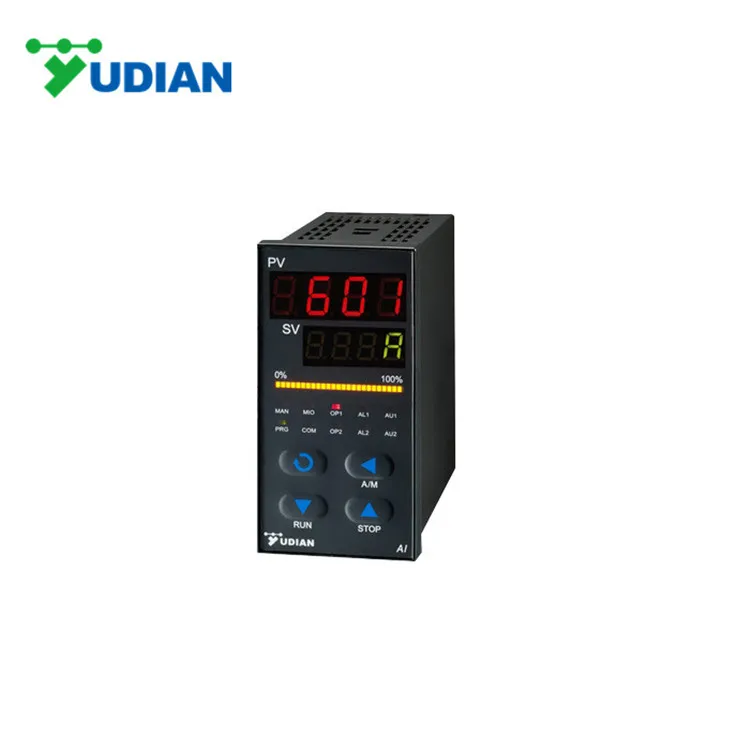

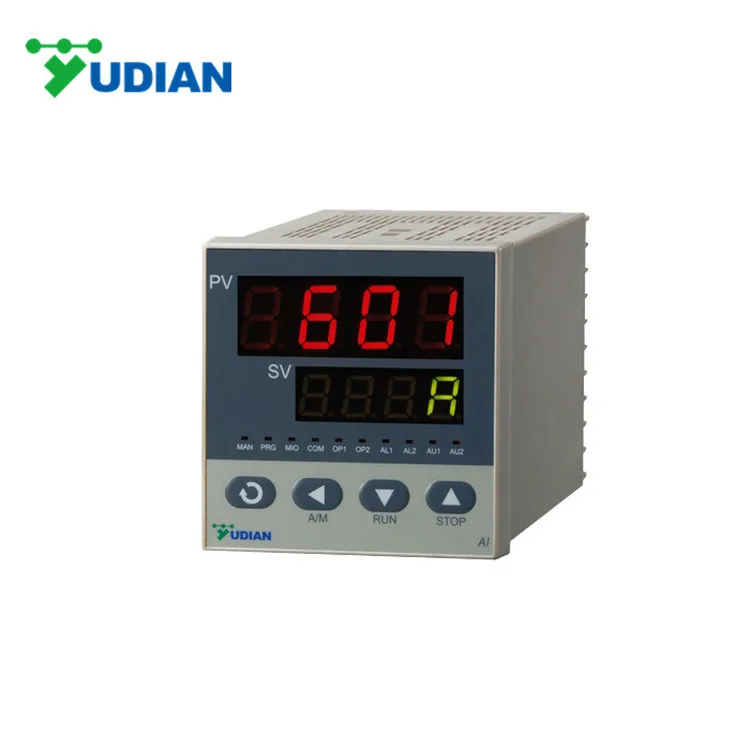

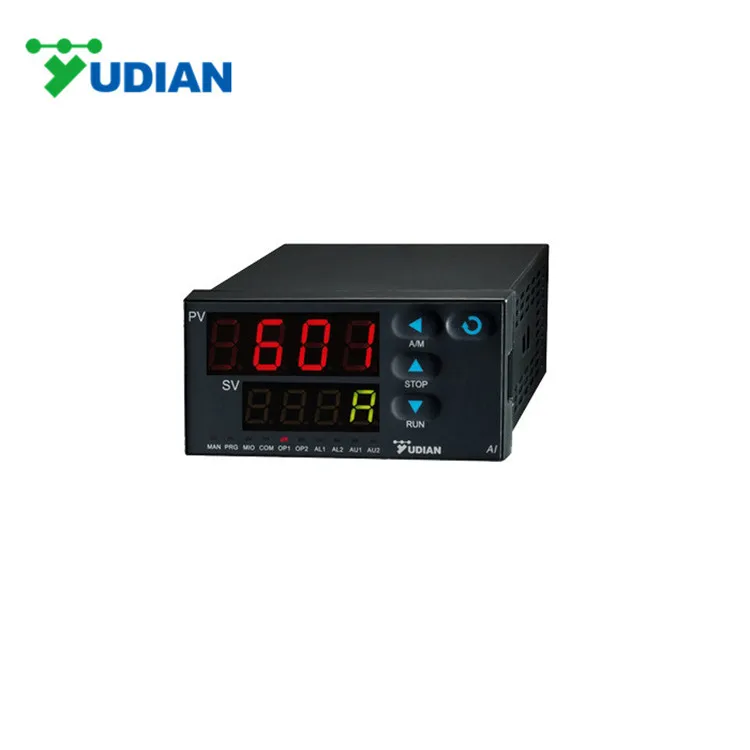

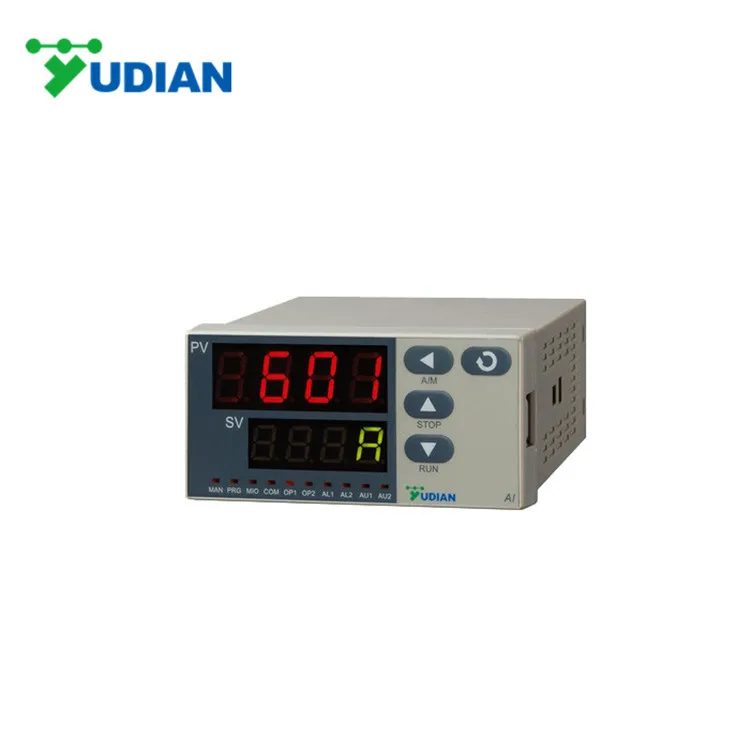

Yudian Hot Selling AI-601 Voltage Current Measurement AC Power Analyzer Meter

Product Description

.JPG

PRODUCT DESCRIPTION

Main Features for Yudian Hot Selling AC Power Analyzer Meter AI-601 Voltage Current Measurement

Equipped with alternative voltage and alternative current signal inputs isolated by transformer. It provides the functions of communication, retransmission and alarm. The main board is isolated with heavy current.
Measurement accuracy is 0.2%FS.
Provide dual display instrument.
Up to four channels of alarm, including two high limit alarms and two low limit alarms, Introduce digital calibration technology, easy to operate and maintenance free, automatically adapted to 50Hz/60Hz power measurement.
Support RS485 and RS232C communication interface and AIBUS communication protocol, which is 3 to 5 times faster than other field protocols.
Provide signal retransmission functions with transmission accuracy of 0.2%F.S. able to output standard industrial signal.
Universal power supply of 100-240VAC or 24VDC and various installation dimensions for users to choose from.
High quality and latest hardware design using high performance electronic components energy efficient less temperature drifting provides higher stability and reliability.
ISO9001 and CE certified, achieving world class level of quality, anti-interference ability and safety.

Dimension for AC Power Analyzer Meter AI-601 Voltage Current Measurement

Size	Front Panel (W*H)	Cut Out (W*H)	Depth Behind Mounting Surface	Light Bar
A	96*96mm	92*92mm	100mm
A2	96*96mm	92*92mm	100mm	25 segments and 4 levels
B	160*80mm	152*76mm	100mm
C	80*160mm	76*152mm	100mm
C3	80*160mm	76*152mm	100mm	50 segments and 2 levels
D	72*72mm	68*68mm	95mm
D2	48*48mm	45*45mm	95mm
E	48*96mm	45*92mm	100mm
E5	48*96mm	45*92mm	100mm	DIN rail mounting
F	96*48mm	92*45mm	100mm
