Product Description

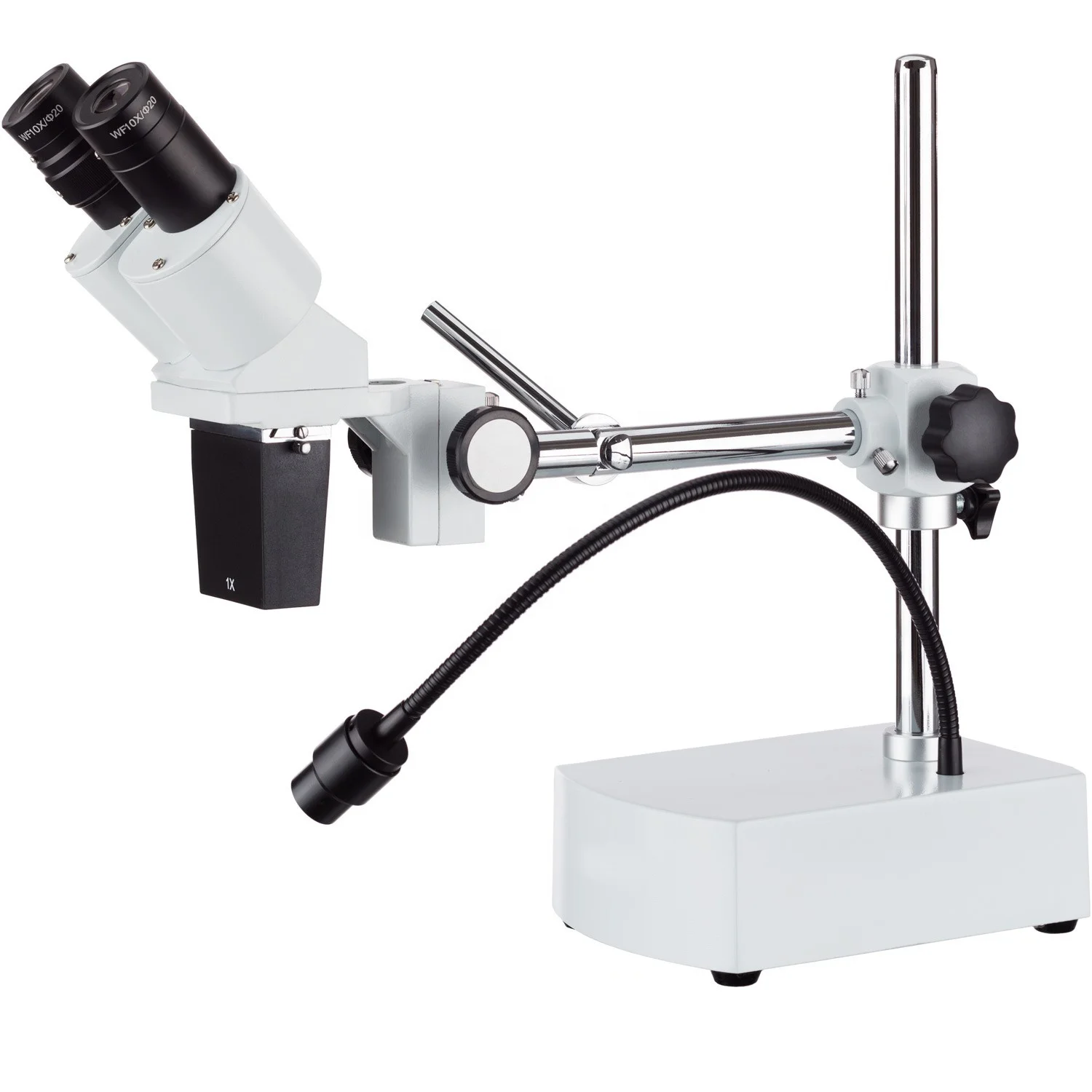

5X-10X 10X LED Lighting Boom Microscope for Mobile Phone Repair DUP.09.D2LP
Description
DUP.09.D2LP is a professional stereo microscope for Mobile phone repairing. It come with interchangeable pairs of 5x and 10x widefield eyepieces, a 1x objective, LED lighting, and a boom-arm stand. This microscope offers 5X and 10X magnification and a very large working distance. 5X optic works nicely for soldering and the 10X optic is great for inspecting your work. It is an ideal microscope for inspecting of circuit boards, soldering and repairing.
Key Features
• Long working distance enable users to handle large specimen
• 5X and 10X widefield stereo magnification powers

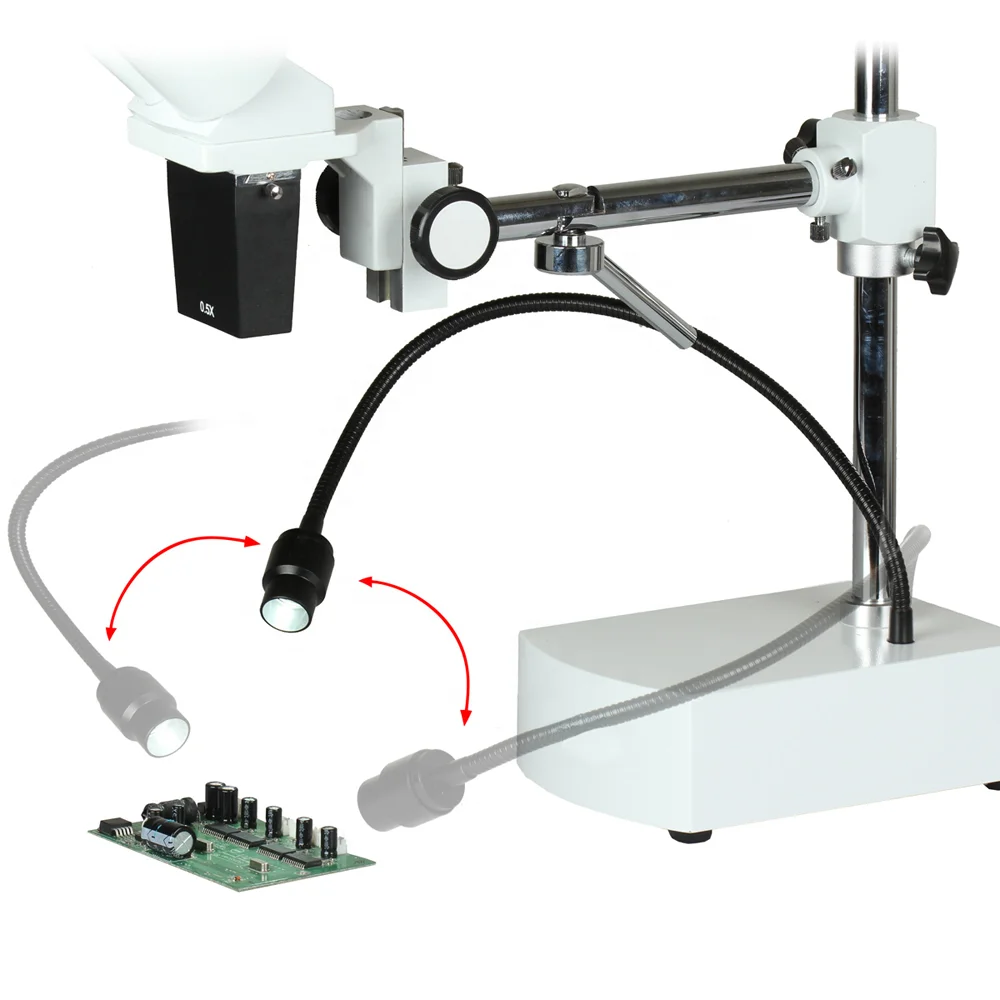

• Adjustable gooseneck LED light offering flexible illumination
• CE Approved and Manufactured Under ISO 9001 Quality Control Standard
Specification
Name of Parts | Specification | DUP.09.D2LP | DUP.09.D2P |
Head | The Left Ocular-tube with diopter adjustment 5DP, the Interpupillary Distance: 55-75mm | . | . |
Eyepiece | WF5X and WF10X | . | . |

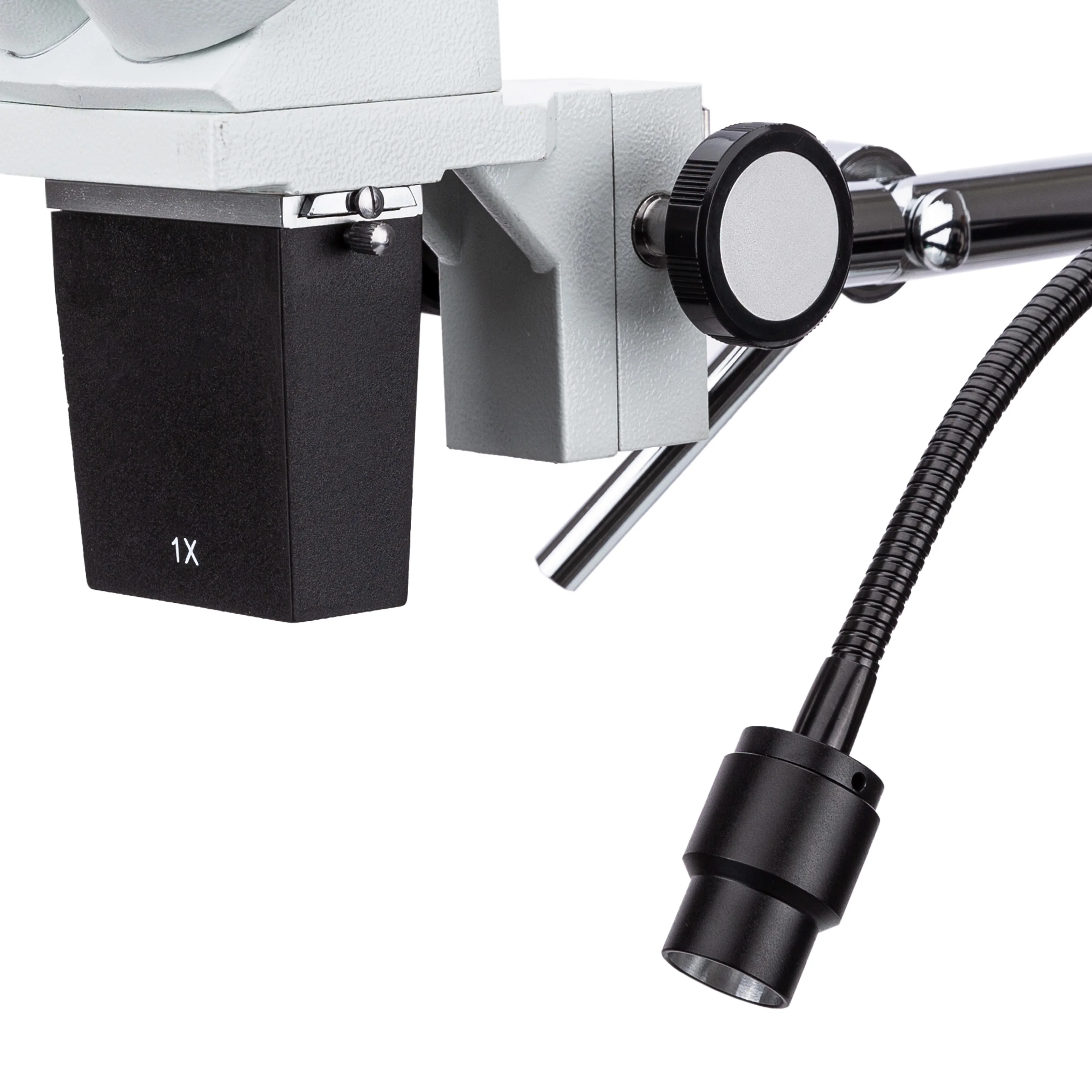

Objective | 1X | . | . |
Working Distance | 230mm | . | . |
Light Source | Incandescent Lamp 12V/10W 6V/6W | - | . |
High Brightness LED Point Light 3W | . | - |
Technical Data
Objective | EYEPIECES | Working Distance | |||||||
5X | 10X | 15X | 20X | ||||||
Mag. | Field of View | Mag. | Field of View | Mag. | Field of View | Mag. | Field of View | ||
0.5X | 2.5X | 40.0mm | 5X | 40.0mm | 7.5X | 30.0mm | 10X | 20.0mm | 250mm |
1X | 5X | 20.0mm | 10X | 20.0mm | 15X | 15mm | 20X | 10.0mm | 230mm |
Optical Accessories
Eyepiece | WF15X |
WF20X | |
Objective | 0.5X |

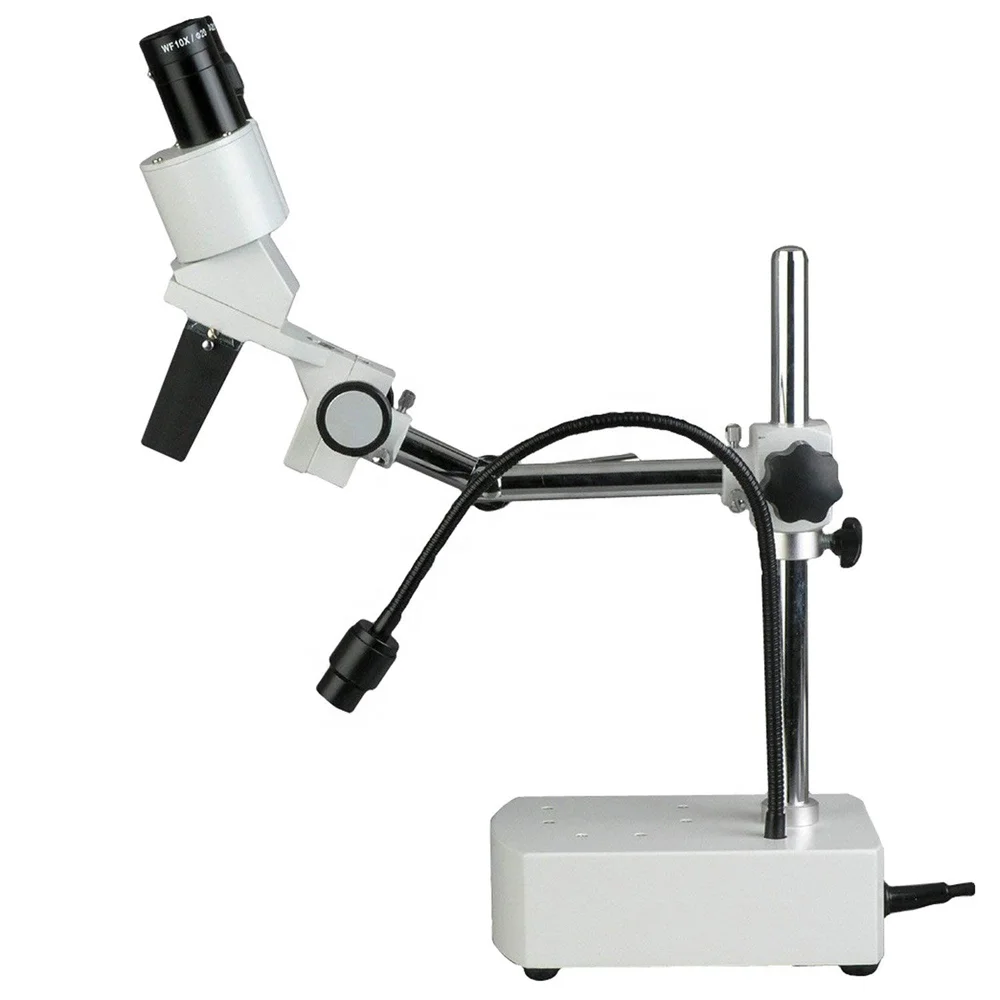

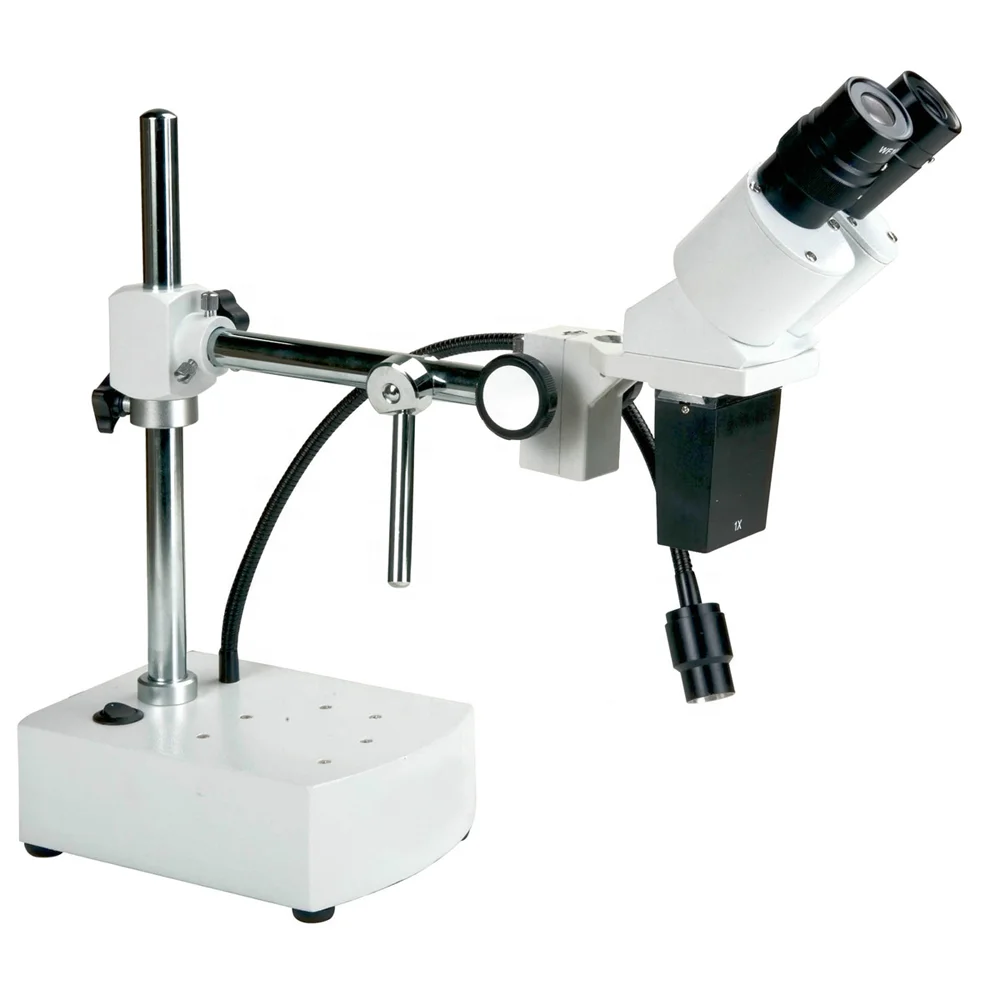

Product Show
Packaging & Shipping
1. The microscope is packed in strong foam and carton outside;
2. There are many ways available for shipping, express shipping like DHL, UPS, FedEx, EMS, air shipping, sea shipping, railwayshipping.
Our Services
We offer 3 year's warranty for the optics of the microscopes and 1 year's warranty for the electrical parts(bulbs excluded), all warranty agains factory defect.
