Видеонаблюдения взрыва высокоскоростная корпус Взрывной кожух
US $500.00-$540.00
Пассивное питание через Ethernet PoE адаптер Инжектор + Сплиттер Комплект 5 в 12 В 24
- Категория: Аксессуары системы видеонаблюдения >>>
- Поставщик: Optical,Network,Video,Technologies,(Shenzhen),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.23 $* | 0.7 $* |
| Aug-20-2025 | 0.85 $* | 0.95 $* |
| Jul-20-2025 | 0.80 $* | 0.70 $* |
| Jun-20-2025 | 0.32 $* | 0.14 $* |
| May-20-2025 | 0.87 $* | 0.93 $* |
| Apr-20-2025 | 0.25 $* | 0.25 $* |
| Mar-20-2025 | 0.19 $* | 0.43 $* |
| Feb-20-2025 | 0.26 $* | 0.33 $* |
| Jan-20-2025 | 0.85 $* | 0.7 $* |
Характеристики

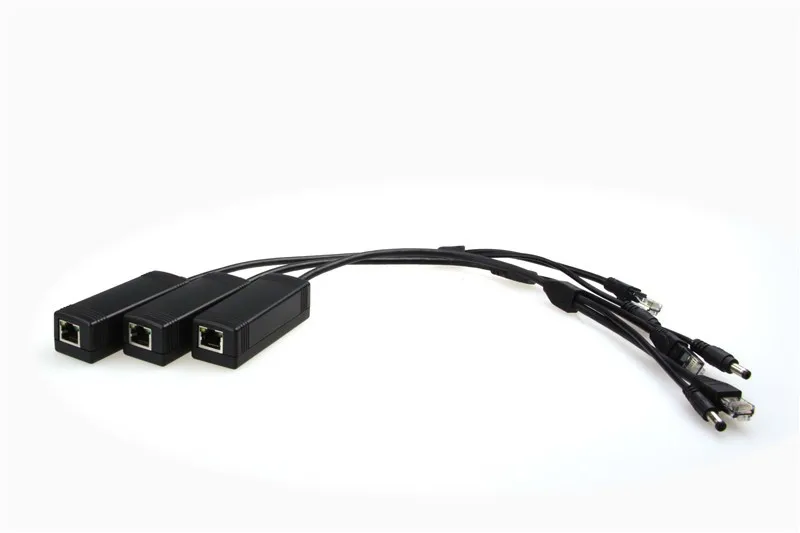

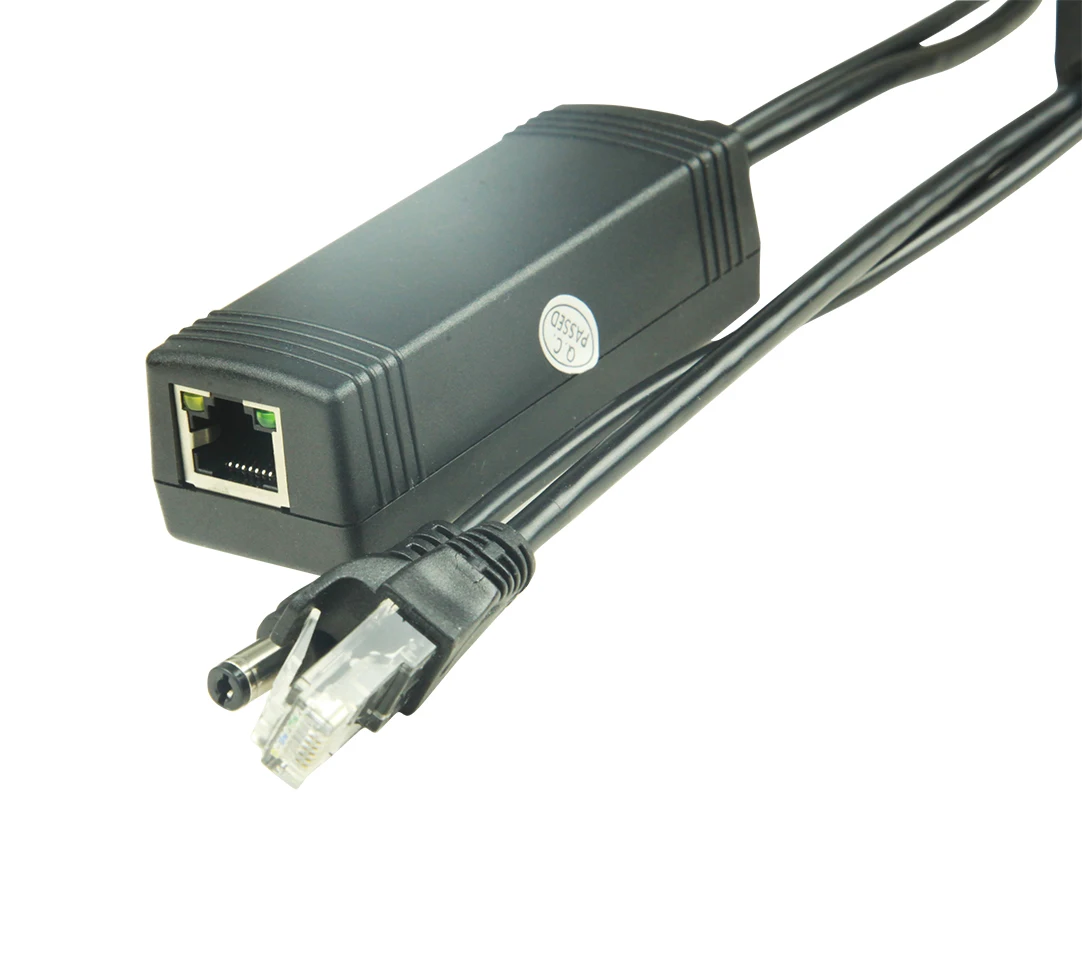

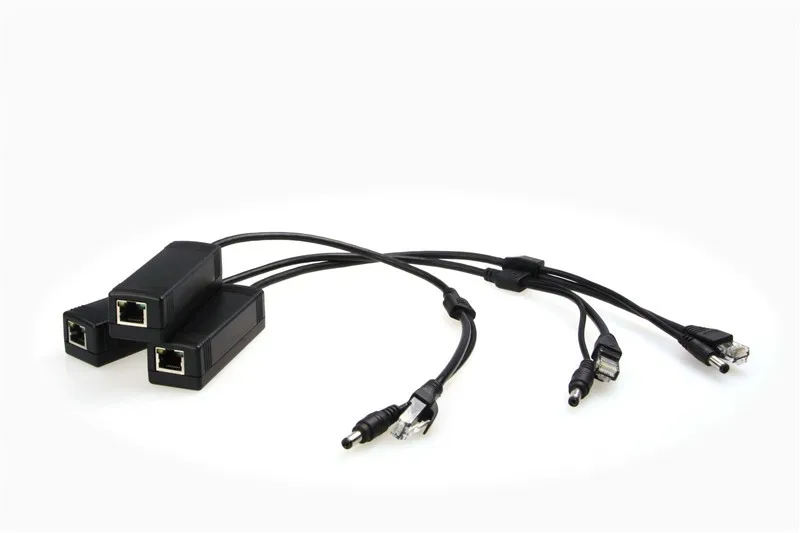

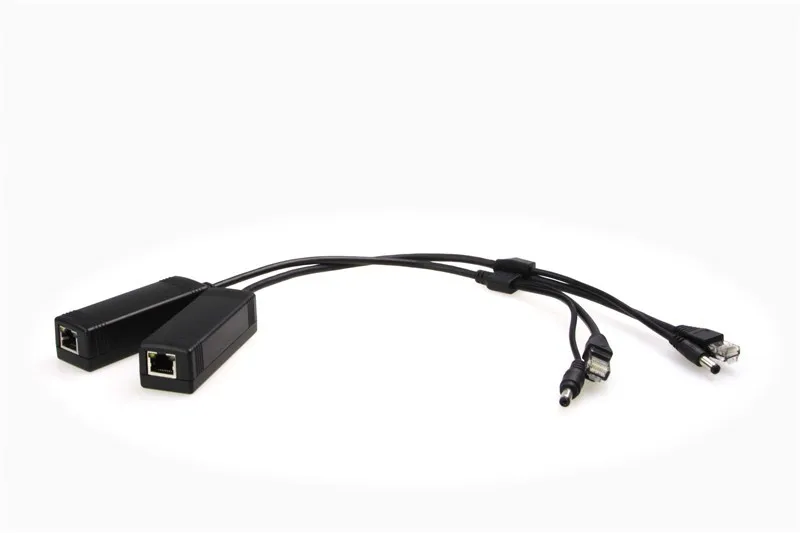

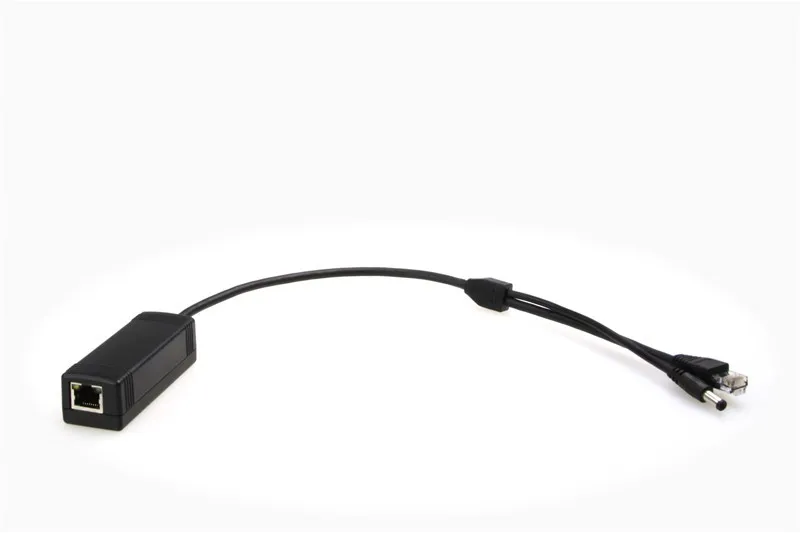

Passive Power over Ethernet PoE Adapter Injector + Splitter Kit 5V 12V 24V 48V
ONV-PD3202-AT 10/100M PoE Splitter Cable is using the MPS project and meeting the standard IEEE802.3af. It is compatible with both End-span (1,2+; 3,6-) and MID-span (4,5+; 7,8-); Power output:24W, low ripple, with high efficiency at more than 82% and hight voltage isolation at 1500V. Support protection for Short Circuit, Over-current & Over-temperature. It has passed the RoHS.With 2 in 1 design, the PoE splitter cable could be used to products that support external POE. ABS+PC shell makes it more durable. Its ports are for latest camera in the market.
- 100M POE SPLITTER
— Support IEEE802.3af. Be compatible with Mid Span and End Span.Voltage Input Range: 44-57V, Power Output: 13W, with over 82% efficiency. Support isolation function
— Default Voltage Output: 12V
— High Voltage Isolation: 1500V (Input Stage to Output Stage);Support protection for Short Circuit, Over-current & Over-temperature;
Model | ONV-PD3202-AT | ONV-IPS31064PF-at | ||
Fixed Port | 1x RJ45 input port 1x RJ45 output port 1x DC output port | |||
Product Name | 10/100M PoE Splitter Cable | |||
PoE Voltage Input | 44-57V | |||
DC Voltage Output | 12V | |||
Network Medium | Cat5 (UTP) or more | |||
Chip Parameter | ||||
Network Protocol | IEEE 802.3 i 10 BASE-T IEEE 802.3 x Flow Control IEEE 802.3 at Power over Ethernet IEEE 802.3 u 100 BASE-TX | |||
Rate | 10/100M | |||
Port Protection | Meet the IEC61000-4-2(ESD)±15KV(air), ±8KV (contact); Compatible with 8/20us,24A(12A) | |||
LED Indicator | PoE power input indicator light DC output power indicator light | |||
PoE & Power | ||||
Power Supply Pin | 1/2(+),3/6(-);4/5(+),7/8(-) power supply | |||
Max Power Per Port | 24W; IEEE802.3af/at | |||
Physical Parameter | ||||
Operation TEMP / Humidity | -0~+550°C;5%~90% RH Non condensing | |||
Storage TEMP / Humidity | -20~+70°C;5%~95% RH Non condensing | |||
Dimension (L*W*H) | 505x35x30mm | |||
Net /Gross Weight | 0.079kg | |||
Certification & Warranty | ||||
Certification | CCC;CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHS; | |||
Warranty | 1 years , lifelong maintenance. | |||
Model | Description | ||
ONV-PD3202-AT | 10/100M PoE Splitter Cable supports standard PoE input. Adopt port design for universal cameras. Support isolation function | ||
PACKING LIST | CONTENT | QTY | UNIT | ||
10/100M PoE Splitter Cable 13W (PD3202-AT) | 1 | SET | |||
User Guide | 1 | PC | |||
Warranty Card | 1 | PC | |||
