Пластиковый стакан б/у маленький автоматический мини-многоцветный офсетной печати цифровой пресс принтер для оборудование поставщики с
- Категория: Офсетные принтеры >>>
- Поставщик: Wenzhou,Guangya,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 69404784.76 $* | 72875023.87 $* |
| Aug-16-2025 | 68821551.1 $* | 72262629.53 $* |
| Jul-16-2025 | 57740115.84 $* | 60627121.53 $* |
| Jun-16-2025 | 67655084.90 $* | 71037838.58 $* |
| May-16-2025 | 58906581.84 $* | 61851910.90 $* |
| Apr-16-2025 | 66488617.81 $* | 69813048.40 $* |
| Mar-16-2025 | 65905383.3 $* | 69200652.1 $* |
| Feb-16-2025 | 65322150.25 $* | 68588258.82 $* |
| Jan-16-2025 | 64738916.68 $* | 67975862.52 $* |
Характеристики
PRODUCT FEATURES
1. All new E series design language
2. All new intelligent operation experience
3. Foil stamping, embossing, die cutting, and stripping can be completed in one pass
4. Non-stop sampling function to improve production efficiency
5. Front lay electric adjustment
TECHNICAL PARAMETER

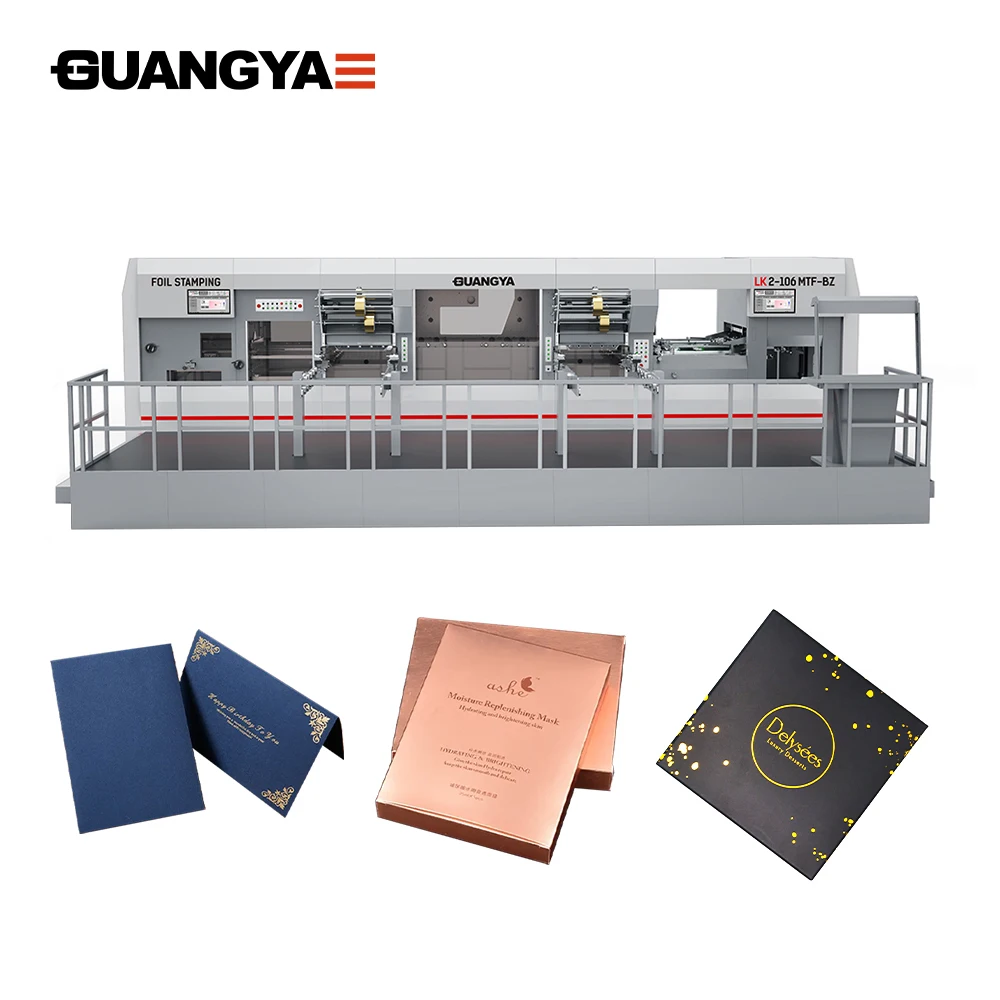

Model | LK2-106MTF-B |
Max. sheet size(mm) | 1060×760mm |
Min. sheet size(mm) | 400×350mm |
Max. die cutting size(mm) | 1060×746mm |
Max. stamping size(mm) | 1060×746mm |
Max. embossing size(mm) | 1060*730mm |
Gripper Margin(mm) | 9-17mm |
Paper range | 80-2000g/㎡(cardboard) 0.1-2mm(cardboard) ≤4mm(corrugated) |
Max. working pressure | 350T |
Max. die cutting speed(s/h) | 7500s/h |
Max. stamping speed(s/h) | 7000s/h |
Foil feeding shaft | 7 (3 in longitudinal, 4 in transversal) |
Zones individually heated | 12 (max to 200°C) |
Max. delivery pile height | 1100 (1400) mm |
Max. feeding pile height | 1400 (1700) mm |
Main motor power(KW) | 30kw |
Power rating(KW) | 108kw |
Machine weight(kg) | 43T |
Air requirements | 0.6Mpa, >0.37m³/min |
With presetting table | 10484*5862*2888mm |
Without presetting table | 10484*4362*2888mm |
MAIN FEATURES
Non-stop Feeder
• Imported Non-stop High-Speed Feeder
• Feeder anti-collision protection
• Feeder electric adjustment
• “SMART” - One button start function, feeder is automatically in position
• Synchronous belt drive to ensure the accuracy of paper feeding
• Left and right movement function of pile tray
• Adjustable paper feeding side blowers
• Pre-stacking paper function, non-stop paper feeding function
• Feeder anti-collision protection
• Feeder electric adjustment
• “SMART” - One button start function, feeder is automatically in position
• Synchronous belt drive to ensure the accuracy of paper feeding
• Left and right movement function of pile tray
• Adjustable paper feeding side blowers
• Pre-stacking paper function, non-stop paper feeding function

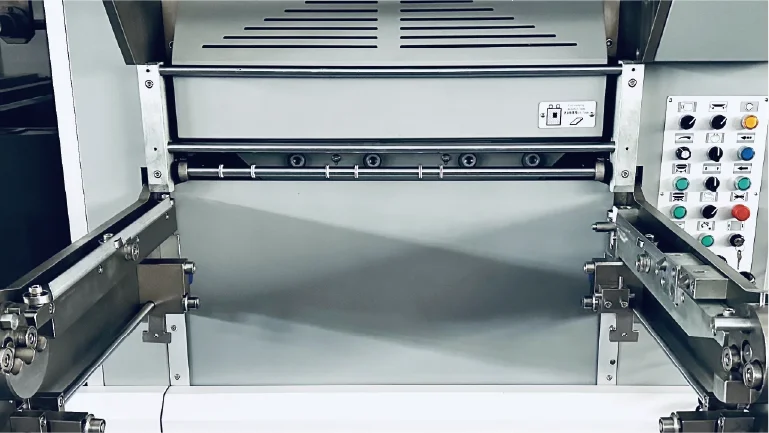

Feed Table
• Imported belts
• The belt is automatically tightened, no need to adjust
• Adaptive pressure wheel
• Electrical front lays
• Push-pull integrated side guides
• Imported Antistatic pattern stainless steel
• Ultrasonic double sheet detector (optional)
• “SMART” - One button start function, feeding wheel is automatically in position (optional)
• The belt is automatically tightened, no need to adjust
• Adaptive pressure wheel
• Electrical front lays
• Push-pull integrated side guides
• Imported Antistatic pattern stainless steel
• Ultrasonic double sheet detector (optional)
• “SMART” - One button start function, feeding wheel is automatically in position (optional)
Host station
• Electrically pressure adjustment function
• Automatic pressure keeping and pressure reduction function
• Imported intermittent mechanism and synchronous belt drive to ensure running accuracy
• Presetting Table (optional)
Frame and Bottom Plate
• Two-way one button locking device for chase and bottom plate
• Positioning locking function of frame and host to ensure operation accuracy
• Anti-drop protection function for chasing and supporting plate
• Integrated bottom plate, change job fast
• Steel plate imported from Germany
• Quick-lock cutting board frame with center positioning
• Cutting plate fine adjustment
Host Structure
• Host with exclusive and innovative design and is made of specially treated materials
• Extremely high strength, toughness, and service span
• Can withstand greater working pressure and working speed
• Automatic pressure keeping and pressure reduction function
• Imported intermittent mechanism and synchronous belt drive to ensure running accuracy
• Presetting Table (optional)
Frame and Bottom Plate
• Two-way one button locking device for chase and bottom plate
• Positioning locking function of frame and host to ensure operation accuracy
• Anti-drop protection function for chasing and supporting plate
• Integrated bottom plate, change job fast
• Steel plate imported from Germany
• Quick-lock cutting board frame with center positioning
• Cutting plate fine adjustment
Host Structure
• Host with exclusive and innovative design and is made of specially treated materials
• Extremely high strength, toughness, and service span
• Can withstand greater working pressure and working speed
Foil Stamping Station
• Exclusive innovative foil stamping structure
• Two foil stamping stations help to finished complicate job in one pass
• The first foil stamping station has 3 longitudinal and 2 transverse foil shafts
• The second foil stamping station has 2 transverse foil shafts (add 2 more longitudinal shafts for optional)
• 12 independent temperature zones to avoid interstitial temperature differences
• Independent temperature control, energy efficient
• Preheating function in temperature zone, save time
• Hot stamping memory function, storing operation recipes, reducing make ready time
• Extremely large operating space, reduced labor intensity
• Longitudinal foil group has an electrical foil feeding system, greatly saving time, and improving work efficiency
• The first foil stamping station has an air shaft unit , multi-purpose, suit for large areas of aluminium foil
• Holographic foil stamping (optional)
• The first foil stamping station has 3 longitudinal and 2 transverse foil shafts
• The second foil stamping station has 2 transverse foil shafts (add 2 more longitudinal shafts for optional)
• 12 independent temperature zones to avoid interstitial temperature differences
• Independent temperature control, energy efficient
• Preheating function in temperature zone, save time
• Hot stamping memory function, storing operation recipes, reducing make ready time
• Extremely large operating space, reduced labor intensity
• Longitudinal foil group has an electrical foil feeding system, greatly saving time, and improving work efficiency
• The first foil stamping station has an air shaft unit , multi-purpose, suit for large areas of aluminium foil
• Holographic foil stamping (optional)
Foil Stepping Function
• Independently developed, exclusive system
• Automatic foil stepping calculation function, foil stepping optimization function
• Up to 6 sets of irregular foil stepping with different spacing can be calculated automatically
Foil Break Detection System
• On-screen operation, easy to use
• Sensitive detection, reducing waste of aluminum foil and paper
• Independent switch
• Automatic foil stepping calculation function, foil stepping optimization function
• Up to 6 sets of irregular foil stepping with different spacing can be calculated automatically
Foil Break Detection System
• On-screen operation, easy to use
• Sensitive detection, reducing waste of aluminum foil and paper
• Independent switch

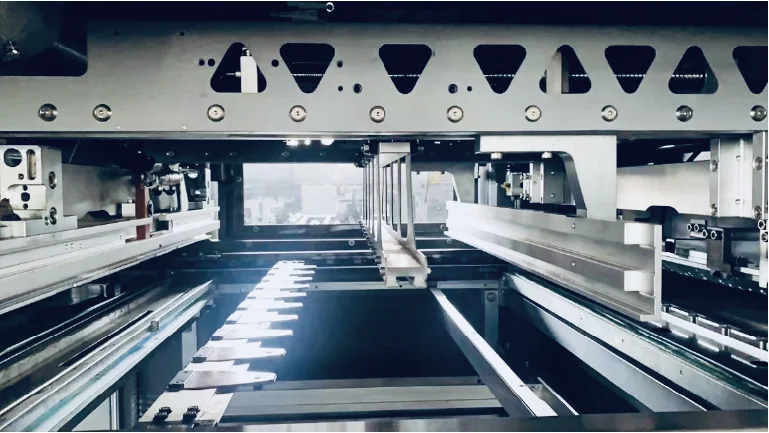

Stripping Station
• Stripping part in three frames mechanism
• Three frames with center positioning function
• Automatic in place function of the upper stripping frame by one key
• Upper stripping frame moving up and down pneumatically
• Automatic locking function of the upper stripping frame by one key
• Quick locking function of the middle stripping frame
• Quick positioning function of the bottom stripping frame
• Three frames with center positioning function
• Automatic in place function of the upper stripping frame by one key
• Upper stripping frame moving up and down pneumatically
• Automatic locking function of the upper stripping frame by one key
• Quick locking function of the middle stripping frame
• Quick positioning function of the bottom stripping frame
Delivery
• Automatic non-stop auxiliary delivery function
• Non-stop sampling function
• Servo-controlled braking brush with motorized adjustment function (length and angle)
• Rear jogger fine adjustment device
• Tape inserter (optional)
• Safety light curtain
• “SMART” - One button start function, delivery is automatically in the position
• Paper delivery fan system. It can be adjusted individually; infinitely variable speed.
• Automatic intermittent lubrication system
• Non-stop sampling function
• Servo-controlled braking brush with motorized adjustment function (length and angle)
• Rear jogger fine adjustment device
• Tape inserter (optional)
• Safety light curtain
• “SMART” - One button start function, delivery is automatically in the position
• Paper delivery fan system. It can be adjusted individually; infinitely variable speed.
• Automatic intermittent lubrication system
Control System
Operating System
• 24-inch industrial control large-size true color touch capacitive screen
• Easy operation and visualized functions
• Automatic screen-off function, environmental protection, and energy saving
• Production operation monitoring and data statistics function.
• Imported motion control system, Ethercat real-time industrial bus structure
• 24-inch industrial control large-size true color touch capacitive screen
• Easy operation and visualized functions
• Automatic screen-off function, environmental protection, and energy saving
• Production operation monitoring and data statistics function.
• Imported motion control system, Ethercat real-time industrial bus structure
Electrical System
• Modular design of the electrical system
• All imported electrical appliances, quality assurance
• Remote module, fast and convenient maintenance
• Large-capacity air circulation filter system for electrical cabinets
• Air conditioner for electric cabinet
*FOR MORE DETAILS, PLEASE ASK YOUR SALES CONSULTANT
