Pos Machine Non-touch Induction Fpc Antenna Flexible Pcb Board Pi

Цена:*

Количество:

Products Description

Seq	Item	Standard	Special
1	Production Capability	Single-sided：20,000M²/Month	N/A
1	Production Capability			Double-sided/Multi-layers:10,000M²/Month	N/A
2	Base Material	Polyimide (Kapton) ( PI )	Polyester (PET)
3	Layers	Flexible Printed Circuit(FPC) Board：1~6 layers	8 Layers
3	Layers			Rigid-Flex Board：2~6 layers	8 Layers
4	Maximum Size	250*1200mm	500*1200mm
5	Maximum Thickness	0.75mm	N/A
6	Minumum Thickness	0.05mm	N/A
7	Product thickness tolerance	± 0.03mm	± 0.02mm
8	Copper Thickness	12um (1/3OZ)，18um (1/2OZ) , 35um (1OZ), 70um (2oz)	6um(1/4OZ), 140um (4OZ)
9	Minimum Line Width/ Distance between stitchings	± 0.05mm	± 0.03mm
10	Stiffener material type	PI / FR4 / PET / Steel piece	N/A
11	Etching tolerance	± 0.02mm	N/A
12	Minimum Hole Diameter	0.1mm	N/A
13	Hole tolerance	PTH: +/- 0.05mm NPTH: +/-0.03mm	N/A
14	Outline profile	Punching , Laser cut	N/A
15	Outline Dimension tolerance	± 0.1mm	± 0.05mm
16	Solder mask color	Yellow,Black,white	Green,Red,Blue
17	Surface treatment	OSP: 0.2-0.5um ENIG: Au 0.03um - 0.15um Immersion Tin:0.5-1.5um Immersion silver: 0.1-1.2um Gold plating: Au 1-150U’’	HASL : 1- 20um
18	Thermal shock test	288 ± 5 ℃ , 10S , 3times	N/A
19	Environmental Requirement	ROHS	N/A

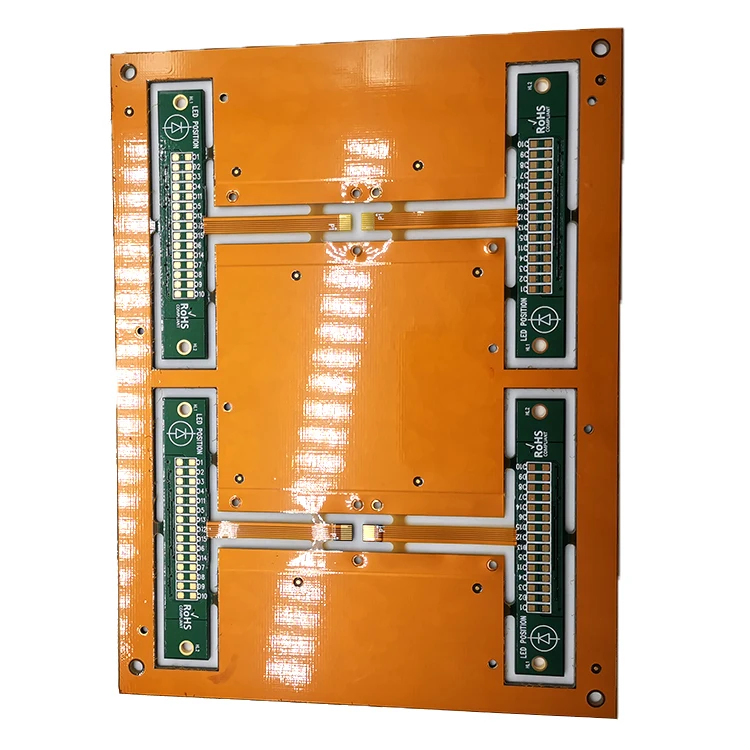

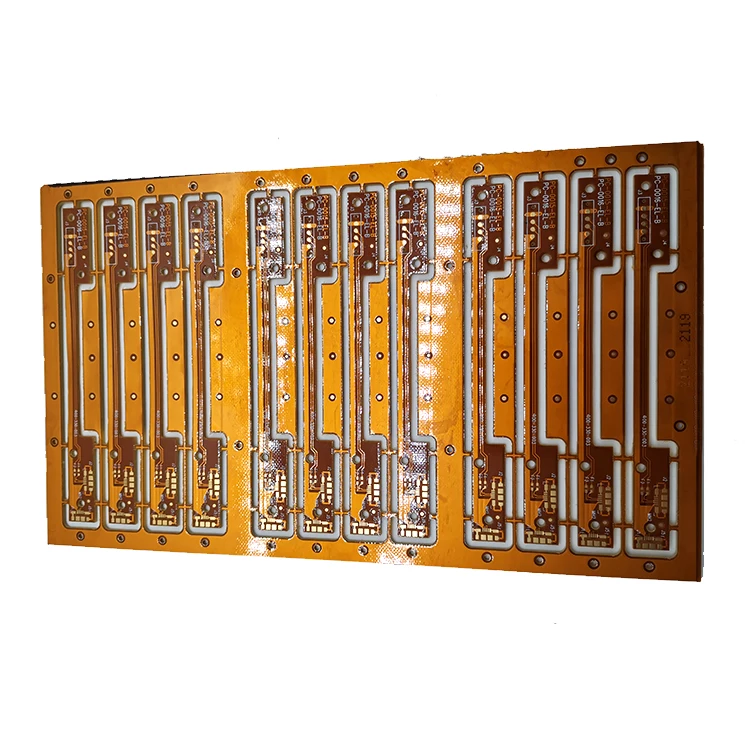

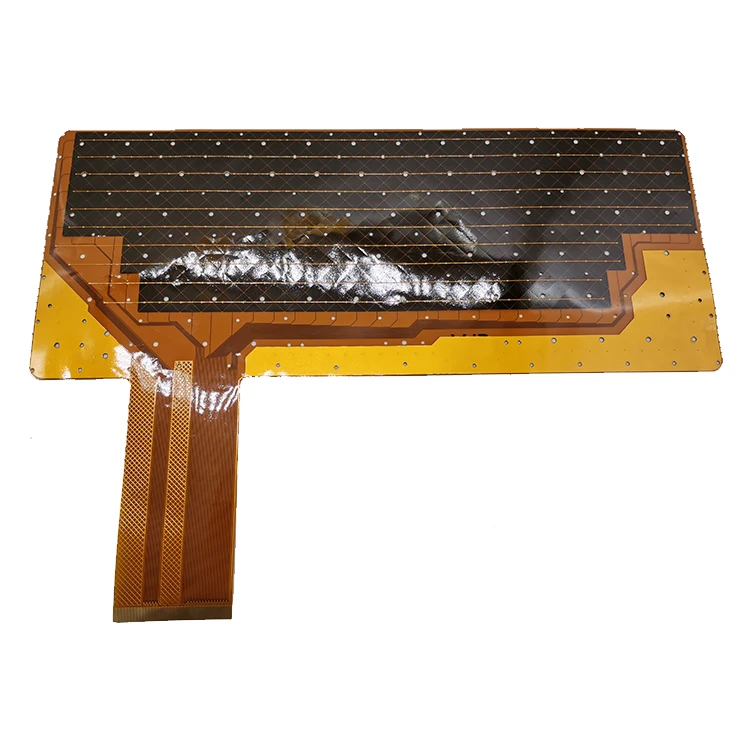

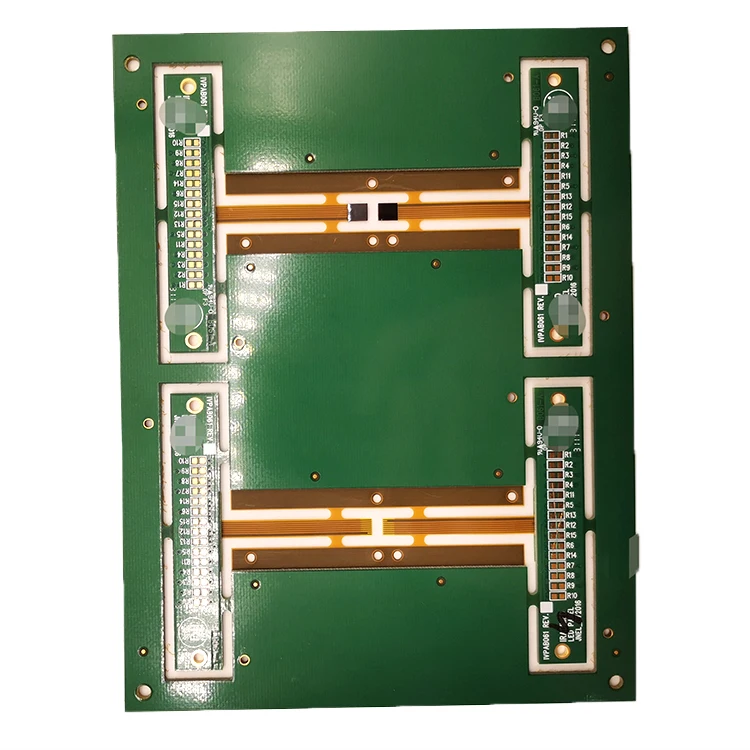

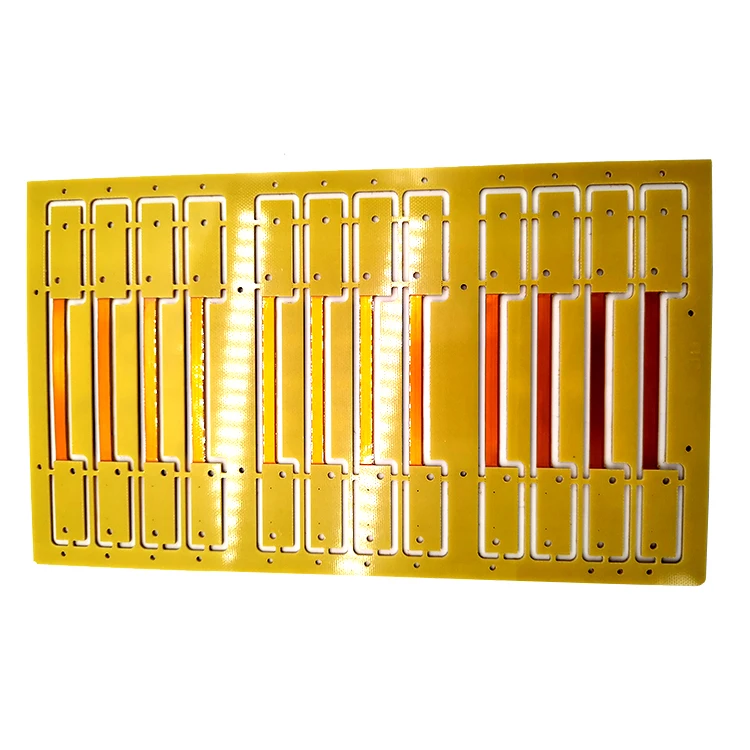

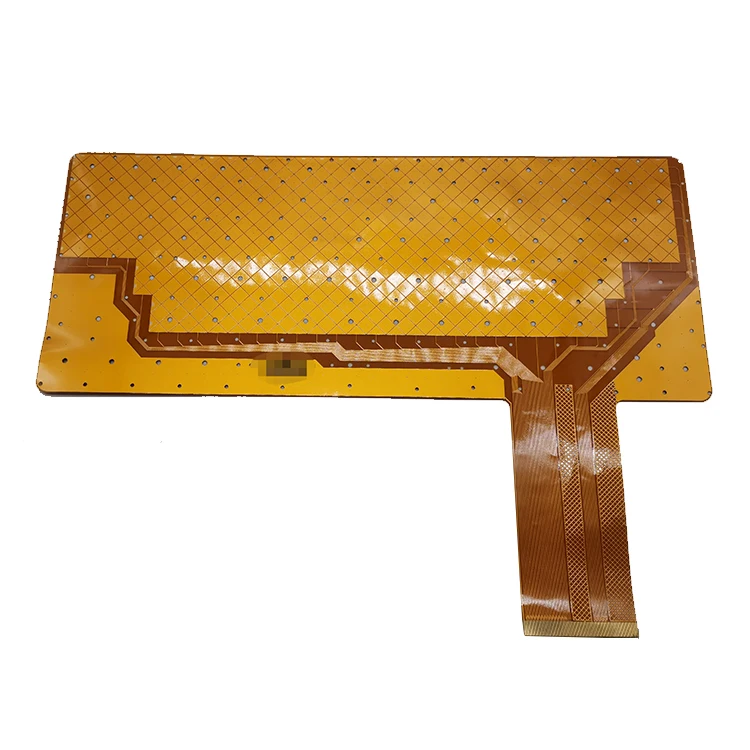

Details Images
