Прямая Заводская поставка ABS PC SMC наружный телефонный шкаф 144 288 576

Описание и отзывы

Трекер стоимости

Характеристики

factory directly ABS PC SMC outdoor telecom cabinet



Description

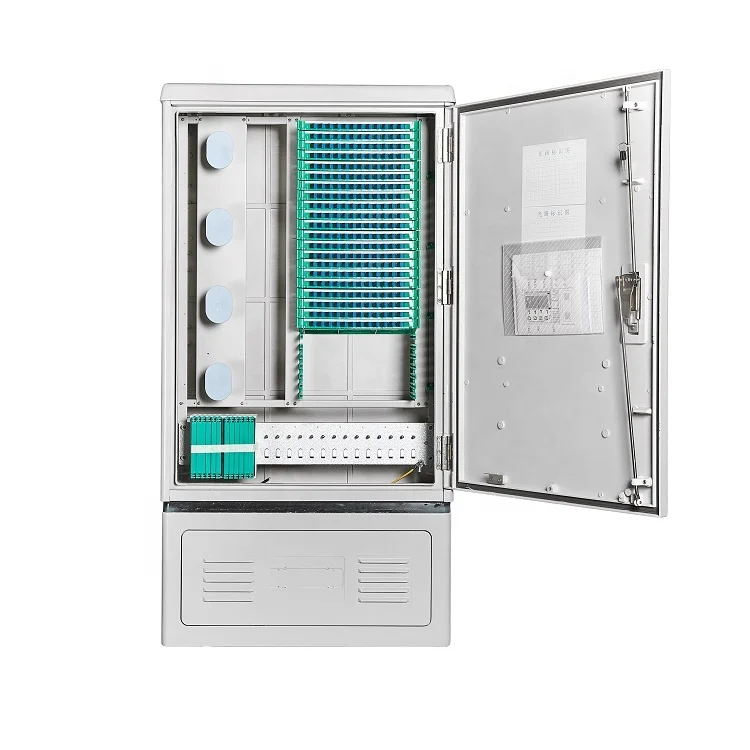

outdoor telecom cabinet
GXF5-67M-Z patch cord free fiber optical cross connection cabinet
is one of ideal equipment in the construction of FTTx, which application
to PON technology and FTTx fiber access network .It can
achieve such functions as splicing ,storage , termination and distribution
for the introduction of outdoor fiber optical cable ,etc

Main Feature



1. Suitable for the termination between primary cable and distribution cable in FTTx
fiber access of PON technology
2.reduce using adapter and patch cord , also can reduce communication failure and
insertion loss, improve the network safety.
3.A fixed length for outdoor cable (primary cable ,orderly pigtail management center
make the interface clear .
4. Improving the equipment capacity fully, achieving the purpose of enlarge capacity

Ordeing information

Dimension(mm)H(*)×W×D	12F  Patch Cord- Free Pigtail Output Tray	12F Integrated Splice Tray or 12F Direct Insertion     Tray		MAX Capacity (core)		Note
				Primary Tray	Distribution Tray
1030(760)×560×305	12(#)	12		144	144	Front Access(earth connection /wall mounted /aerial )
1450(1100)×740×370	24(#)	28		288	336	Front Access(earth connection /wall mounting /aerial)
1461(1111)×750×580	48(#)	56		576	672	Front and Rear  Access( earth connection /aerial)
1.Primary tray use of 12F patch cord free pigtail output tray with dimension (mm):25 ×150×230(L× W× H),color:PANTONE cool Gray 8C                                                                   2.Distribution tray use of 12F integrated splice tray with dimension :25 ×200× 180(L× W× H),color:PANTONE cool Gray 8C  or use of 12F direct insertion type tray with dimension :25× 150× 180  (L× W× H),color:PANTONE 7690C                                                                           3.12F integrated splice tray available for adapter :SC ,FC rectangle                                             4.* replace demension  not contain  the size of  bottom                                                             5.# is the number of primary tray                                                                                           6.12F integrated splice tray also can be used as PLC splitter tray and direct splicing  tray ,the fiber number can be configured according to the customers'requirement





1.What is your quality control?

-Quality is our soul and culture.We have 100%strict inspection and testing before shipment.We will return the money to you if there is quality problem.

2.Can you accept small order?

-Yes,small order is available in our company.We support new project of our customers as we know business is always from small to big.

Your sucess is my business.

3.Can I order samples before placing the bulk order?

-Yes,sample is certainly for your test before the bulk order.It is normal process,we always deal with other clients.

However,we will charge for a small amount of deposit in case the investment on new samples.But please donot worry,the sample deposit will refund to you when bulk order fixed.

4.What is the lead time for samples?

-About sample making,it usually takes 7-15days include testing to make sure its excellent.

If urgently,please kindly let us know,we will do our best to work overtime to speed up it.

5.Can you supply customized products and logo?

-Yes,of course we can.We supply OEM&ODM service.You can send us your drawing.

You have the idea,we turn it into excellent product for you.
