Недорогой производитель MN2 Микро перистальтический насос 12 В 24 для струйной
- Категория: Pumps & Parts >>>
- Поставщик: Chongqing,Jieheng,Peristaltic,Pumps,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 29.7 $* | 30.98 $* |
| Aug-15-2025 | 28.68 $* | 29.14 $* |
| Jul-15-2025 | 24.32 $* | 25.75 $* |
| Jun-15-2025 | 28.1 $* | 29.30 $* |
| May-15-2025 | 24.98 $* | 25.22 $* |
| Apr-15-2025 | 27.17 $* | 28.15 $* |
| Mar-15-2025 | 27.9 $* | 28.71 $* |
| Feb-15-2025 | 27.67 $* | 28.10 $* |
| Jan-15-2025 | 27.36 $* | 28.93 $* |
Характеристики
Cheap Price MN2 Manufacturer Micro Peristaltic Pump 12V 24V for Inkjet Printing
Flow Rate(ml/min, medium: clean water, inside silicone tube)
Tube Size | 14#(in option) | 16#(standard) | 25#(in option) |

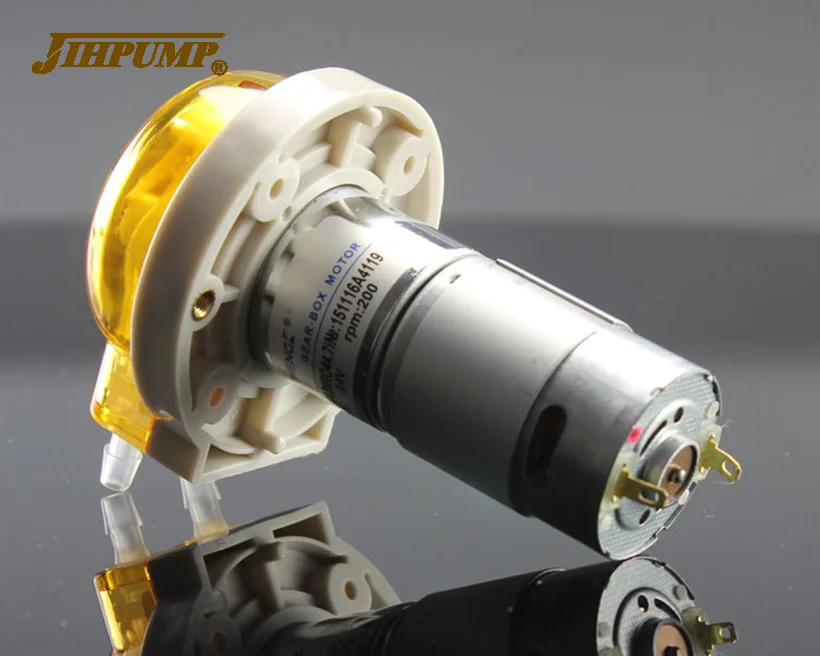

MN2/ZL(DC Geared Motor) | |||
100rpm | 16 | 40 | 75 |
150rpm | 18 | 50 | 95 |
200rpm | 25 | 70 | 130 |

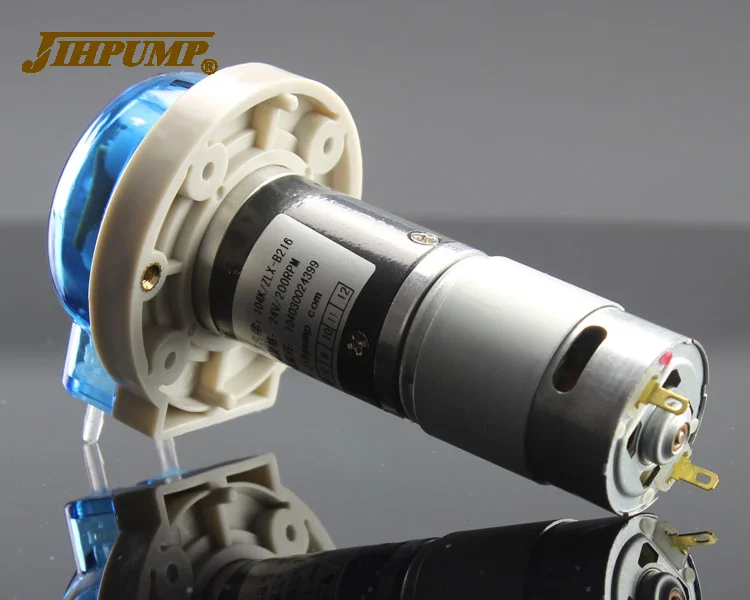

MN2/ZLX(DC Planetary Motor) | |||
100rpm | 13 | 35 | 60 |
150rpm | 18 | 50 | 95 |
200rpm | 23 | 60 | 115 |

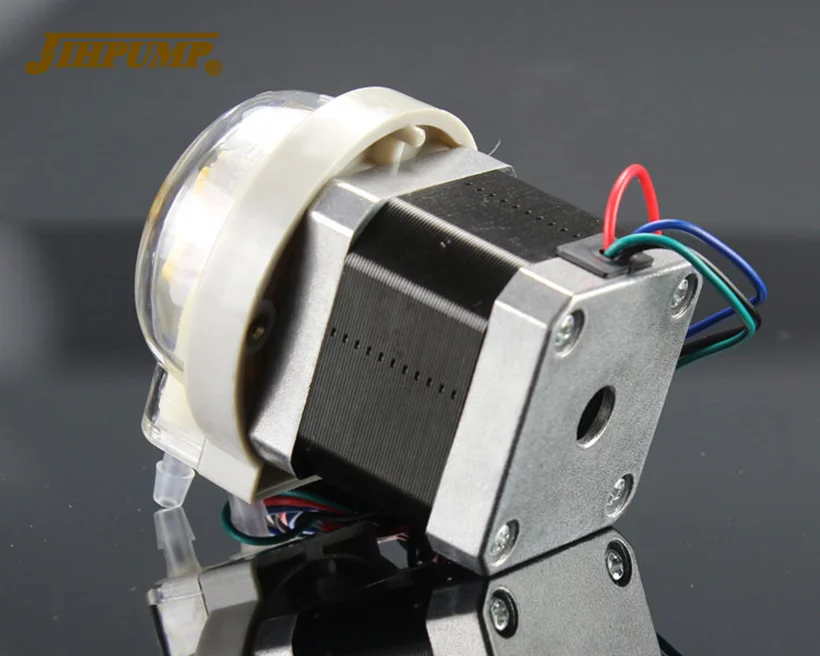

MN2/BT(Stepper Motor) | |||
200rpm | 23 | 60 | 115 |
Parameters
Model | MN2/ZL | MN2/ZLX | MN2/BT |
Motor type | DC Geared Motor | DC Planetary Motor | Stepper Motor |
Speed range | 12V: 100,150,200r | 24V:100,150,200r | 0.1~200r |
Tube size | 14#, 16#, 25# | ||
Flow rate range | 13~115ml/min | 13-130ml/min | ≤115ml/min |
Roller qty | 3 Rotors | ||
Power | 24W | 48W | |
Driver | DC Motor Driver: JZL-A &JZL-B | Stepper Motor Controller | |
Voltage | DC12V, 24V | DC24V | 12V~24V |
Net Weight | 176g | 228g | 335g |

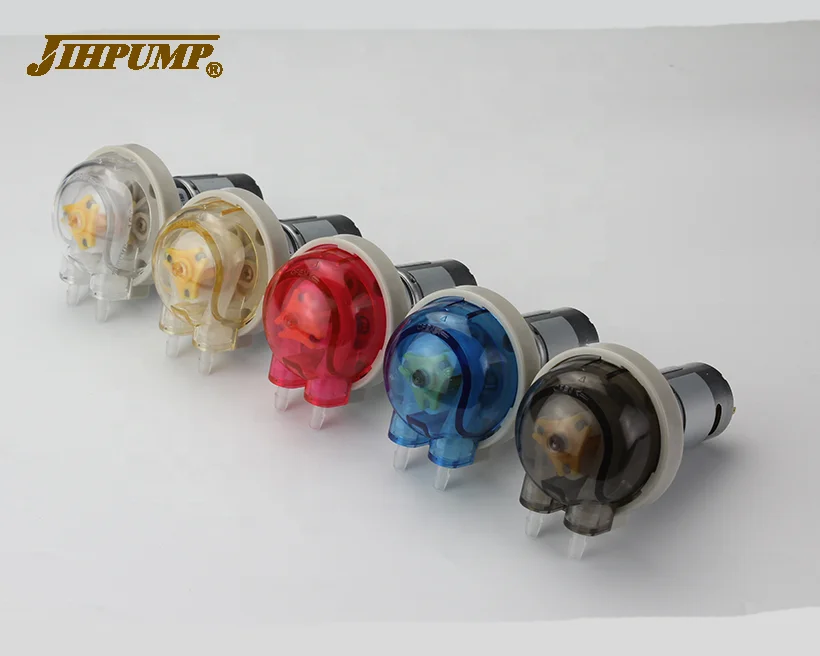

Optional Colors
Optional Tube type & Fittings
Standard fittings & Hard tube fittings & threaded fitting
![%0ZF[ZUJB$4]RZ}CMB95~ZE.png](http://sc03.alicdn.com/kf/H75cf0117a4bb46c4b802581a900954d3B/226598799/H75cf0117a4bb46c4b802581a900954d3B.png)
Speed Controller for DC Motor
--Adjust speed on DC motor, DC planetary motor
JZL-A
JZL-B--can be fixed on the DC motor
Speed Controller for Stepper Motor
| JBT-AM | Internal and external potentiometers adjust the speed, with start/stop, speed up/down and forward/reverse functions |
| JBT-AP | Accept voltage and PWM pulse to adjust speed, data can be added, built-in potentiometer to adjust current, with start/stop, speed up/down and forward/reverse functions |
| JBT-AT | MODBUS control speed, start/stop and forward/revers |
| QBT-M2 | Built-in potentiometer to adjust current, capable of receiving pulse, direction and enable signal |
Dimension
MN2/BT
MN2/ZL
MN2/ZLX
