Model No:   HQ840-C1-T

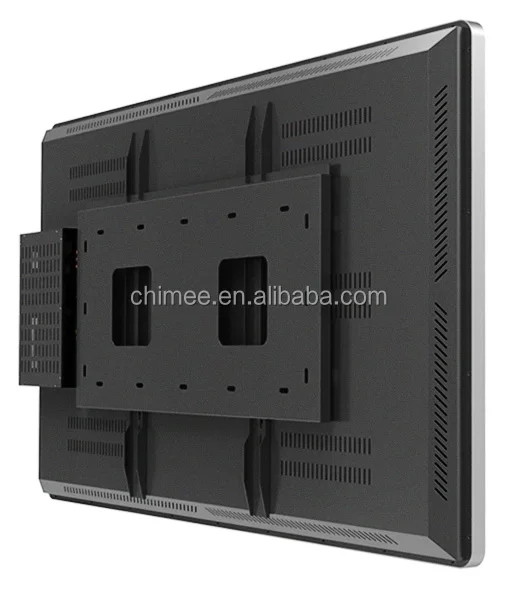

70/84 inch interactive whiteboard all in one i7 touch pc mini pc





Customizations:

1. Camera Can be added in the top of the AIO PC.

2. The touch screen can support real touch points under different O/S such as Windows, Linux, Mac OS .

3. The touch screen with mighty glass, very smooth and high speed,can support up to 40 touch points or more .

 4. The base can be added with wheels.

 5. The logo can be customized.







84 inch Panel parameter list :





Panel Size	84.44'' (2134.62mm)
Panel type	IPS hard panel
Dimension	1904.0(H)x1096.0(V)15.59B)/24.0MM(D)(TYP)
Dot pitch	0.4845mmx0.4845mm
Brightness(cd/m2)	500 cd/m2
Resolution ratio	3840x2160(4K)
Visual Angle	178°
Display colors(M)	10BIT(D),10.6BOLLIONS COLOR
Power	The total power of 398W,18W logic circuit, LED driver module 380W
The panel weight	42.9KG
Display mode	Transfer mode, screen display mode
Surface treatment	Hard coating(3H),front polarizing anti-glare treatment
Backlight type	Full LED



Product Features :

1. A+ grade LCD/LED panel

2. High class steel & aluminum

3. Tempered glass or acryl board on the surface

4. Easy Control with OS: Win 7/8, Linux or Ubuntu

5. Easy connection to other devices with HDMI,DVI,VGA ports

6. Touch Screen Optional







The PC Solutions:





Solutions	I5 Solution	I7 Solution
CPU	I5 2300 (2.8Ghz)	I7 2600 (3.4Ghz)
RAM	4GB	8GB
Graphic	Integrated	Integrated
HDD	2.5 inch 500GB SATA HDD OR 128GB SSD (HDD capacity & SSD can be customized)
LAN	10/100/1000M Auto-adjust Gigabit Ethernet included
WIFI	150Mbps 802.11n included
Audio	HD 8(7.1) Channel Audio System
Speaker	2 x Built-in High Quality Stereo Speakers
I/O Ports	4 x USB Ports included
	(HDMI,DVI,VGA in/out ports optional)
Other	DVD-RW, Mouse/Keyboard Set, Webcam,
Options	Thermal Printer, Bluetooth, TV tuner, Wheels,







F A Q:

1. What is the enclosure made with? Is the product bandal-proof?

 : All our frame enclosure is made with very strong and durable steel metal. And the product dimensions can be customized according to customers request.



2. Does this product have tempered glass on the surface of LCD or LED panel?

 : Yes, all our products have 2-8mm tempered glass on the surface of panel.



3.  What built in PC solution does this all in one computer have?

 : We set Intel i5 (Quad core), i7 (Quad core) CPU solutions according to customers request.



4. Does this product support Touch Function?

 : Yes,  we can can offer 2/6/12/32 points touch frame according to customers request.



5. What input/output ports does this product have?

: Our touch all in one computer originally have 4 USB ports, and we can add HDMI/DVI/VGA ports according to customers request.





Chimee's Certification:







Chimee's Order process:

Chimee's A/S Terms:

1. Online technical support with Skype, Yahoo messenger, MSN, Teamview etc.

2.Free spare parts shipping, after checking by pictures and videos, if we confirm the damage not cause by human, we will ship spare parts to do the replacement for free.

3.Online support and sending user manual for buyer's technician to do the replacement of the damage parts.
