Professional sound system 18 inch pa speaker active line array

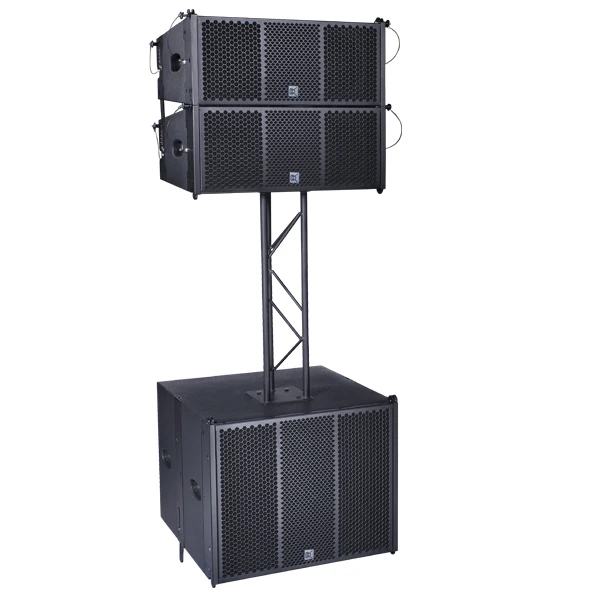

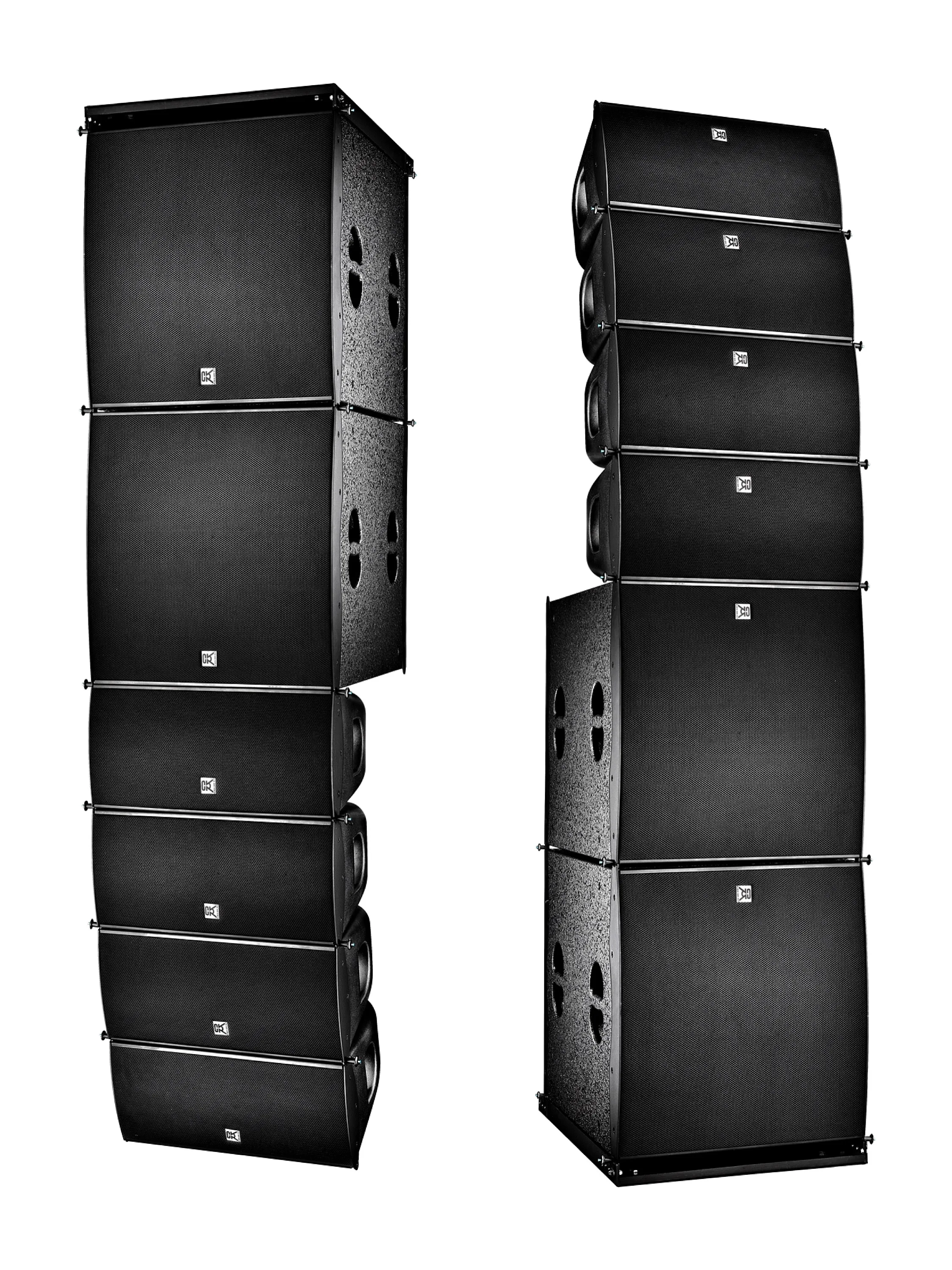

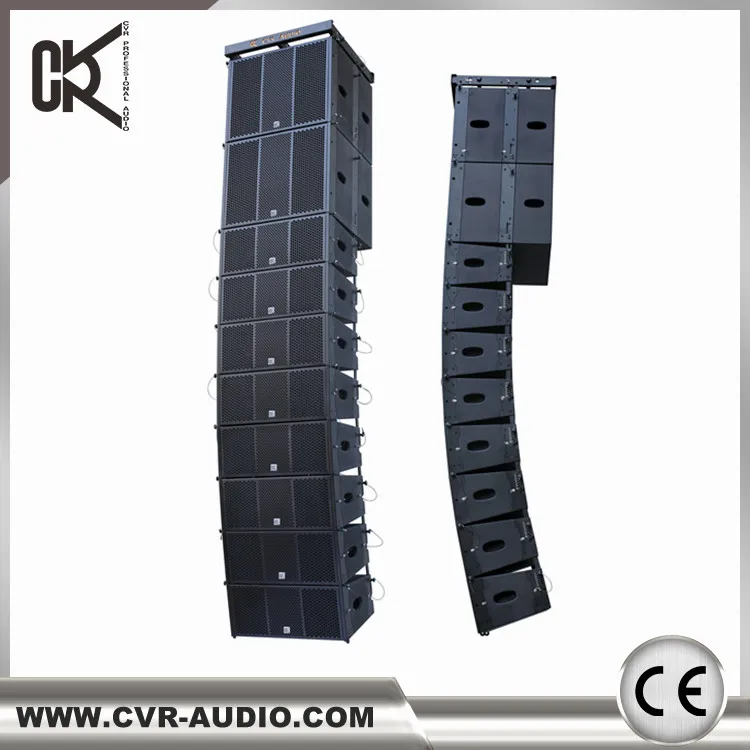

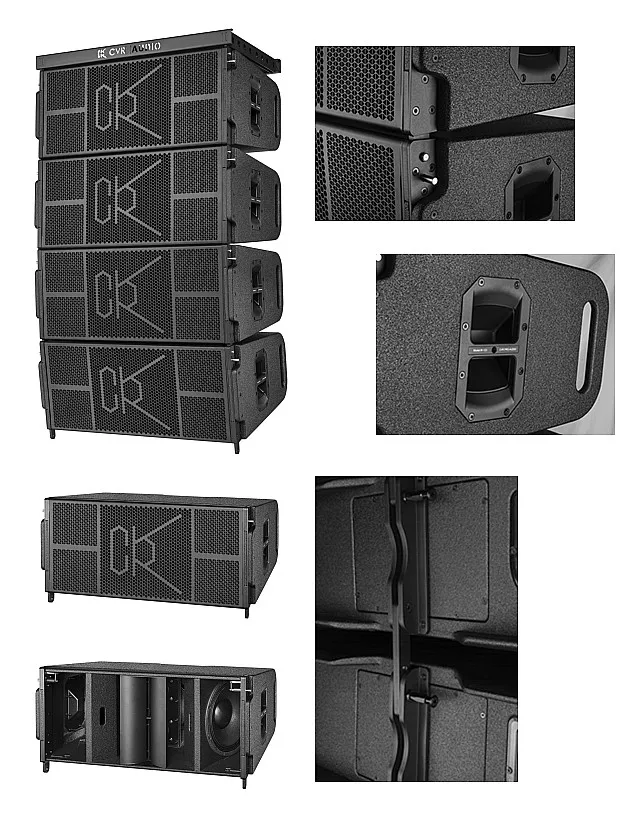

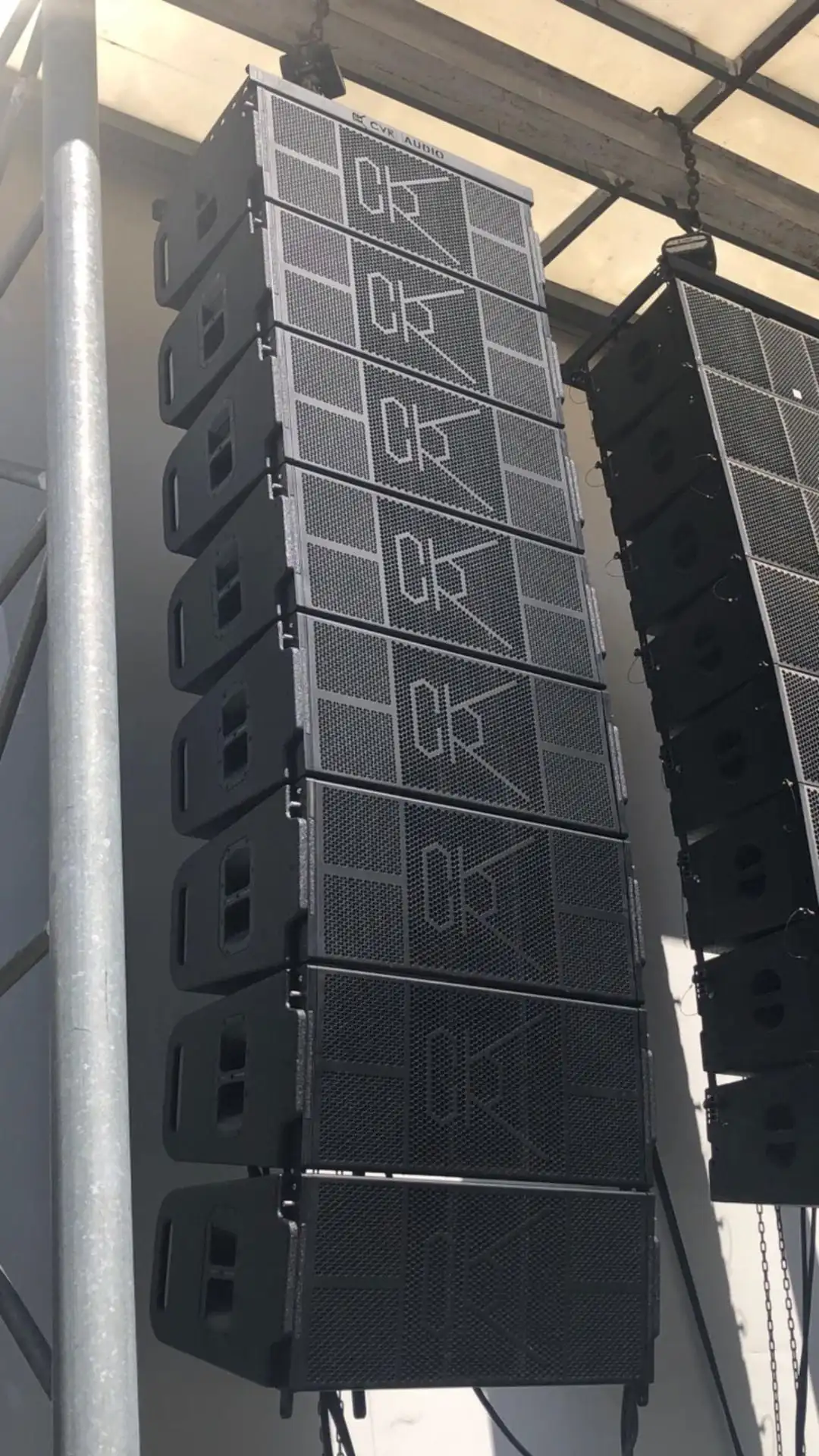

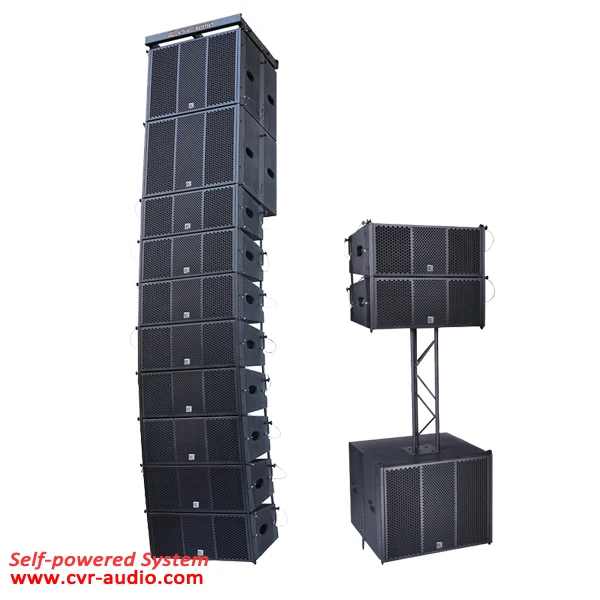

   W-208&W-208P is a line array system which is made of two 8" neodymium woofers, one 2.5" titanium neodymium compression drivers and high-performance low-distortion compression driver with innovative horn design of wave phase philosophy. Wherever low frequency extension is required,a W-208&W-208P will integrate seamlessly with W-18&W-18P line array sub-bass system in a standard configuration. Each enclosure is equipped with rigging system, allowing flown array to be constructed rapidly and safely. W-208&W-208P is very versatile and scalable for a wide range of applications in touring performance, corporate and fixed installation fields.

    W-18/W-18P is dedicated high performance sub-bass system designed to augment the low frequency output of the W-208&W-208P, W-18&W-18P is a sub-bass enclosure which must be flown with W-208&W-208P. So its physical dimensions are identical to the W-208&W-208P and it is equipped with the same proprietary rigging system. It features with one 18" woofers with magnet structure and suspensions engineered for maximum linear excursion.



Model	W-208 & W-18/W-208P & W-18P(Active)
Type	Line array sound system
	Line array sub-bass system(W-18/W-18P)
Frequency Response	70Hz-20KHz±3dB
	40Hz-500Hz±3dB(W-18/W-18P)
Power handling	LF400W(RMS)800W(PEAK)
	HF 90W(RMS)180W(PEAK)
	600W(RMS)1200W(PEAK)(W-18/W-18P)
Power amp	600W/8ohm (W-208P)900W/8ohm(W-18P)
Amplifier type	Switching power amp, class D circuit
Other functions	Built-in crossover(W-208P)
Sensitivity	LF 97dB(1W1M)
	HF 108dB(1W1M)
	106dB(1W1M)(W-18/W-18P)
MaxS.P.L	LF 122dB(PEAK/1M)
	HF 128dB(PEAK/1M)
	130dB(PEAK/1M)(W-18/W-18P)
LF section	2×8"(210mm) neodymium woofer
	65mm(2.5in)coil
	1×18"(460mm) woofers
	100mm(4in)coil(W-18/W-18P)
Nominal impedance	16 ohm
	8 ohm(W-18/W-18P)
HF section	1×2.5" neodymium compression driver
	with 65mm titanium diaphragm
Nominal impedance	16 ohm
Output section	2-channel
Dispersion pattern	110°H×10°V
Finish	Water-proof,wear-resistant textured
	black paint
Array design	Arrays of less than 3×W-208 will
	provide poor dispersion control and
	are neither recommended nor supported
Speaker cables	LF 1(+)1(-) HF 2(+)2(-)
	1(+)1(-) (W-18/W-18P)
Rigging system	Please refer to the W-208 user's
	manual before any operation
Input connectors	2×NL4MP speakon
Recommend crossover	LF  70Hz-2KHz
	HF 2KHz-20KHz   35Hz-120Hz(W-18/W-18P)
Dimensions	640 x 261 x 380mm(W x H x D)(W-208/W-208P)
	640 x 502 x 600mm(W x H x D)(W-18/W-18P)
Package dimensions	700 x 320 x 440mm/0.10cbm(W-208/W-208P)
	700 x 570 x 670mm/0.27cbm(W-18/W-18P)
Enclosure	Birch plywood
Net weight	23kg(W-208)26kg(W-208P)42kg(W-18)45kg(W-18P)
Gross weight	26kg(W-208)29kg(W-208P)45kg(W-18)48kg(W-18P)





*Quality Wood Enlosure- Birch Plywood and Plywood available.

*Detailed Cutting- Done by CNC accurated cutting machine .

*Environmental painting– Environmental protected and wearable.

*CE&RoHS certificate -for all products

*Strictly test before delivery- All products are under examination of our engineer teams before dilivery.

*Delivery damage free - Quality carton boxs with firm belt and flight cases are applied.
