Энергосберегающий промышленный резервуар из нержавеющей

                       Energy-saving stainless steel industrial percolation tank

Brief

         The equipment is suitable for percolation operation in tradition Chinese medicine, food, chemical industry and etc.

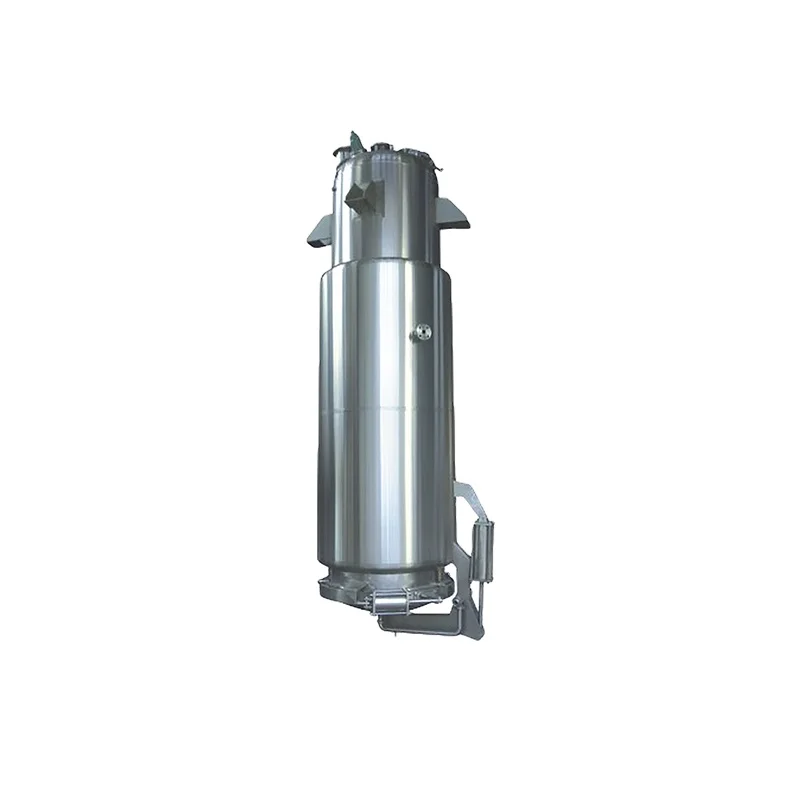

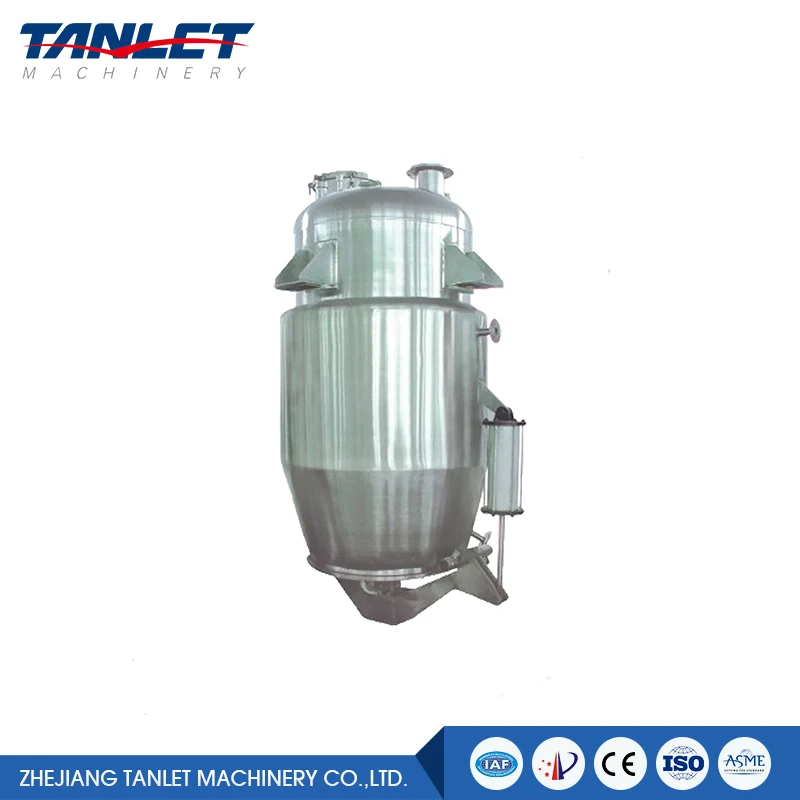

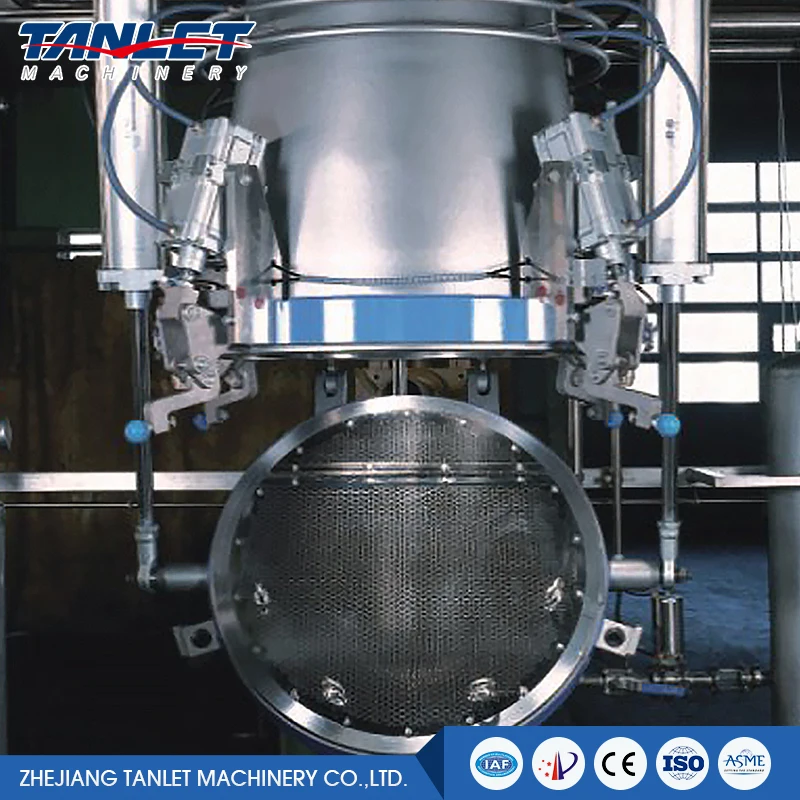

          The equipment is composed of tank body, taper body, oval seal head (or flat head), air-operated discharging door,  air-operation bench and etc. It has such characteristics as equal solvent distribution and convenient residue discharging etc.

           The percolation method is to add continuously leaching solvent into the rough powder of medicine materials to make it filtrate  the medicine powder, and then the leaching liquid  will flow from the bottom outlet. During the percolation, the layer percolation method of solvent’s filtering into the medecine material is to add continuously leaching solvent into the medicine material layer to make the solvent pass through the medicine material la/er from top to bottom and dissolve large amount of soluble matters. After that, the concentration increases.

The leaching solvent at the upper layer or the thin leaching liquid will exchange the position and produce good concentration difference to make the scattering carried out smoothly.  Thus, the leaching effect is better than the dipping method,  and the extraction will be comparatively complete.

Pcaking: Standard packing

               Wooden case is avaliable for energy-saving stainless steel industrial percolation tank

Delivery: 1-45 days after the deposit confirmed

User demands analysis

Engineering design

Product manufacturing

Automatic control integration

Vertification service

Engineers are avaliable to go abroad to help stallation.
