Портативный стоматологический ультразвуковой пьезоскалер нового

Описание и отзывы

Трекер стоимости

Характеристики

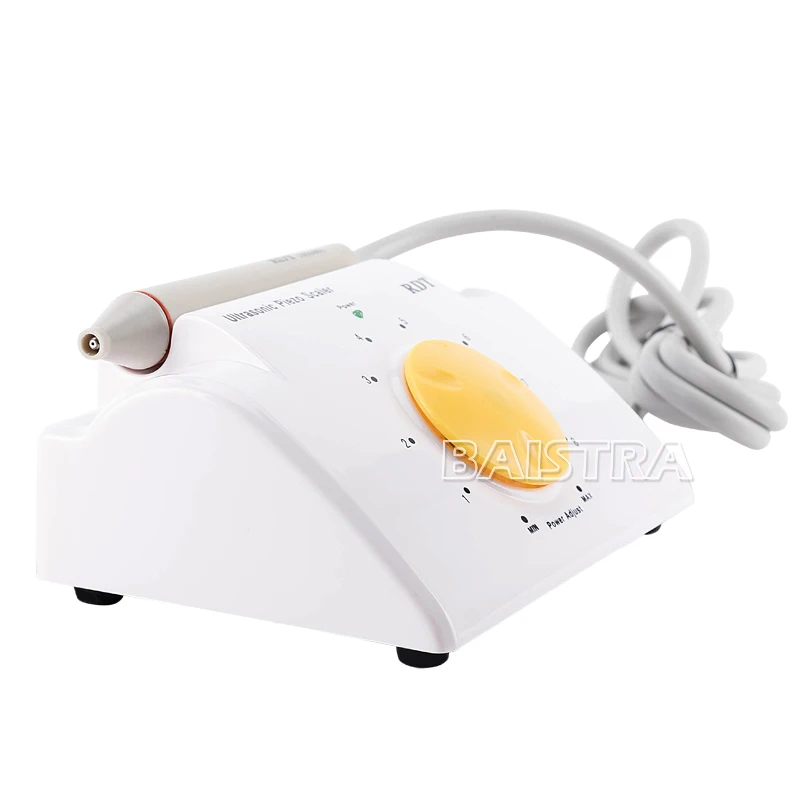

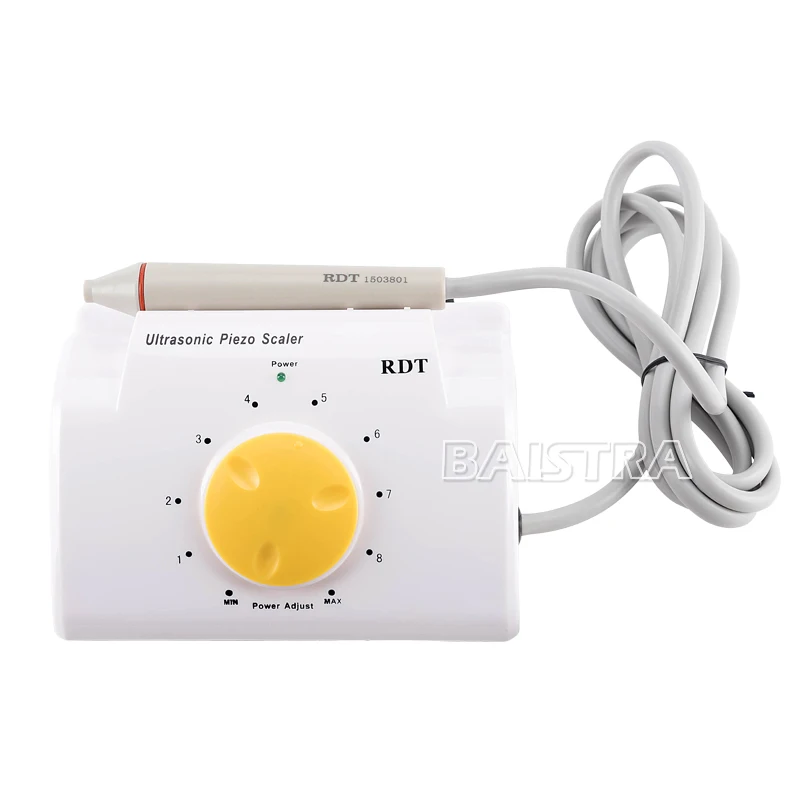

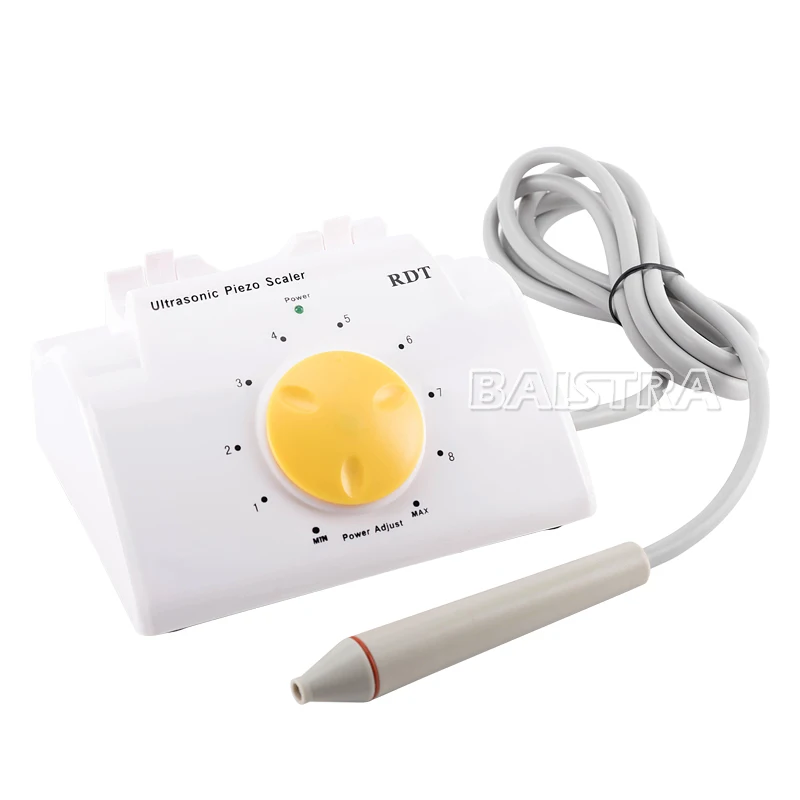

New Type Portable LED Dental Ultrasonic Piezo Scaler



Features for dental ultrasonic piezo scaler:

UDM-A LED type Ultrasonic Scaler machine is mainly used for cleaning teeth and periodontal therapy, It’s indispensable equipment for dental prevention and treatment work.







Technical parameters for dental ultrasonic piezo scaler:

Host input power:	100V-240V  47-63Hz  1.5A;
Host insurance:	F2AL250V
Protection against electric shock type:	Class II equipment
Protection against electric shock degree:	type B application part
Anti liquid level:	the host IPX0, pedal switch IPX4
Mode of operation :	continuous operation, intermittent working
Output power :	3 ~ 20VA continuously adjustable
Transducer:	piezoelectric ceramic type ( intermediate water )
Vibration frequency:	32 ± 3kHz
The main vibration offset:	≥ 80 u m (1#( tip ) ,2#( flat),P1 tip)
Semi offset force:	≥ 2N (1#(tip ), 2 #( flat),P1 tip)
Inlet pressure :	0.01~0.5Mpa ( water quality of drinking water standards )
Dimensions:	150 x 120 x 70mm
G.W :	1.80kg





Equipment operation, transportation and storage environment:

Ambient operating temperature: 0 ~ 40℃;

Storage temperature: 20 ~ 50℃;

Operation, storage environment humidity: 30% ~ 80%;

Transport please handle with care;

Avoid direct sunlight;



Note for dental ultrasonic piezo scaler:

when starting up do not step on the pedal switch.

Don't step on the foot switch or pull handle work.

If the cleaning work on the tip is not tight enough, would seriously weaken the vibration atomization.

Machine water should reach the standard of drinking water.

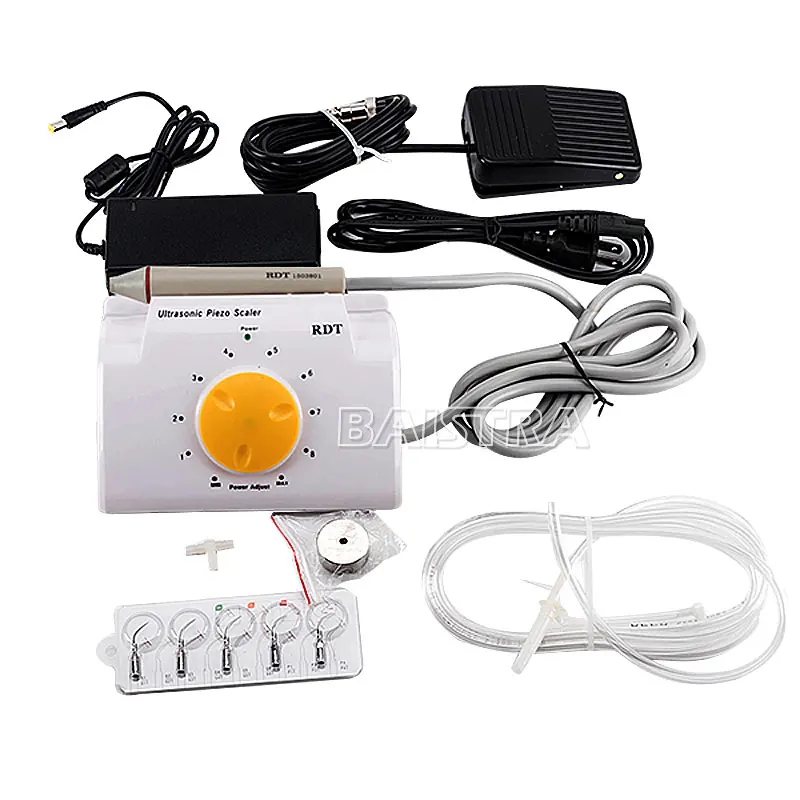

Packing list for dental ultrasonic piezo scaler:

The handle

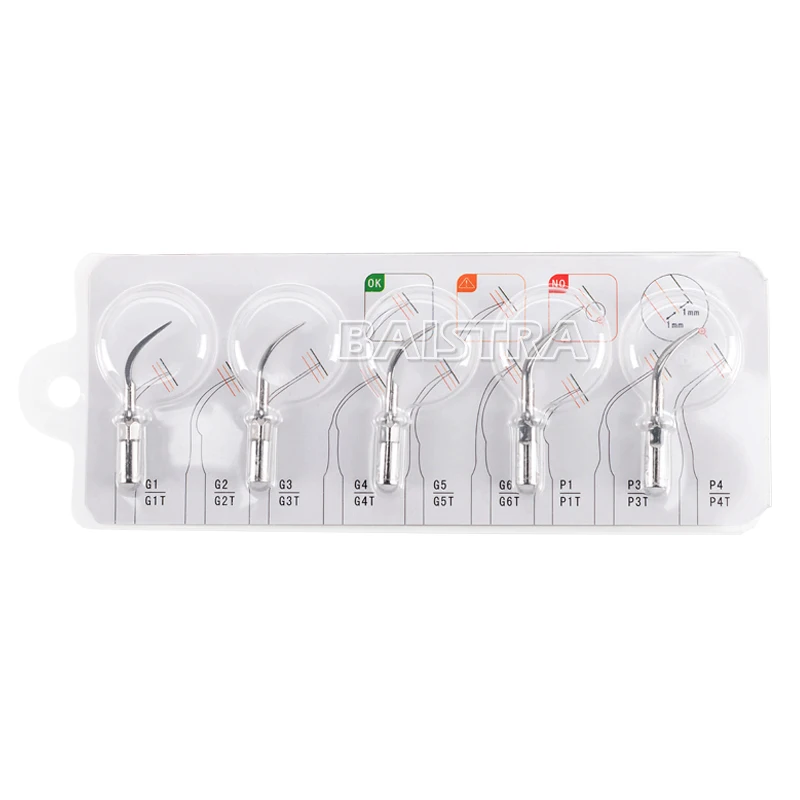

Scaler tips

tips wrench

Water supply pipe is a colorless transparent hose

Power adapter

Foot switch and wiring

The use of manual and warranty card

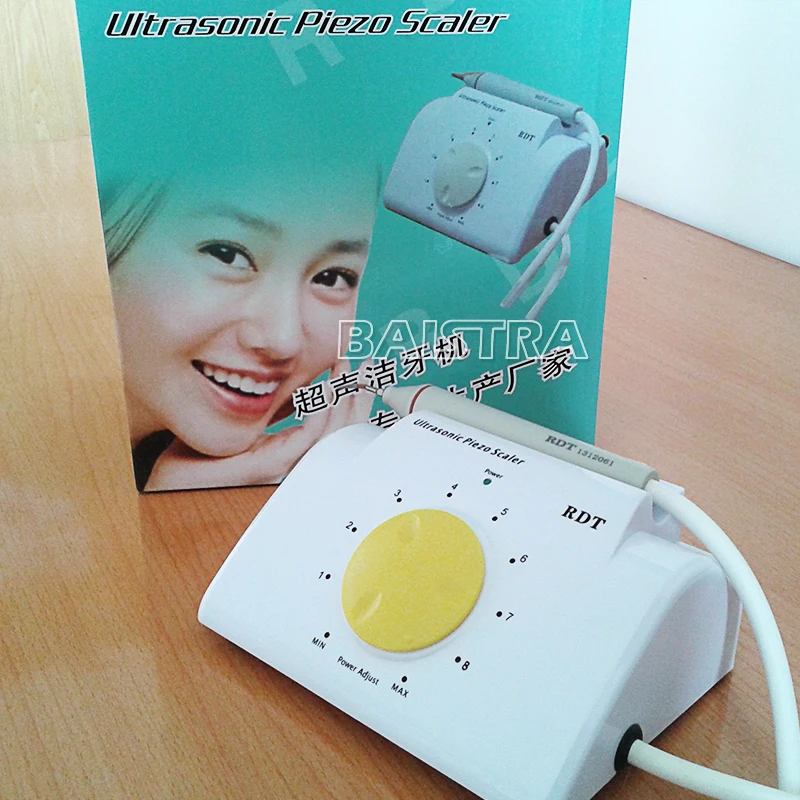

Packaging:

Mainly packed by carton or other common security package, you also can give us your special requirments about it. We will try our best to make sure the goods arrive safely.

Shipment:

1. Your order will be sent via International Express(DHL,Fedex,UPS, TNT or EMS) after you finish the payment.

2. We will offer the tracking number for you to check the status of your items online at any time.
3. It usually takes about 3-8 days for customers to receive their items.But some times, it will take more time for custom to handle it, so you should wait 2-3 days more.

We accept the following payment methods:T/T, Western Union, Paypal. Credit.
