Easy to handle peltier generator module

• Features


1. Long life achieve
   Better seal structure of water resistance along with our GL module to absorb thermal stress.


2. Compact Design
   Flexibility in product design and easy installation.


3. Update cooling performance
   No screws to tighten result in better heat absorption and maximize its performance.


 √  Our GL structure module’s reliability is highly demonstrated by means of rigorous polarity test.

 √  Easy to operate and lower assembly cost.

 √  The choice is yours, a radiating part including a radiating fin or a water-cooling jacket free choice of unit design.

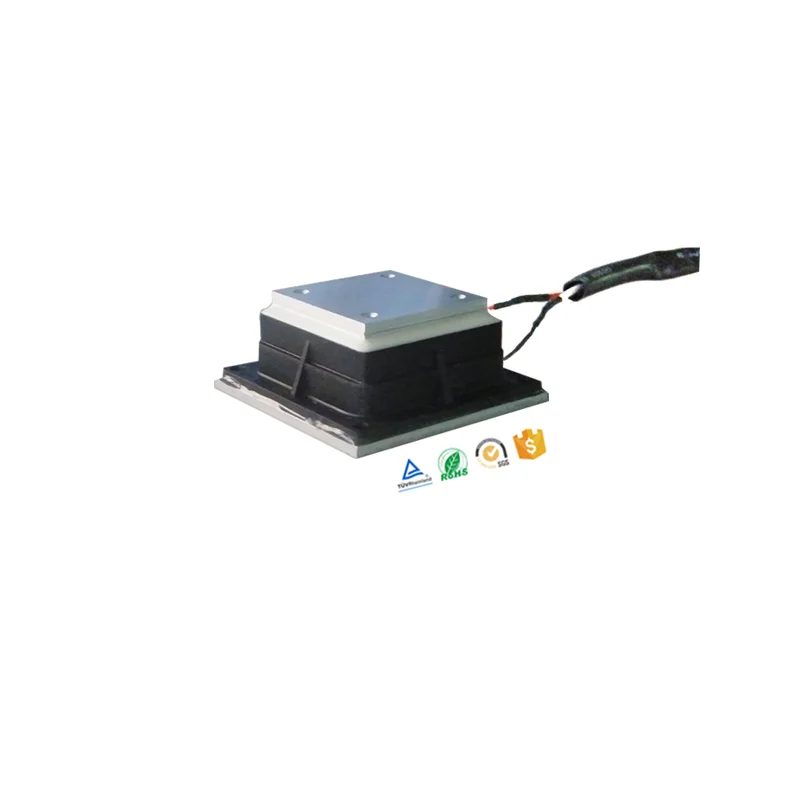

1. Product Pictures of thermoelectric peltier module









2.Product Description of thermoelectric peltier module

item	style
dimension(L×W×H) cool aluminium plate dimension(L×W)	70×70×26.5mm 44.5×44.5mm
cool way	aluminium plate cool
heat dissipation way	aluminium plate  add heat sink and fan
Insulation resistance	DC250V,over10MΩ( between heat dissipation aluminium plate and terminal block) )
Use humidity range	30~85%RH
Total weight	About 200g
Storage temperature range	-20~70°C
Deposit humidity range	10~90%RH without condensation
resistance	1.35~1.7 Ω (Environment temperature 25°C)
use Vmax	DC ±12 V
Imax	8.5 A
Qmax( measured value )	58.95W(temperature difference 0°C,Tc=Th=50°C)
Tmax( measured value)	70 °C(Qmax = 0W,Th=50°C)
rated voltage and current	Dc ±12V   6A





Application



It is designed for superior cooling and heating applications.

GAS Analyzers, Photonic and medical systems, CPU cooler and scientific instrument.
Calibration Equipment, Air Conditioner, PCR.
Wine Shelf, Infraed Sensor, Comminication base station.
Food and beverage service refrigerator
Portable cooler box for cars
Liquid cooling
Temperature stabilizer
CPU cooler and scientific instrument
Photonic and medical systems
