5л 10л гидравлическая подъемная маленькая шкала 15л 20л вакуумная эмульгирующая машина для лаборатории с водным и масляным растворяющим баком электрическое


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-19-2025 0.8 $* 0.22 $*
Aug-19-2025 0.18 $* 0.80 $*
Jul-19-2025 0.54 $* 0.16 $*
Jun-19-2025 0.71 $* 0.3 $*
May-19-2025 0.50 $* 0.54 $*
Apr-19-2025 0.53 $* 0.77 $*
Mar-19-2025 0.61 $* 0.47 $*
Feb-19-2025 0.71 $* 0.44 $*
Jan-19-2025 0.14 $* 0.7 $*

Характеристики



Product Description


Lab vacuum emulsifying machine means that when the materials are under the vacuum condition, it makes use of the high shear emulsifier to distribute one or several to another continuous phase rapidly and evenly. The materials will be processed in the narrow space between stator and rotor by strong energy of motion produced by the machine effect. By the operation of hydraulic shearing, centrifugal extruding, impacting, breaking and turbulence for over 199 thousand times per minute, the materials will be dispersed and emulsified instantly and evenly. After reciprocating circulation at high frequency, the fine finished products of stable and high quality without bubbles will be achieved.



Application
Laboratory vacuum emulsifying machine mainly applied in such industries as daily chemical care products, biopharmacutical industry, food industry, paint and ink, nanometer materials, petrochemical Industry, printing and dyeing auxiliaries, pulp & paper, pesticide, fertilizer, plastic & rubber, electronic and electronics, fine chemical industry, etc. The emulsifying effect is more prominent for materials of high base viscosity and high solid content.


Composition

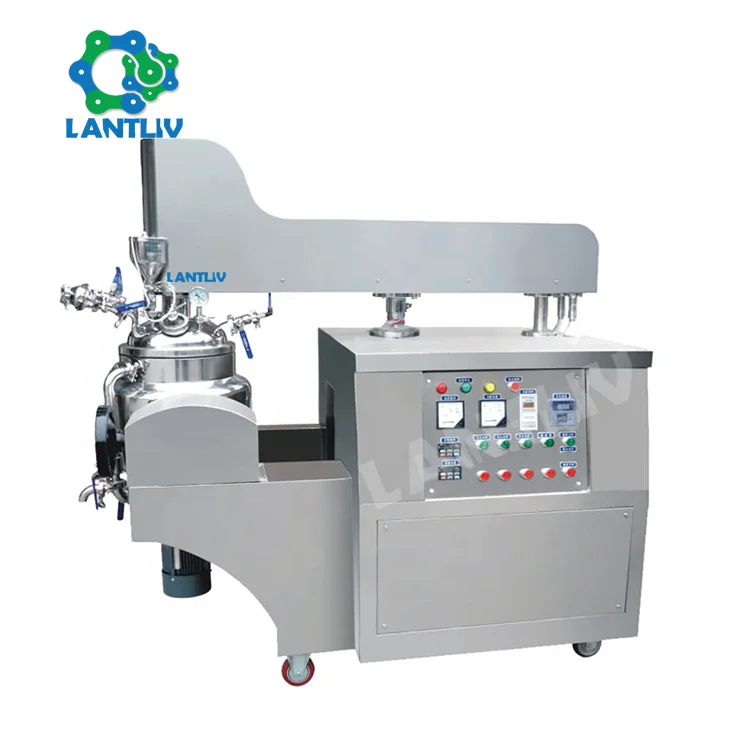

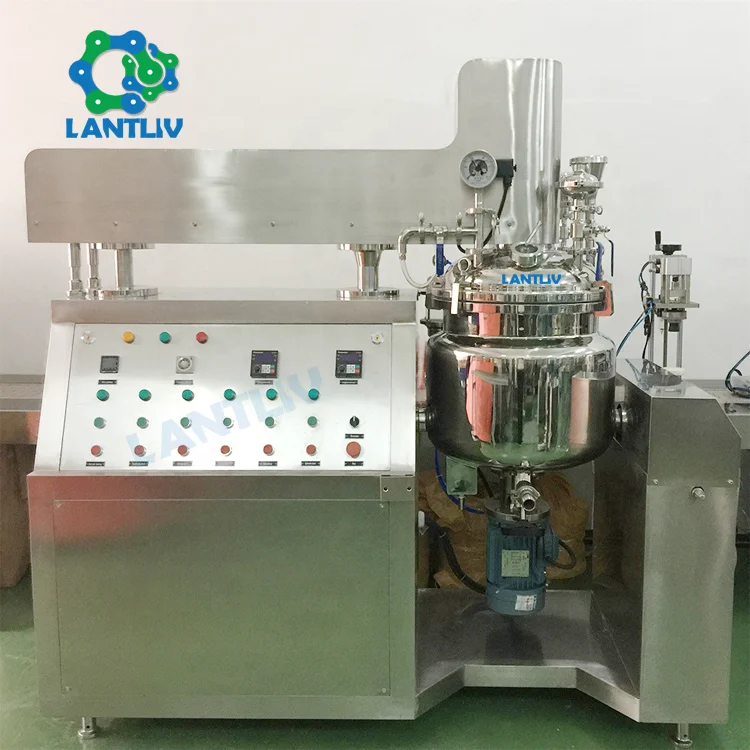

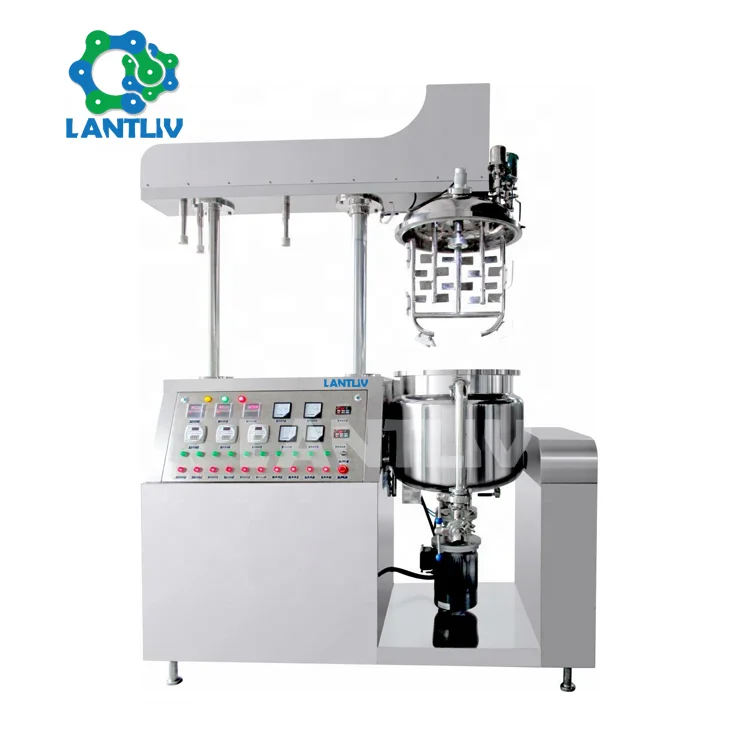

Lab vacuum emulsifying mixer machine is mainly composed of water pot, oil pot, vacuum emulsifying pot, vacuum system, lifting system(optional), electronic control system (PLC is optional), operation, etc.




Features

1. Complex scraping board blending oar is suitable to every kind of complicated recipe and achieve optimizing effect;
2. Polytetrafluroethylene scraping board cater to body of blending groove and scrape out viscosity material on boiler wall;
3. Vacuum industrial emulsifying mixer machine homogenizer is installed on boiler bottom to increase motor power more thoroughly and strongly. During few production, it can exert homogenizing effect fully;
4. Mightiness balance isotactic curve rotor is matched with stator with corresponding structure to realize liquid high-capability cut,rubbing,centrifugal to make sure exquisite and slick cream; boiler body and pipe surface mirror polishing 300 mesh (sanitation grade) accords with daily chemical and GMP regulation;
5. Vacuum industrial emulsifying mixer machine can choose frequency conversion timing homogenizer and highest rotate speed is 3600 r/min.



Technical Parameter


Effective Capacity
Emulsifying Motor
Agitator
Vacuum pump
Electirc Heating power
Steam heating pressure
Liter
KW
RPM
KW
RPM
KW
Limit Vacuum
KW
Mpa
5
0.55
0-3600
0.4
0-65
0.37
-0.1
6
0.2
10
1.1
0-3600
0.55
0-65
0.37
-0.1
6
0.2
20
1.5
0-3600
0.55
0-65
0.37
-0.1
9
0.2
50
3
0-3600
0.75
0-65
0.75
-0.1
12
0.2
100
4
0-3600
1.5
0-65
1.5
-0.1
24
0.2
200
5.5
0-3600
1.5
0-65
2.2
-0.1
28
0.2
300
7.5
0-3600
3
0-65
2.2
-0.1
32
0.2
500
11
0-3600
4
0-65
4
-0.1
50
0.2
1000
15
0-3600
5.5
0-65
4
-0.1
54
0.2
2000
18.5
0-3600
7.5
0-65
5.5
-0.1
Recommend steam heating
0.2
5000
22.5
0-3600
15
0-65
7.5
-0.1
0.2




Product Advantages


Vacuum Emulsifying Pot
1. Full stainless steel 304 or 316L material.
2. 3 layers with insulation.
3. Electric heating or steam heating.
4. Cold water cooling.
5. Mirror polishing inside and outside.


Lid Parts
1. Man-Hole.
2. Material suction inlet.
3. Vacuum presssure gauge.
4. Vacuum port.
5. Vent filter.
6. Positive pressure inlet.
7. Essence hopper.
8. CIP spray ball.
9. LED Light.
10. Sight window.


Frame Wall Scrapper Mixer
1. SUS316L wall scrapper mixer.
2. PTFE scraper.
3. Fixed propeller.
4. 45 degree blades on opposite angles to make sure mixture complete.
5. Siemens motor drive.
6. 0-65 rpm with variable speed control.


Water and Oil Pot
1. Machine equipped a set of water and oil pot.
2. Water pot and Oil pot capacity can be customized.
3. Power: Custom made, Siemens motor, 960rpm.
4. Electric heating by Water or Conduction Oil.
5. Mixing: High shearing disperser plates with baffle on the wall.
6. Half open hinged lid for easy operation.
7. Top/Bottom disperser (Option).


High Shear Homogenizer
1. SUS316L material.
2. Power: Custom made, 0-3600rpm frequency inverter.
3. Rotor and stator high shearing homogenizer, soomth emulsion to 2μm, two sides tungsten seal.
4. Water circulation cooling homogenizer.


Operation Panel
Each function can be controlled separately:
1. The working time of homogenize can be set ( suggest 10 minutes ) .
2. Heating temperature can be set according to different formula .
3. Mixing speed of frame mixer and homogenizer mixer is adjustable .
4. Touch screen HMI control panel is optional

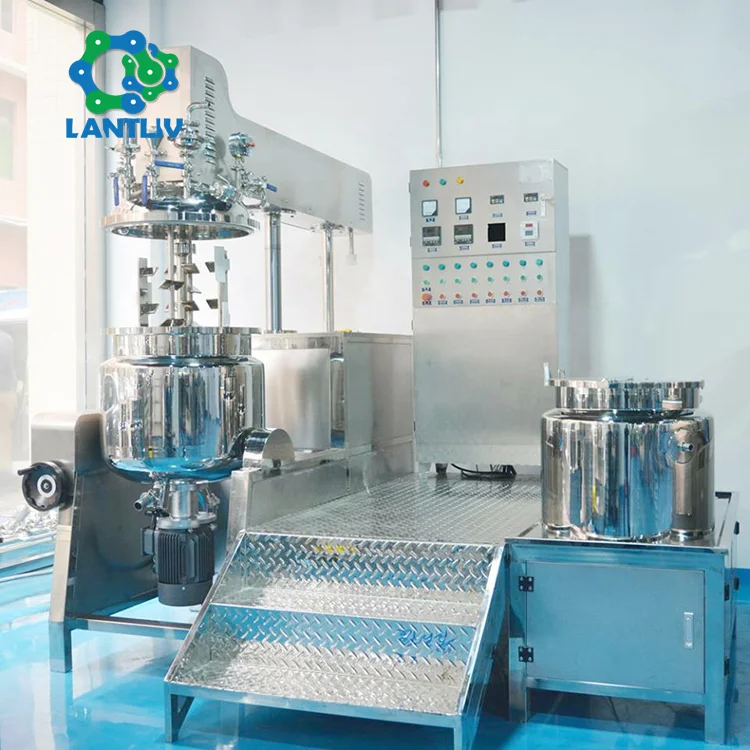

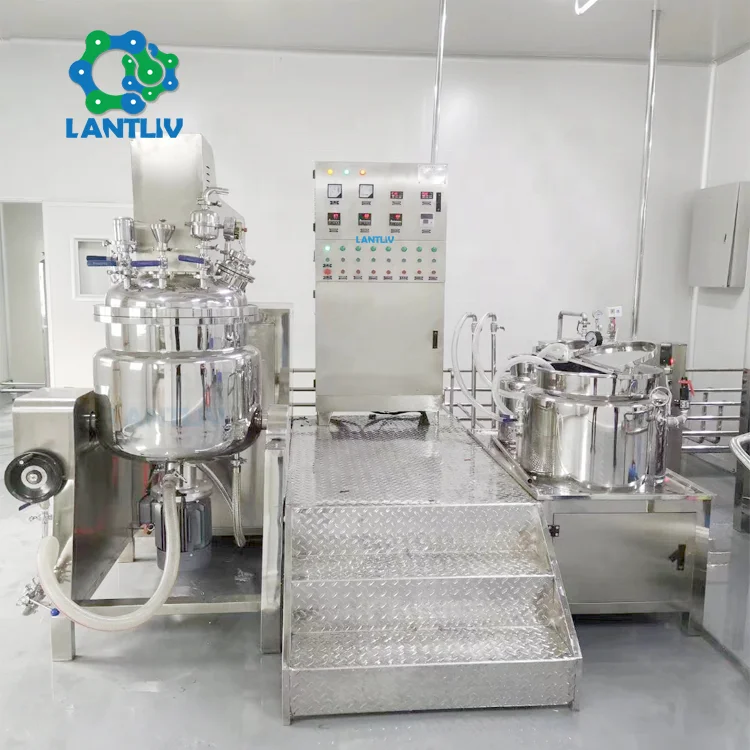

Plant Installation


Advantages we have:
A. Experienced stainless steel products supplier .
B. Professional design team and sales department for your service .
C. Alibaba golden supplier, factory recognized by 'CE / FSC / ISO9001' and so on .
D. 7/24 service for you, all the question will be dealt within 24 hours .
Benefit you get:
A. Stable quality — Coming from good materials and technic .
B. Lower price — Not cheapest but the lowest at the same quality .
C. Good service — Satisfactory service before and after sale .
D. Delivery time — 15-30 days for mass production .




Certifications




Packing & Delivery


1. The normal package is wooden box(Size: L*W*H). If export to european countries, the wooden box will be fumigated. If container is too tigher, we will use PE film for packing or pack it according to customers special request.
2. Delivery time: 10-20 days after receiving the deposit.
3. For machines are big and heavy parcel, and different country with different delivery cost, so we suggest below delivery
(1) Over 1CBM or 100KG, recommended shipment by Sea.
(2) Below 1CBM or 100KG, recommended shipment by Air.
(3) Below 0.5CBM or 50KG, recommended shipment by Express.






After Sales Service


1. Manual / Videos of machine installation, adjusting, setting, maintenance are available for you.
2. If any problems happen and you can not find out the solutions, Telecom or Online face to face communication available 24 hours.
3. Our engineers & technicians are available send to your countries for services if you agree pay the expenditure.
4. The machine will have one year guaranty for machine, two years guaranty for electrical part. During the warranty year if any of the parts broken not by man-made, free charge to replace the new one to you. The warranty will begin after the machine send out we received the B/L.
5. Independent team for after-sale service 24/7 technical support. Any emergency please call the salesman or our after-sales manager.
