Product Description

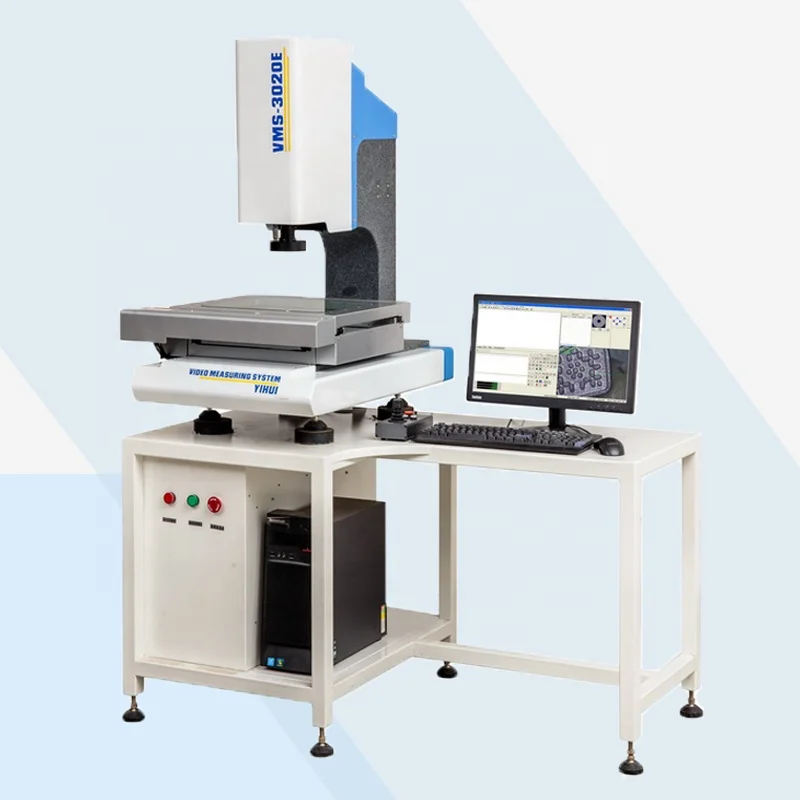

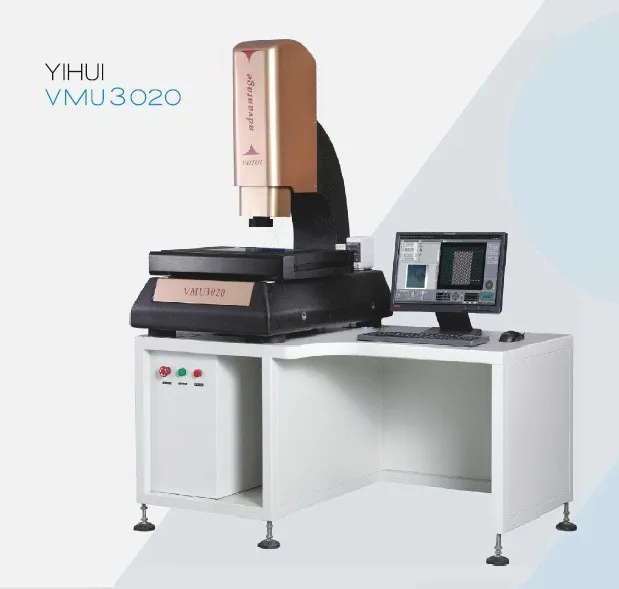

3D Optical Instrument / Vision Automated Measuring Systems
I. Usage
VMS Series is an universal type of CNC Video Measuring System developed by Yihui.
It has been widely applied in machinery, electronics, aerospace, automotive, military, mold, and other industries for precision automatic measurement. Designed for rapid precision measurement & batch test in machinery, electronics, mould, etc.
1. To measure point, line, circle, arc and oval, rectangular and improve the accuracy with the multi-point positioning function with clear observation.
2. Coordinate measurement, translation and coordinates straighten out.
3. Make measurement data directly into AutoCAD drafting
4. Record user program, editing and execute command.
5. In metrology terms, the machine can test width, length, height, thickness, straightness, flatness,
perpendicularity, circular degree, coaxiality, etc.
6. The machine can test products as below:
1) Machinery: sheet, mould & die, gear, turning parts like bearings, shaft.
2) Electronics: phone& tablet sheet, PCB, watch parts, etc.
3) Plastics: mobile phone camera plate, cover, front bezel, slide plate, etc.
II. Features
1. Double closed-loop motion control performs micron-level precision motion
2. 8 regional LED surface light source
3. Grade 00 JINANQING granite base, column, high stability
4. Specific CNC software has wonderful measurement efficiency.
III.Specificatioins
Code | 04172… | 001 | 002 | 003 | |||||
Model | VMS-3020E | VMS-4030E | VMS-5040E | ||||||
Worktable | Worktable D(mm) | 500*330 | 606*466 | 706*566 | |||||
Glass Table Size(mm) | 350*280 | 450*350 | 550*450 | ||||||
X,Y Stroke(mm) | 300*200 | 400*300 | 500*400 | ||||||
Load Capacity | approx. 20 kg | approx. 30 kg | approx. 35 kg | ||||||
Resolution | Renishaw™ 1μm | Renishaw™ 1μm | Renishaw™ 1μm | ||||||
Accuracy E1* | Ex, y ≤ (3.0+L/200) μm | ||||||||
Accuracy E2* | Exy ≤ (3.5+L/300) μm | ||||||||
Accuracy E3* | Ez ≤ (3.5+L/150) μm | ||||||||
Z Stroke (mm) | Standard | 150 | |||||||
Option | 200 | 200~350 | 200~450 | ||||||
Instrument Weight (kg) | 270 | 325 | 500 | ||||||
Dimension (mm) | 670*660*950 | 800*1040*1020 | |||||||
Motor | Three-axis Max. Velocity | X,Y: 400mm/s Z: 200mm/s | |||||||
Three-Axis Positioning Accuracy | 0.001mm | ||||||||
Imaging System | Camera | TEO™ Color 1 / 2 "CCD Camera | |||||||
Zoom Lens | coaxial optical manual zoom lens | ||||||||
Zoom Lens Magnification | 0.7-4.5X | ||||||||
Video Magnification | 20-128X | ||||||||
FOV | 11.1-1.7mm | ||||||||
Power Consumption | 600W | ||||||||
Instrument Accessories | 1X Tube (standard) | 0.5X Tube (optional) | WD | ||||||
Zoom Lens | 0.7-4.5X | 0.7-4.5X |
| ||||||
Add Mirror | Video Magnification | FOV | Video Magnification | FOV | |||||
0.5X(option) | 10X-64X | 22-3.4 | 5X-32X | 44-6.8 | 175 | ||||
1.0X(standard) | 20X-128X | 11.1-1.7 | 10X-64X | 22-3.4 | 92 | ||||
2.0X(option) | 40X-256X | 5.5-0.9 | 20X-128X | 11.1-1.7 | 36 | ||||
* All data is tested according to Standard JJF1318-2011
L is measured length (units: mm)
Specification subject to change without notice

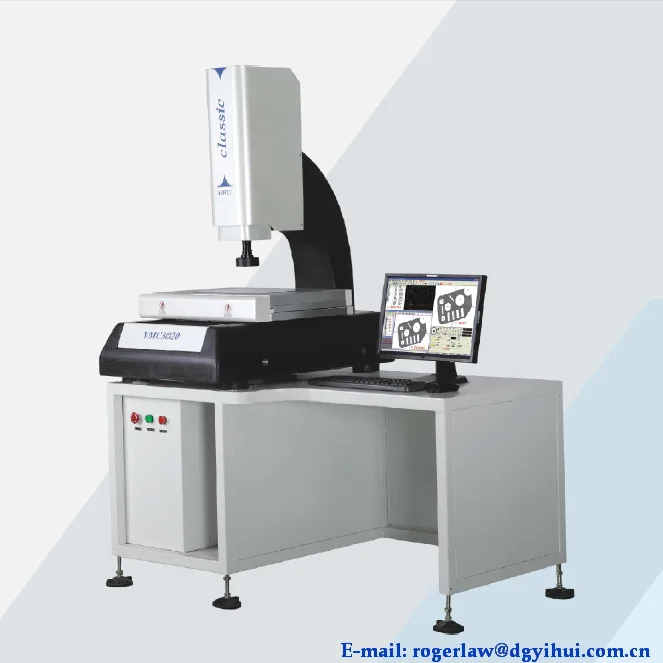

IV. Structure
