Воздушный фильтр с металлическим корпусом из нержавеющей стали картриджем от 5 до 40 дюймов для предварительной
- Категория: Другое промышленное фильтровальное оборудование >>>
- Поставщик: Hangzhou,Tianshan,Precision,Filter,Material,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.19 $* | 0.4 $* |
| Aug-15-2025 | 0.32 $* | 0.30 $* |
| Jul-15-2025 | 0.76 $* | 0.38 $* |
| Jun-15-2025 | 0.52 $* | 0.41 $* |
| May-15-2025 | 0.57 $* | 0.72 $* |
| Apr-15-2025 | 0.35 $* | 0.9 $* |
| Mar-15-2025 | 0.43 $* | 0.68 $* |
| Feb-15-2025 | 0.90 $* | 0.89 $* |
| Jan-15-2025 | 0.15 $* | 0.74 $* |
Характеристики

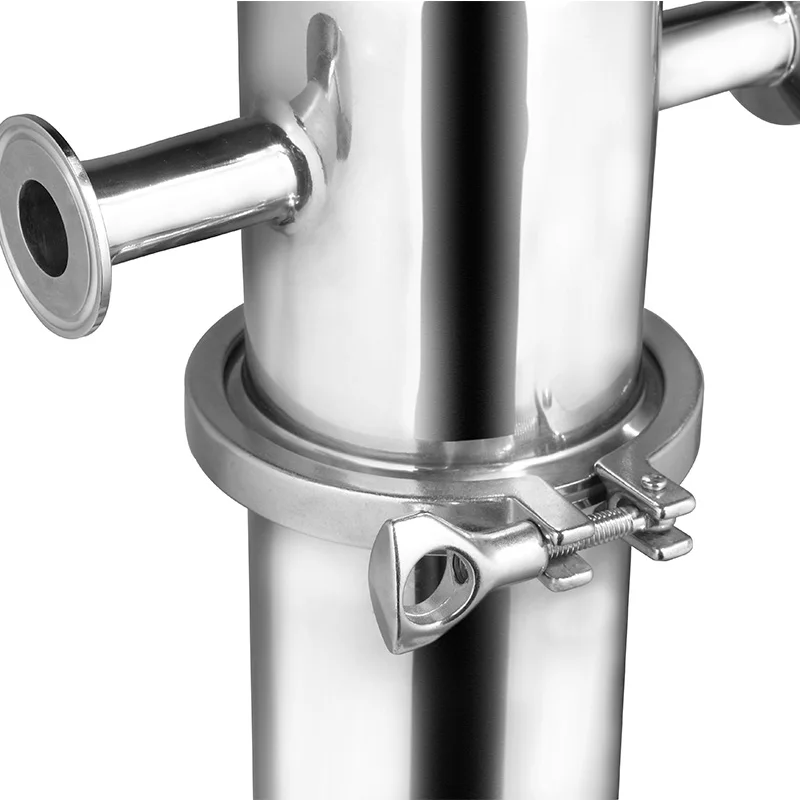

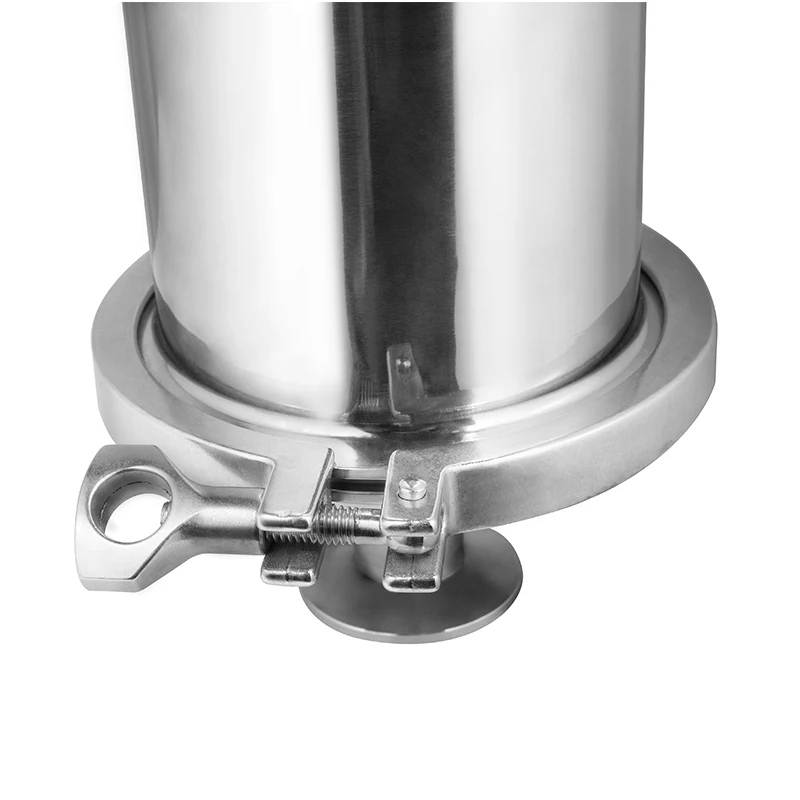

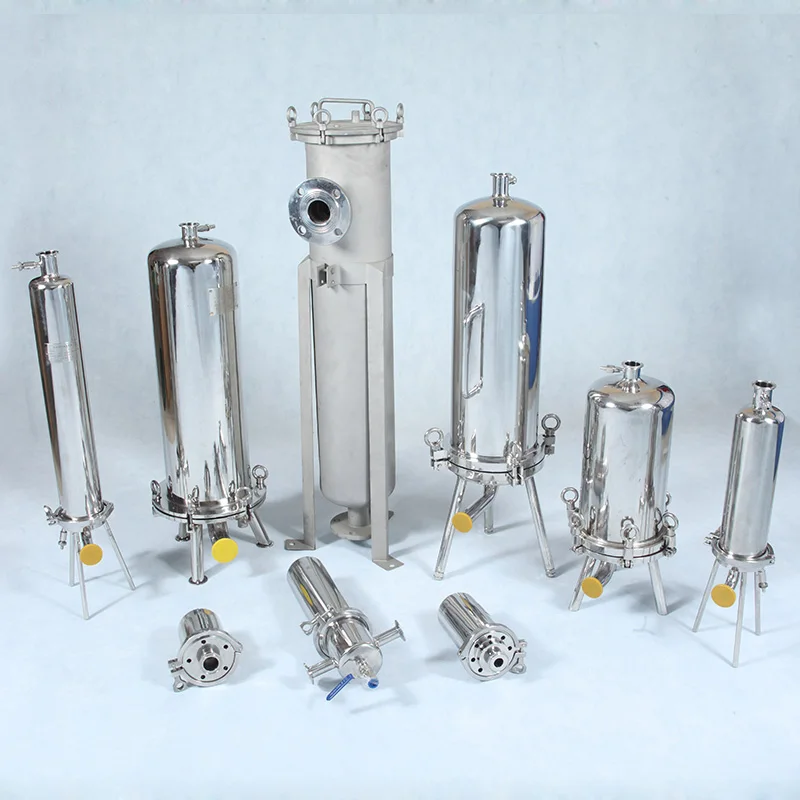

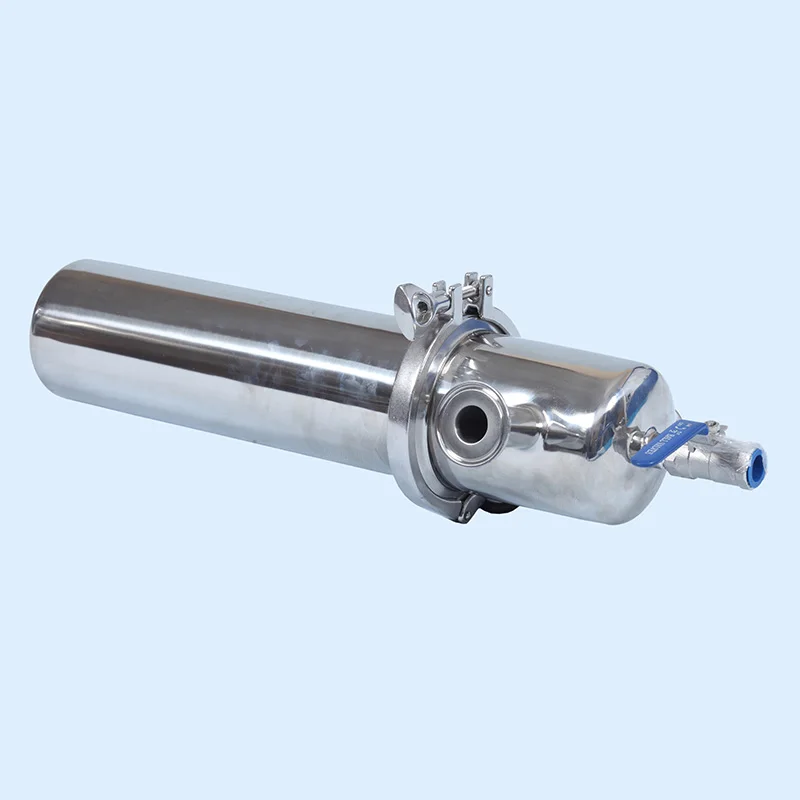

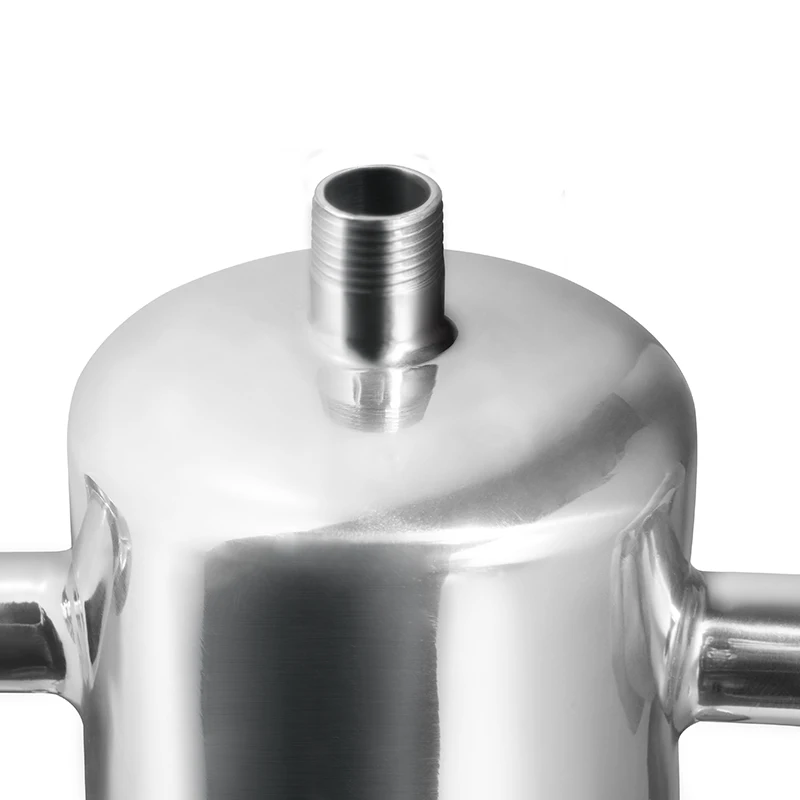

5 to 40inch cartridge stainless steel metal housing air filter for prefiltation
welcome to>>Hangzhou Tianshan Precision Filter Material Co., Ltd.
Comprehensive presentation
Specifications
Meet The GMP Requirements | Electropolished, smooth and hygienic design by avoiding dead space |
Complete Stainless Steel Structure | Made of 100% 304 or 316L stainless steel of the highest quality |

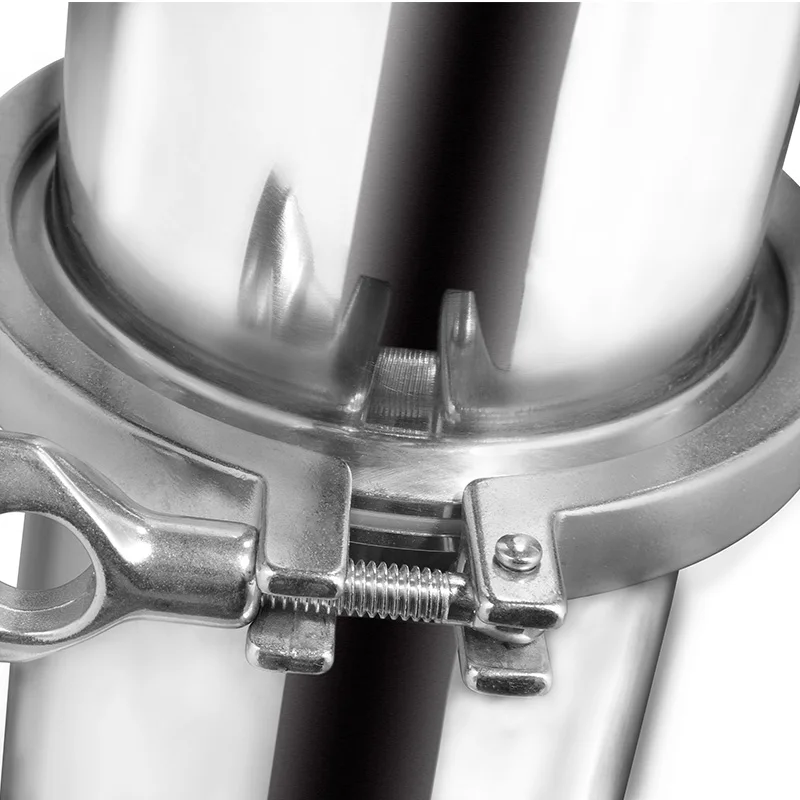

Easy To Install Design, Easy to Clean | Available in tri-clamp(coupling) or flanged connections |
Typical Applications | Gas filtration |
Sterile air filtration | |
Fermentation air filtration | |
Technical Specification | Designed Pressure:9.6bar(139psi)with in 30mins. |
Max.operating pressure:6.0bar(87psi) | |
Surface finish: | |
Electro polished, Ra≤0.2um | |
|
|
SPECIFICATIONS
| Cartridges | Body Closure | Dimensions(mm) | |||||
| Nos. | Length | d | Outlet/ Inlet type | D | B | H | |
| 1 | 5" | Ferrule clamp, Flange | 3/4 inch | Tri Clamp or Flange | 102 | 180 | 340 |
| 10" | 1 inch | 450 | |||||
| 20" | 1 inch | 690 | |||||
| 30" | 1 1/4 inch | 940 | |||||
| 3 | 10" | Flange, Stud bolts | 2 inch | Flange | 184 | 325 | 755 |
| 20" | 2.5 inch | 995 | |||||
| 5 | 10" | 3 inch | Flange | 219 | 380 | 880 | |
| 20" | 4 inch | 1180 | |||||
ORDER INFORMATION
| PRODUCT | MATERIAL | CARTRIDGE NOS. | ADAPTER | LENGTH | How to Order?- Example | |||||
| BJQ | 304-SUS304 | 01 - Single | AA-DOE | 10" - 10 | Material: SUS304 | |||||
| 316-SUS316L | 03 - Three | CN-226/FIN | 20" - 20 | Cartridge Nos.: Single | ||||||
| 05 - Five | BN-222/FIN | 30" - 30 | Cartridge adapter: 226/FIN | |||||||
| AF-220/FLAT SEAL | 5" - 05 | Cartridge length: 10" | ||||||||
| BF-222/FLAT SEAL | Other - XX | |||||||||
| CF-226/FLAT SEAL | Selection Code is: BJQ30401CN10 | |||||||||
