Для мокрых синих шкуры/обработки кожи на деревянном барабане/для машины для


Поделиться:


Цена:34 500,00 $ - 35 000,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-15-2025 41055.92 $* 43108.43 $*
Aug-15-2025 40710.91 $* 42746.81 $*
Jul-15-2025 34155.84 $* 35863.49 $*
Jun-15-2025 40020.39 $* 42021.96 $*
May-15-2025 34845.43 $* 36587.25 $*
Apr-15-2025 39330.62 $* 41297.8 $*
Mar-15-2025 38985.15 $* 40934.14 $*
Feb-15-2025 38640.57 $* 40572.41 $*
Jan-15-2025 38295.78 $* 40210.72 $*

Характеристики

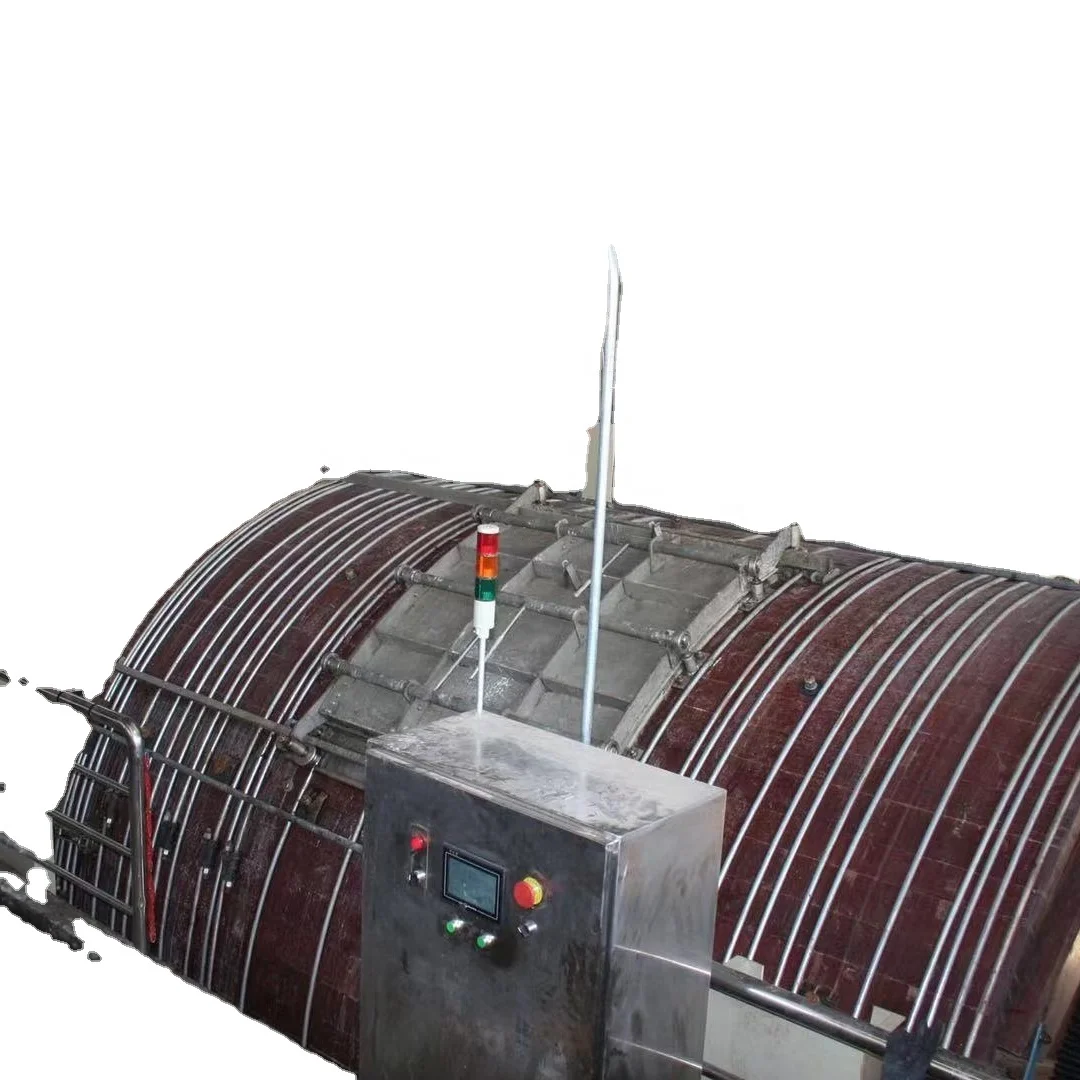

Φ3500X3000mm wooden overloading drum






Product Description































































































































The Specification(mm)



Φ3500X3000mm wooden overloading drum



Loading capacity



If leather :water=1:2.For liming, load 7 ton leather


For tanning, load 4.6 ton leather



Drum body



Wood Material



Imported Ekki from Africa



Plate thickness(plank)



80mm, 1400kg/m3



Wood Guarantee



15 years



Drum’s door



Material and style of the door



AISI 316L Stainless steel traversing gate, screw is AISI 316L stainless steel



Dimension of the door



Size of large door 1000x1000, size of small door 450x450

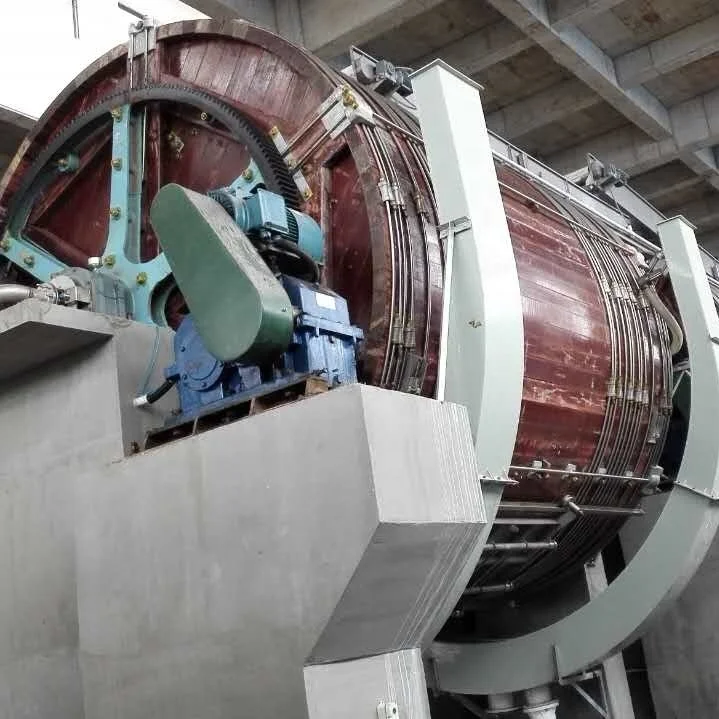

Gearwheel



Diameter



Φ2800mm,M12



Material



standard cast-steel ,integrated casting with main spindle



Guarantee



All use life except normal abrasion



Spider/star



Diameter



Φ2600mm



Material



standard cast-steel ,integrated casting with main spindle



Guarantee



All use life except normal abrasion



Assembly screws for gearwheel and star



PP nylon cap, 45# steel screws



Drum Revolution speed



4 rpm , single speed, (made as request),


Customer need confirm drum speed



Motor



30kw


Customer need confirm voltage and frequency



Gear box



Hard-surface gear,224 style Specially used in drum ,and provide pneumatic brake


Customer need inform the gear box direction, it means it’s on left or right side when person faces drum standing on the ground.



Pinion of gear box



Wear-resistant steel pinion



Main spindle and the bearing



Main spindleZG45#,provide 22240 self-aligning bearing



Drain valve,water guide



All Material of drain valve are AISI 316L stainless steel, draining two sides ,3 valves each side .


One side water guide, PP material



Vent valve



Venting one side,3 valves, AISI 316L stainless steel



Outside drum



CranesΦ20x14,transverse braceΦ25x6, vertical rodΦ22x12,all Material are 45# steel .


Cranes hot galvanization



Drainage banana



2 PP material drainage bananas



Inside drum Shelf



3 Huge diagonal inclined shelves, I-stainless steel frame



Rotating joint



Combine with stainless steel and bronze



Inside Screws touched leather



Except PP nylon cap for gearwheel and star, other touched leather screws are AISI 316L stainless steel material

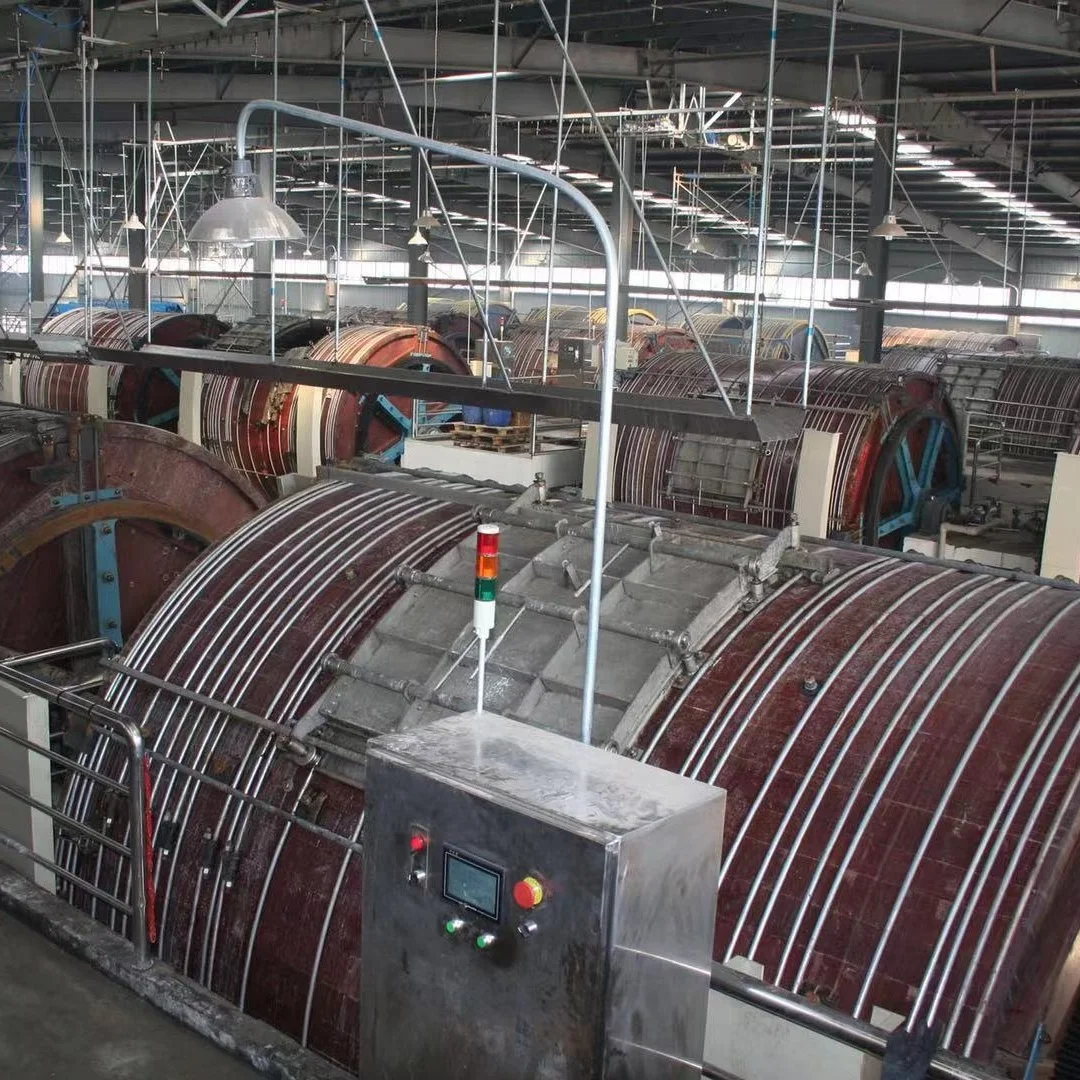

Electrical control cabinet



Every drum has a cabinet with functions of forward and reverse starting, crawl, controlling total working time, reduced voltage starting and brake lag.













Packaging & Shipping


  - .jpg2 - .jpg3.jpg








Company Information













Yancheng Shibiao Machinery Manufacturing Co., Ltd. (Former named Yancheng City Panhuang Leather machinery Plant) was reformed its ownership system to be a private enterprise. The company lies in Yancheng City in the coastal area of the Yellow Sea in Northern Jiangsu. Yancheng City is a boom industrial town in eastern coastal area in Jiangsu, a memorial place where the New Fourth Army rebuilt its military headquarter, and a tourism city of natural scene of coastal beaches and wetlands-economic development zone, sheyang district,Yancheng. The company provides Overloading wooden drums (the same as the newest one in Italy/ Spain), GJOB1-2 series impendent iron, wooden drums, Y-shape stainless steel automatic drums, GJOF series full-automatic stainless steel cylinder, octagonal milling drums, HC series paddles, and many other leather machinery products all the year round. Products are sold well in Zhejiang, Shandong, Guangdong, Fujian, Henan, Hebei, Sichuan, Xinjiang, Liaoning, and other areas. And they are popular with many leather factories all over the country. The products have been successively passed provincial tests and the test by National Leather & Shoe Machinery Quality Testing and Supervision Center. The products have been awarded the Silver Prize on China High- and New- Technology & New- Products Exhibition in year of 2010. The products' parts: The steel-cored nylon-plastic drum posts, have been obtained the national patent right. At the same time, the company provides many services including design of leather machineries with special specifications, repair and adjustment of equipment, and technical reform. The company has established complete testing system and reliable after-sale services. For a long time, Yancheng City Shibiao Leather Machinery Co., Ltd. Has always been guided by the principle of seeking existence by quality, seeking development by service, and the good reputation is the aim. Sincerely welcome customers old and new to come for a business cooperation and welcome friends from all social circles to give guidance! .jpg.jpg.jpg
