    DZ30LE Series RCBO



 Application

The 16 amp 32amp low voltage of rcbo circuit breaker provides protection against earth leakage faults ,overload ,short circuits and overvolatage in commercial and domestic installation , The RCBO with both disconnected neutral and phase guarantees its proper actuation against earth leakage fults even when the neutral and phase are wrongly connected .
The 16 amp 32amp low voltage of rcbo circuit breaker incorporates a filtering device preventing the risks of unwanted due to transient voltages and transient currents .Positive contact indication in accordance witn 16th edition of the IEE wiring regulations .

 Main Technical Parameters



Type	DZ30LE RCBO
Number of poles	1P+N
Rated residual operating current	30, 100, 300mA
Rated residual non-operation current	AC 230(240)V
Rated current	6,  10, 16, 20, 25, 32A
Ultimate short-circuit breaking capacity	6000A
Endurance	≥4000
Terminal protection	IP20
Residual current off-time	≤0.3s



 Construction Feature



1.Measuring component and bulking component of products is located between enter line end and entrance line end;
2.Movement characteristic of products can not be changed with outside mechanical tool;
3.The operating organization has the free function to take off and buckle;
4.Operate part can not be taken down from the shell outer of products, the shell can not influence the operating organization to work, the accessory group which replace the feelers pressure, should guarantee the feelers pressure does not change while running.


 Products' Advantage

1.Our products have the guarantee period of 36 calendar months, that is a high quality and reliability;
2.Our products have an excellent radio between price and quality, you can possess them by competitive price and high quality;
3.The fast and flexible production form aim at the customer require;
4.The deliveries exactly in accordance with customer orders;
5.The fast transportation;
6.Adopt electromagnetic style release, can play a leak electricity and electric shock protecting role while breaking in zero line.



 Overall and Mounting Dimensions

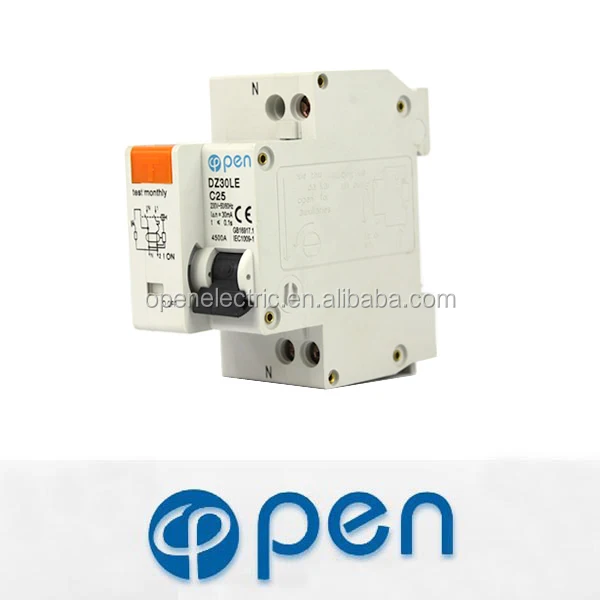

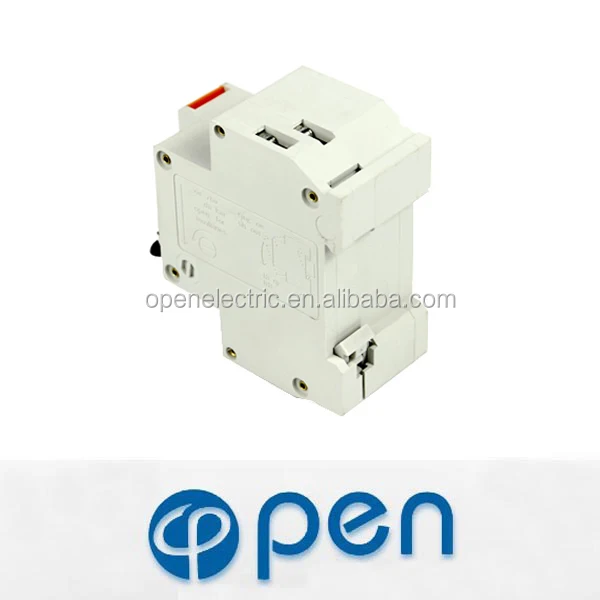

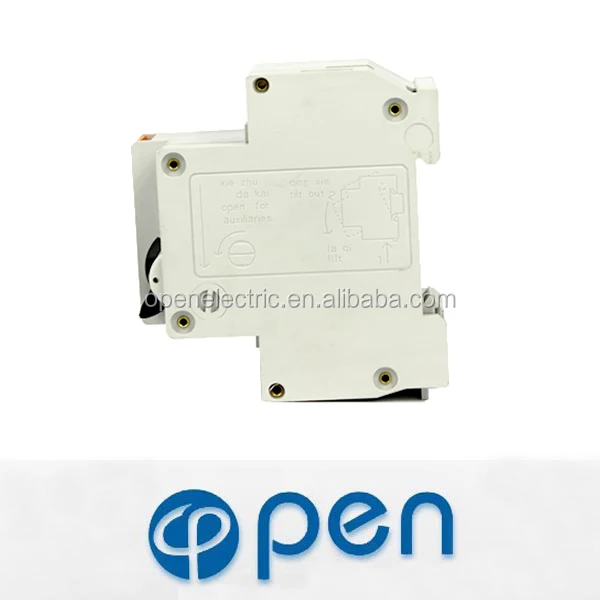

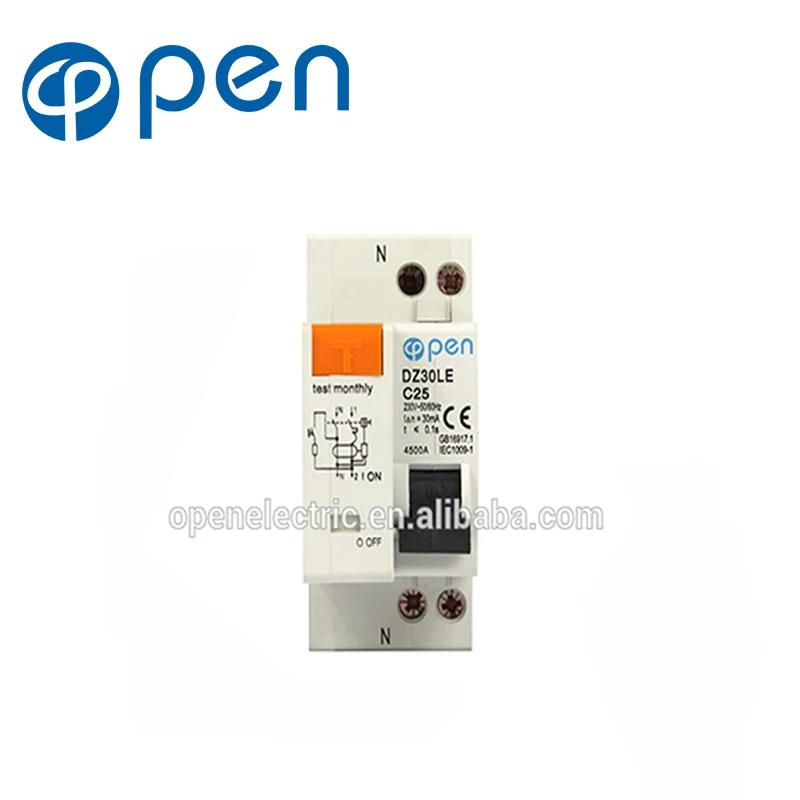

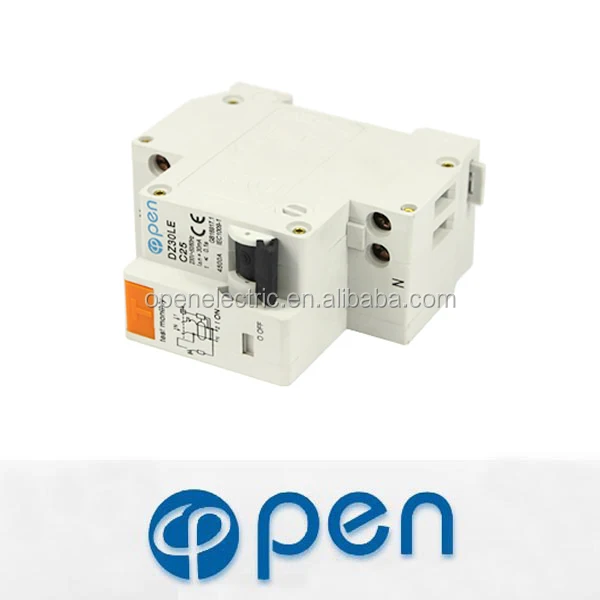

 Product Show
