220 В Вибрационный двигатель для машины
US $22.00-$45.00
3v 8 мм микро Вибрационный Мотор 13000 об/мин
- Категория: Vibration Motor >>>
- Поставщик: Yichang,Flourishing,Import,&,Export,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.52 $* | 0.31 $* |
| Aug-20-2025 | 0.55 $* | 0.47 $* |
| Jul-20-2025 | 0.53 $* | 0.52 $* |
| Jun-20-2025 | 0.33 $* | 0.29 $* |
| May-20-2025 | 0.38 $* | 0.92 $* |
| Apr-20-2025 | 0.18 $* | 0.68 $* |
| Mar-20-2025 | 0.83 $* | 0.35 $* |
| Feb-20-2025 | 0.56 $* | 0.58 $* |
| Jan-20-2025 | 0.79 $* | 0.96 $* |
Характеристики
3v 8mm micro vibration motor 13000rpm JMM-1422
JMM-1422 is a micro waterproof vibration motor.
It offers a strong vibration amplitude at 3v with low noise, the rated speed is 13000 rpm.
It’s supplied with a black pastic case, widely applied to sex toy, electric toothbrush, face massager, mobile phone, etc.

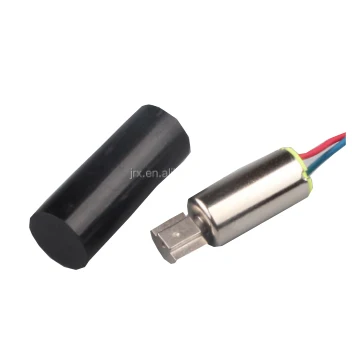

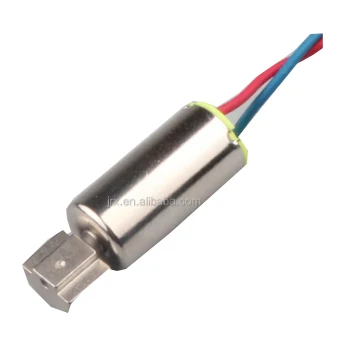

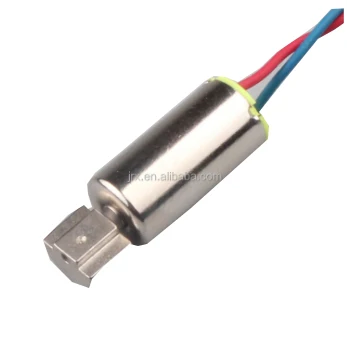

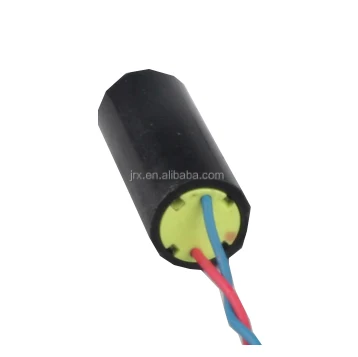

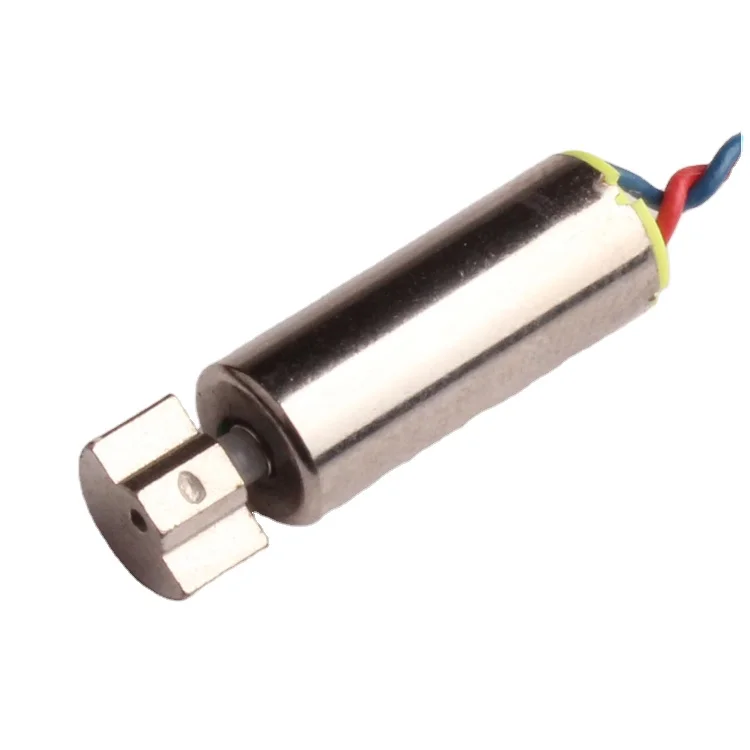

Motor Show:
Motor size:
Motor Data:
| Vibration Model | Size | Rated Voltage | Operating Range | Speed | Rated Current | Terminal Resistance | Starting Voltage | Stall Current |
| mm | V | V | r/min | mA | Ω | V | mA | |
| JMM-1406-55104L | Ø6x10 | 1.5 | 1.0~2.0 | 11000±10% | 55 | 9.9±5% | 0.8 | 140 Max |
| JMM-1408-04170L | Ø6x10 | 3.0 | 1.0~3.5 | 13000±10% | 55 | 31±5% | 0.8 | 100 Max |
| JMM-1409-55110L | Ø6x15 | 1.5 | 1.0~2.0 | 8200±10% | 65 | 12±5% | 0.8 | 120 Max |
| JMM-1410-32230L | Ø6x10 | 4.5 | 1.0~4.5 | 12000±10% | 45 | 67±5% | 0.8 | 65 Max |
| JMM-1414-35180L | Ø6x10 | 3.0 | 1.0~3.5 | 12500±10% | 35 | 40±5% | 1.0 | 70 Max |
| JMM-1417-05120L | Ø6x12 | 1.5 | 1.0~2.0 | 8500±10% | 35 | 17±5% | 0.8 | 90 Max |
| JMM-1420-55155L | Ø7x16 | 1.5 | 1.0~2.0 | 4500±10% | 34 | 24±5% | 0.8 | 60 Max |
| JMM-1411-55110CJ | Ø6x12 | 1.5 | 1.0~2.0 | 9000±10% | 40 | 12±5% | 0.8 | 120 Max |
| JMM-1415-55104CJ | Ø6x10 | 1.5 | 1.0~2.0 | 11000±10% | 50 | 10±5% | 0.8 | 140 Max |
| JMM-1416-55104P | Ø6x10 | 1.5 | 1.0~2.0 | 11500±10% | 50 | 10±5% | 0.8 | 140 Max |
| JMM-1419-45135LK | Ø6x12 | 3.0 | 2.0~3.5 | 12000±10% | 45 | 24±5% | 1.0 | 100 Max |
| JMM-1422 | Ø6x12 | 3.0 | 2.0~4.5 | 13000±10% | 40 | 22±5% | 1.3 | 160 Max |
| JMM-1423 | Ø6x10 | 5.0 | 1.0~6.0 | 21000±10% | 60 | 31±5% | 0.8 | 140 Max |
| JMM-1424 | Ø6x12 | 5.0 | 1.0~6.0 | 12000±10% | 45 | 67±5% | 0.8 | 75 Max |
| JMM-1425 | Ø6x12 | 5.0 | 2.0~6.0 | 17000±10% | 110 | 24±5% | 1.0 | 200 Max |
