Product Application

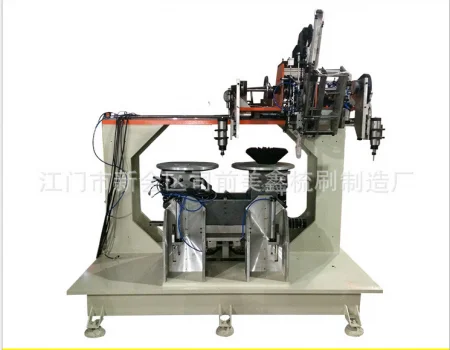

4 axis Automatic disc brush drilling and tufting machine MX 188,  its use to make the disc brush with any size of brush ,its use for the industrial disc brush ONLY .

Main Features

1) FMX fixture allows fast change over for a new brush tufted production. This machine with 2 grippers

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) Independent 4aix motion ,suitable for any wooden or plastic brush disc  tufting.

4) Running in a high automatization and intellectualization,no pollution

5)Stable and low noise.

Machine Parts

Name:  servo motor & driver

Brand: Panasonic

Original: JANPAN

Servo motor control operation of the mechanical components in the engine servo system, the transmission is a motor indirect subsidy

Servo motor, can control the speed, location accuracy is very accurate. The voltage signal is converted to torque and speed to drive the control object.

Machine Parts

Name: GUIDE WAY
Brand: HIWIN
Original: TAIWAN
1: Best sophisticated design, ease of installation, the Quartet Jie high rigidity and load capacity overweight, background noise, smooth motion
  2: slider, slide and two kinds of material with stainless steel alloy. The stainless steel linear rails, including the slider, rails and other metal parts such as ball
 3: The Gothic type four-point contact design, can withstand loads in all directions, with strong rigidity, high precision characteristics
  4: Volume lighter quantify, especially for small devices

Machine Parts

Name:Reducer
Brand: DELTA
Original: TAIWAN
1, the bevel gear structure, suitable for installation where space is limited or steering output occasions
2, applicable to all brands of servo motors and stepper motors
3, sealed, do not have oil changes, easy to install
4, the internal components using heat-treated high-strength alloy steel, parliaments and cope with the severe poor working conditions

Main Features

Name: REDUCER
Brand: DELTA
Original:TAIWAN
Reducer is independent of the prime mover and closed gearing between the working machine for reducing speed and increasing torque to meet the work requirements, in some cases also to the growth rate, the growth rate is called.
