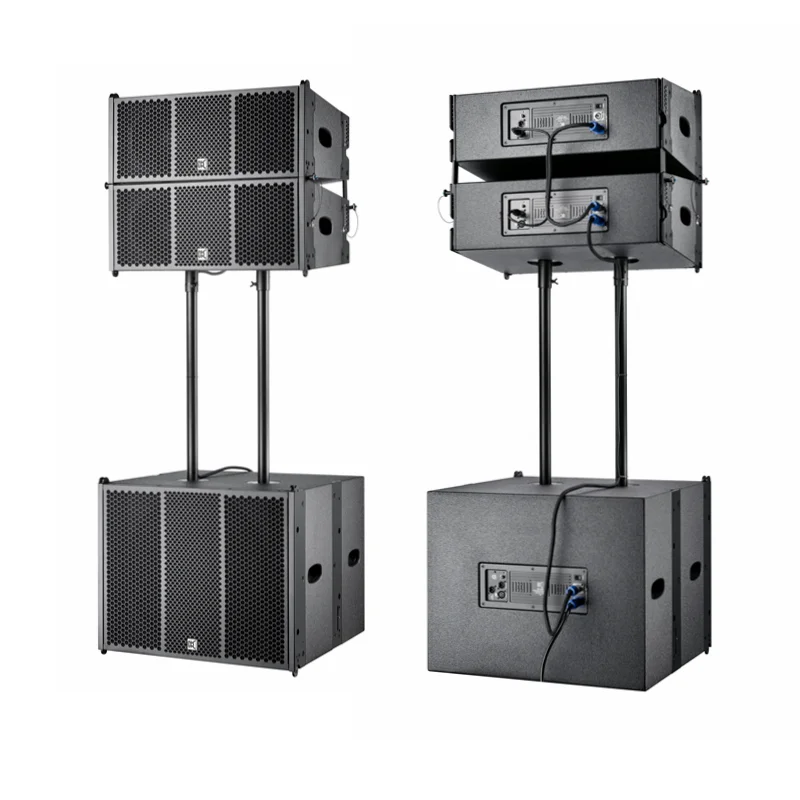

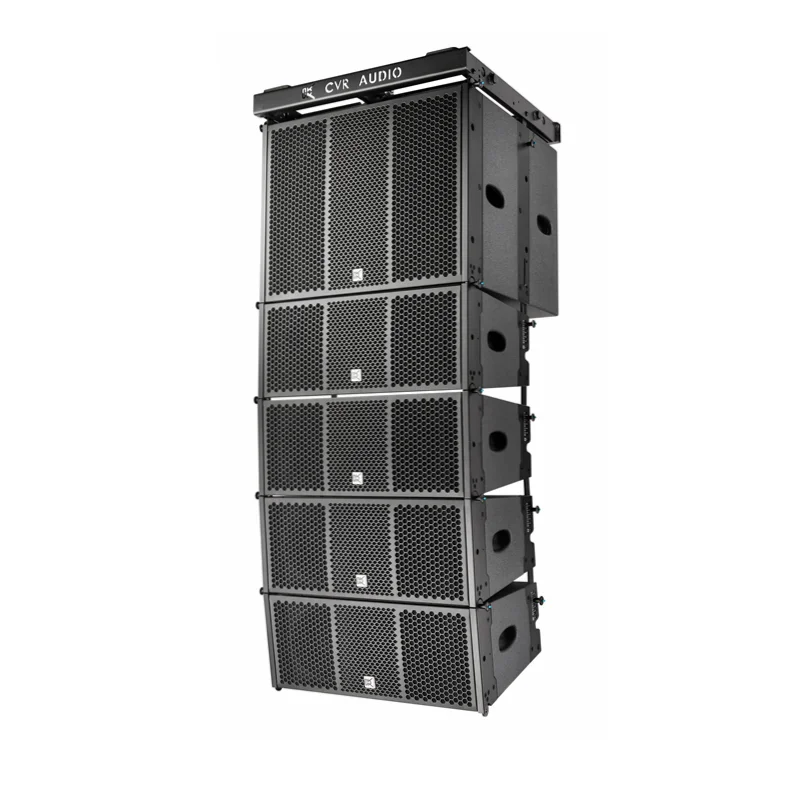

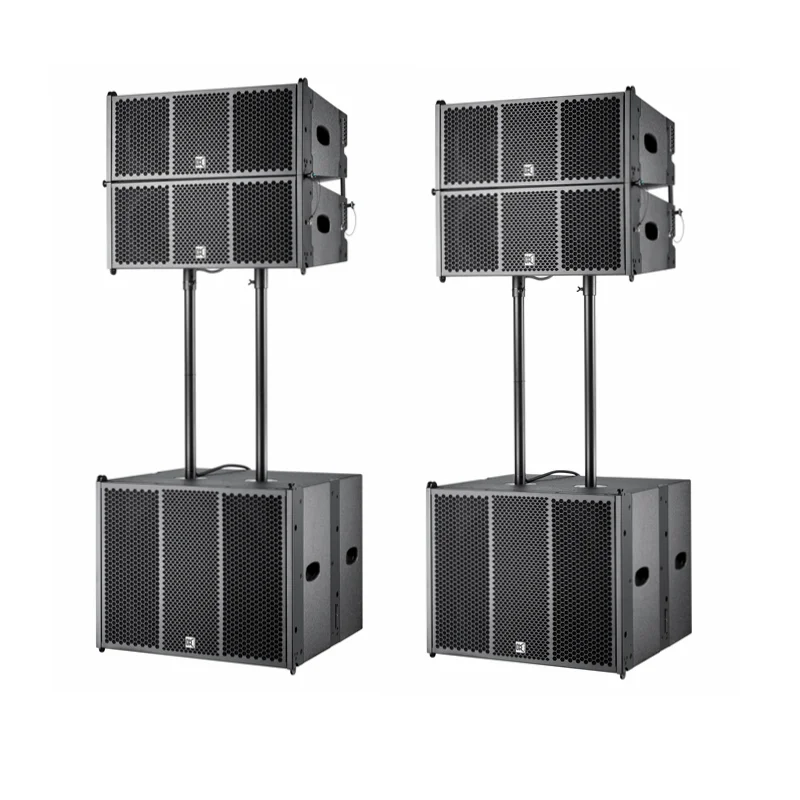

Активный линейный массив профессиональные автономные

Model

W-208 & W-18/W-208P & W-18P(Active)

Type

Line array system

Line array sub-bass system(W-18/W-18P)

Frequency Response

70Hz-20KHz±3dB

40Hz-500Hz±3dB(W-18/W-18P)

Power handling

LF400W(RMS)800W(PEAK)

HF 90W(RMS)180W(PEAK)

600W(RMS)1200W(PEAK)(W-18/W-18P)

Power amp

600W/8ohm (W-208P)900W/8ohm(W-18P)

Amplifier type

Switching power amp, class D circuit

Other functions

Built-in crossover(W-208P)

Sensitivity

LF 97dB(1W1M)

HF 108dB(1W1M)

106dB(1W1M)(W-18/W-18P)

MaxS.P.L

LF 122dB(PEAK/1M)

HF 128dB(PEAK/1M)

130dB(PEAK/1M)(W-18/W-18P)

LF section

2×8"(210mm) neodymium woofer

65mm(2.5in)coil

1×18"(460mm) woofers

100mm(4in)coil(W-18/W-18P)

Nominal impedance

16 ohm

8 ohm(W-18/W-18P)

HF section

1×2.5" neodymium compression driver

with 65mm titanium diaphragm

Nominal impedance

16 ohm

Output section

2-channel

Dispersion pattern

110°H×10°V

Finish

Water-proof,wear-resistant textured

black paint

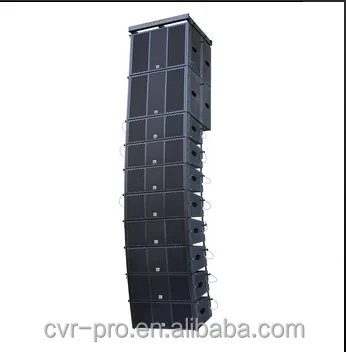

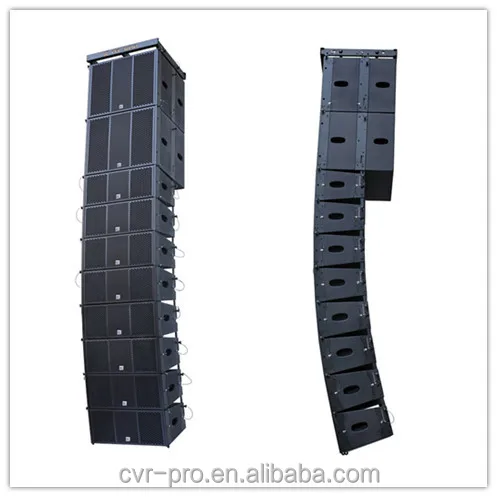

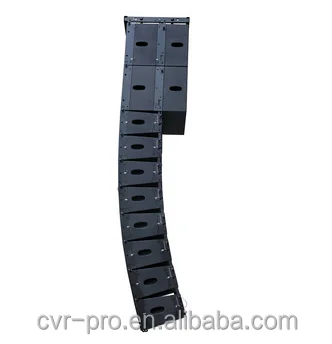

Array design

Arrays of less than 3×W-208 will

provide poor dispersion control and

are neither recommended nor supported

Speaker cables

LF 1(+)1(-) HF 2(+)2(-)

1(+)1(-) (W-18/W-18P)

Rigging system

Please refer to the W-208 user's

manual before any operation

Input connectors

2×NL4MP speakon

Recommend crossover

LF  70Hz-2KHz

HF 2KHz-20KHz   35Hz-120Hz(W-18/W-18P)

Dimensions

640 x 261 x 380mm(W x H x D)(W-208/W-208P)

640 x 502 x 600mm(W x H x D)(W-18/W-18P)

Package dimensions

700 x 320 x 440mm/0.10cbm(W-208/W-208P)

700 x 570 x 670mm/0.27cbm(W-18/W-18P)

Enclosure

Birch plywood

Net weight

23kg(W-208)26kg(W-208P)42kg(W-18)45kg(W-18P)

Gross weight

26kg(W-208)29kg(W-208P)45kg(W-18)48kg(W-18P)
