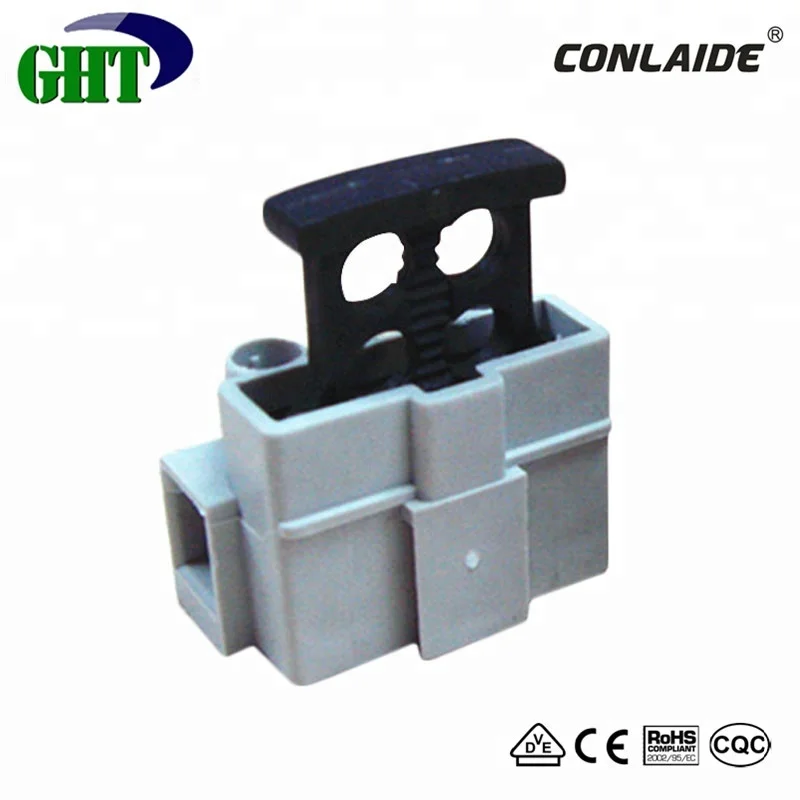

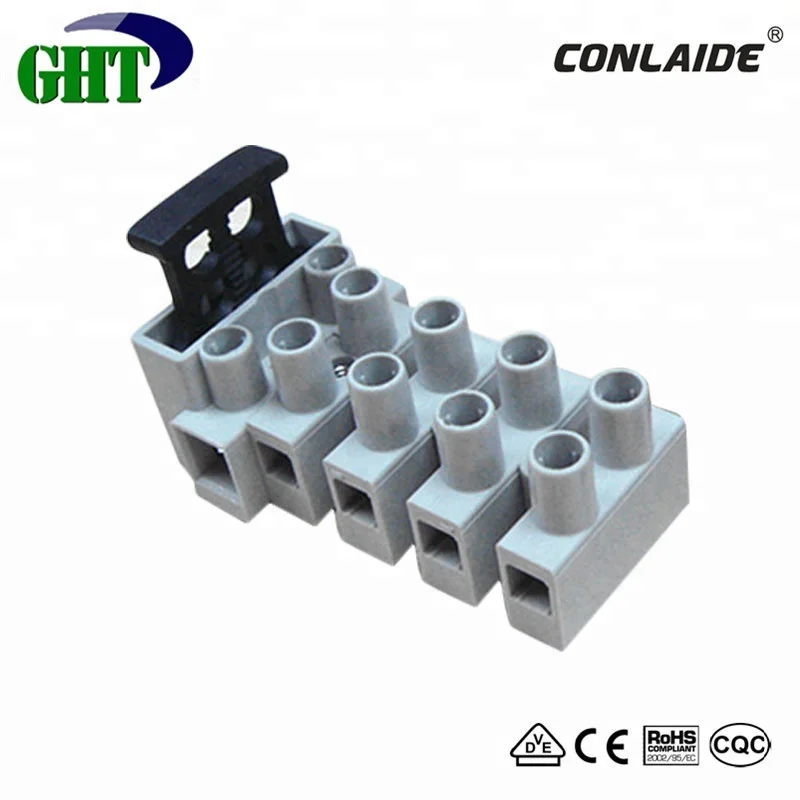

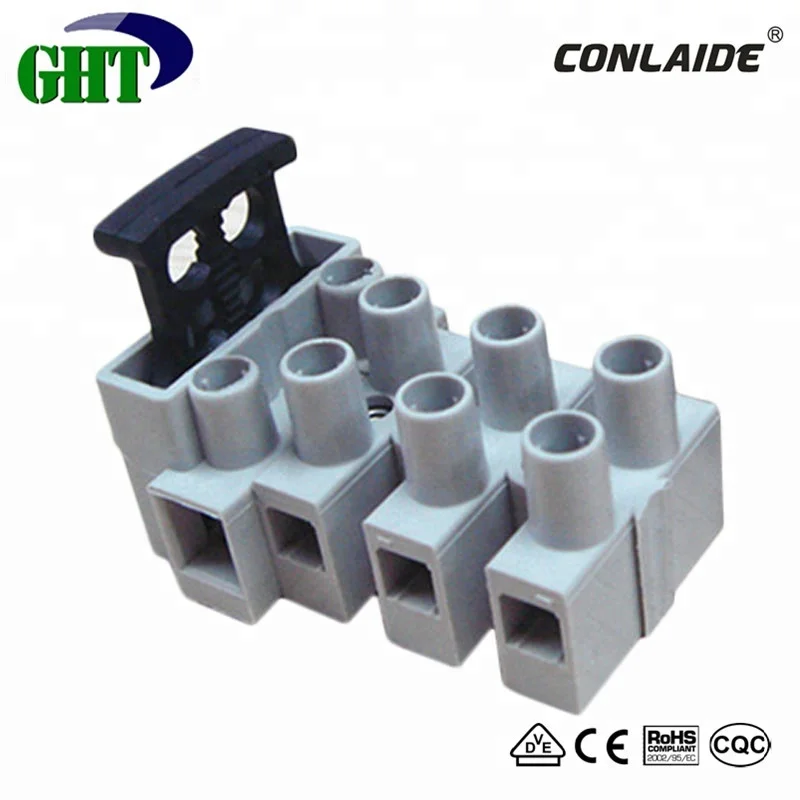

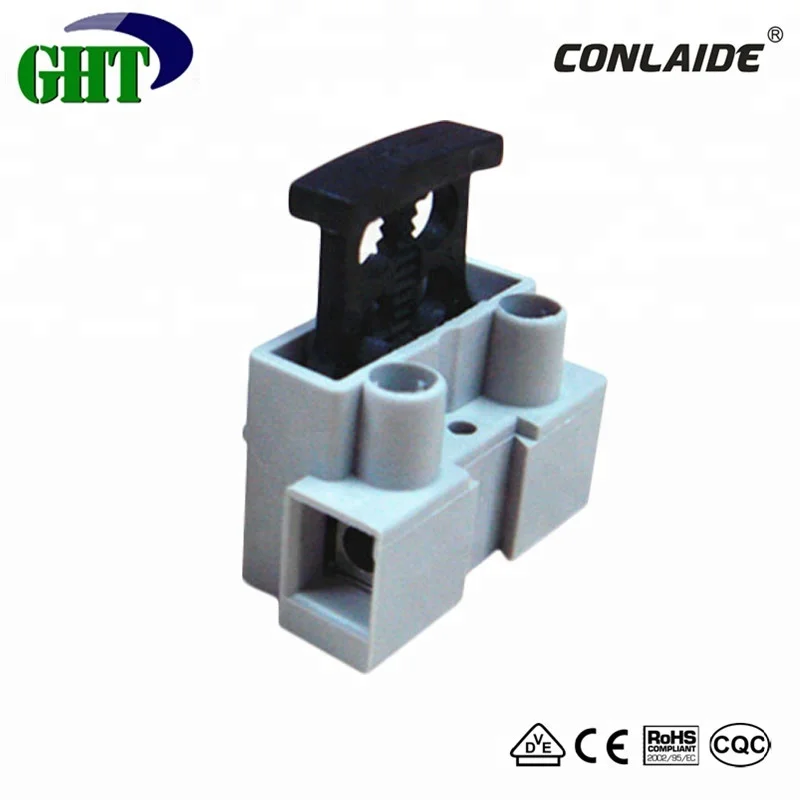

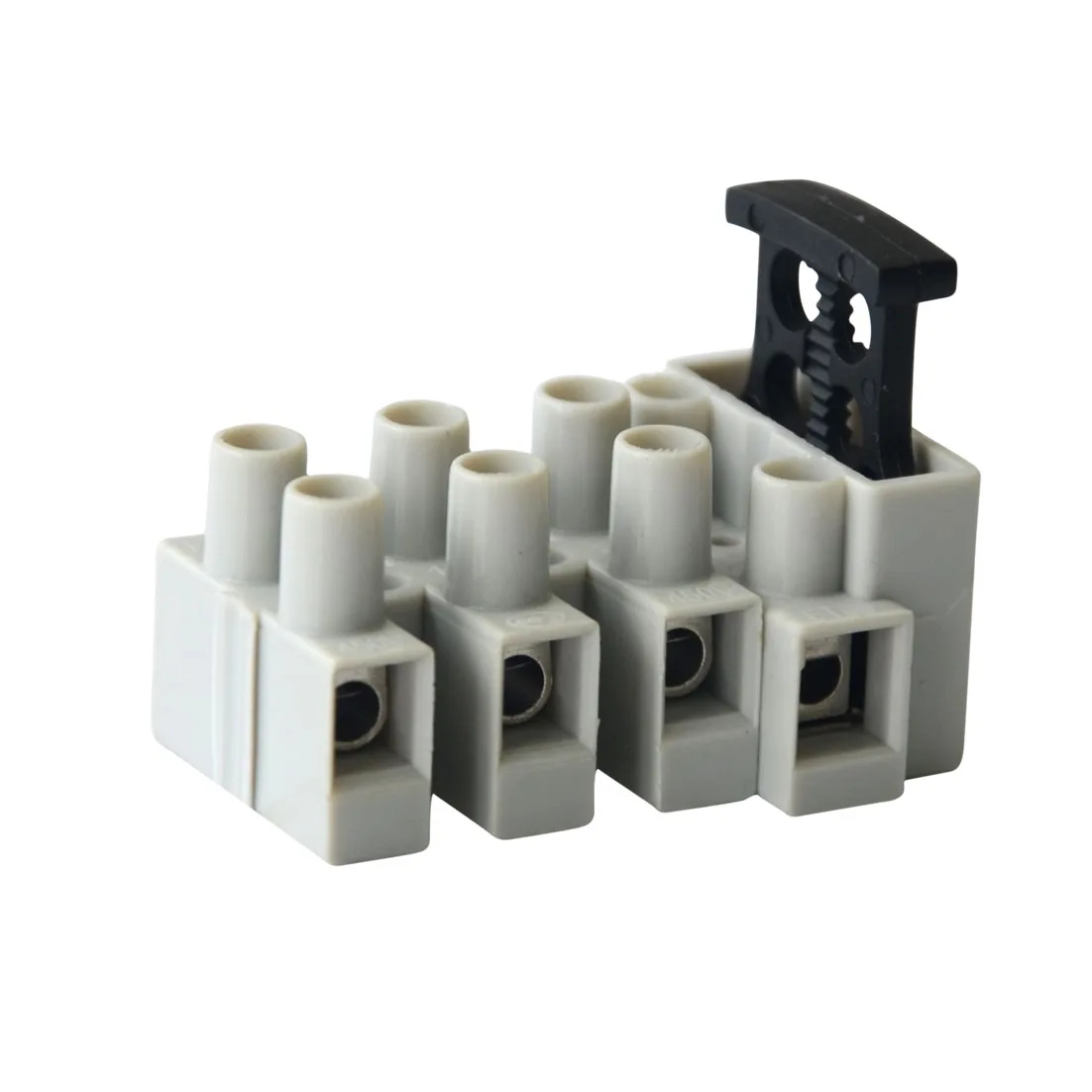

Клеммная колодка с предохранителем европейского стандарта

- European Standard fused terminal for 5 x 20mm EU-fuse

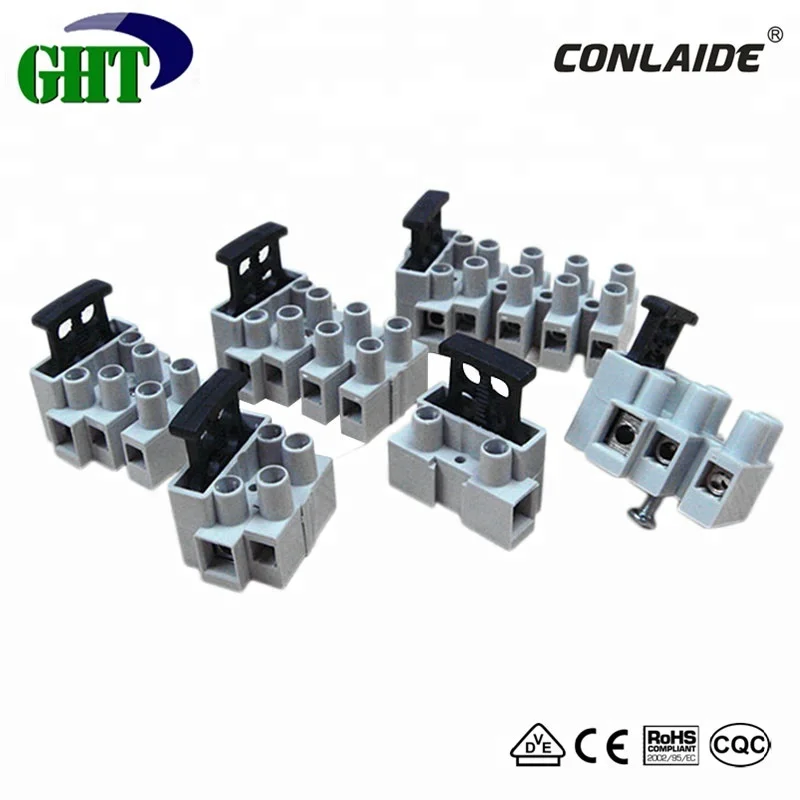

- Choice of 1-5 poles; interlocking fused terminals

- With / without Earth-Screw or Anti-Rotation Spigot

Specification

1. Housing : Polyamide 6/6 94V-2 grade

2. Metal Part : nickel plated, metal-alloy insert

3. Terminal Screw : M3 X 6 zinc plated

4. Earthing Screw : M3 X 14 zinc plated

5. Voltage/Ampere :

   - Fuse Holder Part : 250V/6.3A

   - Terminal Part: 450V/15A

6. Temperature : -40℃ to 110℃

7. Cross Section: 0.75mm2 - 2.5mm2

1. Packing Details:  500PCS Per carton;

2. Delivery Time:  7 Days; Received the payment after;

Professional Certification :
    • CQC Certification
    • @UL Certification
    • VDE Certification
      •CE Certification
      •Compliant with ROHS & REACH

   Conlight company was established in 2011.We company is specializes engaged in selling terminal blocks and connectors, We mainly serve the electronics, Illumination and decorative lighting, electrician, machinery and so on electrical connection of industry. We supply the top lead brand at home and abroad of electrical connection and related control spares.
       Our company located in Guangzhou Huangpu district, Close to the first bridge of southern of China. Adjacent to Hong Kong and Macao, From Huangpu military academy to here only twenty minutes. We concentrate on global pro-environment, reliable and safe connecting service.
    Main handle: Terminal Blocks, Push-wire Connectors, Cord line Switches, Fused Terminals, Junction Boxes and IP rated connection devices, as well as other wiring accessories.
    With our large production capacity, high-tech automation and a strong engineering team, we are able to support OEM products as well as our own range of approved components compliant with ROHS & REACH, and certified under international standards by VDE, @UL, CE, CQC and SGS...

Sincerely invite you to visit our booth
Exhibition Name: GUANGZHOU INTERNATIONAL LIGHTING EXHIBITION
Adress: China Import and Export Fair Complex Guangzhou, China
Date: 9-12 June 2016
Booth No. 3.2 F48

1. Payment: T/T
2.Samples could be offered if need
3. Shipping way: Expresses (DHL, TNT, UPS, EMS), Air, or sea
4.Shipping port: Jiangmen, Hongkong, Mainland China
5.Discounts are offered based on big order quantities

6.MOQ:no limitation
7. Delivery time:1-2 Weeks after order
8.Professional Certification :
    • CQC Certification
    •@UL Certification
    • VDE Certification

      •CE Certification
      •Compliant with ROHS & REACH
9.100% Guarantee Qualtiy
      High-tech automation
      A strong engineering team
10. Company Policy
 We insist provide to customer the highest quality of product as premise and possess competitive product as orientation;

 We insist provide to customer the stable supply as guarantee and dedicate to more quality\\more satisfying service as standard.
We are not only a supplier or service-provider, but the reliable partner, as highly accredited to be the key, for developing the future and striding to success.
