Металлические пленочные резисторы серии MF 1/8 Вт 1/4 1/2 1 2
- Категория: Резисторы >>>
- Поставщик: Shenzhen,HS,Electronic,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.30 $* | 0.75 $* |
| Aug-19-2025 | 0.49 $* | 0.6 $* |
| Jul-19-2025 | 0.15 $* | 0.90 $* |
| Jun-19-2025 | 0.0 $* | 0.85 $* |
| May-19-2025 | 0.97 $* | 0.32 $* |
| Apr-19-2025 | 0.60 $* | 0.96 $* |
| Mar-19-2025 | 0.46 $* | 0.62 $* |
| Feb-19-2025 | 0.62 $* | 0.71 $* |
| Jan-19-2025 | 0.82 $* | 0.31 $* |
Характеристики
Product Description
Our website: http://hs-electronik.com

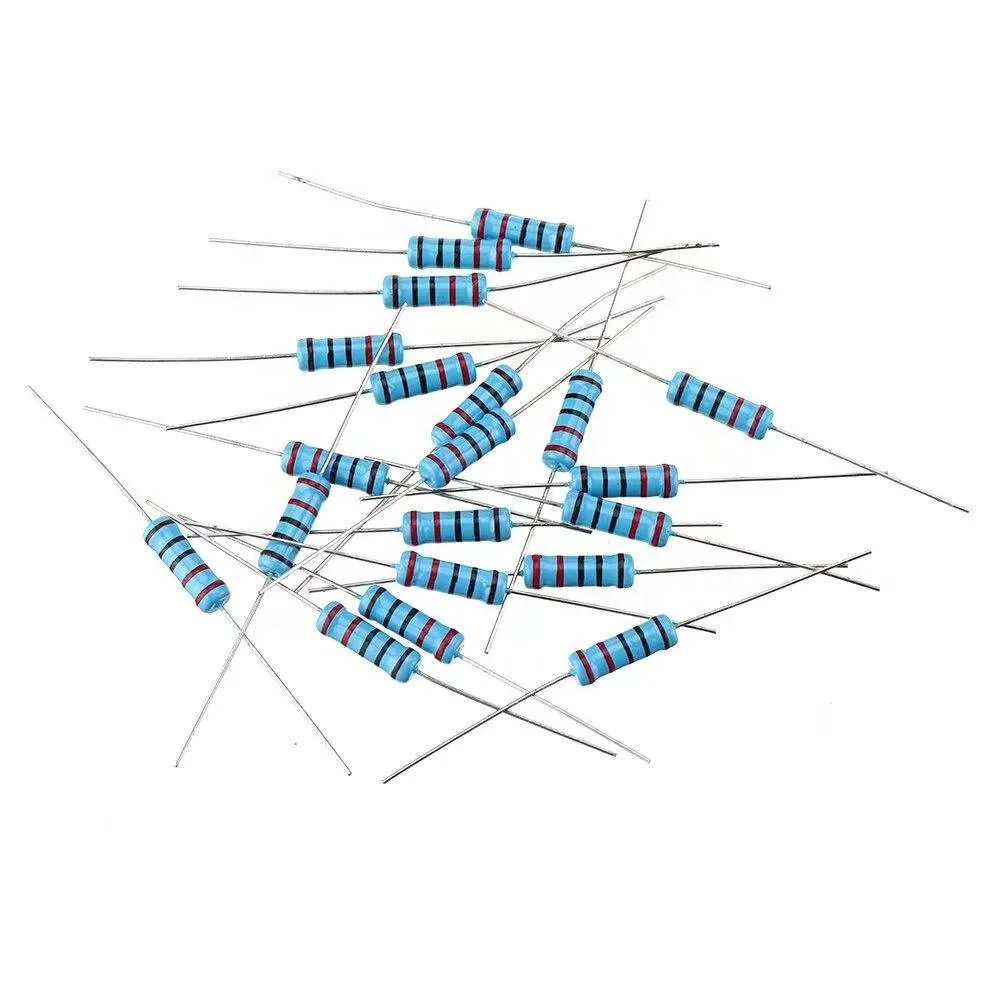

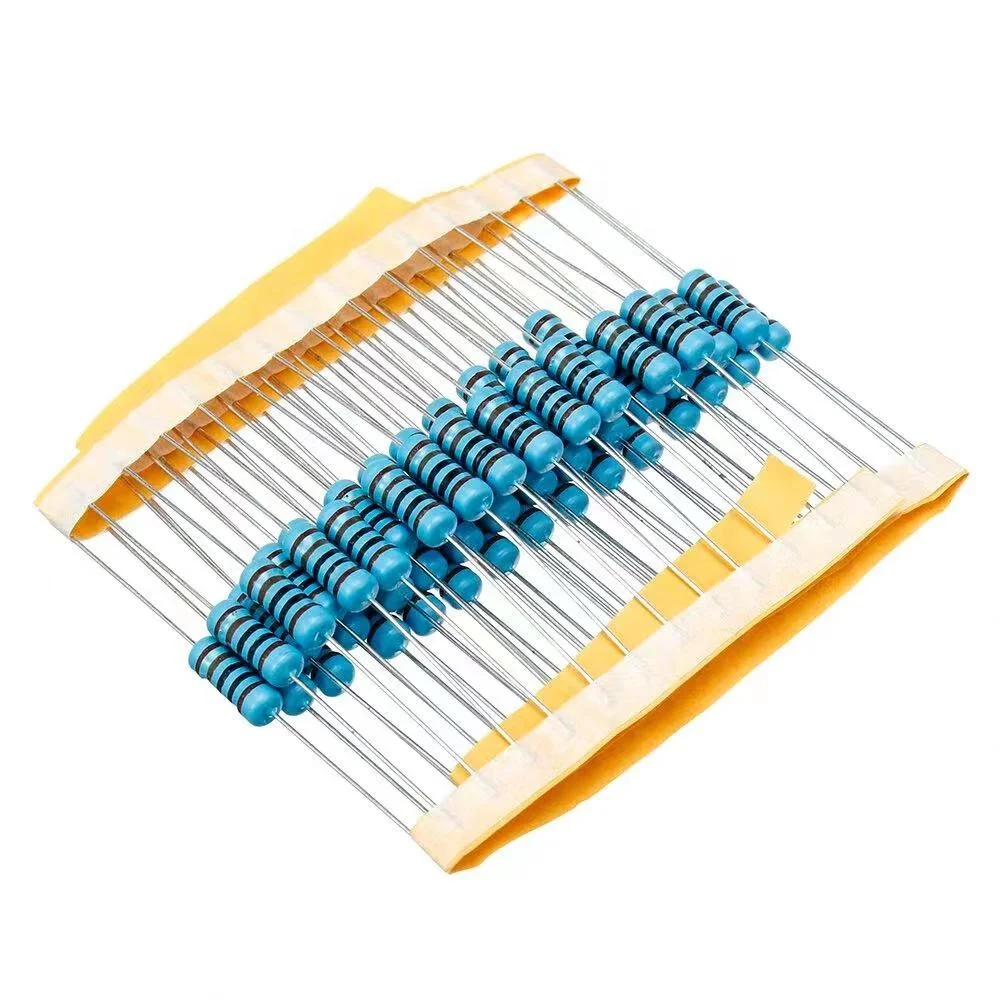

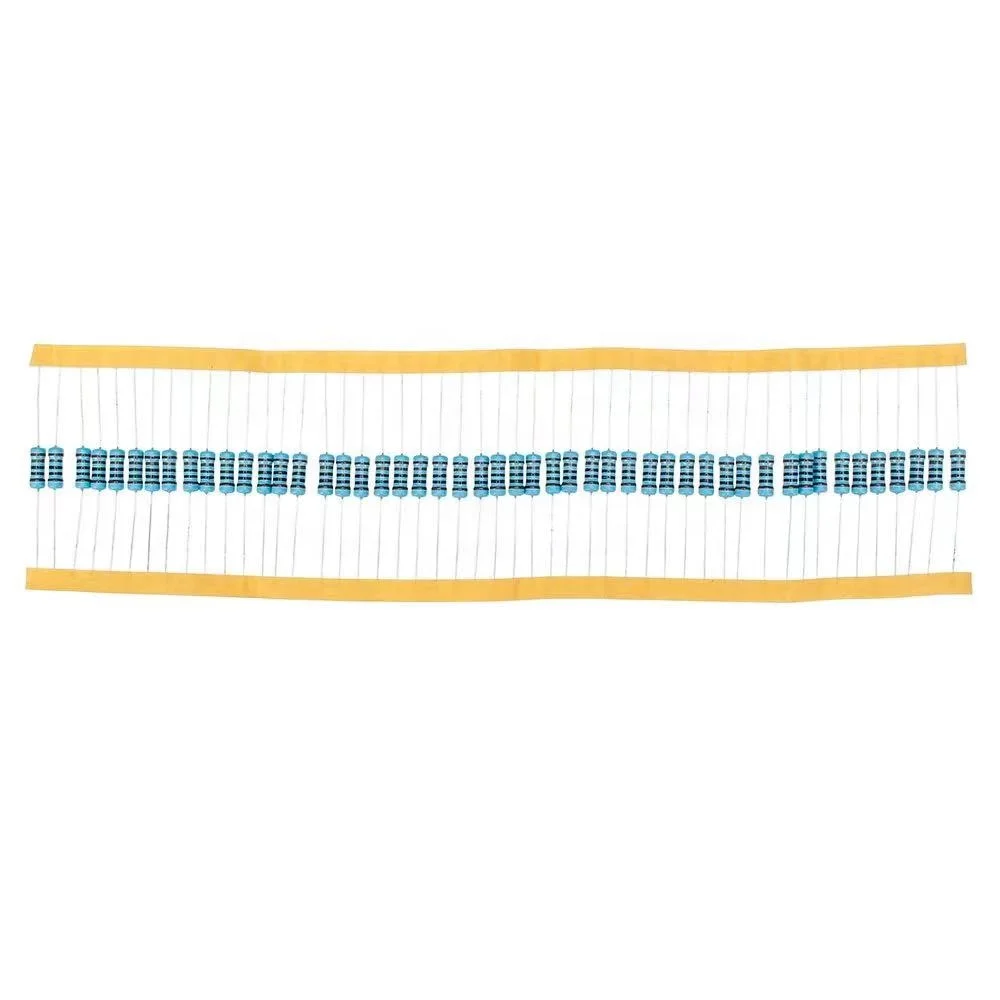

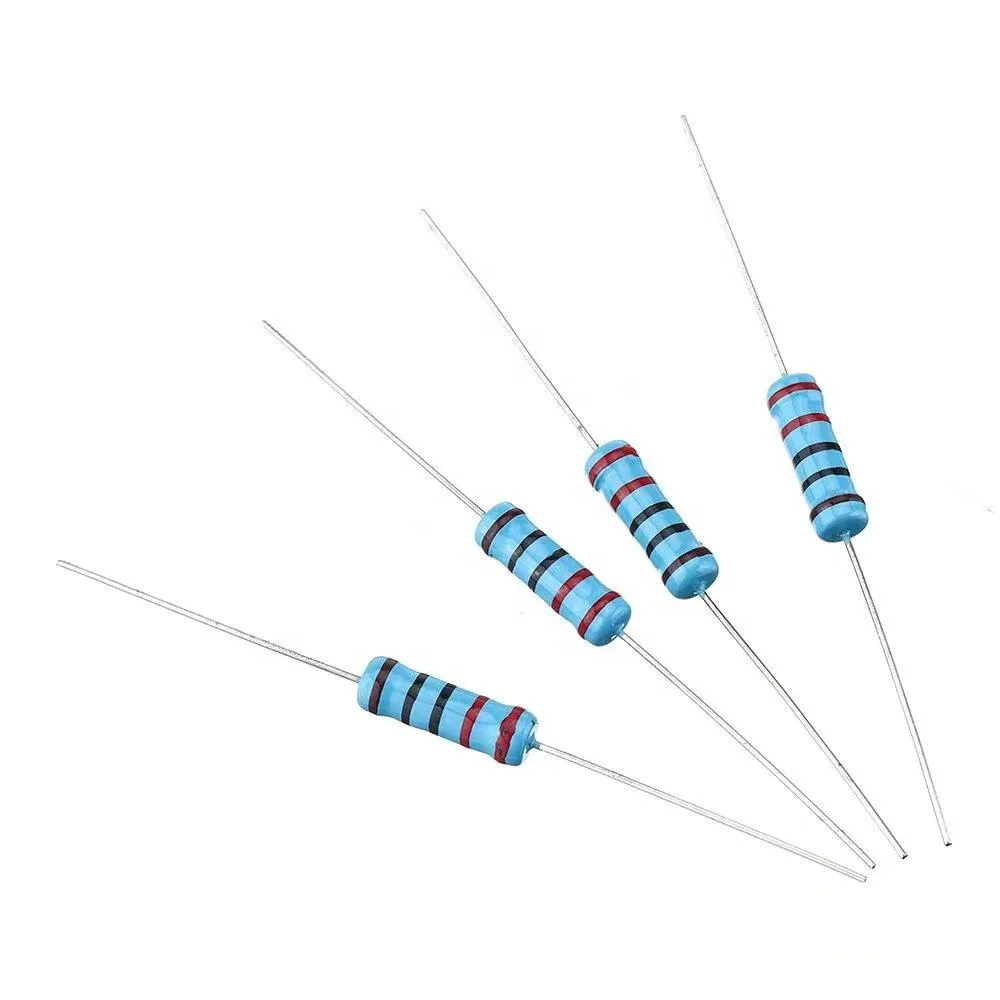

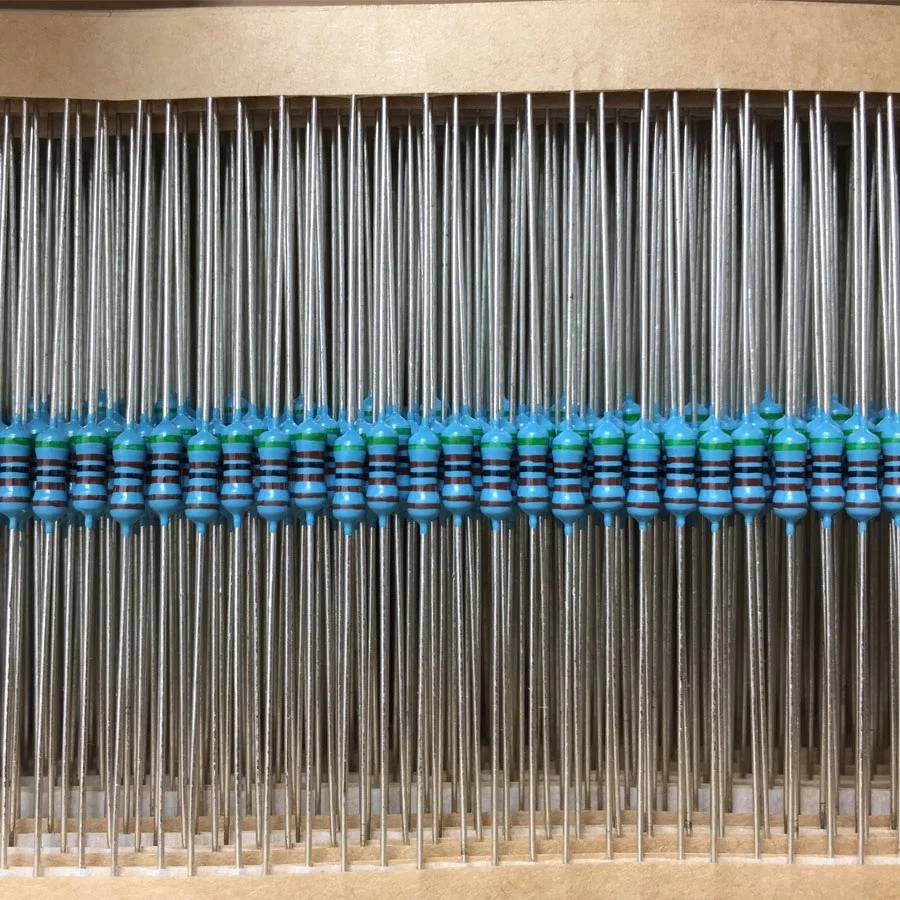

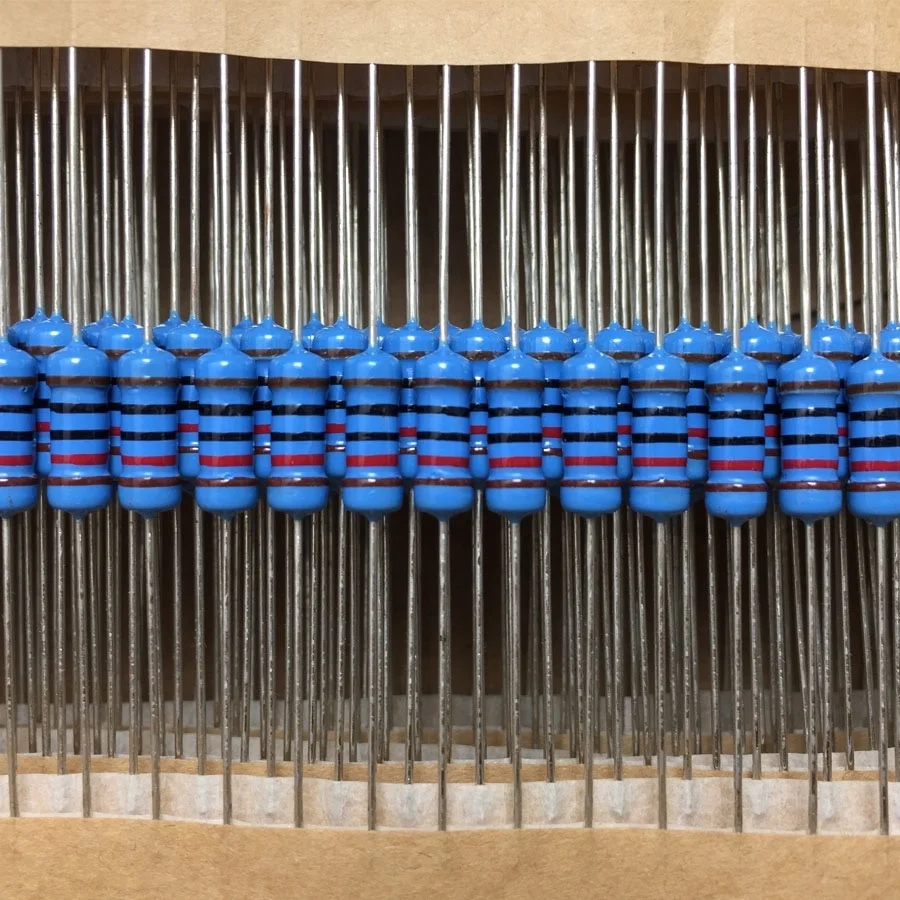

Metal Film Resistors MF Series 1/8W 1/4W 1/2W 1W 2W 3W
Coating Color: Blue
Marking: Color Coding
Lead Wire: Copper Wire
Remark: RoHS & Lead Free
Dimensions
| TYPE | Dimensions(mm) | |||
| L max | D max | d±0.05 | L ± 3 | |
| MF1/8W(RJ13) | 3.70 | 1.90 | 0.43 | 25.00 |
| MF1/4W(RJ14) | 7.00 | 2.50 | 0.48 | 28.00 |
| MF1/2W(RJ15) | 10.50 | 3.90 | 0.50 | 28.00 |
| MF1W(RJ16) | 12.00 | 5.00 | 0.60 | 28.00 |
| MF2W(RJ17) | 16.50 | 5.50 | 0.78 | 28.00 |
| MF3W(RJ18) | 18.50 | 6.50 | 0.78 | 28.00 |
SPECIFICATIONS
| TYPE | POWER WATTAGE | MAX.WORKING VOL. | MAX.OVERLOAD VOL. | TCR(PPM℃) | RES. RANGE(Ω) | RATING AMB.TEMP. | OPERATING. TEMP.RANGE | ||
| F±1% | G±2% | J±5% | |||||||
| MF1/8W(RJ13) | 1/8W | 150V | 300V | ±50 | 10-1M | 1-1M | 1-4.7M | ±70℃ | -55℃/+125℃ |
| ±100 | |||||||||
| MF1/4W(RJ14) | 1/4W | 250V | 500V | ±50 | 10-2M2 | 10-2M2 | 1-2M2 | ||
| ±100 | |||||||||
| MF1/2W(RJ15) | 1/2W | 350V | 700V | ±50 | 10-10M | 1-10M | 1-10M | ||
| ±100 | |||||||||
| MF1W(RJ16) | 1W | 350V | 700V | ±250 | 1-10M | 1-10M | 1-10M | ||
| MF2W(RJ17) | 2W | 350V | 700V | ±250 | -55℃/+155℃ | ||||
| MF3W(RJ18) | 3W | 500V | 1000V | ±250 | |||||
CHARACTERISTICS
| TEST ITEM | SPECIFICATIONS | TEST METHOD |
| GB/T5729-94 IEC115-1 | ||
| TEMPERATURE CYCLE | ΔR<= ± ( 0.5% R + 0.05Ω) | 4.19 |
| SHORT TIME OVERLOAD | ΔR<= ± ( 0.5% R + 0.05Ω) | 4.13 |
| DIELECTRIC WITH STANDING VOL | NO BREAK DOWN | 4.7 |
| INSOLATION RESISTANCE | OVER100MΩ | 4.6 |
| RESISTANCE TO SOLDERING HEAT | ΔR<= ± ( 0.5% R + 0.05Ω) | 4.18 |
| WEATHER CYCLE | ΔR<= ± ( 2% R + 0.1Ω) | 4.23 |
| LOAD LIFE | ΔR<= ± ( 2% R + 0.1Ω) | 4.25.2 |
FORMING THE LEG & CUTTING THE LEG
