airport plane bar pushback aviation aircraft tug vehicle

1.aircraft tow vehicle 2.aircraft tow tractor 3.aircraft tow truck 4.aircraft draw tractor 5.aircraft pull tractor

TW400 aviation airport tug pushback aircraft towing tractor

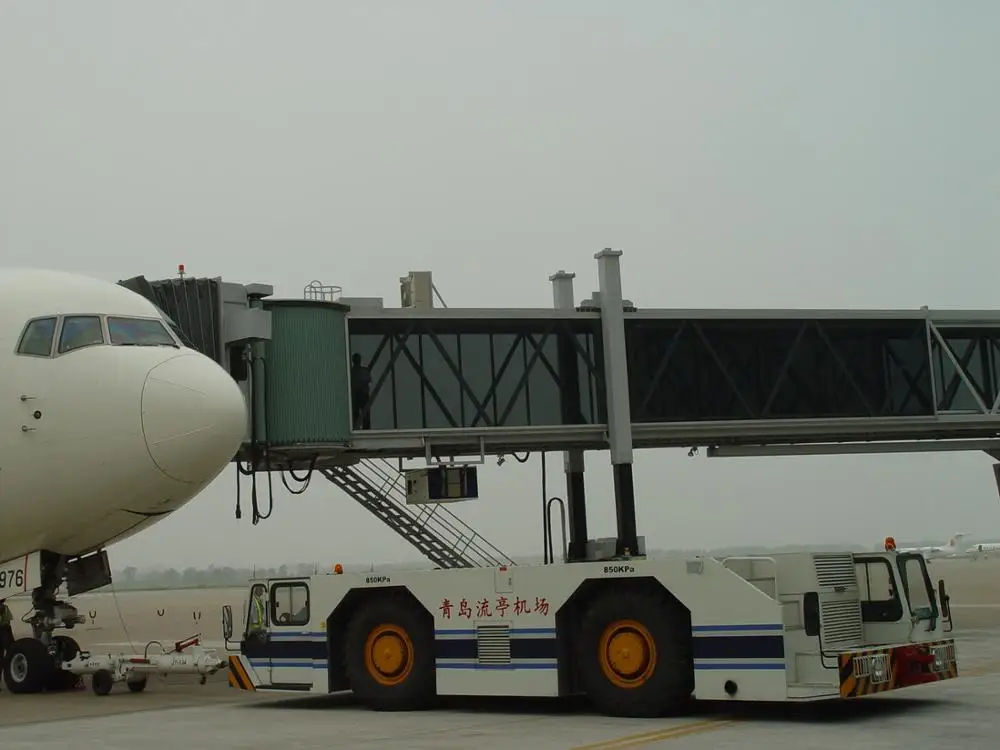

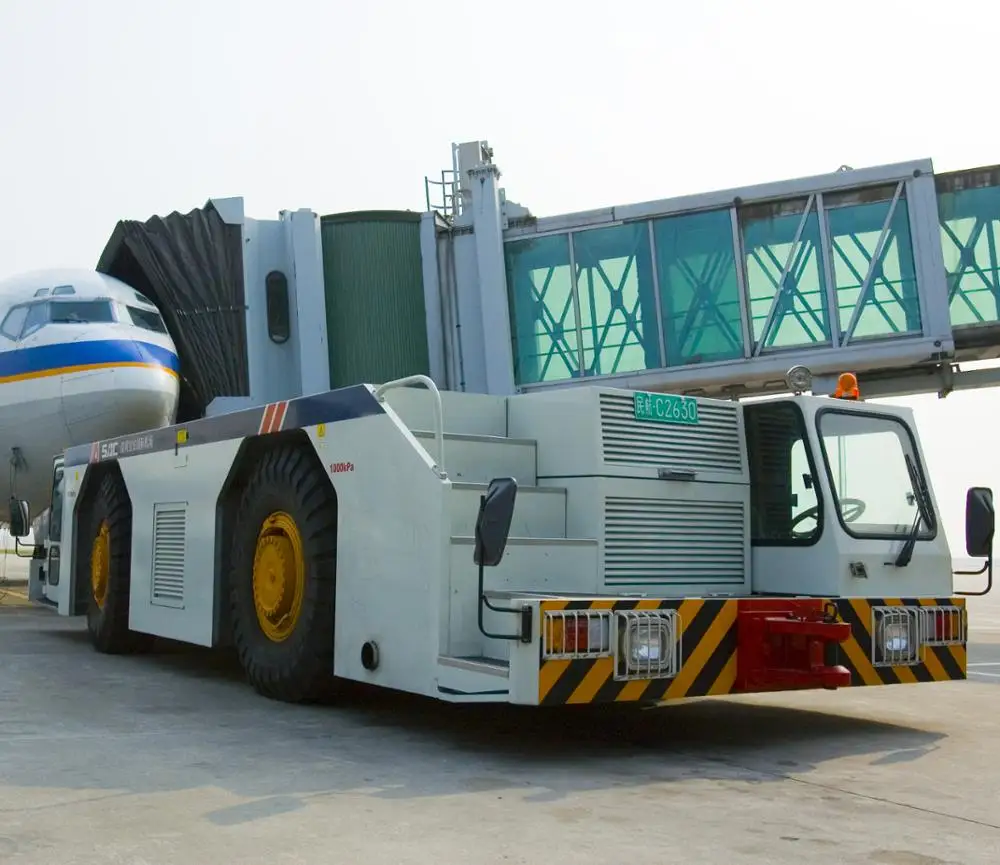

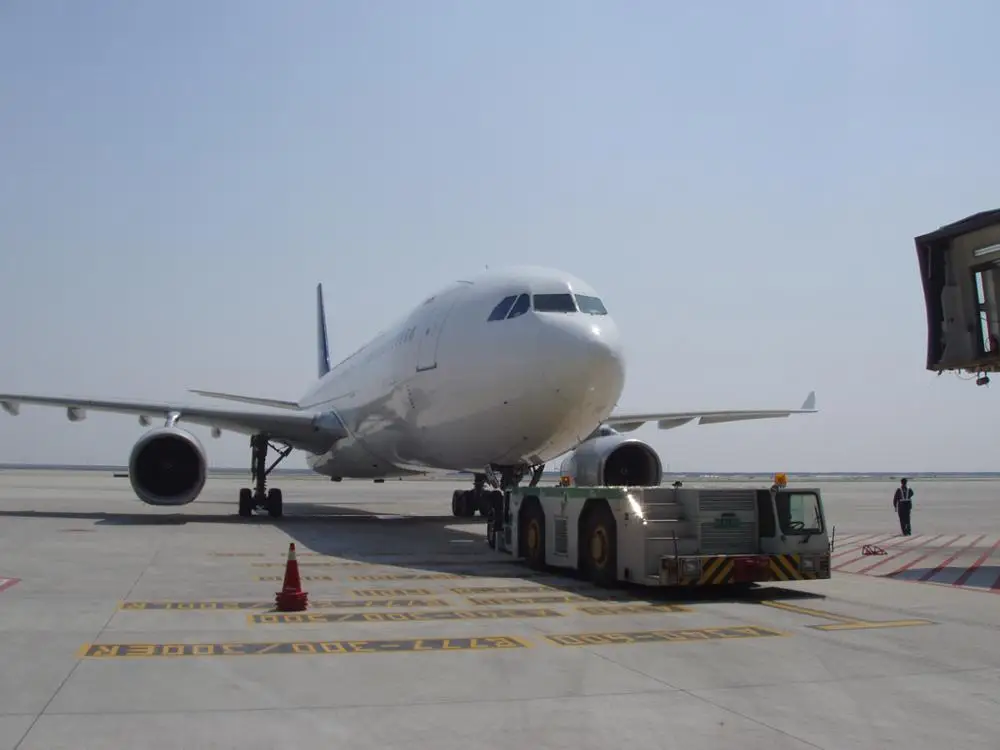

TW400 as one model of conventional aircraft tow tractors meets the requirements of all aircraft up to and including B787/A380 Features a compact, low profile design, power-shift transmission drive and spacious cabin. It can be used for gate push back as well as maintenance towing. This unit can be counterweighted to 55 tons with a drawbar pull of 396 KN. The tractor features four (4) wheel drives and four (4) wheels steering for safe and efficient operation. The front driving station is hydraulically elevating and is ergonomically designed for operator comfort, visibility and safety. There is a fixed rear one-man cabin with full controls. Built in jacking cylinders facilitate tire change and maintenance.

Approval for aircraft

z AHM910 B727,B737,B757,B767 ,B777-200 ,B777-200 z AHM913 ,B777-300 ,B777-300ER ,B747-400 ,B747-400ER z AHM915 B747-8F,B787-900 ,z AHM916 A300,A310,A320 family ,A330-200 ,A330-200F

A330-300,A340-600, A350-800,A350-900 A380,MD-11 MD82,MD83 , MD87,MD90, L1011-500 ,DC10-30 AN22 etc. which MTOW less than 500 metric tons:

 Performance

	Self weight:	55,000 kg
Max. Driving speed		30 km/h
Ground clearance:		210 mm



Track:  2400 mm

Wheel base: 3400 mm

Turning radius:      8500 mm (two wheel)    5500 mm (four wheel)

Dimension:

LOA: 8655 mm(without tow hitch)

   9441mm(with tow hitch)

Width: 2900 mm

Height : 1650 mm(roof of driver cabin)

lift distance: 550 mm



Optional tow bar

Optional electric power engine driven luggage tow tractor


Optional diesel engine powered towing tractor



Aircraft passenger steps

Aircraft lavatory service truck

^{lavatory service truck}

AIRPORT LUGGAGE BELT LOADER

AIRPORT CATERING TRUCK

AIRPORT LUGGAGE CHECKIN WEIGHER

AIRPORT LUGGAGE CAROUSEL

AIR PLANE TOWING TRACTOR.

for more possible interested airport equipments see below link

MORE INFO PLEASE CONTACT BELOW

ATTN: Michael Zhu

Email: uniweigh(AT)yeah.net   or    uniweigh(AT)gmail.com

Chinese Air flight Buero Equipment approval.

Warranty :

3 years
