Генератор сжиженного нефтяного газа Camda/Газовый
- Категория: Gas Turbine Generators >>>
- Поставщик: Camda,New,Energy,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.54 $* | 0.52 $* |
| Aug-19-2025 | 0.62 $* | 0.0 $* |
| Jul-19-2025 | 0.26 $* | 0.37 $* |
| Jun-19-2025 | 0.25 $* | 0.91 $* |
| May-19-2025 | 0.80 $* | 0.94 $* |
| Apr-19-2025 | 0.78 $* | 0.10 $* |
| Mar-19-2025 | 0.21 $* | 0.56 $* |
| Feb-19-2025 | 0.78 $* | 0.9 $* |
| Jan-19-2025 | 0.72 $* | 0.84 $* |
Характеристики
Camda lpg Generator 400kw for sale/Natural gas generator/Gas engine/LPG gas generator/ Power plant with CE&ISO certificates
Specifications of 400kw natural gas generator/biogas generator/LPG power generator/Landfill gas generator:
Gas genset data | ||
Genset model | KDGH400-G | |
Prime power(kW/KVA) | 400/500 | |
Continuous power (kW/KVA) | 400/500 | |
Connection type | 3 Phases 4 Lines | |
Power factor cosfi | 0.8 lagging | |
Frequency (Hz) | 50 | |
Rated speed (RPM) | 1500 | |
Open type Overall Dimension (mm) | 4245/2010/2480 | |
Soundproof type Dimension (mm) | 40'ft container | |
Net weight without canopy(kg) | 5800 | |
Gas Engine Data | ||
Model | HGKT38 | |
Brand | CAMDA | |
Type | 4 stroke, water-cooling, wet cylinder liner, electronic-control ignition system, pre-mixed perfect mixed burning | |
Cylinders& Arrangement | 12V | |
Bore X Stroke(mm) | 159X159 | |
Displacement(L) | 37.8 | |
Compression ratio | 11:1 | |
Aspiration | Intercooled and Turbocharged | |
Cooling Method | Radiator fan water cooling or Heat exchange | |
Governor type(speed regulating type) | Electronic governing | |
Starting method | Electric, 24 V motor | |
The lowest gas consumption(m3/kw.h) | 0.3 for natural gas/0.6 for biogas | |
Idling speed(r/min) | 700 | |
Oil recommended | SAE 15W-40 CF4 or above | |
Oil consumption | ≤1.0g/kW.h | |
Standard Scope of Supply:
Accessories list 1. Maintenance Operation manual 2. Quality certificate, Gen-sets ex-factory testing report | ||
Other products:
Genset Model | Engine Model | Alternator Model | Controller | Prime Power (kVA/kW) |
KDGH24-G | HG4B | LSA42.3VS3 | DSE7320 | 30/24 |
KDGH30-G | HG4B | LSA43.2S4 | DSE7320 | 37/30 |
KDGH50-G | HG6B | LSA44.3S2 | DSE7320 | 62/50 |
KDGH80-G | HG6TB | LSA44.3S5 | DSE7320 | 100/80 |
KDGH120-G | HGN14 | LSA44.3L10 | DSE7320 | 150/120 |
KDGH160-G | HGNT14 | LSA46.2M5 | DSE7320 | 200/160 |
KDGH200-G | HGNT14 | LSA46.2L6 | DSE7320 | 250/200 |
KDGH250-G | HGKT19 | LSA46.2VL12 | DSE7320 | 312/250 |
KDGH300-G | HGKT19 | LSA47.2VS2 | DSE7320 | 375/300 |
KDGH400-G | HGKT38 | LSA47.2M7 | DSE7320 | 500/400 |
KDGH500-G | HGKT38 | LSA49.1S4 | DSE7320 | 625/500 |

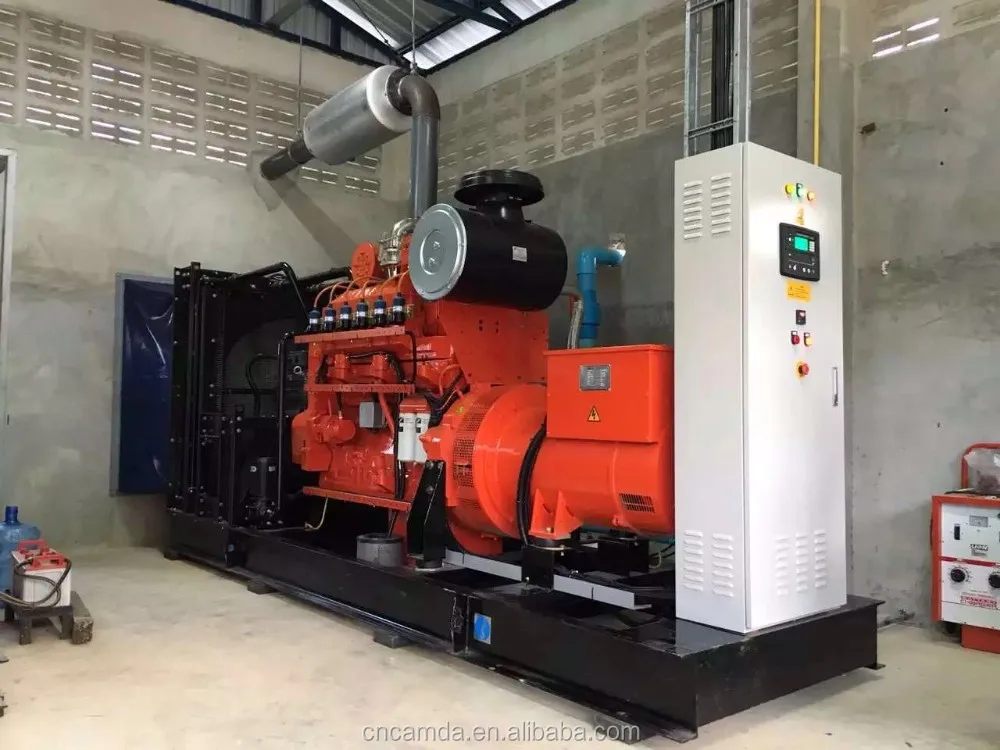

Specific photos:

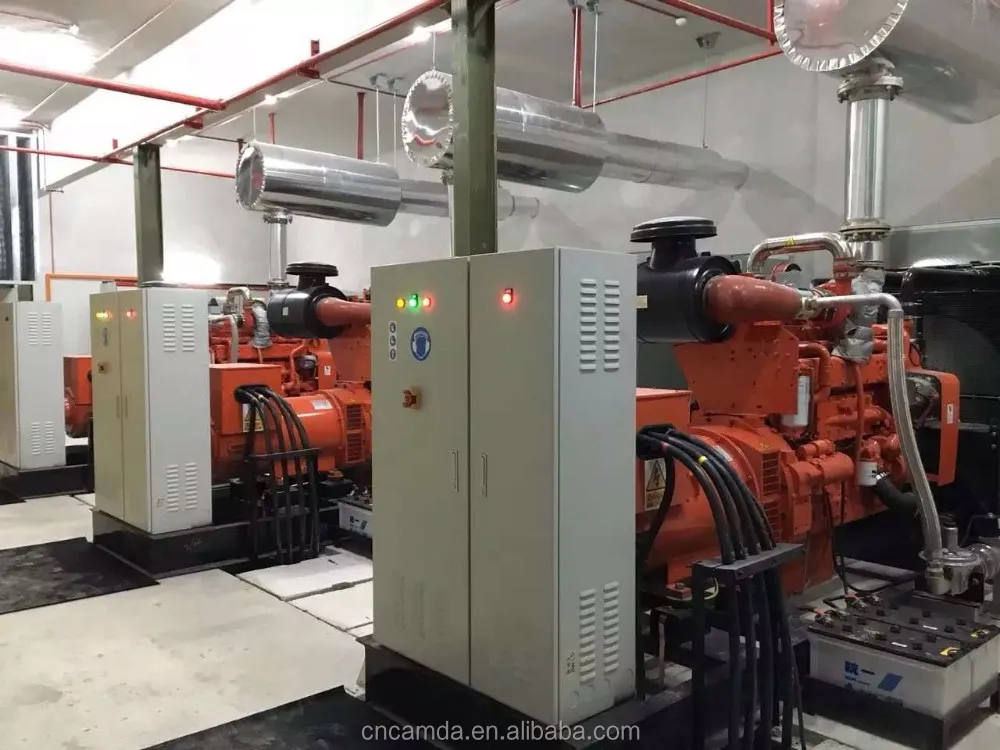

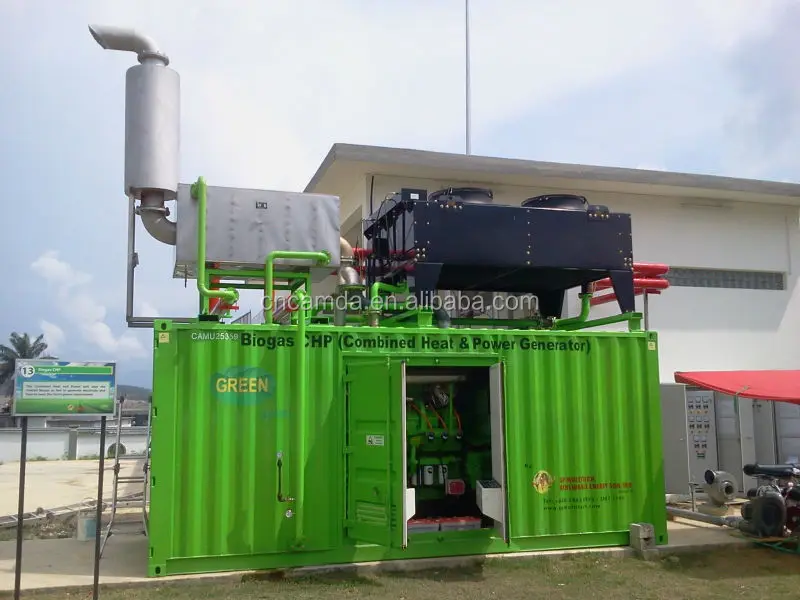

Some of our gas generators projects cases
Genset lifetime and Warranty
LIFETIME
According to product design and end users' years experience, strictly following our operation manual and make
gen-set load under 85% of prime power, we guarantee the major overhaul terminal more than 15000 hours, and
lifetime is over 20 years.
AFTER SERVICE
12 months or 1500 running hours warranty covering all manufacturing defects (whichever comes first)since
leaving China port, our company provides free easily-damaged parts for the faults caused by the quality of products
or raw material, but exclude the damageable parts of engine due to customer's incorrect man-made operation. After expiration, our company provides spare parts with cost for maintenance forever.
