Подвесные платформы доступа Beijing IHURMO zpl
- Категория: Рабочие платформы >>>
- Поставщик: Beijing,Ihurmo,Industry,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 1535.35 $* | 1612.25 $* |
| Aug-17-2025 | 1522.5 $* | 1598.18 $* |
| Jul-17-2025 | 1277.51 $* | 1341.69 $* |
| Jun-17-2025 | 1496.84 $* | 1571.56 $* |
| May-17-2025 | 1303.1 $* | 1368.2 $* |
| Apr-17-2025 | 1471.92 $* | 1545.55 $* |
| Mar-17-2025 | 1458.86 $* | 1531.87 $* |
| Feb-17-2025 | 1445.93 $* | 1517.75 $* |
| Jan-17-2025 | 1432.72 $* | 1504.46 $* |
Характеристики

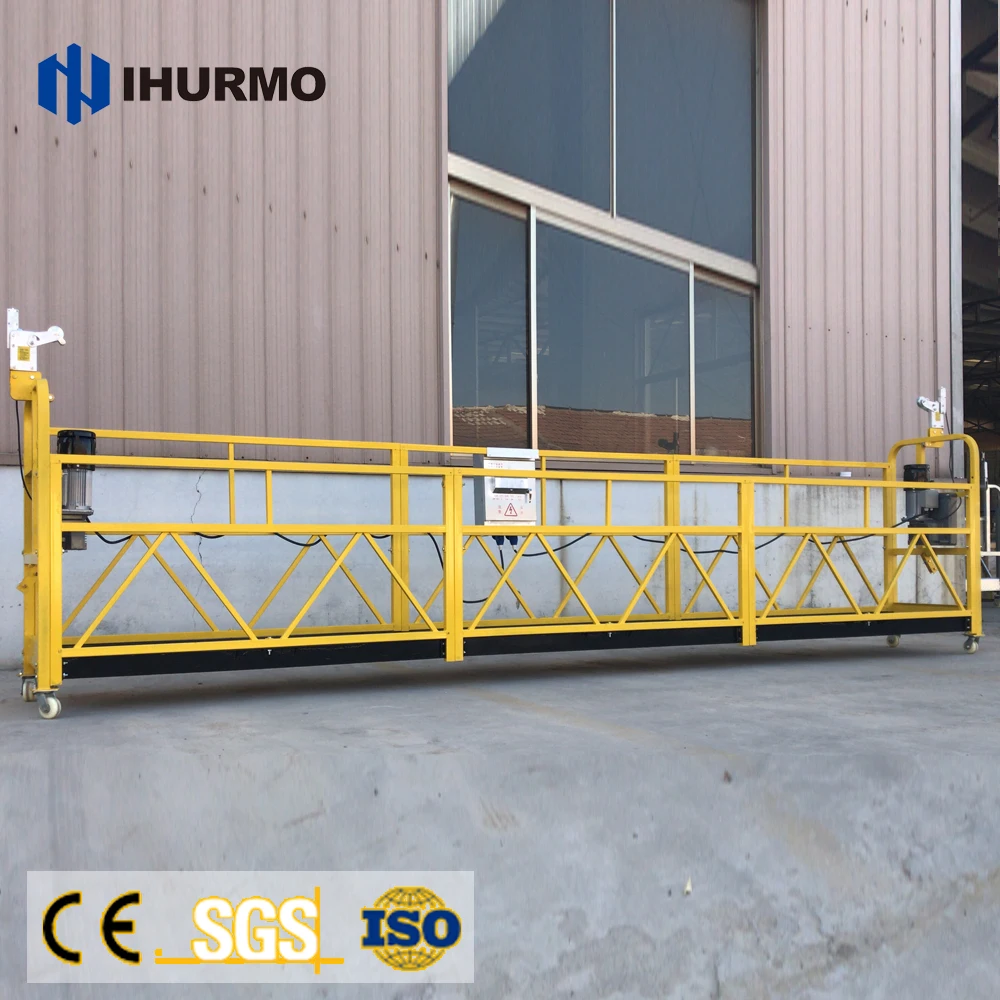

Beijing IHURMO zpl 800 suspend access platforms
Product Description
The zpl 800 suspend access platforms is motor driven climbing machinery mainly used for the exterior wall construction, decoration and renovation of high-rise buildings and multi-storey buildings. More specifically, cement coating, wainscoting, curtain wall installing, painting, varnishing, cleaning, maintenance, and other tasks can all be completed. This zpl 800 suspend access platforms is also suitable for other engineering work on large tanks, bridges, and dams.
The zpl 800 suspend access platforms alone is capable of accomplishing construction tasks without the help of scaffolds. Thereby the construction cost is greatly reduced and the efficiency is improved. In addition, this zpl 800 suspend access platforms features reliable performance as well as easy operation and displacement.
zpl 800 suspend access platforms | |||||
Name | Technical parameter | ||||
Model | ZLP500 | ZLP630 | ZLP800 | ZLP1000 | |
Rated load (kg) | 500 | 630 | 800 | 1000 | |
Lifting speed (m/min) | 8-10 | 8-10 | 8-10 | 8-10 | |
Platform dimensions (mm) | 5000(2+3m)×720 | 6000(1+2+3m)×720 | 7500(2.5m×3)×720 | 7500(3×2.5)×720 | |
Lifting height (m) | 100 | 100 | 100 | 100 | |
Cable (m) | 100 | 100 | 100 | 100 | |
Steel rope (mm) | 8.3 | 8.3 | 9.1 | 8.6 | |

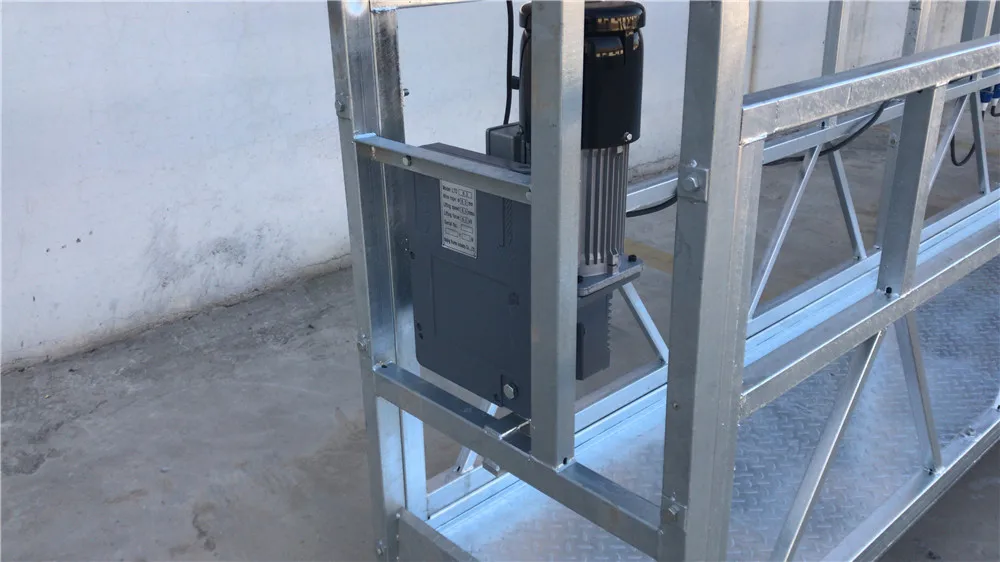

Hoist | Power | 1.5KW*2 | 1.5KW*2 | 1.8KW*2 | 2.2KW*2 |
Voltage | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | |

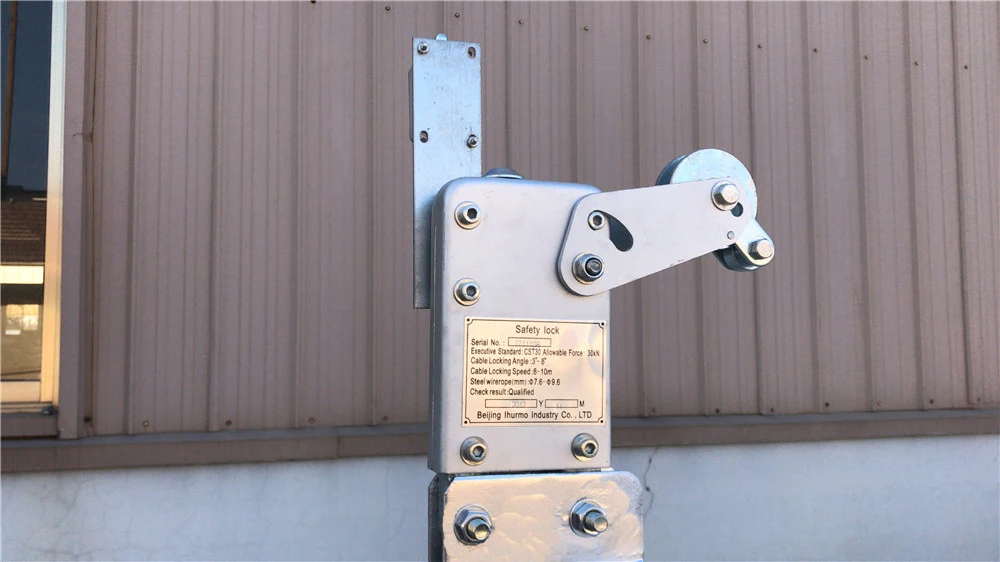

Safety lock | Allowable impulsive force (kN) | 30 | 30 | 30 | 30 |
Cable locking angle | 3°~8° | 3°~8° | 3°~8° | 3°~8° | |
Suspension mechanism( | Front beam overhang (m) | 1.3~1.5 | 1.3~1.5 | 1.3~1.5 | 1.3~1.5 |
Adjustable height (m) | 1.44~2.14 | 1.44~2.14 | 1.44~2.14 | 1.44~2.14 | |
Counterweight (kg) | 800 | 800 | 1000 | 1200 | |
20ft container (set) | 10 | 9 | 8 | 8 | |
Packaging & Shipping
zpl 800 suspend access platforms Packaging and Shipping
Our Services
zpl 800 suspend access platforms Services
IHURMO, an engineering machinery supplier in China, provides not only quality construction equipment but also first-class services.
Pre-sales Services
1.We offer customers free catalogs of our products and other relevant files.
2. We also provide free shuttle as well as board and lodging (four-star hotel) for customers who come to visit our company.
After-sales Services
1.The construction equipment we offer enjoys one-year guarantee period..
2. We supply free quick-wear parts.
3. Double hot lines for 24-hour after-sales services.
4. Online after-sales service is available as well.
5. The technical documents will be attached with the equipment while leaving the factory.
6. If needed, we will send one technician to the site to provide guidance on installation and debugging as well as the training of operators.
7.We can provide on-site service in some countries and areas where we have overseas office or agents.
In addition, OEM service is available.
Please contact us if you want to know more about us.
Company Information
We are dedicated to the development and production of tower crane, construction hoist, material hoist, simple material hoist, suspended platform and all relative accessories. Our company employs 800 skillful personnel and is equipped with Panasonic professional robotic welding equipment, machining centers, large CNC gantry milling, CNC double-sided milling, CNC plasma cutting machines, computer-aided assembly line, fully automated spraying line and so on. Therefore, we can easily meet your requirements.
