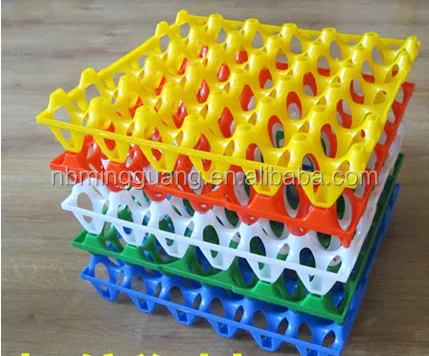

Машина для инъекции пластиковых лотков яиц на
- Категория: Injection Molding Machines >>>
- Поставщик: Ningbo,Mingguang,Weiye,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.24 $* | 0.89 $* |
| Aug-20-2025 | 0.13 $* | 0.11 $* |
| Jul-20-2025 | 0.71 $* | 0.92 $* |
| Jun-20-2025 | 0.10 $* | 0.66 $* |
| May-20-2025 | 0.0 $* | 0.25 $* |
| Apr-20-2025 | 0.27 $* | 0.64 $* |
| Mar-20-2025 | 0.13 $* | 0.59 $* |
| Feb-20-2025 | 0.45 $* | 0.87 $* |
| Jan-20-2025 | 0.8 $* | 0.64 $* |
Характеристики
NINGBO MINGGUANG MACHINERY CO.,LTD
WE COULD PRODUCE ALL KINDS OF PLASTIC INJECTION MOLDING MACHINE.
UNTIL NOW WE HAVE EXPORTED MANY MACHINES TO MANY COUNTRIES.
SPECIFICATION | XY2000 | |||||||
| A | B | C | D | ||||
INJECTION UNIT |
| |||||||
SCREW DIAMETER | mm | 45 | 50 | 55 |
| |||
SCREW L/D RATIO | L/D | 24.5 | 22 | 20 |
| |||
SHOT VOLUME(THEORETICAL) | cm3 | 340 | 420 | 510 |
| |||
INJECTION WEIGHT(PS) | g | 310 | 383 | 466 |
| |||
INJECTION RATE | g/s | 124 | 154 | 186 |
| |||
INJECTION PRESSURE | MPa | 210 | 168 | 140 |
| |||
SCREW SPEED | rpm | 155 | ||||||
CLAMPING UNIT |
| |||||||
CLAMP FORCE | KN | 2000 | ||||||
OPEN STROKE | mm | 475 | ||||||
SPACE BETWEEN TIE BARS(W*H) | mm | 530x530 | ||||||
MAX.MOULD HEIGHT | mm | 530 | ||||||
MIN.MOULD HEIGHT | mm | 200 | ||||||
EJECTOR STROKE | mm | 140 | ||||||
EJECTOR FORCE | KN | 70 | ||||||
OTHER |
| |||||||
MAX.PUMP PRESSURE | MPa | 16 | ||||||
PUMP MOTOR POWER | kW | 18.5 | ||||||
HEATING POWER | kW | 13.6 | ||||||
MACHINE DIMENSION(L*W*H) | m | 5.92x1.55x2.14 | ||||||
OILTANK CUBAGE | L | 300 | ||||||
MACHINE WEIGHT | t | 7.3 | ||||||
