Предварительно сформированный кабельный зажим Adss
US $1.00-$10.00
ПВХ пластиковый спиральный Лебедь переключатель
- Категория: Power Accessories >>>
- Поставщик: Qingdao,Powtech,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.12 $* | 0.47 $* |
| Aug-20-2025 | 0.68 $* | 0.51 $* |
| Jul-20-2025 | 0.19 $* | 0.52 $* |
| Jun-20-2025 | 0.62 $* | 0.32 $* |
| May-20-2025 | 0.39 $* | 0.96 $* |
| Apr-20-2025 | 0.40 $* | 0.66 $* |
| Mar-20-2025 | 0.53 $* | 0.73 $* |
| Feb-20-2025 | 0.56 $* | 0.35 $* |
| Jan-20-2025 | 0.84 $* | 0.80 $* |
Характеристики

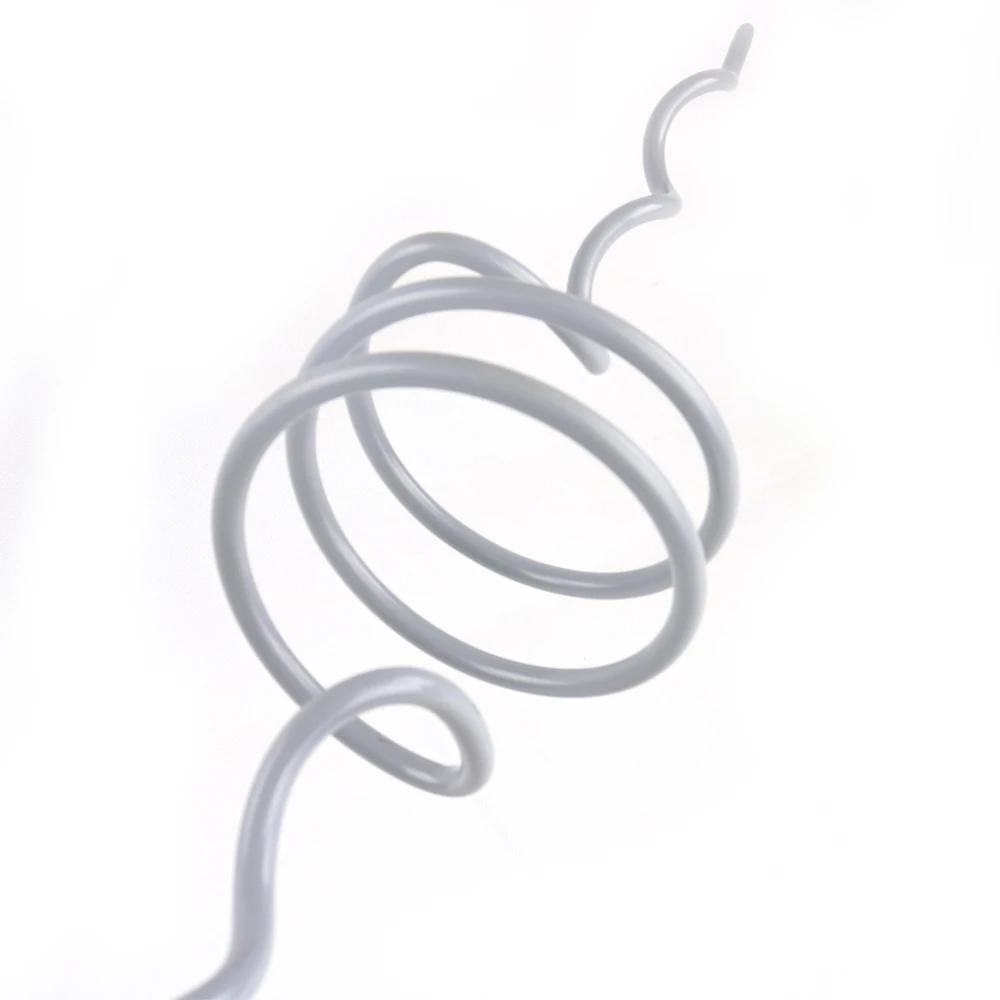

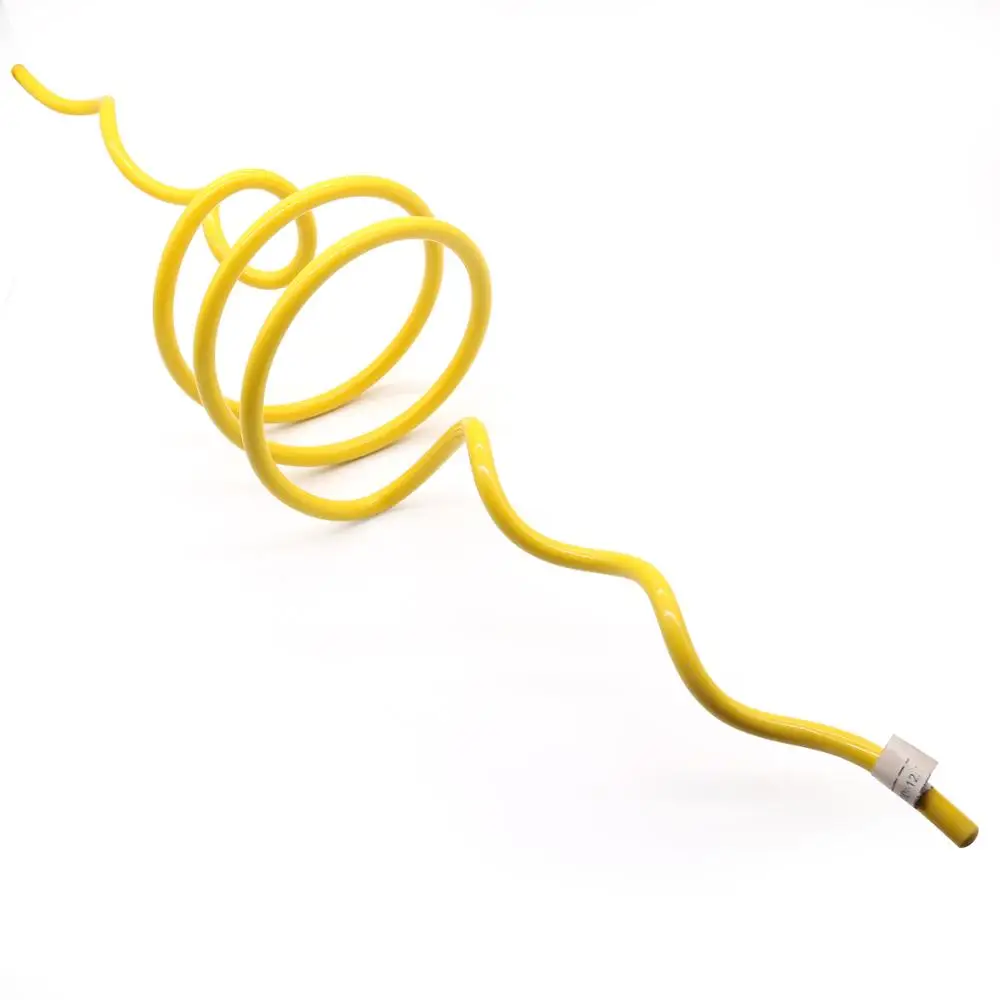

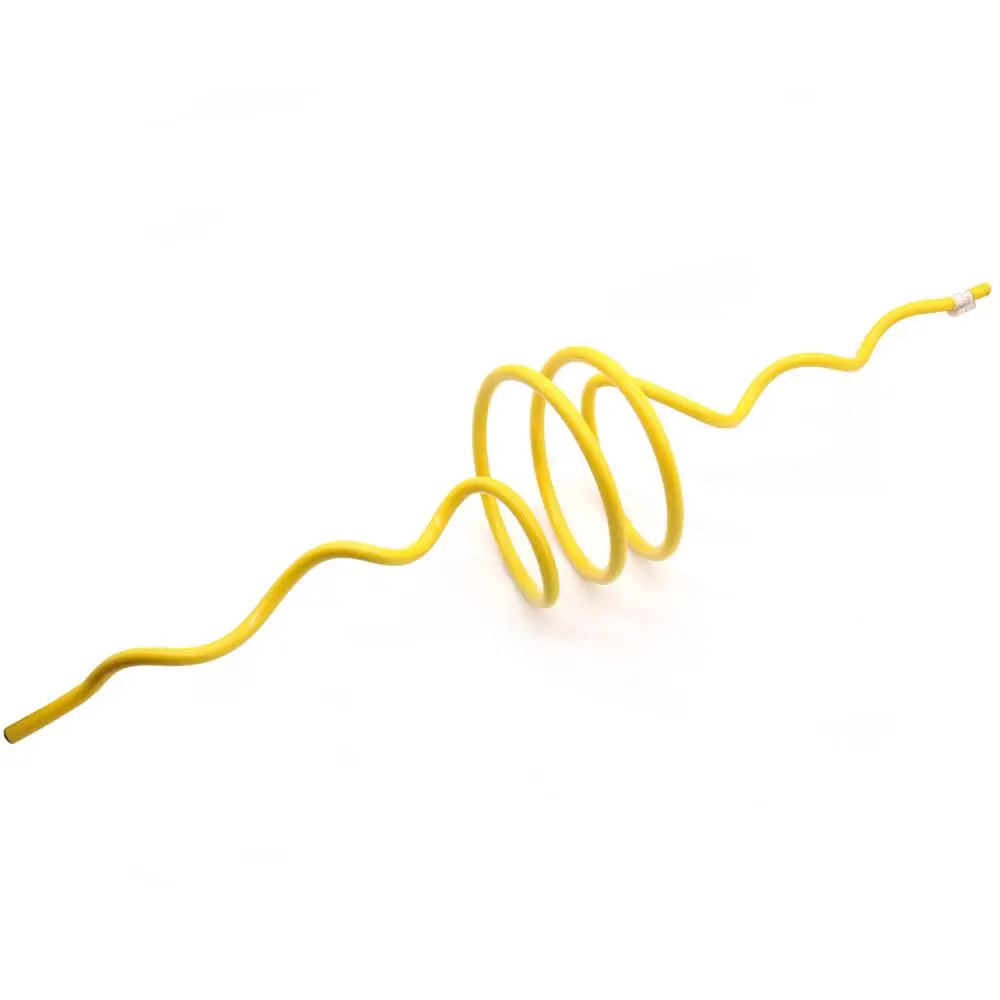

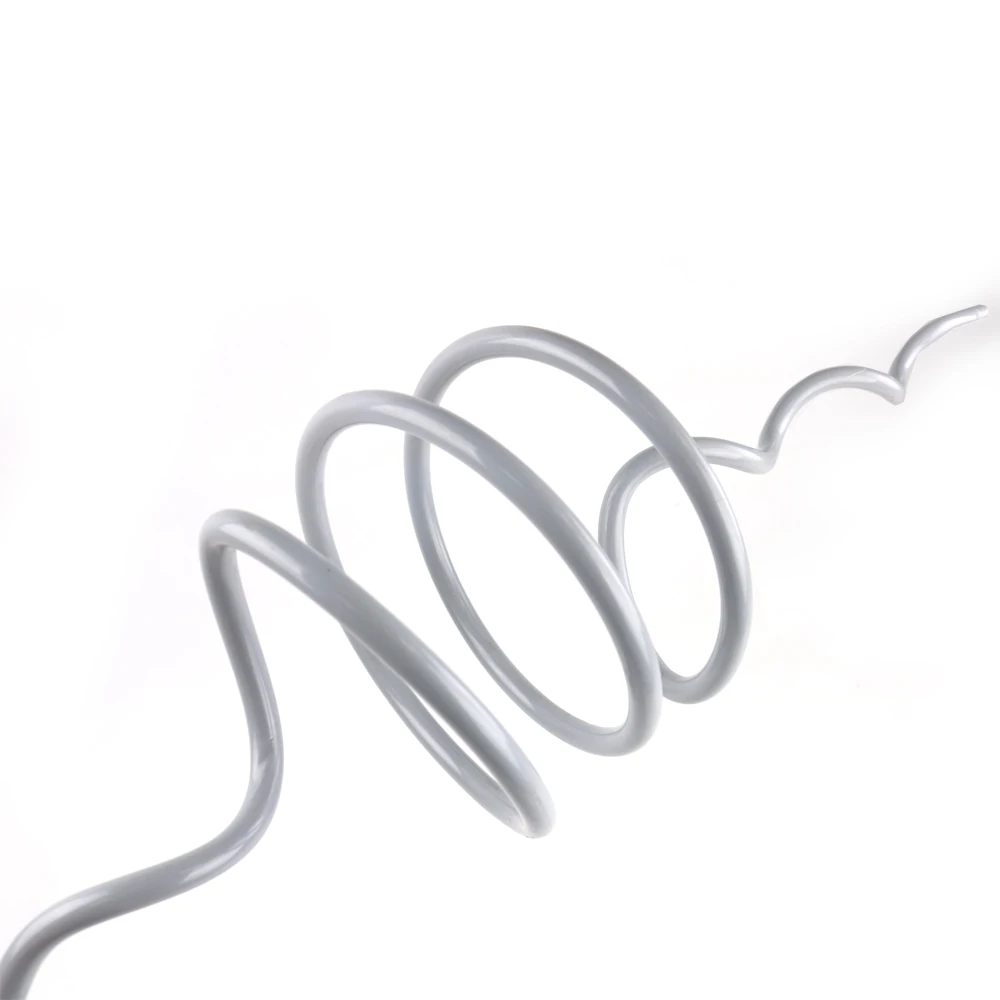

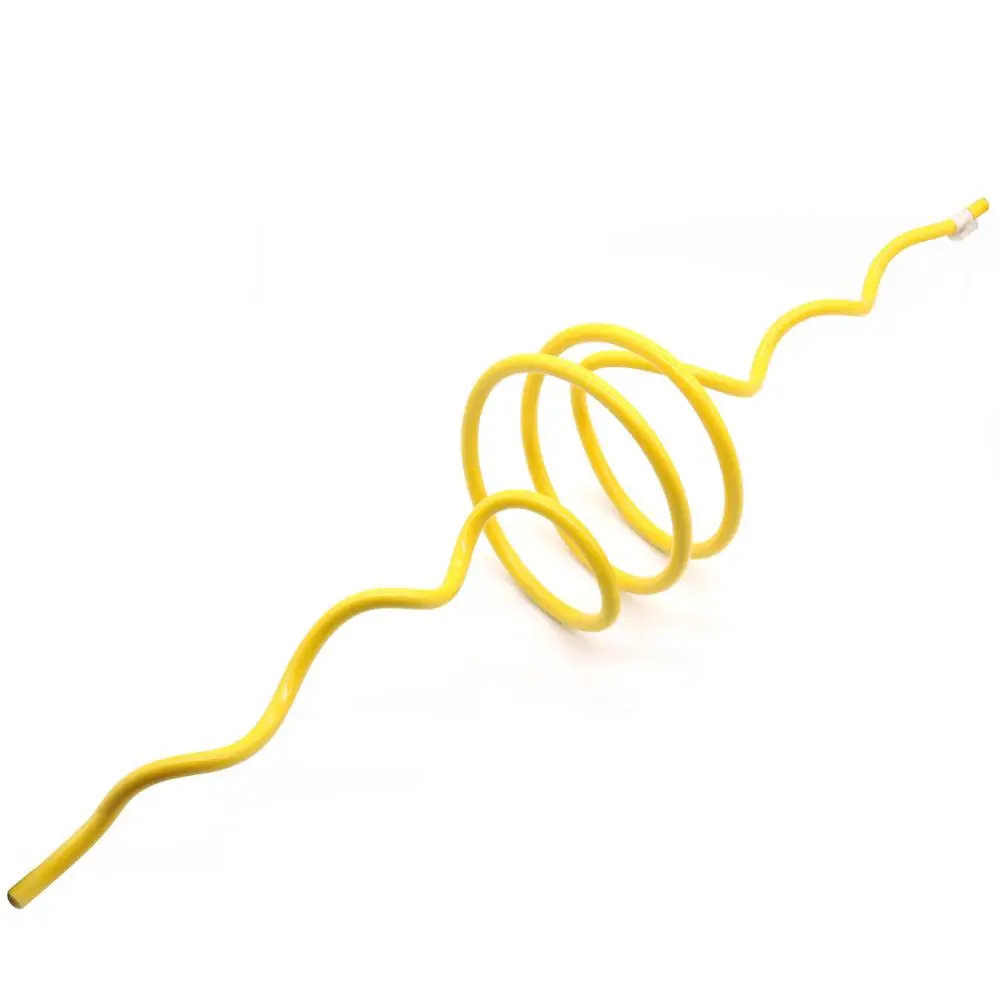

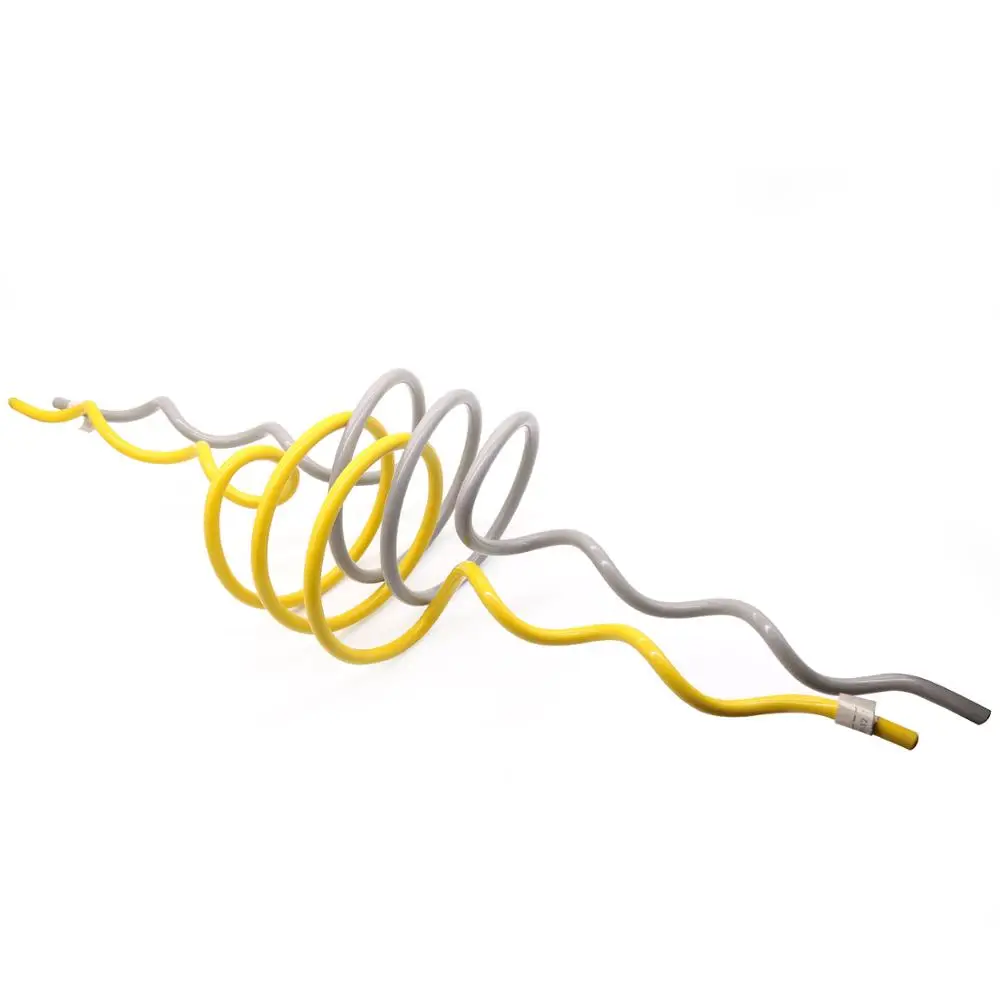

PVC plastic helical Swan flight diverter
Product Description
The Bird Diverter is designed to make overhead lines visible to birds and provides an economic means of reducing the hazard to both lines and birds.For low and medium voltage construction, it is applied to the phase conductors(bare or jacketed).For high voltages, it is used on the earth wire.
Features:
1.Light weight
2.Long service life
3.Material: gray or yellow PVC with UV protection
Drawings:
Technical Data:
Model | Conductor (mm) | Length | Diameter of | Diameter of PVC Rod(mm) | |
Min | Max | ||||
SFD-0445 | 4.45 | 6.35 | 440 | 180 | 12.7 |
SFD-0635 | 6.35 | 8.9 | 520 | 180 | 12.7 |
SFD-0890 | 9.0 | 11.4 | 560 | 180 | 12.7 |
SFD-1140 | 11.41 | 15.21 | 700 | 180 | 12.7 |
SFD-1520 | 15.24 | 19.6 | 860 | 180 | 12.7 |
SFD-1960 | 19.58 | 22.0 | 990 | 180 | 12.7 |
SFD-2220 | 21.9 | 23.93 | 1100 | 180 | 12.7 |
Detailed Images
Production Line
Certifications
Contact Us
