Санитарный U-образный диафрагменный клапан из нержавеющей стали

Diaphragm valves:

Manual or air actuated.are specially designed for hygienic and asepsis processes in pharmacy industry.

This valve is excellent for controlling as well as on/off fluid.

Diaphragm seals the valve body and seat:

So this valve is suitable for asepsis process.When the valve is off.The pressure seal that holding up diaphragm moves towards to the sealing face of valve body.When the pressure plate moves,the diaphragm bending.forced towards to seat area of body center.So that to shut off the flow path to valve body.The relevant of valve body and pressure plate prevents the diaphragm pressing.The valve can be manual and air actuated,also can be operated by control top and soleniod valve.

Features:

Valve body which contacts with liquid is made of SS316L. The non-contacting part is made of SS304 material.

Operation: Manual, Air actuator

Valve body type: Two way mirror type, three way, U type, T type

Gasket: EPDM/PTFE double membrane, EPDM+PTFE integrated membrane

Max. Pressure: 10bar

Max. Temperature: -10 to +120 degree

Material quality: SS 316L

Inside surface finish: less than Ra0.4

Standard: DIN, SMS

Connection: welded, clamped, flanged

Size: DN10-DN100

Comparing with other valves,this valve has obvious advantage on the flow control.Easy clean,good at dealing with grain medium.The phenomenon of air pocket is rare on the applicationof flow control.

Sepcifications

Normally U type diaphragm valve is customized one.

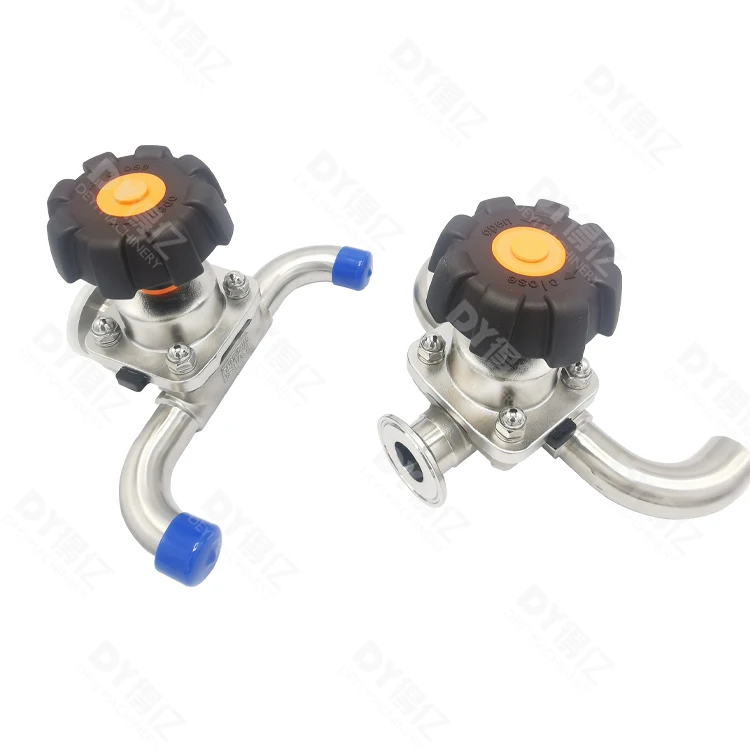

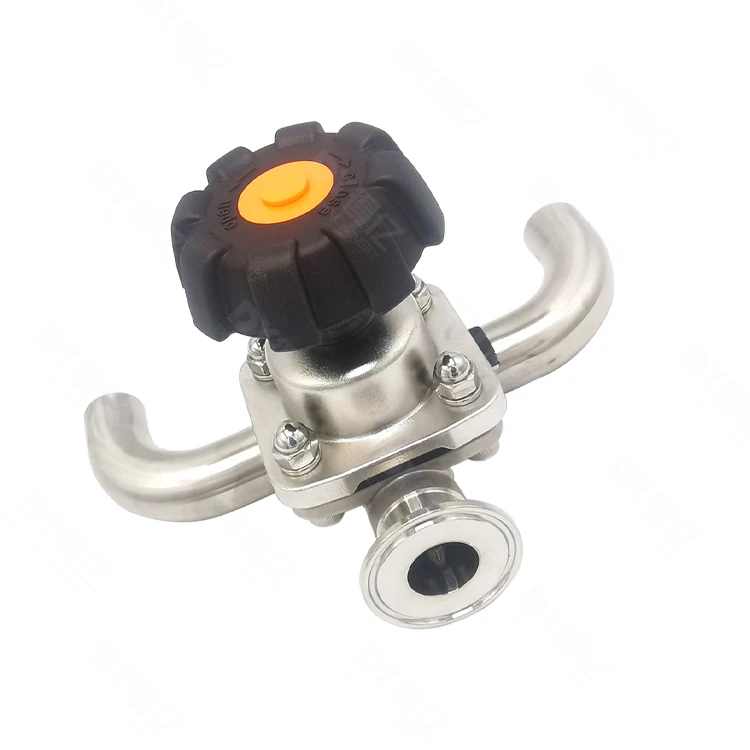

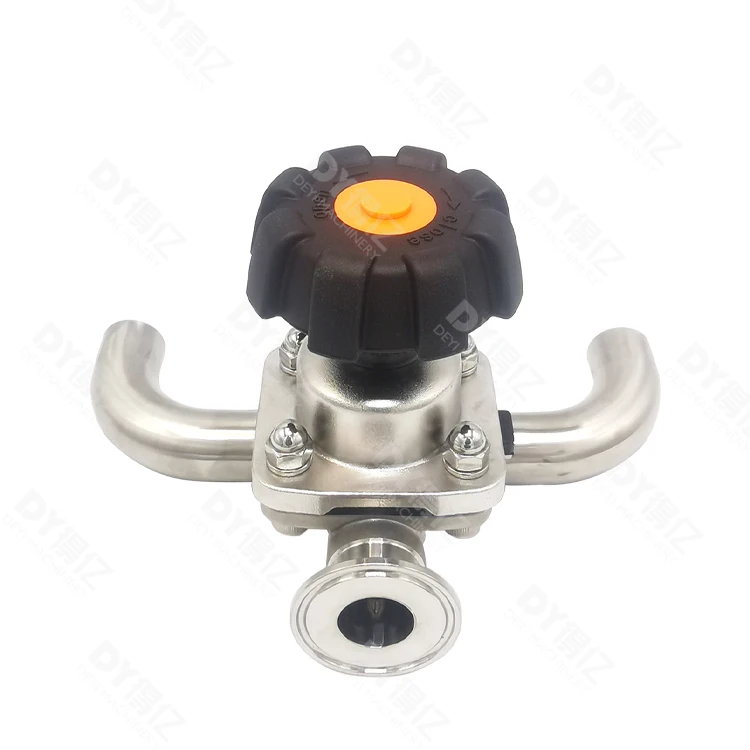

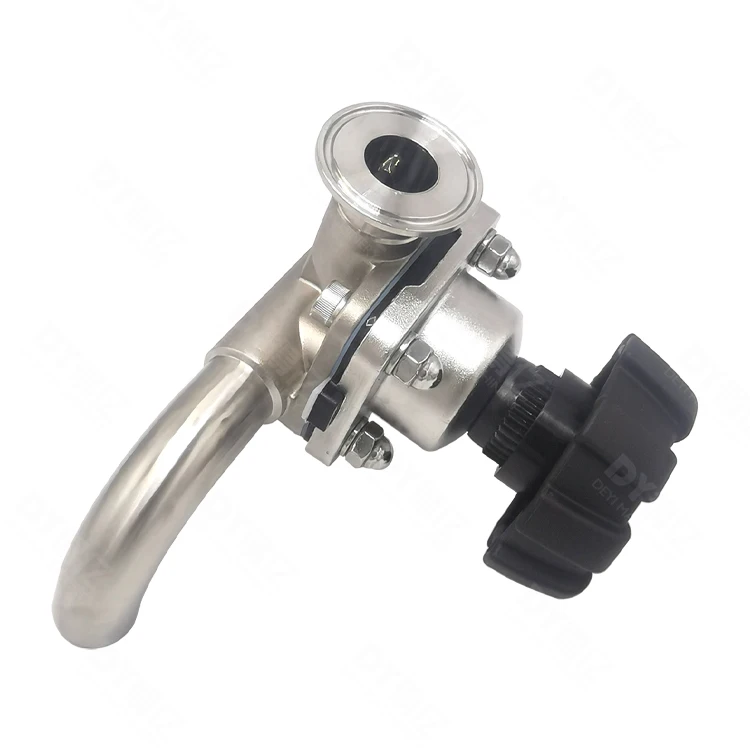

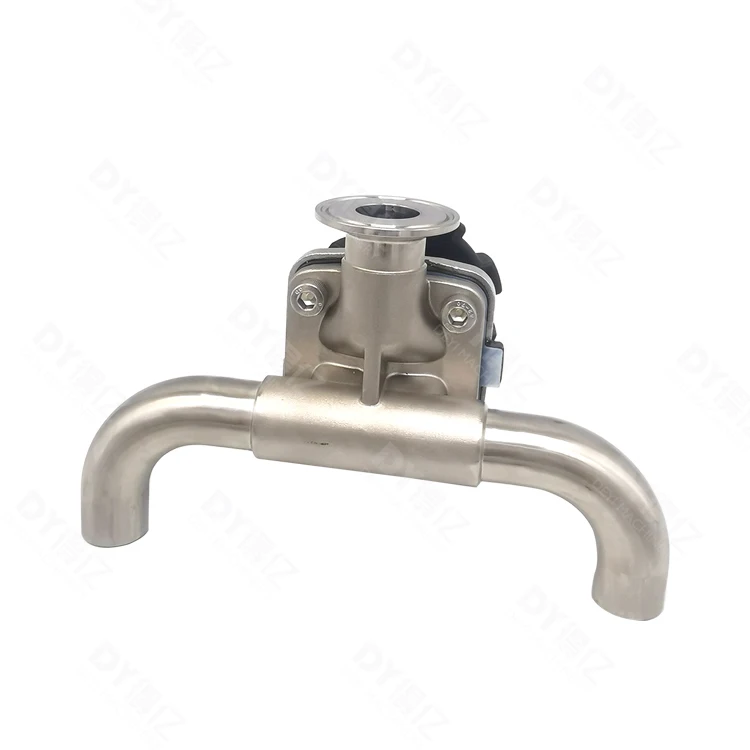

Real Pictures of DN25 Stainless Steel Sanitary U Type Diaphragm Valve

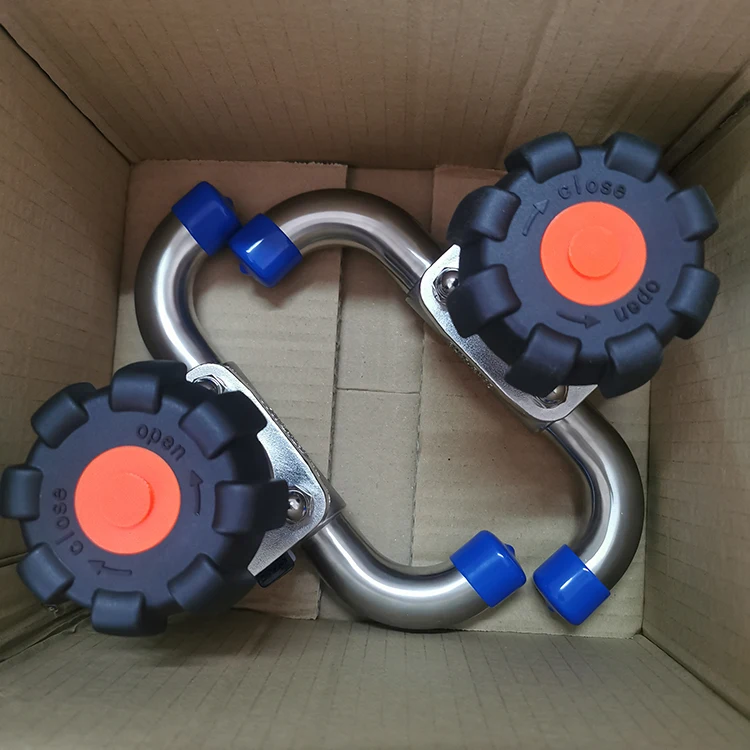

Packing&Shipping information and pictures of   Stainless Steel Sanitary U Type Diaphragm Valve

Port: Shanghai Port or Ningbo Port,China

MOQ: 1Set

Supply ability: 1,000 pieces/month

Payment terms: T/T,Western Union, Paypal, L/C

Packaging:  Shrink wrapped-in seaworthy wooden cased

Delivery time: Depends on quantity

Shipping mode:By sea,by air,by express
