Description:

Oil seals - often called grease, fluid or dirt seals - close spaces between stationary and moving components in mechanical equipment, helping prevent lubricant escape. They also stop harmful contaminants from entering machinery, particularly in severe environments. Vital components of practically every type of machine and vehicle in operation, oil seals protect all types of precision-constructed, close-fitting ball, sleeve and roller bearings.

In precision bearings, oil seals help prevent lubricants from escaping the bearings or a specific area. In machine components, oil seals help prevent abrasives, corrosive moisture and other harmful contaminants from entering machinery. They also help stop intermixture of two different mediums, such as lubricating oil and water.

Application:

.Automotive

.Manufacturing

.Off-highway

.Oil refineries

.Power transmission

Specification:

Oil Seals are constructed using a steel case which is usually covered in rubber. Various materials are available the most common materials are:

• Nitrile Rubber (NBR) - Temperature Range -40 to +110 degree C - Usually coloured Black
•  Rubber (FPM) - Temperature Range -30 to +225 degrees C - Usually coloured Brown
• Silicone (SI) - Temperature Range -60 to +225 degrees C - Usually coloured Red

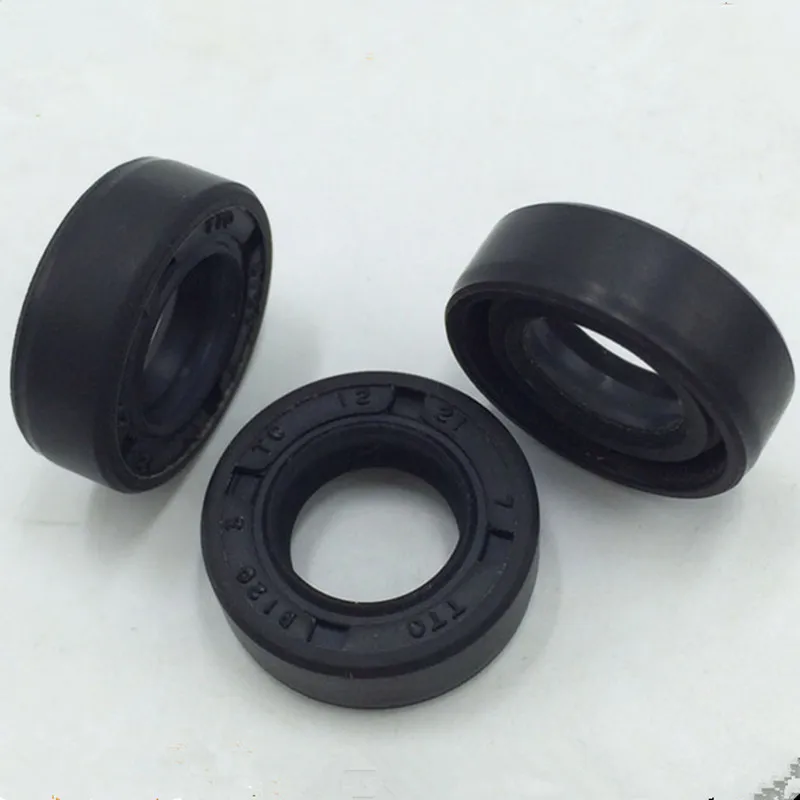

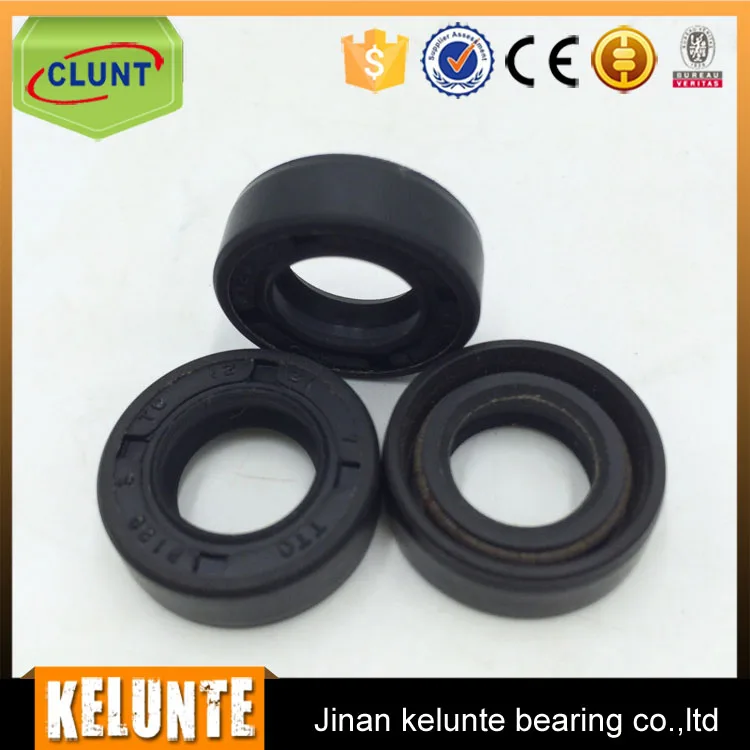

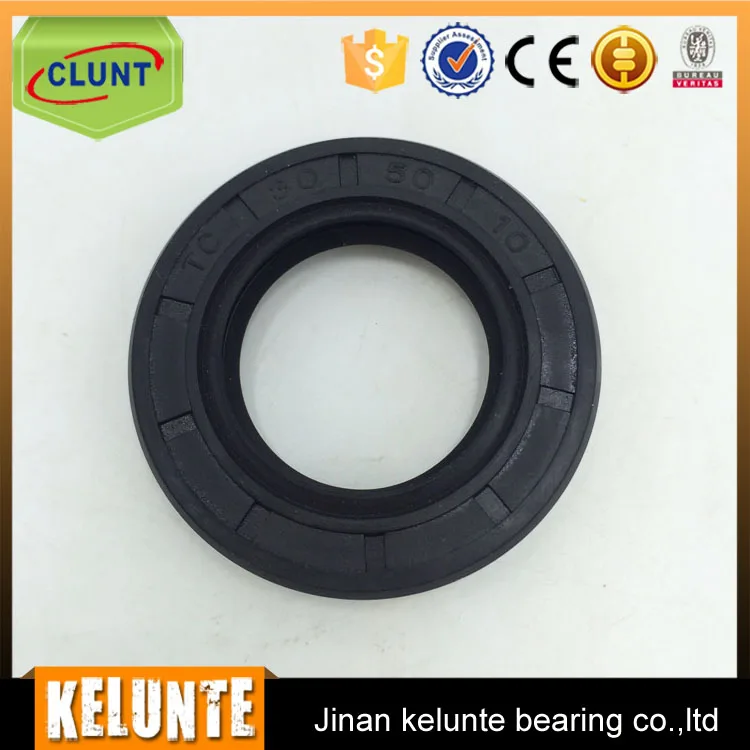

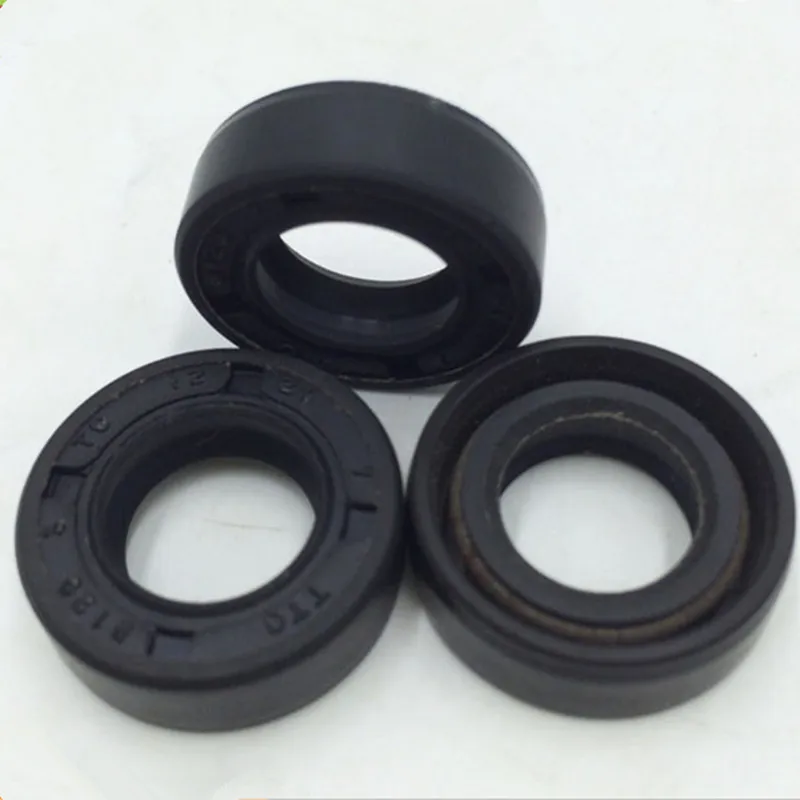

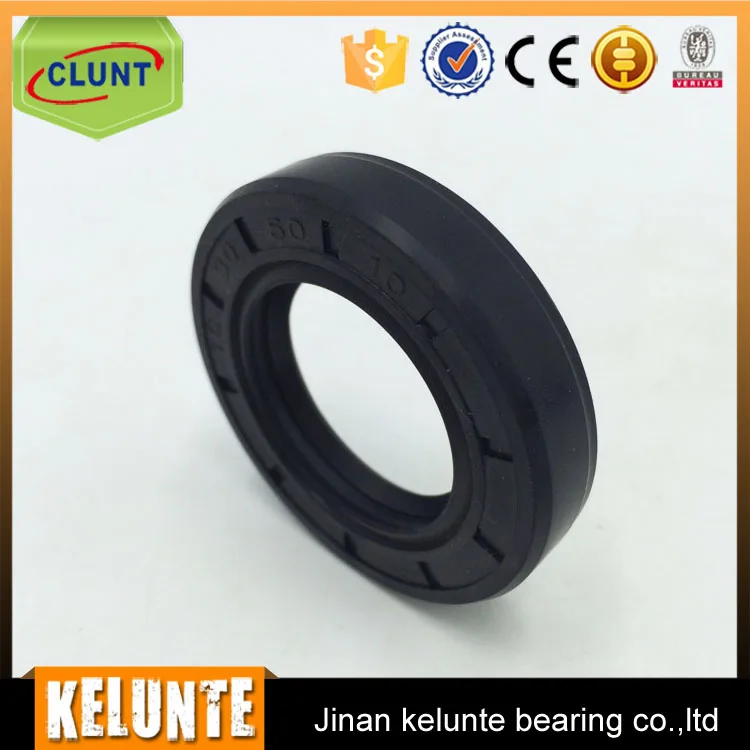

Some sizes of the  Crankshaft Oil Seal TC Oil Seal

Size of tc oil seals (mm)
TC 7*20*7	TC 12*23*8	TC 15*25*7	TC 25*42*10
TC 8*22*7	TC 12*25*7	TC 15*30*7	TC 30*52*10
TC 8*25*8	TC 12*28*7	TC 15*30*10	TC 35*58*10
TC 8*34*8	TC 12*30*9	TC 15*32*9	TC 55*80*10
TC 9*22*7	TC 12*32*7	TC 15*35*7	TC 65*90*10
TC 9*28*8	TC 13*25*7	TC 15*35*8	TC 75*100*10
TC 10*20*7	TC 13*28*7	TC 16*26*7	TC 85*110*12
TC 10*25*7	TC 13*30*8	TC 16*28*7	TC 100*125*12
TC 10*28*8	TC 14*25*7	TC 16*30*7	TC 140*170*15
TC 11*25*7	TC 14*28*7	TC 16*35*9	TC 180*210*15
TC 11*30*10	TC 14*28*11	TC 20*40*10	TC 190*230*12
TC 12*22*7	TC 14*32*9	TC 22*40*10	TC 200*240*15



Size of o ring (inner*wire diameter mm)
100*1.9	135*2	16*3.1	21*2
100*2	135*2.4	16*3.5	21*2.4
100*2.4	135*2.6	170*2.4	21*2.6
100*2.6	135*3.1	170*2.6	21*3.1
100*3.1	135*3.5	170*3.1	21*3.5
100*3.5	135*5.3	170*3.5	220*5.3
100*5.3	135*5.7	170*5.3	220*5.7
100*5.7	135*7	170*5.7	220*7
105*1.9	13*1.9	170*7	220*8.6
105*2	13*2	170*8.6	225*5.3
105*2.4	13*2.4	175*2.4	225*5.7
105*2.6	13*2.6	175*2.6	225*7
105*3.1	13*3.1	175*3.1	225*8.6
105*3.5	13*3.5	175*3.5	22*1.9
105*5.3	140*1.9	175*5.3	22*2
105*5.7	140*2	175*5.7	22*2.4
10*1.9	140*2.4	175*7	22*2.6
10*2	140*2.6	175*8.6	22*3.1
10*2.4	140*3.1	17*1.9	22*3.5
10*2.6	140*3.5	17*2	230*5.3
110*1.9	140*5.7	17*2.4	230*5.7
110*2	140*7	17*2.6	230*7
110*2.4	145*2.4	17*3.1	230*8.6
110*2.6	145*2.6	17*3.5	235*5.3
110*3.1	145*3.1	180*5.3	235*5.7
110*3.5	145*3.5	180*5.7	235*7
110*5.3	145*5.3	180*7	235*8.6
110*5.7	145*5.7	180*8.6	23*1.9
115*1.9	145*7	185*5.3	23*2
115*2	14*1.9	185*5.7	23*2.4
115*2.4	14*2	185*7	23*2.6
115*2.4	14*2.4	185*8.6	23*3.1
115*2.6	14*2.6	18*1.9	23*3.5
115*3.1	14*3.1	18*2	240*5.3
115*3.5	14*3.5	18*2.4	240*5.7
115*5.3	150*2.4	18*2.6	240*7
115*5.7	150*2.6	18*3.1	240*8.6
11*1.9	150*3.1	18*3.5	245*5.3
11*2	150*3.5	190*5.3	245*5.7
11*2.4	150*5.3	190*5.7	245*7
11*2.6	150*5.7	190*7	245*8.6
11*3.1	150*7	190*8.6	24*1.9
11*3.5	155*2.4	195*5.3	24*2
120*1.9	155*2.6	195*5.7	24*2.4
120*2	155*3.1	195*7	24*2.6
120*2.4	155*3.5	195*8.6	24*3.1
120*2.6	155*5.3	19*1.9	24*3.5
120*3.1	155*5.7	19*2	250*5.3
120*3.5	155*7	19*2.4	250*5.7
120*5.3	15*1.9	19*2.6	250*7
120*5.7	15*2	19*3.1	250*8.6
125*1.9	15*2.4	19*3.5	255*5.7
125*2	15*2.6	200*5.3	255*7
125*2.4	15*3.1	200*5.7	255*8.6
125*2.6	15*3.5	200*7	25*1.9
125*3.1	160*2.4	200*8.6	25*2
125*3.5	160*2.6	205*5.3	25*2.4
125*5.3	160*3.1	205*5.7	25*2.6
125*5.7	160*3.5	205*7	25*3.1
12*1.9	160*5.3	205*8.6	25*3.5
12*2	160*5.7	20*1.9	260*5.7
12*2.4	160*7	20*2	260*7
12*2.6	160*8.6	20*2.4	260*8.6
12*3.1	165*2.4	20*2.6	265*5.7
12*3.5	165*2.6	20*3.1	265*7
130*1.9	165*3.1	20*3.5	265*8.6
130*2	165*3.5	210*5.3	26*1.9
130*2.4	165*5.3	210*5.7	26*2
130*2.6	165*5.7	210*7	26*2.4
130*3.1	165*7	210*8.6	26*2.6
130*3.5	165*8.6	215*5.3	26*3.1
130*5.3	16*1.9	215*5.7	26*3.5
130*5.7	16*2	215*7	270*5.7
130*7	16*2.4	215*8.6	270*7
135*1.9	16*2.6	21*1.9	270*8.6
