Ручная гидравлическая 4-дюймовая большая трубогибочная

Описание и отзывы

Трекер стоимости

Характеристики

Manual hydraulic 4 inch pipe tube bending bender machine



 Adapted material:steel pipe, stainless steel, copper pipe, aluminum pipe;

 Recommended application industry:

automobile fittings ( oil pipe for brake, muffler, seats), motorcycle, healthy equipment, air-conditioning,bicycle, steel furniture, sanitary wares and so on.

Main specification

1. NC control unit

2. Direct acting hydraulic clamping

3. Manual feeding and bending

4. Can make 2-dimensional elbow bend
5. Easy operaton interface and easy data input
6. Large program storage capacity up to 16 units
7. Automatically lock angle, angle changing is controlled by coder
8. High bending accuracy
9. Self diagnosis and error messages
10. Optional boost facility

11. Fit for carbon steel pipe, stainless steel pipe, alloy steel pipe, aluminium pipe, copper pipe, etc.

12. Bending diameter of pipe: 0.5-8 inch

13. Bending radius: 175-550mm

14. Max bending angle: 185 degrees

Technical parameter



Specification/Model	Unit	DW115NC
Max bending capability	mm	Φ115.8×7.5t
Max bending radius	mm	R550
Min bending radius	mm	R50
Max bending angle	Degree	185
Max effective distance of mandrel	mm	4200
Control System		NC Control
Max elbow bend pipe	Unit	16
Max storable sections	Unit	16×16
Motor power	KW	22
Max. Hydraulic Pressure	Mpa	14
Hydraulic System Control		Electromagnetic Valve
Oil Tank Capacity	L	120
Size	Cm	520×180×140
Weight of Machine	Kg	≈8000

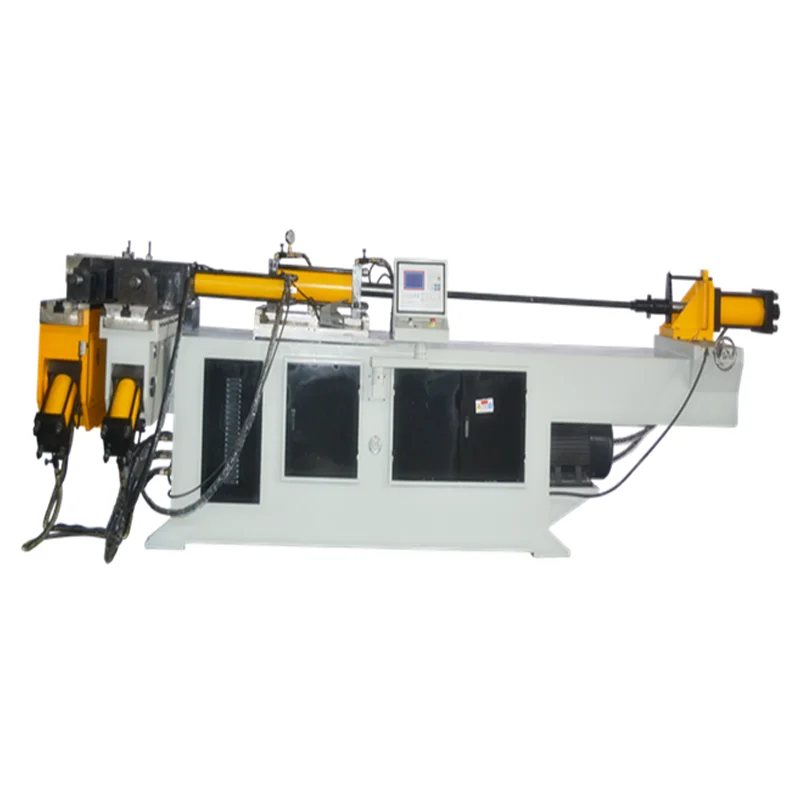

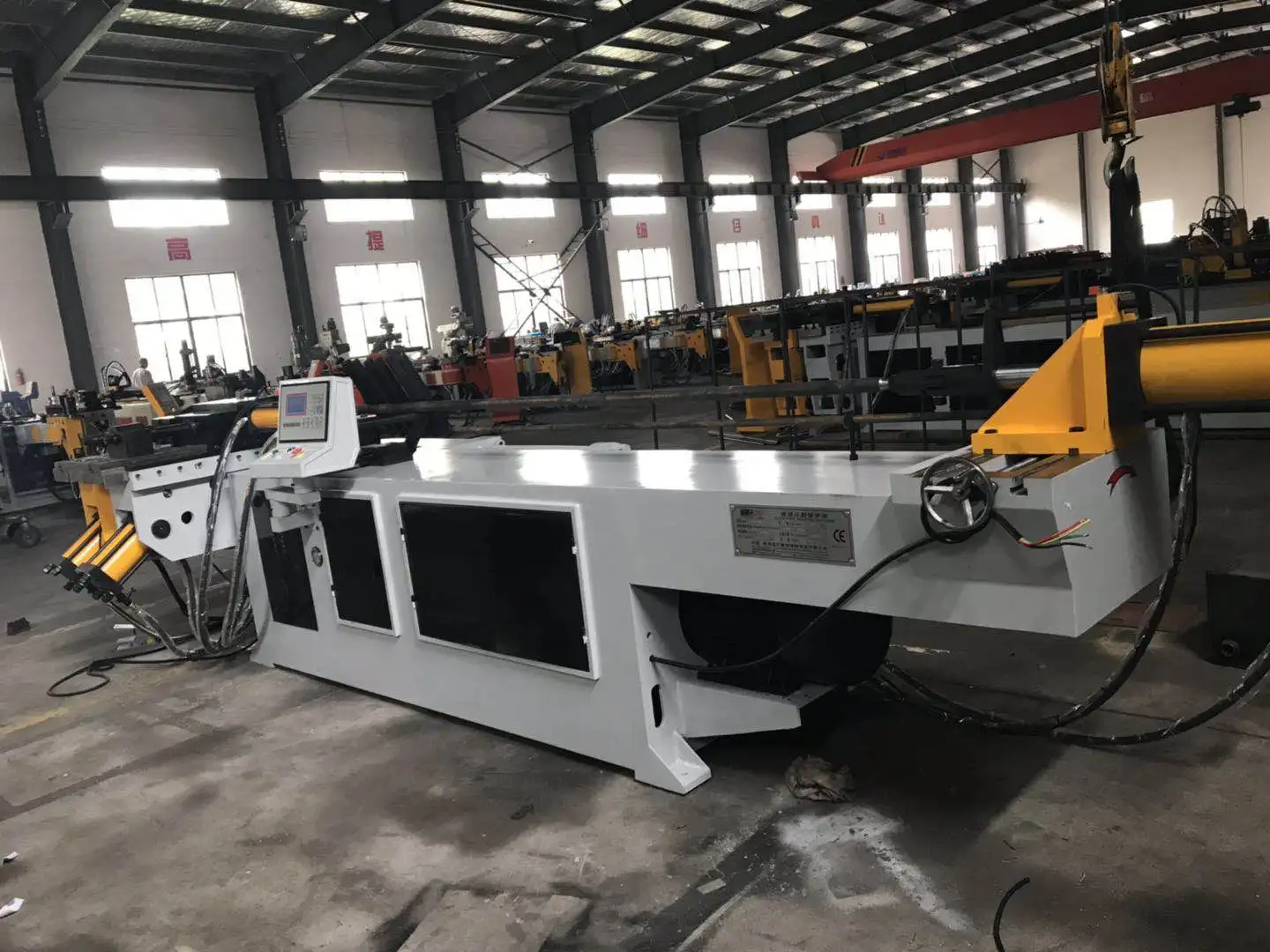

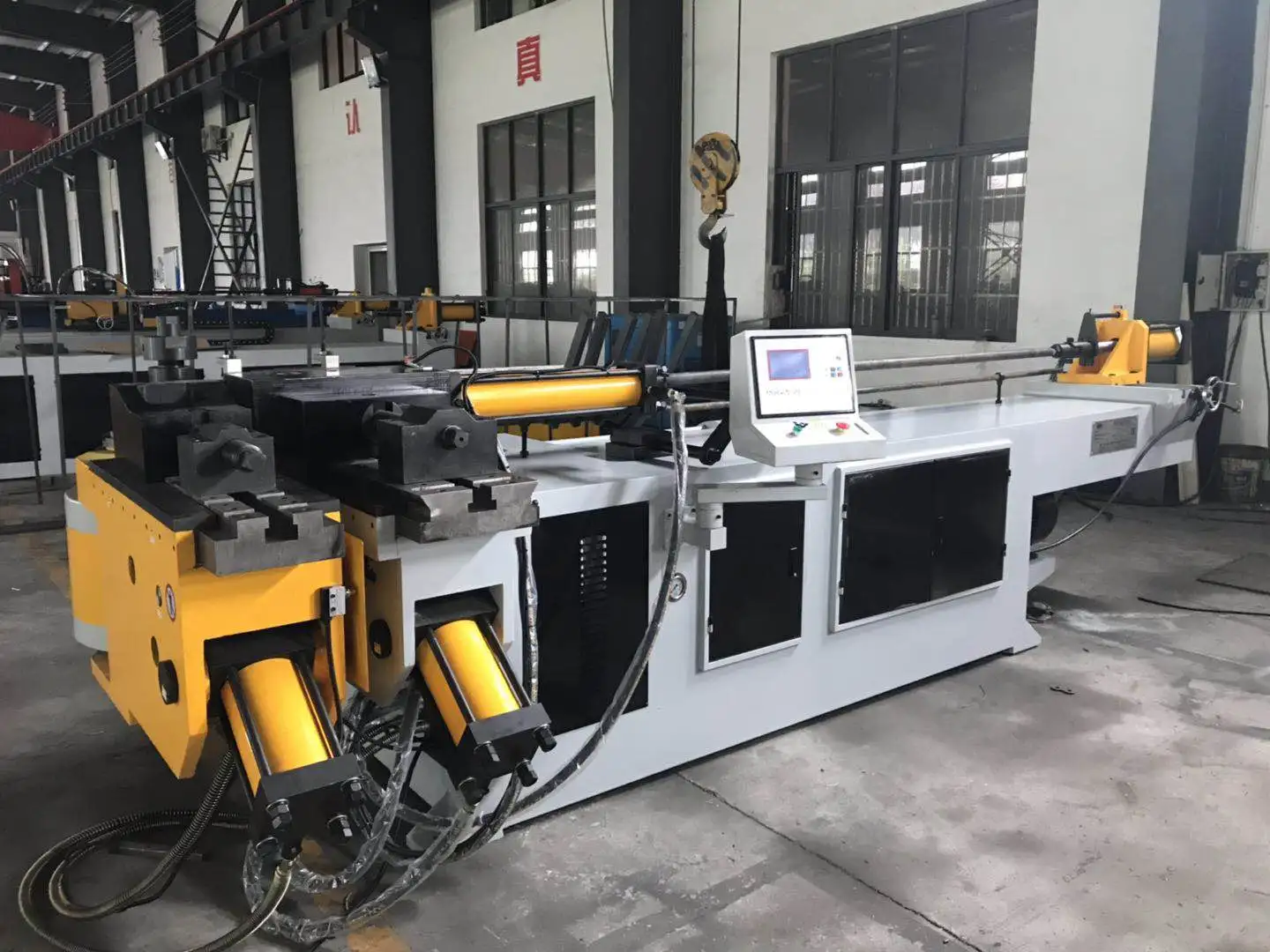

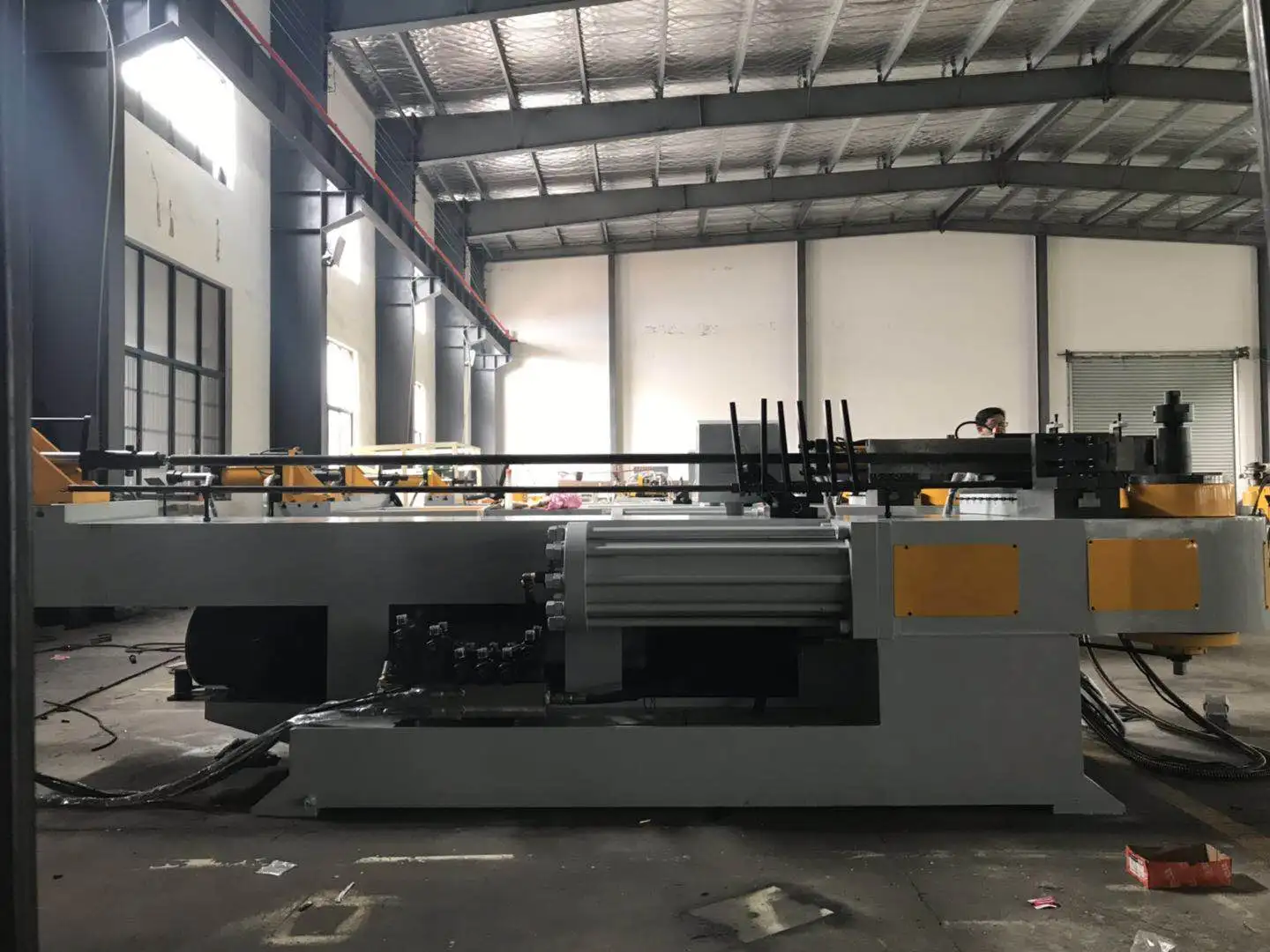

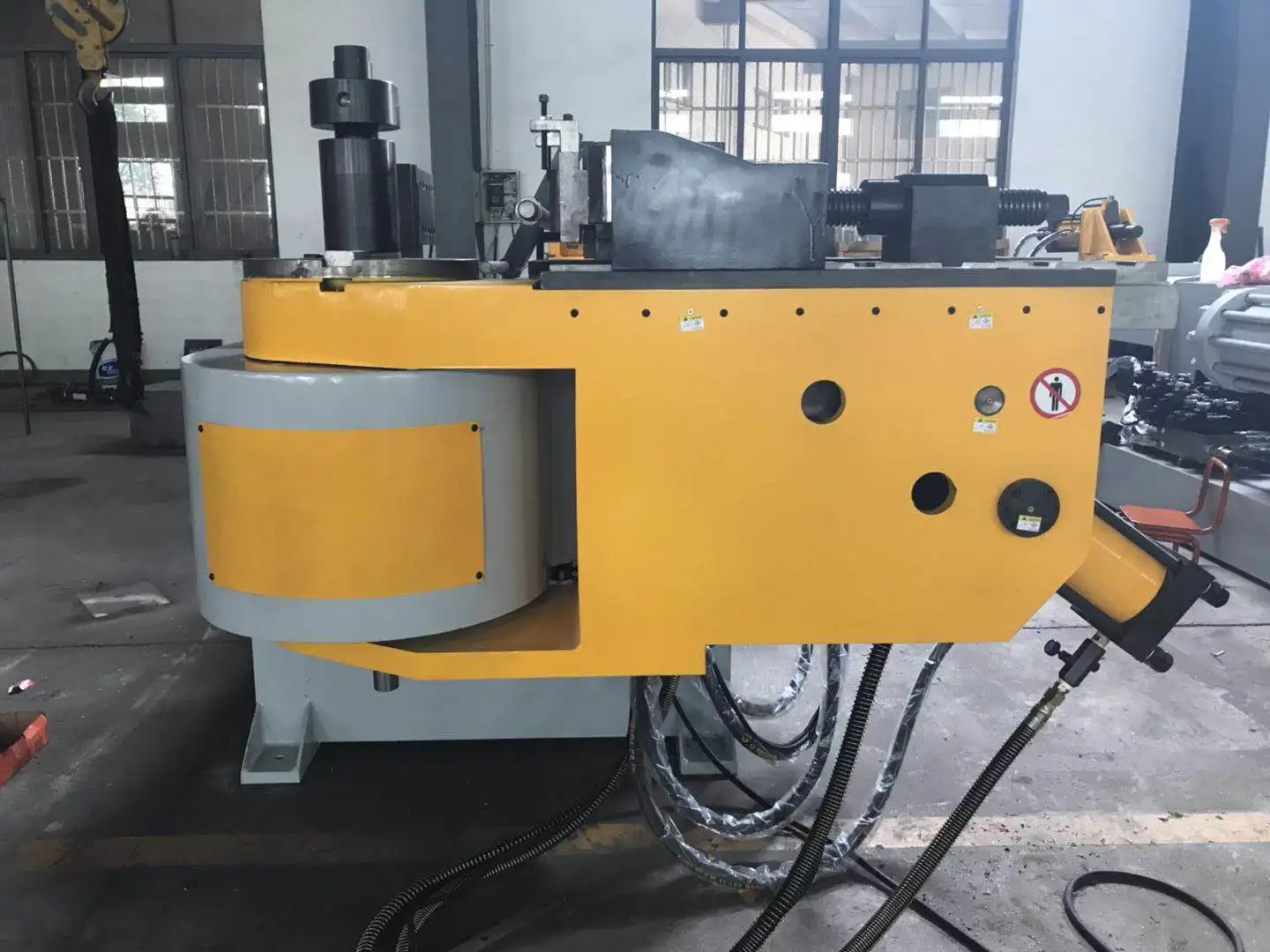

Mahine picture

Our new workshop



Professional export package



Showing at European Exhibition



CE Certificate



Other machines:

MC-350CNC Automatic pipe cutting machine     SW50 Double head pipe bending machine     pipe bending machine



To know more information, please contact with us at any time
