PLC контроля 10 моторов стеклянная/зеркальная полировка

PLC контроля 10 моторов стеклянная/зеркальная полировка

Категория: >>>
Поставщик: Liaoda,(LAD),Glass,Machinery,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	0.36 $*	0.34 $*
Aug-17-2025	0.7 $*	0.37 $*
Jul-17-2025	0.61 $*	0.70 $*
Jun-17-2025	0.61 $*	0.18 $*
May-17-2025	0.4 $*	0.59 $*
Apr-17-2025	0.88 $*	0.46 $*
Mar-17-2025	0.95 $*	0.36 $*
Feb-17-2025	0.64 $*	0.27 $*
Jan-17-2025	0.75 $*	0.87 $*

Характеристики

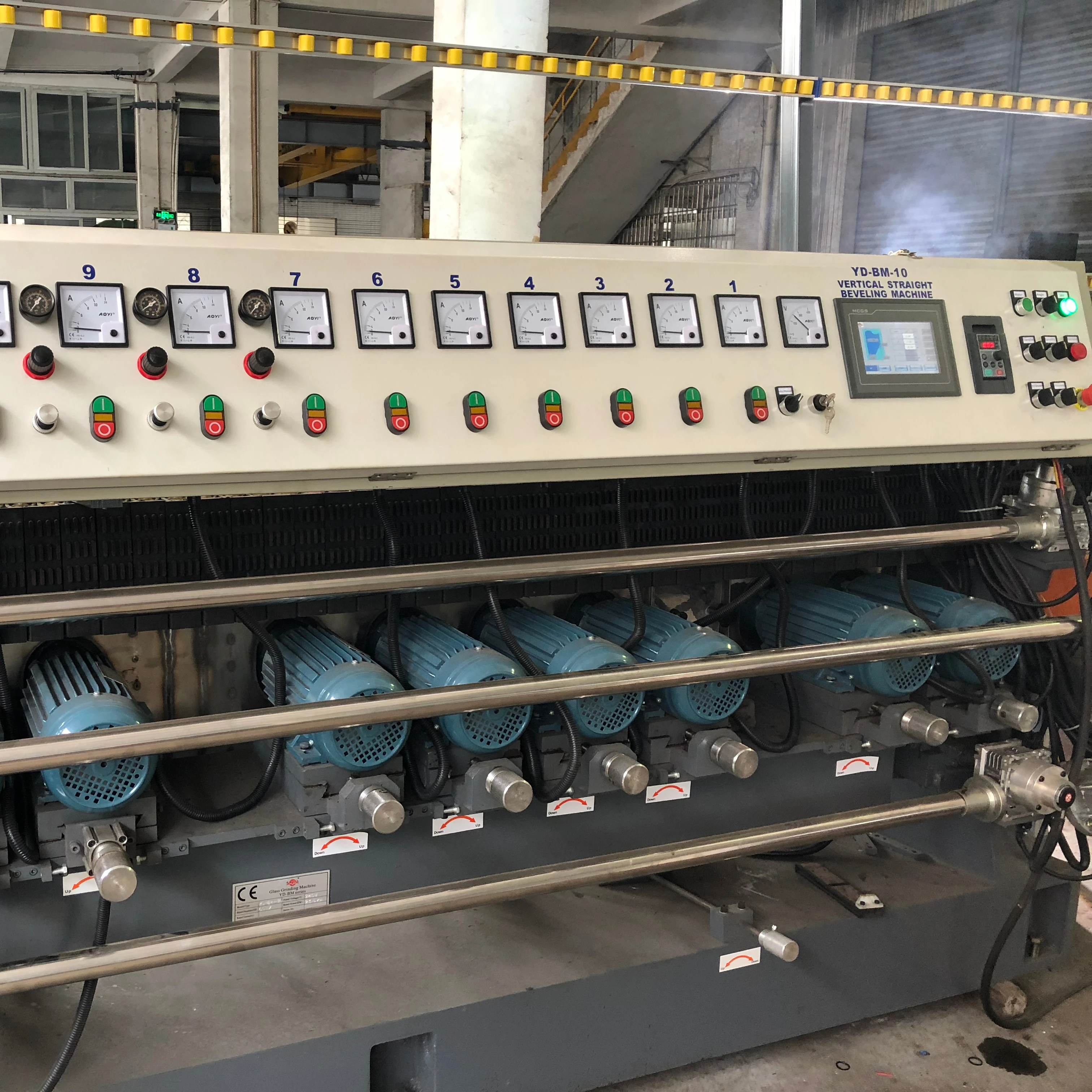

Glass/mirror polishing machine / CE
glass beveling machine YD-BM-10, PLC.jpg

Main data:

Specification	Date
Speed range	0.8-3m/min
Max.Glass size	2440x3660mm
Min. Glass size	150x150mm
Glass thickness	3-19mm
Beveling width range	3-35mm
Beveling angle range	3°-30°
Working height	720mm
Installed power	23.5kw
Voltage/frequency	220/380/415/480V 50HZ/60HZ
Weight	3000kg
Overall size	7000x1200x2600mm

Machine specification:

l Frequency speed adjust

l Automatic thickness, angle adjustment, beveling width adjustment

l High speed inducing motor. Speed 2480rppm/min.

l Synchronous belt

l Stainless steel water tank

l Cast steel machine base

l Pneumatic polishing assistant, polishing with felt wheel and cerium oxide

l Aluminum glass support

Introduction of the company

LIAODA(LAD) Glass Machinery Co.,Ltd, is a company integrating R & D, production and glass and stone processing machine. IThe company located in Lunjiao Town, Shunde Disctict, Foshan City, center of Pearl River Delta, with unique geographical location, easy to get technical support and human resources. The company was born in 90s of the last century, adsorbed huge amount of advanced technology and experience during production. In 2000, our former company, Yuanda glass machinery was established and in 2005, we changed our company name to "Liaoda (LAD) glass machinery" and use Yuanda as our brand name.

After years of research and development, "Yuanda" brand machines are widely used all over Chinaand over 40 countries and areas around the world. In the future, we will continuous supply high quality machines and service to meet the requirement of our clients in China and aboard. Welcome to visit our company, order our products and work together in the glass field!
