Многоголовочная четырехпроводная медная машина для тонкого черчения с непрерывным
- Категория: Проволочноволочильные станки >>>
- Поставщик: Zhangjiagang,Chengjun,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.29 $* | 0.13 $* |
| Aug-16-2025 | 0.91 $* | 0.75 $* |
| Jul-16-2025 | 0.14 $* | 0.39 $* |
| Jun-16-2025 | 0.45 $* | 0.27 $* |
| May-16-2025 | 0.68 $* | 0.50 $* |
| Apr-16-2025 | 0.45 $* | 0.58 $* |
| Mar-16-2025 | 0.99 $* | 0.31 $* |
| Feb-16-2025 | 0.9 $* | 0.87 $* |
| Jan-16-2025 | 0.57 $* | 0.93 $* |
Характеристики
20DT-4 multi head four wire copper fine drawing machine with annealer
Product Description
1. Technical parameter
Power control | Dual frequency conversion control |
Eye Dies Max.quantity | 20*4 |
Inlet wire diameter | Φ1.35—Φ2.2mm |
Finished wire diameter | Φ0.15—Φ0.4mm |
Max. Line speed | Max. 1500m/min |
Slip ratio | 17% |
Fixed speed capstan slip ratio: | 15% |
Host body structure | Welded steel, tempered |
Capstan | Sprayed tungsten carbide processing |
Drawing motor power | 30KW |
Take-up motor power | 5.5KW |
Max. Capstan diameter | Φ220mm |
Fixed speed Capstan diameter | Φ200mm |
Annealing wheel diameter | Φ200mm |
Annealing voltage | DC 0~70V |
Annealing current | DC 0~1200A |
Annealing protection | Steam or nitrogen |
Take-up shaft dimensions | Φ400mm or according to customer specified |
Take-up way | Top center screw tight type |
Pay-off way | 90W Gear motor |
Transmission | Timing belts/belt drive |
Coiling control | PID deflection detection automatic control |
Deflection detection device | Counterweight arm type |
Tension adjustment method | Counterweight way |
Max.load | 50KG |
Drawing lubrication | Spray |
Brake | Electromagnetic |
Voltage | 380V 50HZ |
Drawing oil | 40Liter/minute |
Weight | 4100KG |

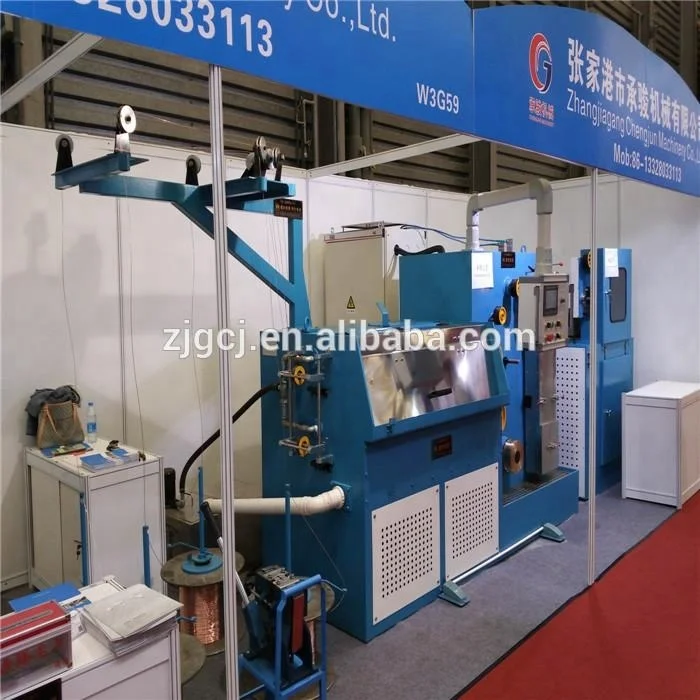

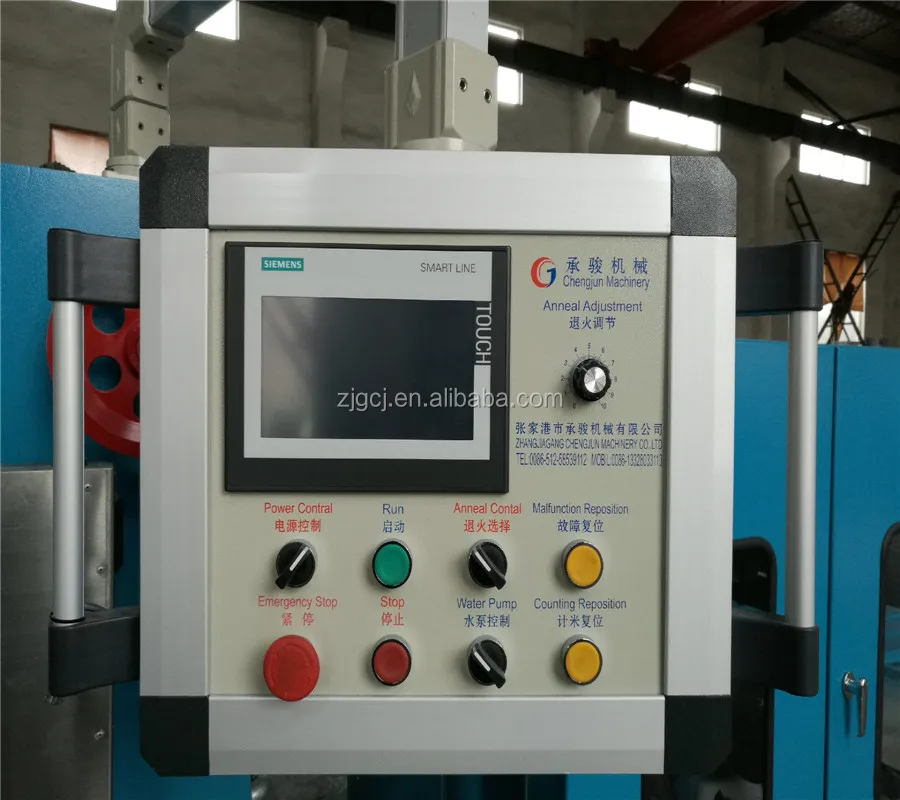

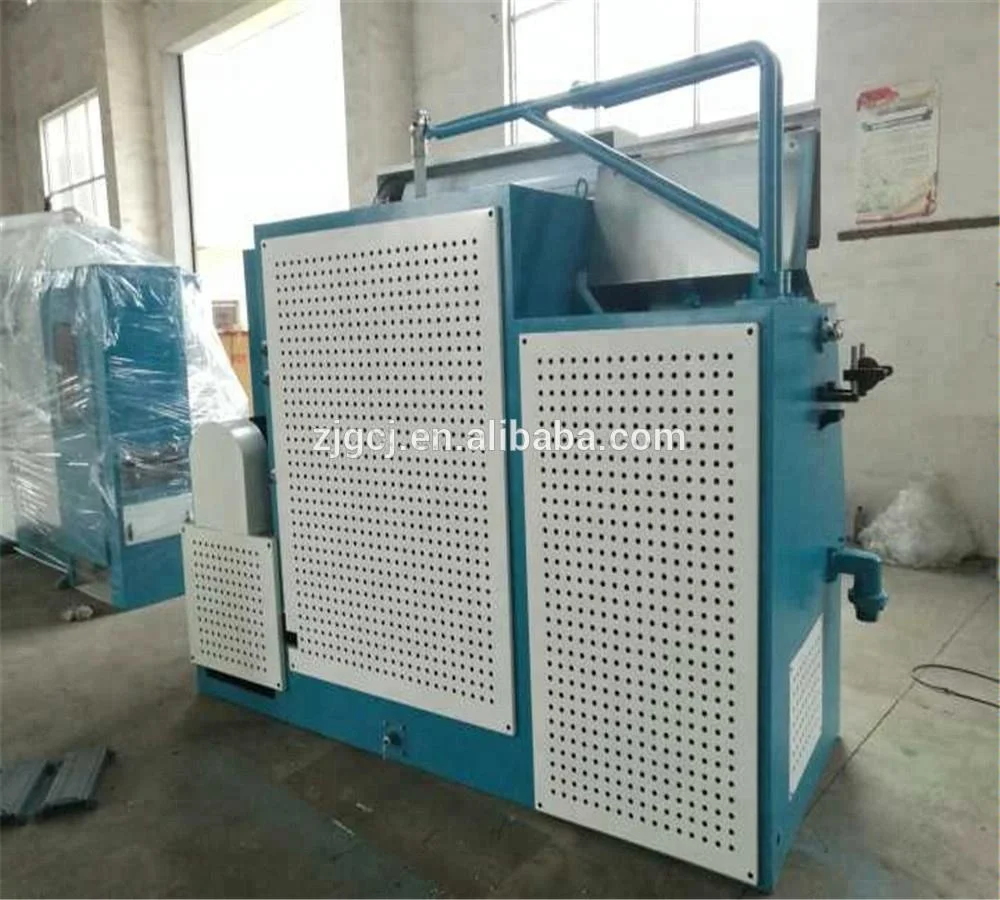

2. Machine's pictures:
Production process
Wooden pallet & Plastic film
