Однолинейный вертикальный деревообрабатывающий сверлильный станок с несколькими

Описание и отзывы

Трекер стоимости

Характеристики



Single Line vertical woodworking multiple  heads drilling machine







1  The drilling range is big,and all heads are fast jointing, very convenient.



2  The drilling depth and the drilling space use  Photo-electric sensing swith, the orientation is fast and accurate.



3  The drilling heads,linear rail and sliding block is original imported, therefore it is durable and long-lasting.



4  It uses high quality steel, it is treated specially by high heating-processing, therefore it is never deformed.



5  it is equiped size counter,  increasing the work-effeciency.





Specification:



Max drilling diameter	35mm
Max Working depth	60mm
Number of Spindle	21
Spindle Speed	2800 r/min
Motor Power	1.5Kw
Air pressure	0.6-0.8Mpa
Overall diamention	1400*1300*1400mm

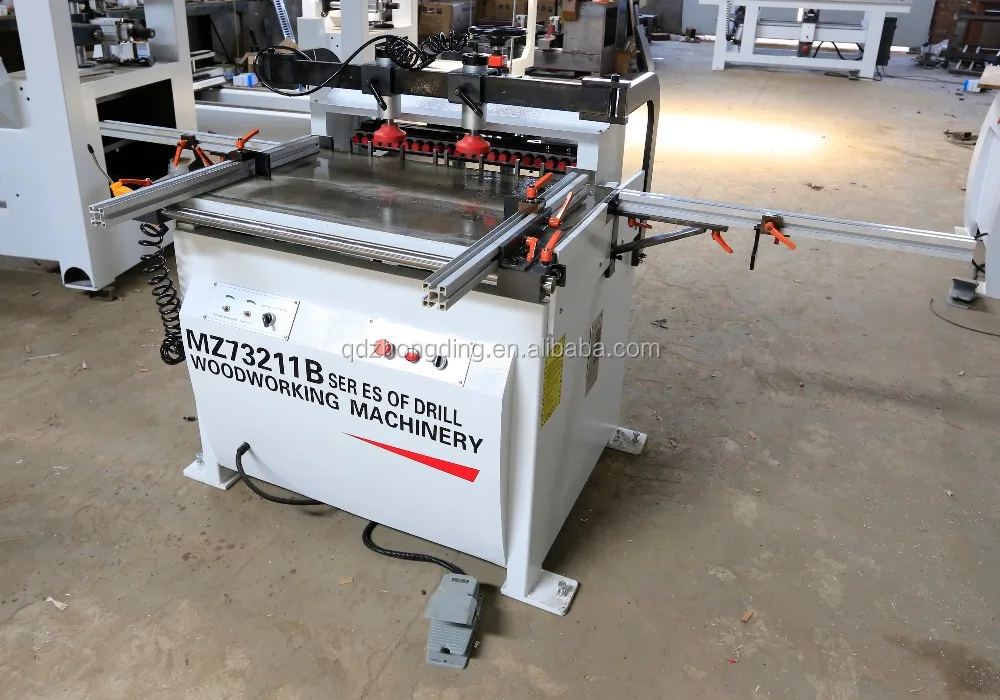

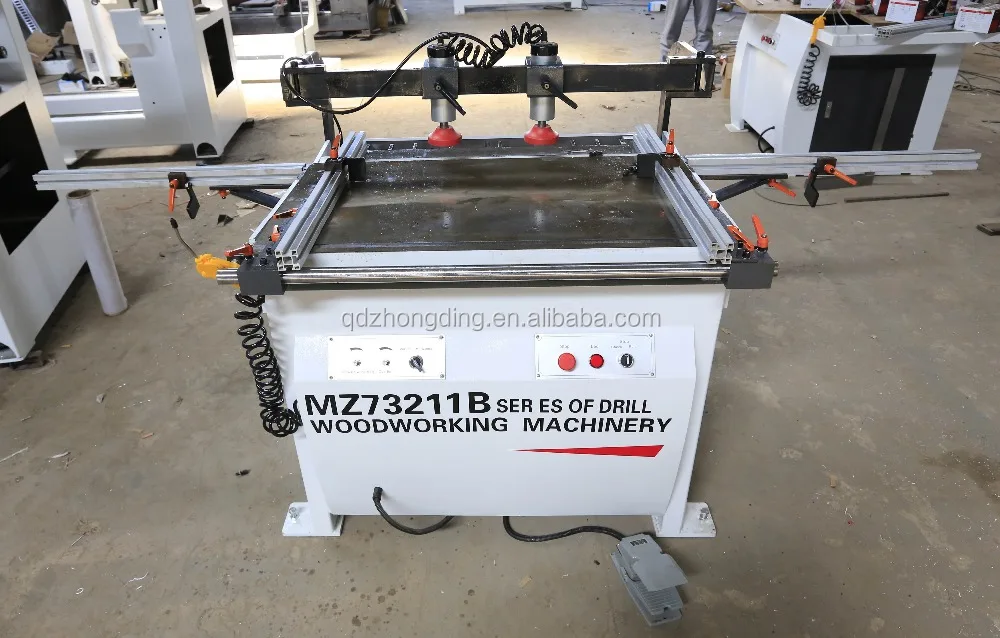

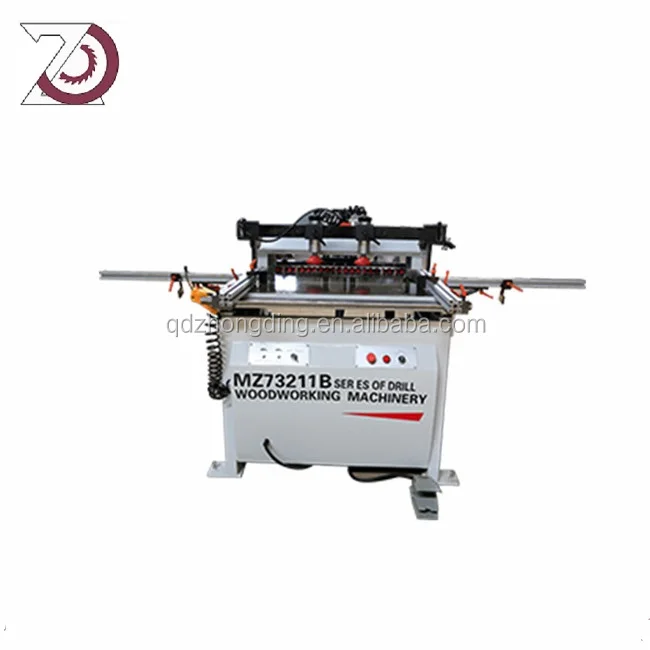

Pictures:
