Ходовые непосредственные действующие автоматический слив воды электромагнитный клапан с YS-3800 цифровой
- Категория: Solenoid Valves >>>
- Поставщик: Hangzhou,Darhor,Technology,Co.,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.59 $* | 0.2 $* |
| Aug-18-2025 | 0.6 $* | 0.38 $* |
| Jul-18-2025 | 0.19 $* | 0.38 $* |
| Jun-18-2025 | 0.80 $* | 0.62 $* |
| May-18-2025 | 0.87 $* | 0.90 $* |
| Apr-18-2025 | 0.33 $* | 0.59 $* |
| Mar-18-2025 | 0.59 $* | 0.62 $* |
| Feb-18-2025 | 0.89 $* | 0.89 $* |
| Jan-18-2025 | 0.22 $* | 0.83 $* |
Характеристики
Product Description

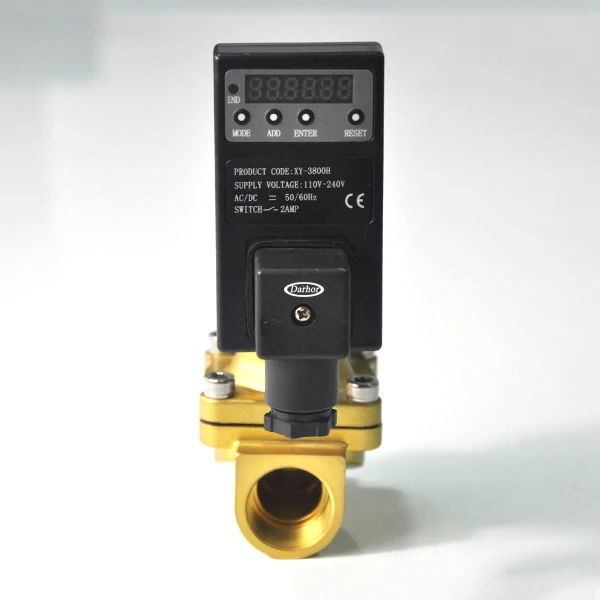

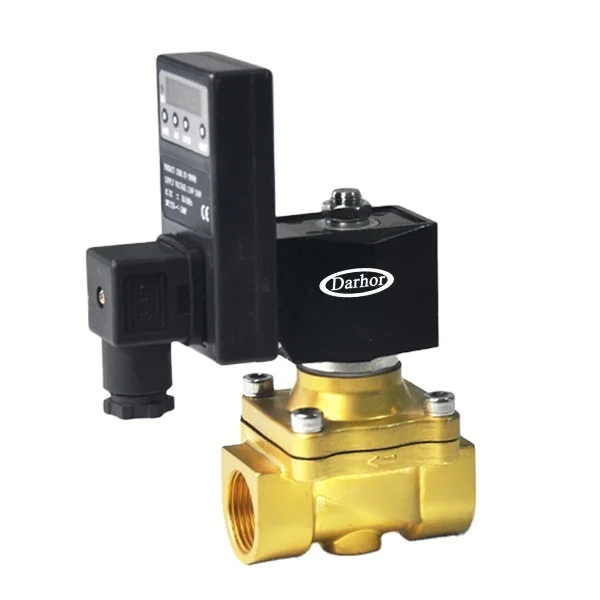

Direct acting auto drain solenoid valve with YS-3800 digital timer
Characteristic:
1.Direct lifting diaphragm construction;
2.Open from zero bar for low pressure system use;
3.High frequency of flying lead coil.
Material:
Body-Brass,Stainless steel
Seal- NBR, EPDM or VITON
Armature Tube-Stainless Steel 304
Plunger- Stainless Steel 430F
Stop- Stainless Steel 430F
Springs- Ss304
Shading Rings- Copper
Medium: | Air, Gas, Water, Light oil, etc. |
Temperature: | NBR Seal:-10℃ to 80℃ EPDM Seal: - 10℃ to 120℃ VITON Seal: -10℃ to 150℃ |
Pressure: | 0-1.0 MPa |
Port Size: | 3/8'', 1/2'', 3/4'', 1'' |
Port Thread: | G, BSP, NPT, Flange |
Orifice(mm): | 12, 15, 20, 25, |
Voltage: | DC -6V,12V,24V AC -12V,24V,120V,240V/60Hz'110V,22V/50Hz Tolerance:+/-10% |
Coils: | Y32B,40VA(AC),18W(DC),IP65,100%ED Y42B,50VA(AC),20W(DC),IP65,100%ED |

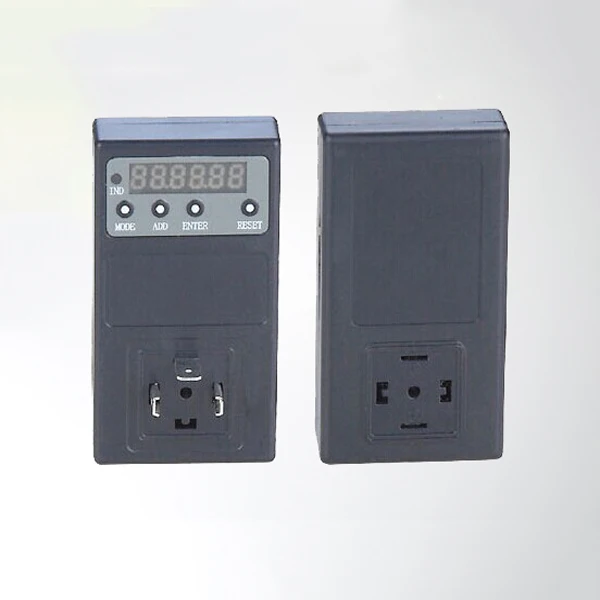

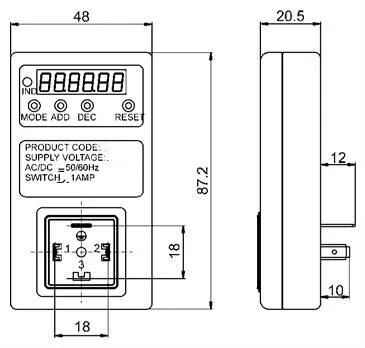

YS-3800 digital timer
Specification parameter table
Product model | YS-3800 | Open time | 1SEC-99h59min59sec Two way adjustable |
Working voltage | 7V-36V 110V-240V AC/DC | Circulation model | First open then close or first close then open |
Working temperature | -10-50C | Single model | Specify a time to open |
The Switch capacity | 1A | Connection method | DIN43650A |
Specifications
2W31 Normally Closed, with Coil S91B,DIN | ||||||||||||||||
Valve Body | Port size | Orifice | Cv | Min Pressure (MPa) | Max Pressure(MPa) | Seal Material | Body Material | |||||||||
AC(30VA) | DC(24W) | |||||||||||||||
2W3112XXX | 3/8'' | 12 | 4.5 | 0.0 | 1.0 | 1.0 | NBR, EPDM, or VITON | Brass,or stainless steel | ||||||||
2W3115XXX | 1/2'' | 15 | 4.5 | 0.0 | 1.0 | 1.0 | ||||||||||
2W3120XXX | 3/4'' | 20 | 9.3 | 0.0 | 1.0 | 1.0 | ||||||||||
2W3125XXX | 1'' | 25 | 12 | 0.0 | 1.0 | 1.0 | ||||||||||
Related Products
Detailed Image
\t\t\t\t\t\t\t\t\tCertifications \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tOur Company \t\t\t\t\t\t\t
International advanced machinery
Skilled employees
Each Darhor Valve pass 10 testings to ensure high quality!
Valve testing: Coil testing:
high pressure test low pressure test
leak detection water hammer test lifecycle test
resistance test current test
power test temperature test noise test
\t\t\t\t\t\t\t\t\tPacking & Delivery \t\t\t\t\t\t\t
Shockproof Bag to protect valve
Strong Cartons
1.English neutral packaging
2.with Darhor logo
3.with your logo (Charged)
membrane outside protect rain
Package more than 40kgs,use
Fumigated wooden case or pallet.
We will compensate to the damage!pls contact within 3 days when you receive.
